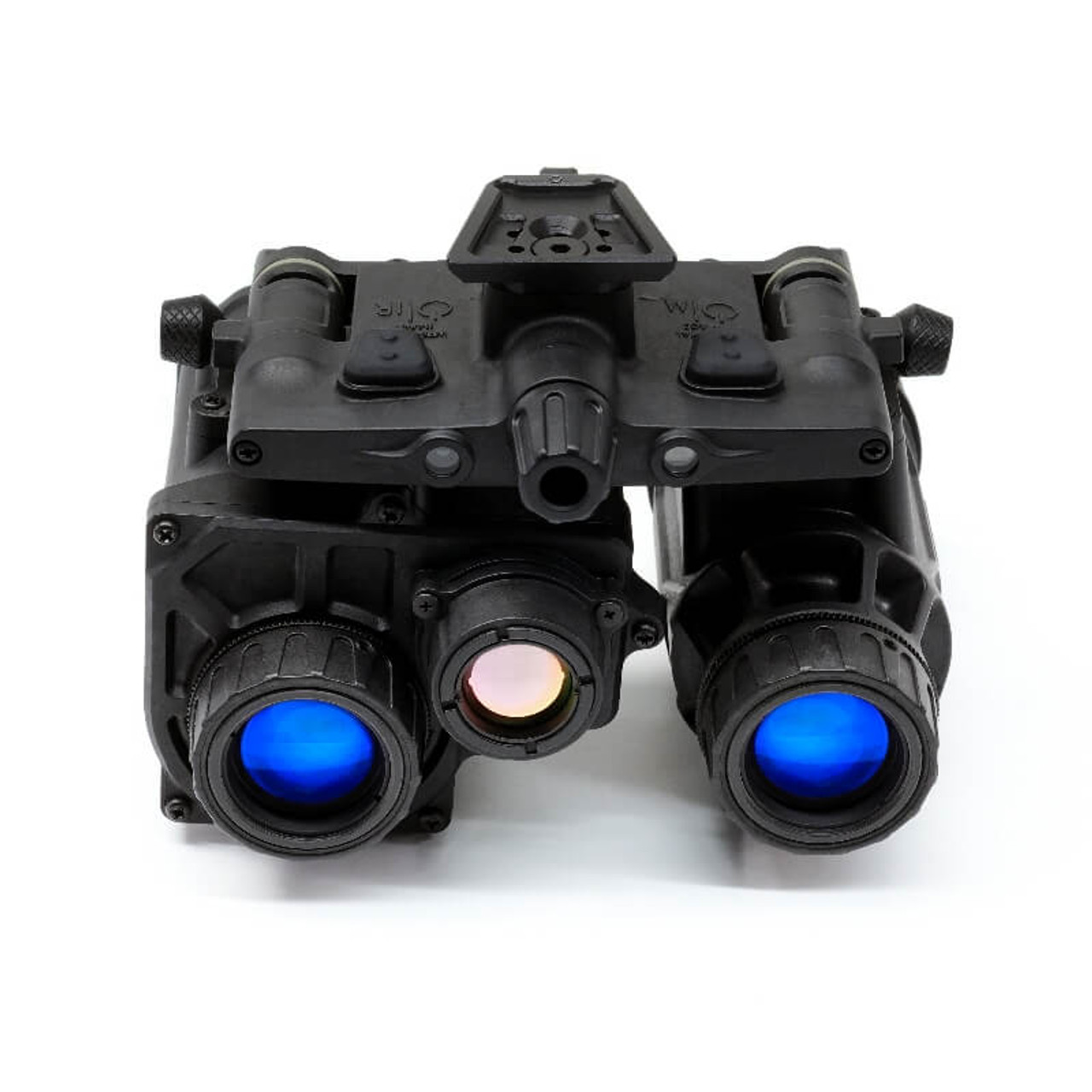

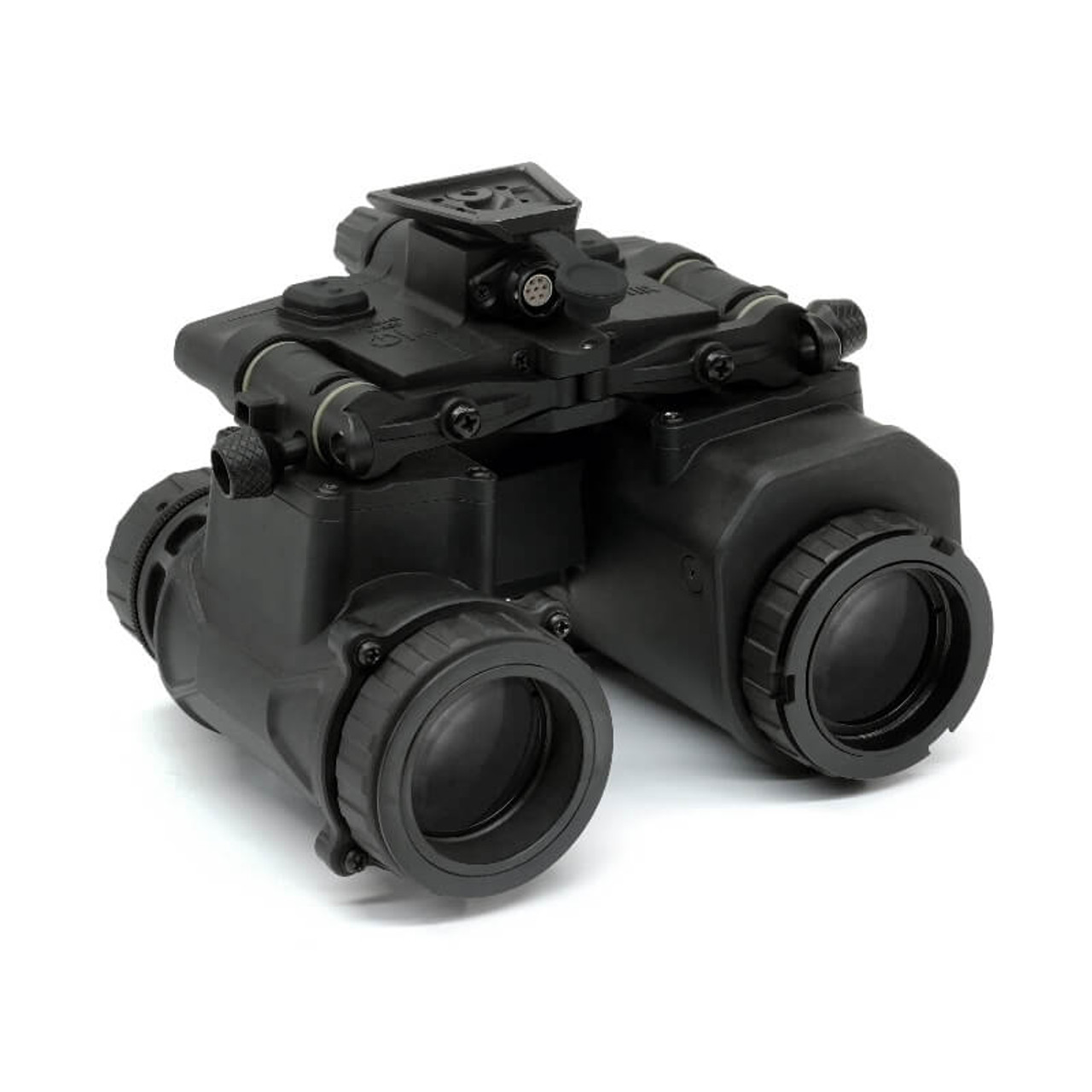

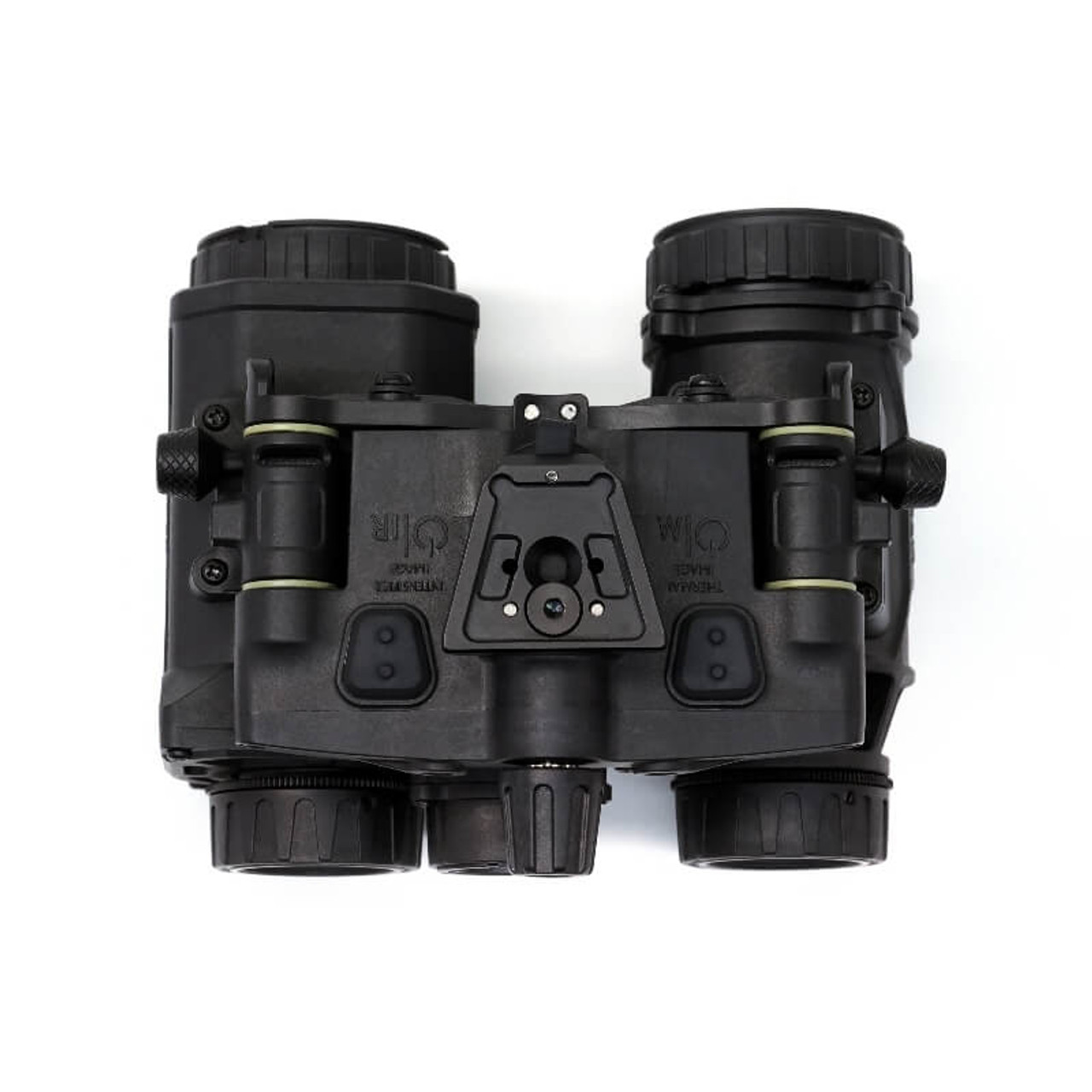

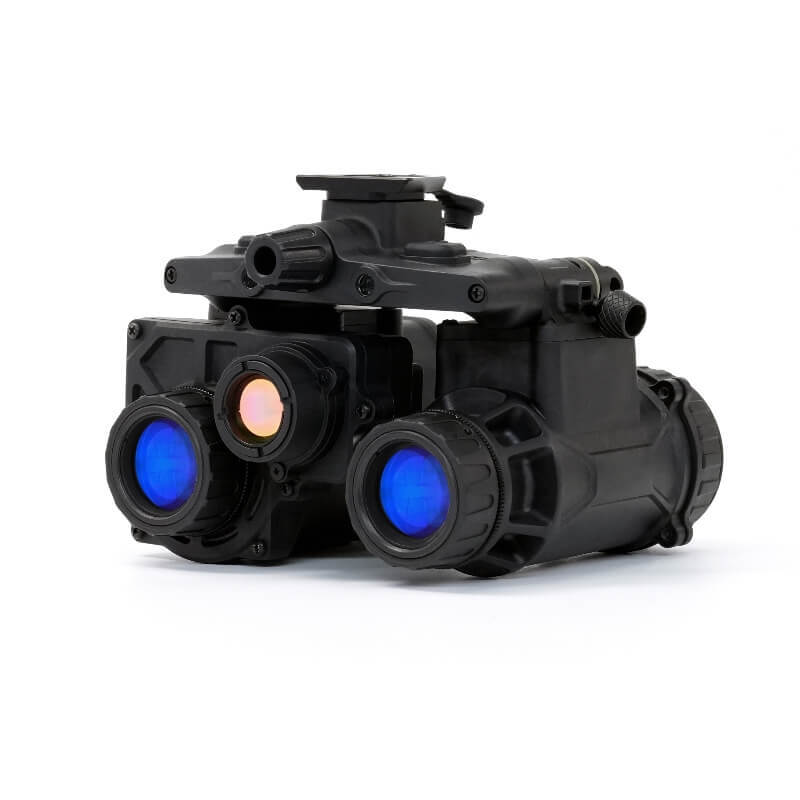

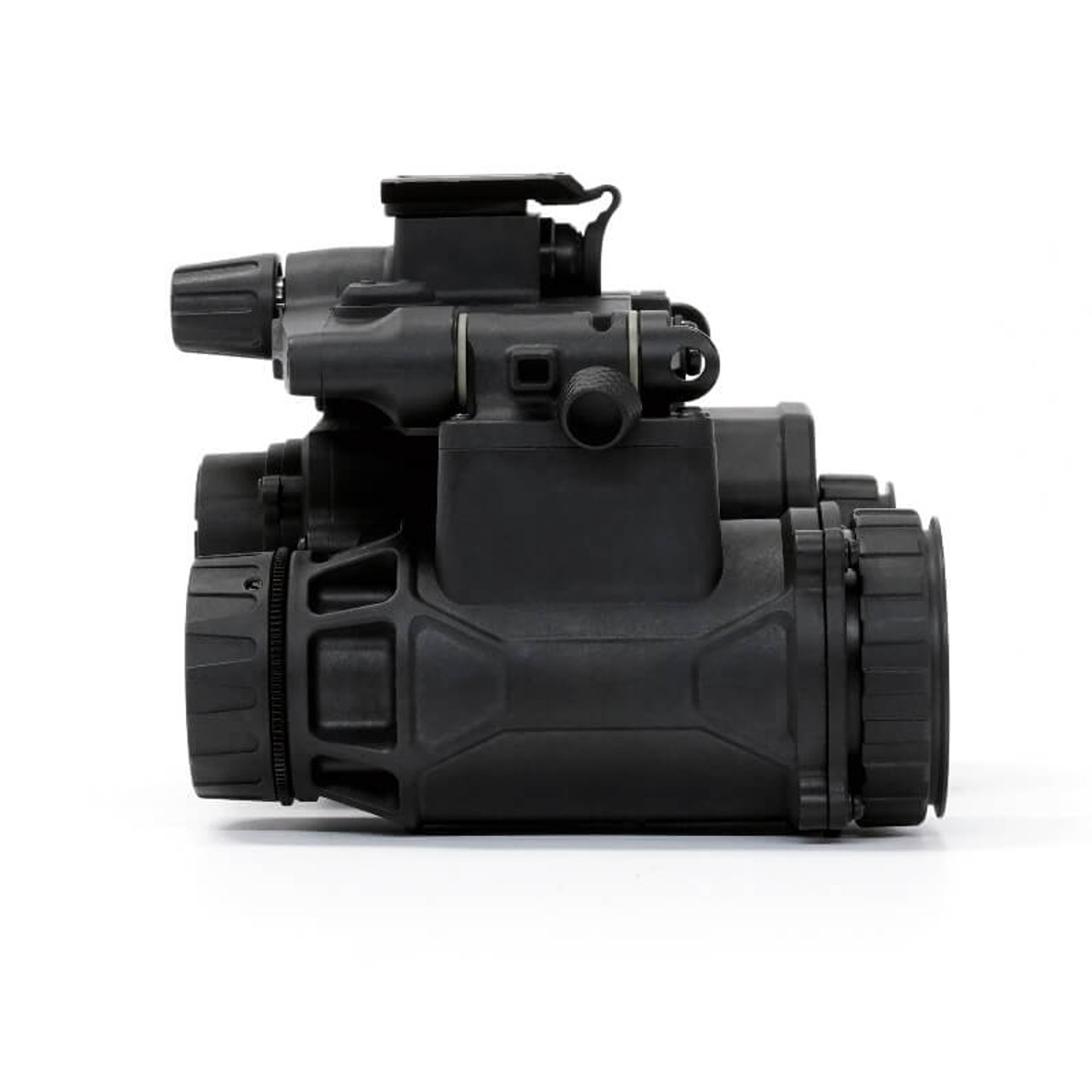

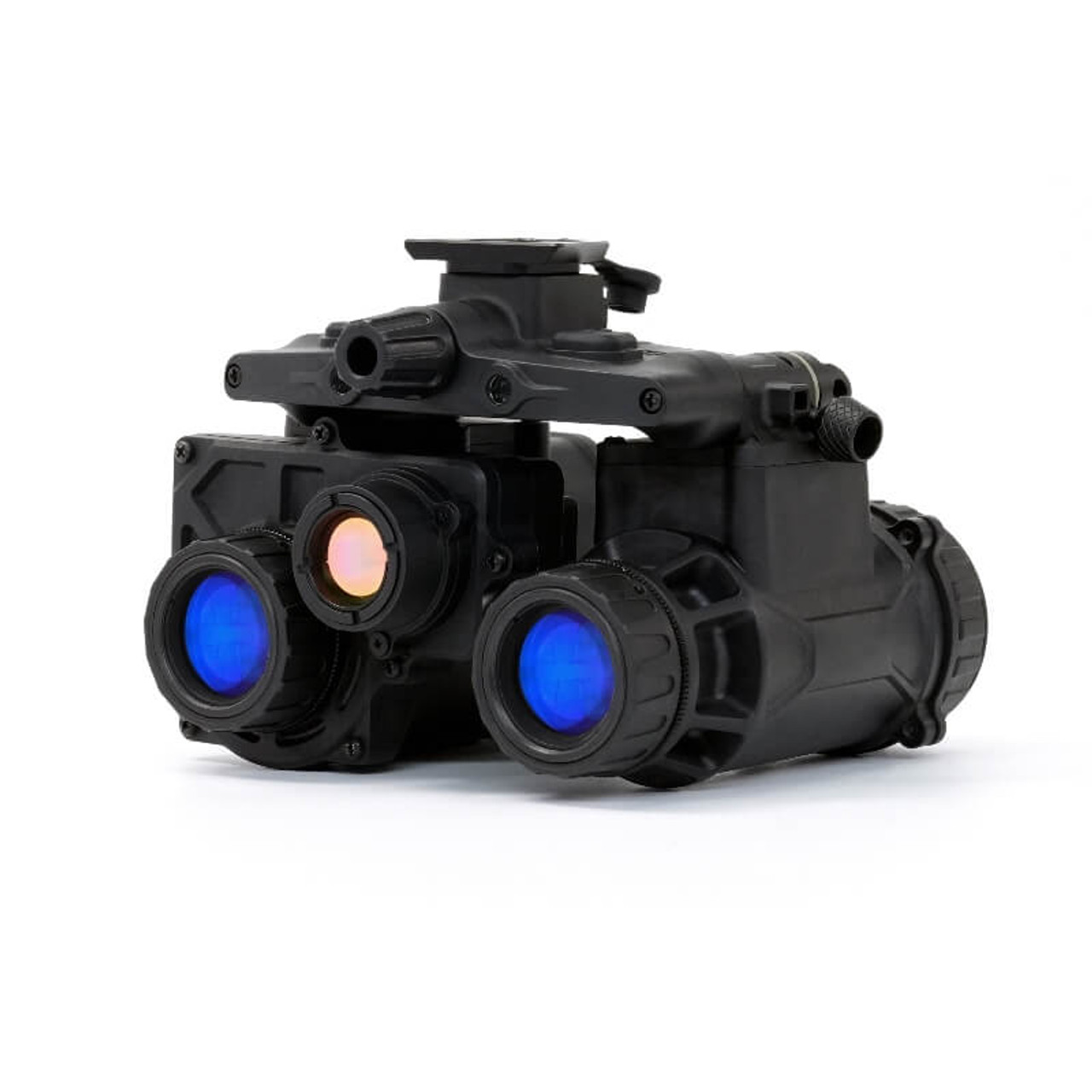

Rix RENV-B Enhanced Night Vision Binoculars

Rix RENV-B Enhanced Night Vision Binoculars

1400-1600 FOM WHITE PHOSPHOR

RENV-B Night Vision Binocular Features

Thermal & IIT Fusion Technology
The RENV-B is equipped with a 640×512 thermal detector and two high-performance image intensifier tubes. The system integrates infrared and image intensification technology with minimal imaging delay, enabling real-time tracking and precise target identification.

Multiple Fusion Image Modes
The RENV-B features a 0.6-inch full-color OLED display with 800×600 resolution. It provides multiple enhanced image modes, each designed for a specific purpose.

Bluetooth Remote Control
The Bluetooth remote control allows the user to operate the RENV-B wirelessly without directly touching the device. This greatly enhances ease of use, especially when hands are occupied or need to remain concealed.

Navigation & Positioning System
With its integrated GPS-based positioning system, the RENV-B delivers accurate location data—an essential feature for navigating difficult terrain or unfamiliar environments.

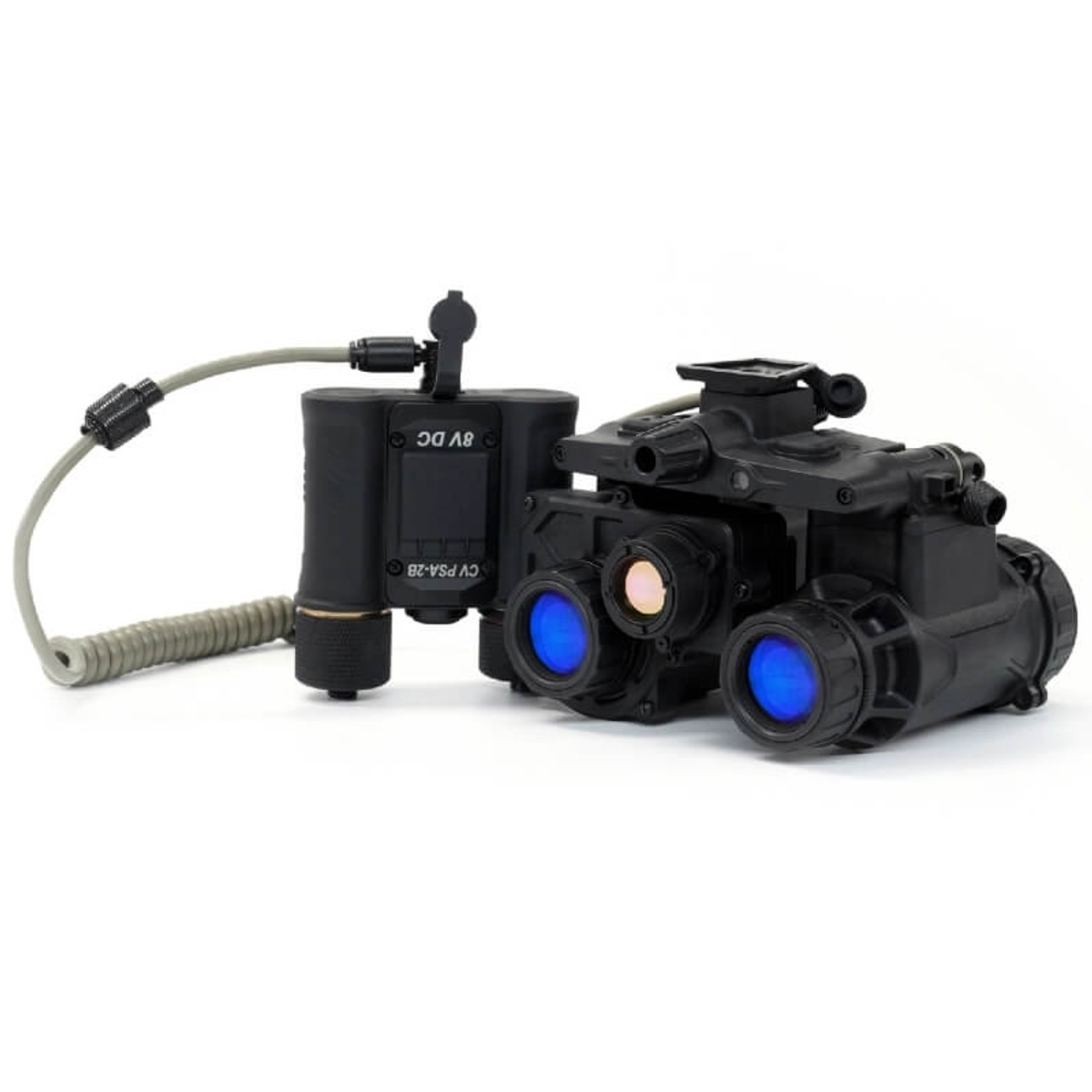

Long Working Time Battery Pack
With dual 18650 batteries, it provides over 60 hours of runtime in night vision mode and up to 8 hours in fusion mode.

More Features

• BSP (Bright Source Protection)
• Infrared Illuminator
• Operating Temperature: –40 to 122 °F
• Waterproof Rating: IP67
• Azimuth Indication
• Flip-Up Shut Off
• Easy to Use
• Multiple Fusion Modes Switchable

Rix RENV-B Night Vision Binocular Core Characteristics

• I² Magnification: 1.0x
• I² Lens: 25mm, F1.2
• Thermal Sensor: 640 × 512
• Thermal Lens: 16mm, F1.1
• Warranty: 5 Years

Rix RENV-B Night Vision Binocular Resources

RENV-B Night Vision Binocular Manual

Rix RENV-B Night Vision Binocular Specifications

Optics

• Magnification: 1x
• Exit Pupil Diameter: 14 mm
• Exit Pupil Distance: 25 mm
• Adjustment: -3 to +2 D

I²

• Generation: Gen 2+
• Resolution: 64 lp/mm
• Field of View: 40°
• Lens System: f/1.2, 25 mm
• Range of Focus: 0.27 yd to infinity
• Brightness Control: Yes
• Bright Source Protection: Yes
• Infrared Illuminator: Built-in

Thermal Imaging

• Type: VOx Uncooled
• Resolution: 640 × 512 pixels
• Pixel Pitch: 12 μm
• NETD: <30 mK
• Frame Rate: 50 Hz
• Lens System: f/1.1, 16 mm
• Field of View: 25.8° × 19.1°
• Brightness Control: Yes
• Polarity: White hot, Orange hot

Enhanced Modes

• Outline
• Highlight
• Breath

Sensors

• Azimuth Indication: Yes

Display

• Type: OLED
• Resolution: 800 × 600 pixels

Performance

• Detection Range: 1500 m / 1640 yd

Environmental

• Protection Rating: IP67
• Operating Temperature: -40°F to 122°F

Power

• Battery Type: 18650 × 2
• Battery Life (at 72°F): Enhanced Display ≥ 8 hrs, I² up to 60 hrs

Physical

• Dimensions: 4.2 × 4.5 × 3.3 in
• Weight: Main body 1.26 lb, Battery pack ≤ 0.23 lb (without battery)
