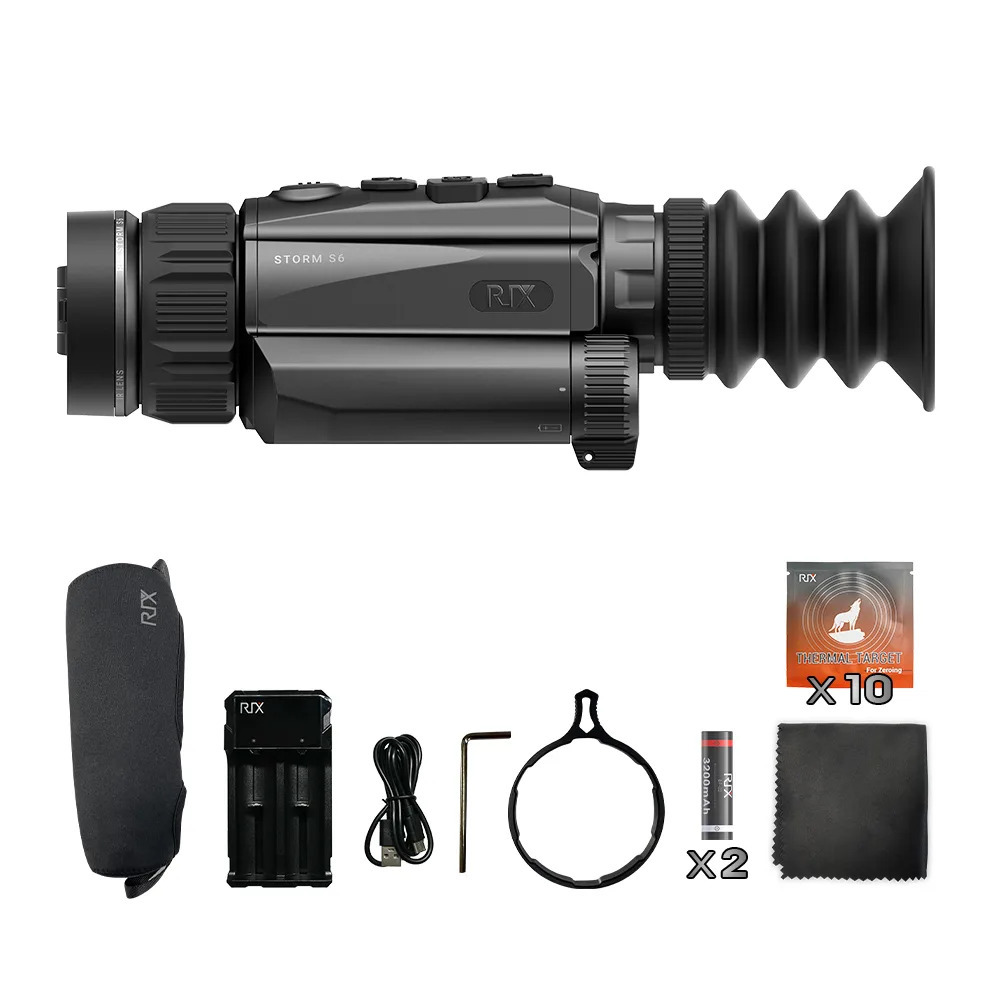

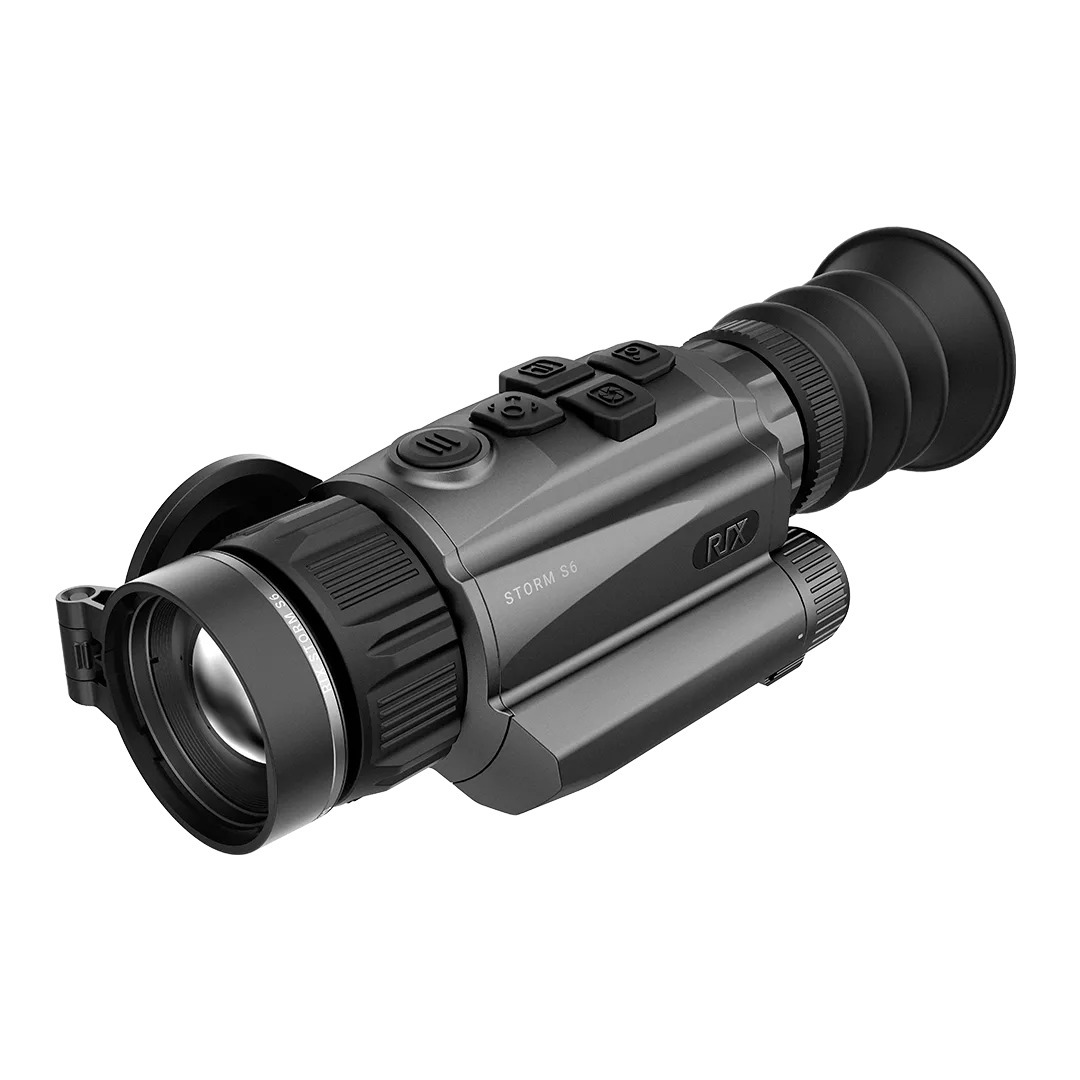

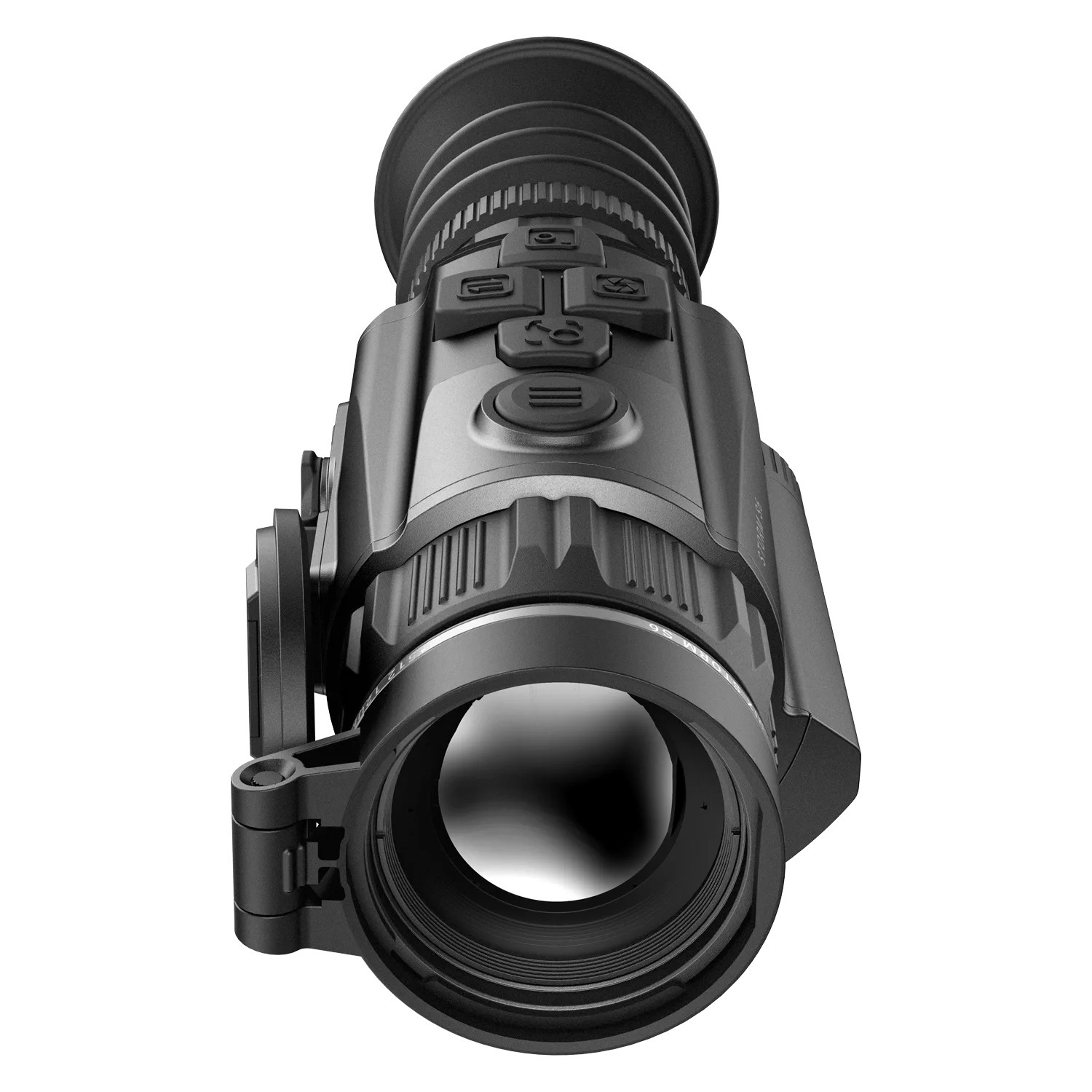

Rix Storm S6 Thermal Riflescope

Rix Storm S6 Thermal Riflescope

Rix Storm S6 Features

High-Performance Sensor
The Rix Storm S6 Thermal Riflescope has a 12µm sensor boasting, NETD<25mK, and a 50Hz refresh rate.

1024×768 Full Color OLED

Replaceable Battery & Quick-Detach Design
The Storm S6 Thermal Riflescope is powered by a replaceable 18650 battery that offers 5 hours of uninterrupted use. The innovative 90-degree, quick-detach battery cap design facilitates effortless battery swapping.

Intuitive Operating System
With the Storm S6, each function corresponds to a single button. You no longer need to scroll through menus to find the desired function. The buttons are directly mapped to the user interface (UI), so when you press a button, the corresponding function on the UI lights up, providing a clear indication of which function you have triggered. Additionally, these four buttons can also be used as directional keys, allowing for convenient zeroing.

Return to Center Function (RTC)
After zeroing, the RTC function will automatically reposition the reticle closer to the center of the x-axis and y-axis. If the deviation from the center position is minimal, it can even realign the reticle directly to the center, enabling you to have a more comfortable field of view and making it easier to maintain focus on the target.

Adjustable Picture-In-Picture (PIP)
Unlike some other scopes where the Picture-in-Picture (PIP) image is magnified along with the outer image, the Storm S6 Thermal Riflescope allows you to adjust the magnification level of the PIP image independently.

Weather Mode
Through intelligent parameter adjustments, the Storm S6 guarantees a consistently sharp and detailed view, regardless of the weather conditions.

1000g Impact Resistance
The Rix Storm S6 is built to withstand impacts of up to 1000g, making it an excellent choice for hunting weapons with larger calibers such as .375 H&H, 12-gauge, and 9.3×64.

IP67 Waterproof

Wi-Fi Integration with RIX+ App
The Rix Storm S6 has built-in Wi-Fi, enabling connectivity with your Android or iOS smartphone through the RIX+ app.

Photo, Video Recording and Built-in MIC

A Wide Array of Reticle Choices

RAV Function
With THE cutting-edge Recoil Activated Video feature, the Rix Storm S6 captures moments, even if you forget to manually start recording. Equipped to detect recoil, it automatically records the moments before and after each shot.

Storm S6 Thermal Riflescope Core Characteristics

• Sensor Resolution: 640×512
• Objective Lens: 35mm
• Optical Zoom: 2
• Display Resolution: 1024×768
• Operating Time: 5h

Rix Storm S6 Specifications

Sensor Specifications

• Type: VOx Uncooled
• Resolution, pixels: 640×512
• Pixel Pitch, µm: 12
• NETD, mK: <25
• Frame Rate, Hz: 50

Optical Specifications

• Objective Lens, mm: 35
• Optical Zoom, x: 2
• Field of View, degrees / yd @ 100 yd: 12.5° / 21.9 yd
• Digital Zoom, x: 1 to 4
• Eye Relief, mm: 48
• Diopter Adjustment, D: -5 to +5
• Detection Range, m/yd: 1800 / 1969

Display Specifications

• Type: OLED
• Resolution, pixels: 1024×768

Wi-Fi

• Wireless Protocol: Wi-Fi
• Frequency, GHz: 2.4GHz

Video Recorder

• Video / Photo Resolution, pixels: 1024×768
• Video / Photo Format: .mp4 / .jpg
• Built-in Memory, GB: 32

Physical Specifications

• Degree of Protection, IP code: IP67
• Operating Temperature Range, °F: -4 to +122
• Weight, lb: 0.97
• Dimensions, inch: 5.3 × 2.5 × 2.2

Connections and Compatibilities

• Battery Type: 18650
• Capacity, mAh: 3200
• Operating Time on Battery Pack (at t=72°F), h: 5
• External Power Supply, V: 5V (Type C USB)
• Max Recoil Power on Rifled Weapon (Eo), g/Joules: 1000g / 6000Joules
• Compatible Mounts: Picatinny mount
