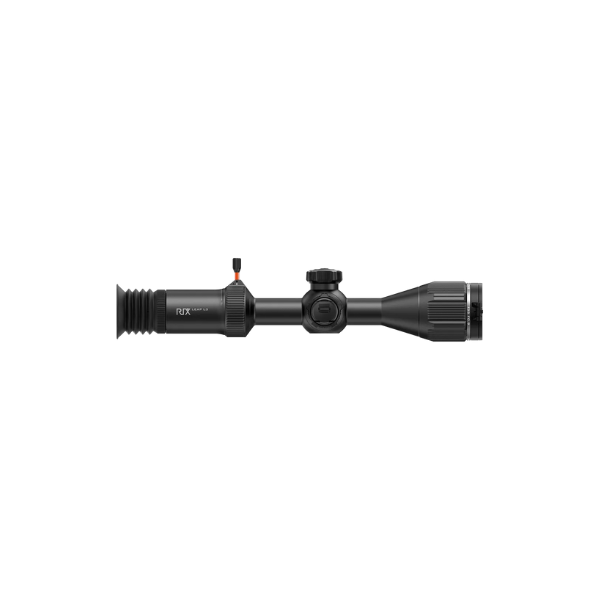

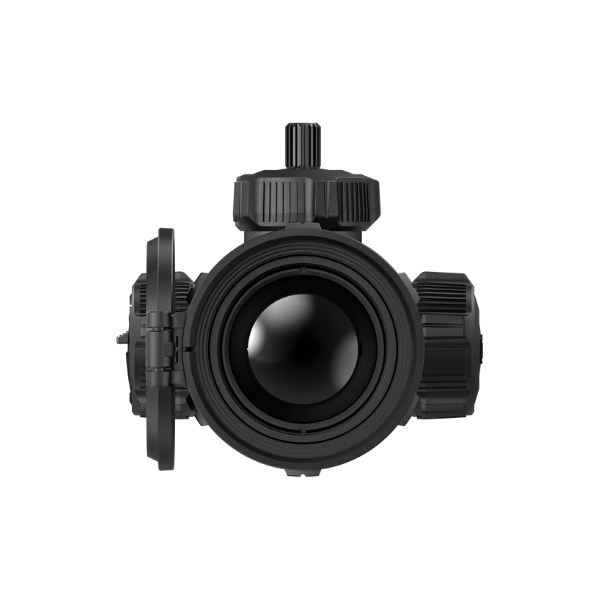

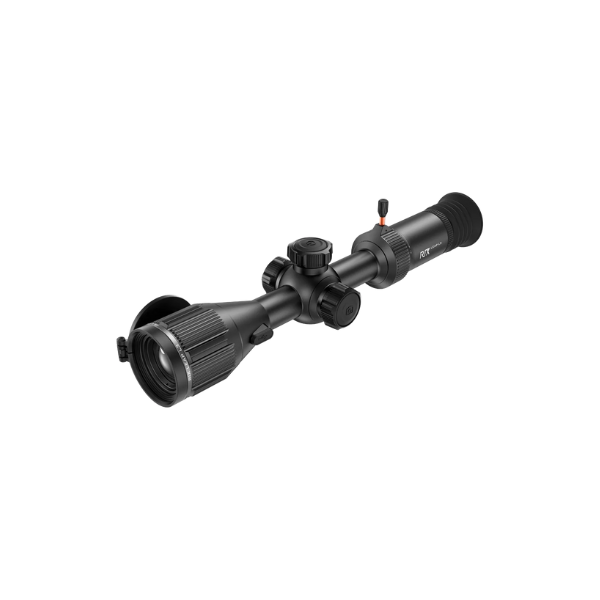

Rix Leap L3 Thermal Riflescope

Rix Leap L3 Thermal Riflescope

Rix Leap L3 Features

• High-sensitivity infrared detector and advanced thermal imaging technology
• 30mm standard tube diameter for easy mounting
• Range of functionalities, including photography, video recording, automatic shooting capture, optical and electronic zoom, Picture-in-Picture (PIP), and a variety of reticle options
• Extended usage with the replaceable 18650 battery. A single battery provides over 9 hours of continuou
• Simplify and streamline your operation with three knobs and two buttons, providing a user-friendly experience where zeroing adjustments no longer require changing directions.

Rix Leap L3 Core Characteristics

• Sensor Resolution: 384×216
• Objective Lens: 35mm
• Optical Zoom: 3.2 to 9.6
• Display Resolution: 1920×1080
• Operating Time: 7h

Leap L3 Specifications

Sensor Specifications

• Type: VOx Uncooled
• Resolution, pixels: 384×216
• Pixel pitch, μm: 12
• NETD, mK: <25
• Frame rate, Hz: 50

Optical Specifications

• Objective Lens, mm: 35
• Optical zoom, x: 3.2 to 9.6
• Field of View, degrees / yd @ 100 yd: 7.5° / 13.2 yd
• Digital zoom, x: 1 to 4
• Eye relief, mm: 50
• Diopter adjustment, D: -5 to +5
• Detection Range, m/yd: 1800 / 1968

Display Specifications

• Type: OLED
• Resolution, pixels: 1920×1080

Wi-Fi

• Wireless protocol: Wi-Fi
• Frequency, GHz: 2.4 GHz

Video Recorder

• Video/Photo resolution, pixels: 960×720
• Video/Photo format: .mp4 / .jpg
• Built-in memory, GB: 32

Physical Specifications

• Degree of Protection, IP code: IP67
• Operating Temperature Range, °F: -4 to +122
• Weight, lb: 2.4
• Dimensions, inch: 14.2 × 3.5 × 3

Connections and Compatibilities

• Battery Type: 18650
• Capacity, mAh: 3200
• Operating Time on Battery Pack (at t = 72°F), h: 7
• External Power Supply, V: 5V (Type C USB)
• Max Recoil Power on Rifled Weapon (Eo), g/Joules: 1000g / 6000 Joules
• Compatible Mounts: 30mm rings
