Pulsar Thermion 2 LRF XL50 Thermal Riflescope 1.75-14x 50mm 1024x768

✨  Pulsar Thermion 2 LRF XL50 Thermal Riflescope  ✨

Features:

• Base magnification of 1.75x
• Digital zoom in increments of 2/4/8
• <35 NETD thermal sensor with 1024x768 resolution and 12µm pixel pitch
• AMOLED 1024x768 display
• 8 different thermal color palettes
• Integrated ballistic calculator for long-range shooting

10 shooting profiles / 100 zeroing distances
Zeroing settings are saved in a shooting profile. The Thermion 2 LRF XL50 memory contains up to 10 shooting profiles for several types of weapons or cartridges. Each profile holds up to 10 zeroing distances input manually, but can be transformed for automatic ballistic calculations based on measured distance using the Stream Vision ballistics app

High-precision aiming in the «Picture-in-picture» mode
The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to closely see the image in the aiming area and have visual control of the entire field of view at the same time.

.375H&H ready
Thermion 2 LRF XL50 thermal riflescope is high impact resistant and can be used with rifled hunting weapons with calibers of 9.3x64, .30-06, .300, .375H&H, etc., as well as with smooth-bore and pneumatic weapons.

A selection of 10 reticle shapes in 9 colour modes
Thermions possess a wide array of shape and color customizable reticles, including static, ballistic and scalable reticles. 9 Color options help to optimize aiming for specific conditions.

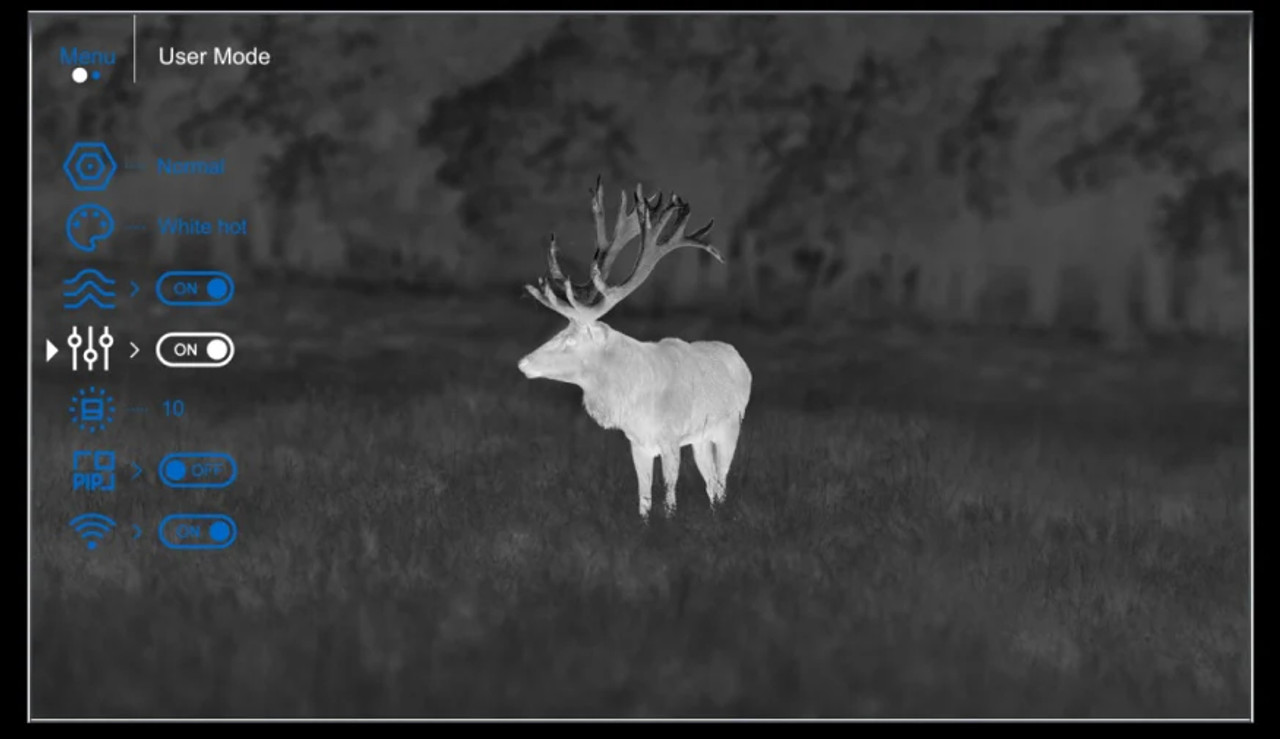

Customizable user mode for individual image adjustment
Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

64 GB memory photo and video recording
One touch of a button is enough to capture an interesting moment or start recording a video. 64 GB of internal memory gives the ability to record many hours of video and tens of thousands of photos.

Combined dual battery system
The Thermion 2 LRF XL50 is powered with two rechargeable batteries: one built-in with a capacity of 4.9 A·h, and the other replaceable. The standard package supply includes replaceable batteries of 2A·h and 3.2 A·h capacity. A single charge guarantees up to 10 hours of continuous operating time. The embossing on the body of the replaceable batteries enables accurate determination of the correct position and enables replacing a flat battery with a new one quickly and confidently in complete darkness by touch alone.

Flexible set of colour palettes for various needs
1024x768 HD AMOLED display has enhanced color rendering, power saving, a high contrast image and quick-response, providing clear and smooth images for on-the-move observation or in cold conditions. A choice of 8 colour palettes lets the users observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Stream Vision 2. Wi-Fi integration with iOS and Android devices
Built-in Wi-Fi connects the Merger LRF to Android and iOS smartphones via the Stream Vision 2 mobile application.

Operation in extreme temperatures -25 to +50°C
Housing, power unit, optics and electronics of Merger LRF are designed with regard to applications in wide range of temperatures.

IPX7 submersion waterproof rated
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation.

Specifications:

Sensor

• Type: uncooled

• Resolution: 1024x768 pixels

• Pixel pitch: 12 µm

• NETD: 35 mK

• Frame rate: 50 Hz

Optics

• Objective lens: F50 / 1.0

• Magnification: 1.75 – 14x

• Field of view (HxV): 14x10.5° / 24.6x18.4 m @ 100 m

• Eye relief: 50 mm

Display

• Type: AMOLED

• Resolution: 1024x768 pixels

Range Performance

• Detection range: 2300 m

Laser Rangefinder

• Safety class for laser equipment according to IEC 60825-1:2014: 1

• Wavelength: 905 nm

• Max. measuring range: 800 m

• Measurement accuracy: ± 1 m

Reticle

• Click value, H/V, mm at 100 m:
  - 24 – 1.75x
  - 12 – 3.5x
  - 6 – 7x
  - 3 – 14x

• Click range, H/V, mm at 100 m: 4800 / 4800

• Number of preloaded reticles: 10

Video Recorder

• Video / photo resolution: 1024x768 pixels

• Video / photo format: .mp4 / .jpg

• Built-in memory: 64 GB

Wi-Fi

• Wireless Protocol: Wi-Fi

• Wireless Standard: IEEE 802.11 b/g/n/ac

• Frequency: 2.4 / 5 GHz

Bluetooth

• Wireless Protocol: BLE 4.2

• Wireless Standard: IEEE 802.15.1

• Frequency: 2.4 / 5 GHz

Environmental Characteristics

• Degree of protection, IP code (IEC60529): IPX7 (waterproof)

• Operating temperature range: -25 – +50 °С

Connections and Compatibilities

• Max. recoil power on rifled weapon (Eo): 6000 Joules

• Shock resistance on the smooth-bore rifles, caliber: 12

• Compatible mounts: Standard 30 mm rings

• Supported Application: Stream Vision 2, Stream Vision Ballistics

Power Supply

• Output voltage: 3.0 – 4.2 V

• Battery type:
  - Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external)
  - 4.9 A·h Battery (internal)

• Capacity: 2000 mAh (external) + 4900 mAh (internal)

• Operating time on battery pack (at t=22°C): 7 h

• External power supply: 5 V, 9 V (USB Type-C Power Delivery)

Weight & Size

• Body material: Aluminum alloy

• Dimensions: 426 x 78.5 x 94.5 mm

• Weight: 1.03 kg
