Pulsar Telos XL50 Thermal Monocular 2.5-20x 50mm 1024x768

✨  Pulsar Telos XL50 Thermal Monocular  ✨

Features:

• Microbolometer resolution: 1024 x 768
• Frame Rate: 50Hz
• NETD: <40mK
• Display resolution: 1024x768

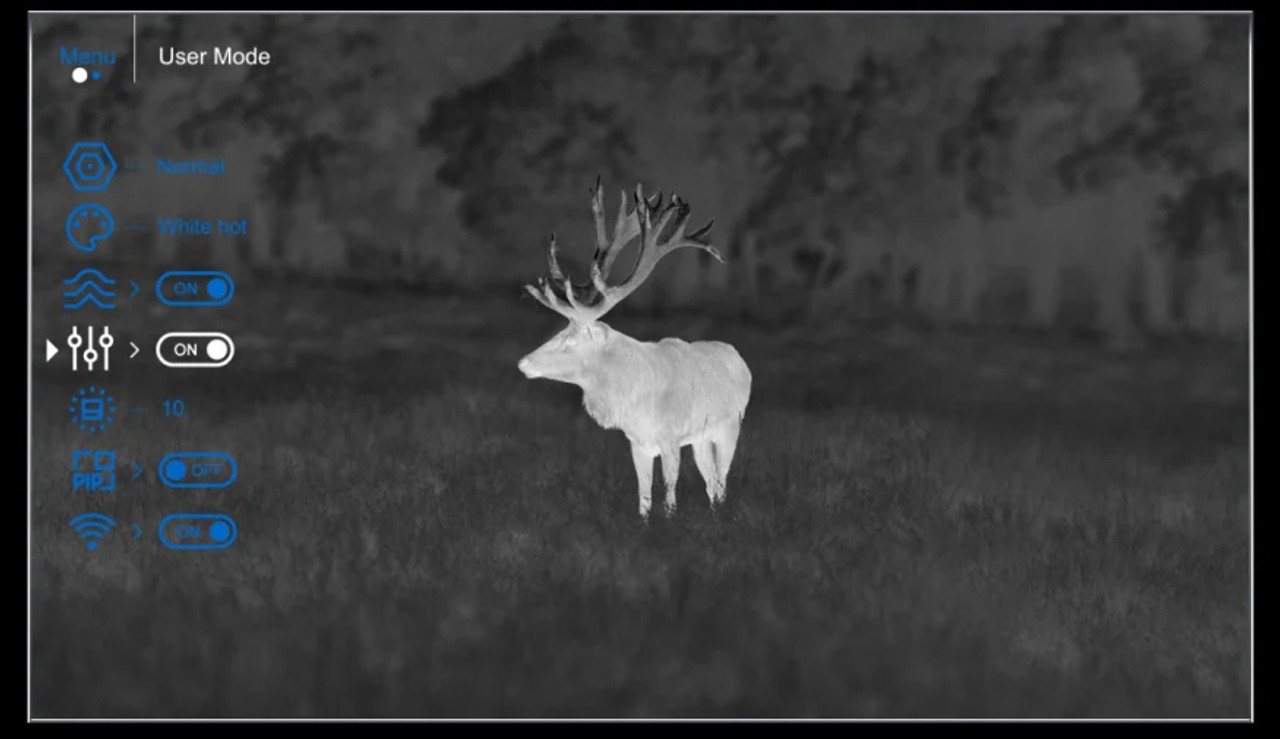

• User Mode

Specifications:

Sensor

• Type: Uncooled

• Resolution: 1024x768 pixels

• Pixel Pitch: 12 µm

• NETD: <40 mK

• Frame Rate: 50 Hz

Optics

• Objective Lens: F50 / 1.0

• Magnification: 2.5 – 20x (8x digital zoom)

• Field of View (HxV): 14° x 10.5° / 24.6m x 18.5m @ 100m

• Eye Relief: 14 mm

Display

• Type: AMOLED

• Resolution: 1024x768 pixels

Range Performance

• Detection Range: 2300 m

Video Recorder

• Resolution: 1024x768 pixels

• Format: .mp4 / .jpg

• Built-in Memory: 64 GB

Wi-Fi

• Protocol: Wi-Fi

• Standard: IEEE 802.11 b/g/n/ac (WPA)

• Frequency: 2.4 / 5 GHz

Environmental Characteristics

• Degree of Protection: IPX7 (waterproof)

• Operating Temperature Range: -25°C to +40°C

Connections and Compatibilities

• Mount Type: 1/4"

• Supported Application: Stream Vision 2

Power Supply

• Output Voltage: 3.0–4.2 V

• Battery Type: LPS 7i Li-Ion Battery Pack

• Capacity: 6400 mAh

• Operating Time: 7 hours (at 22°C)

• External Power Supply: 5V, 9V (USB Type-C Power Delivery)

Weight & Size

• Body Material: Rubber armored reinforced plastic

• Dimensions: 243x72x90 mm

• Weight: 0.58 kg (without battery) / 0.72 kg (with battery)
