Pulsar Axion XG30 Compact Thermal Monocular 2-16x

✨ Pulsar Axion XG30 Compact Thermal Monocular   ✨

High-quality reinforced magnesium alloy housing
The magnesium alloy housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, its metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

Dual Wi-Fi waveband support 2.4 / 5 GHz
In Axion thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz WiFi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability.

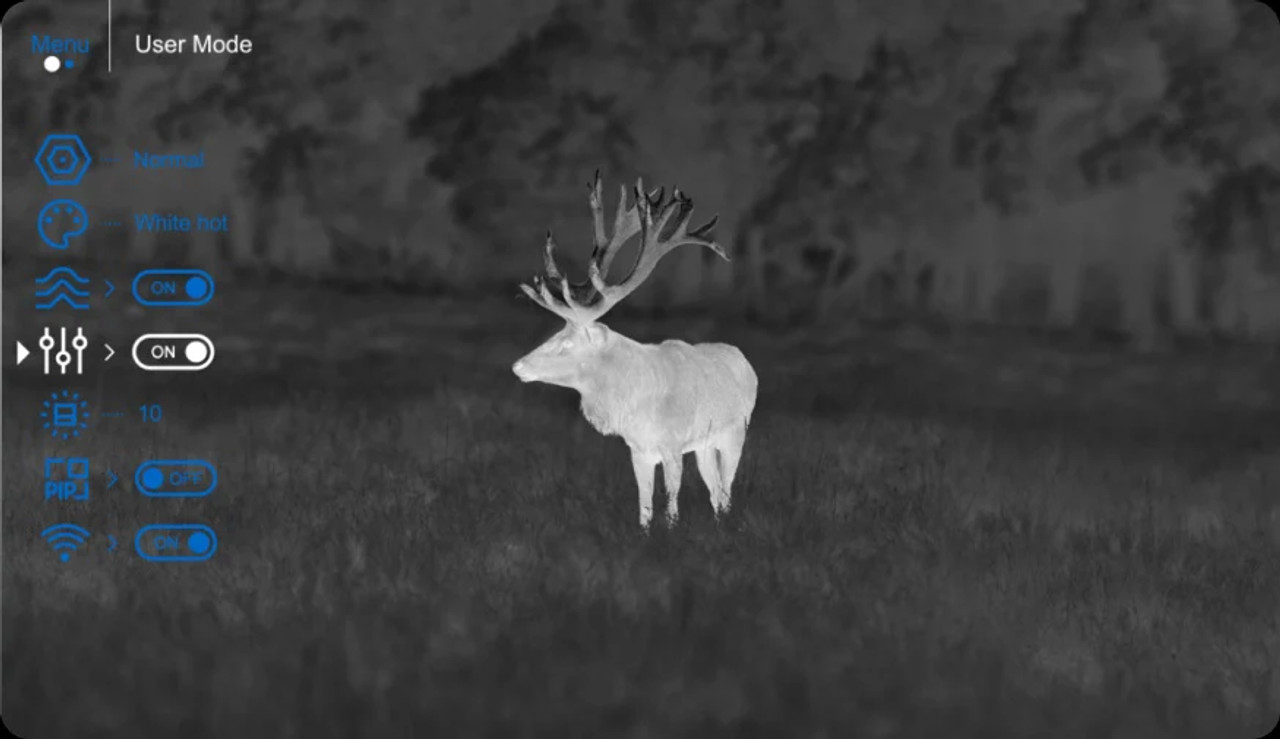

User mode
Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager.

European made thermal imaging sensors
The Axion Compact Series is ideal for scanning and game finding. Quality European made sensors ensure excellent image in all conditions. A 640×480/12 micron sensor provides enough detail for hot object identification.

Extended battery life. Up to 7 hours on a single charge
A quick-change APS3 rechargeable battery provides 7 hours of continuous operation of the thermal imaging device on a single charge.

3 levels of sensitivity amplification
Three levels of signal amplification in combination with a connected smoothing filter and fine brightness and contrast adjustments give the hunter great opportunities for long-range detection.

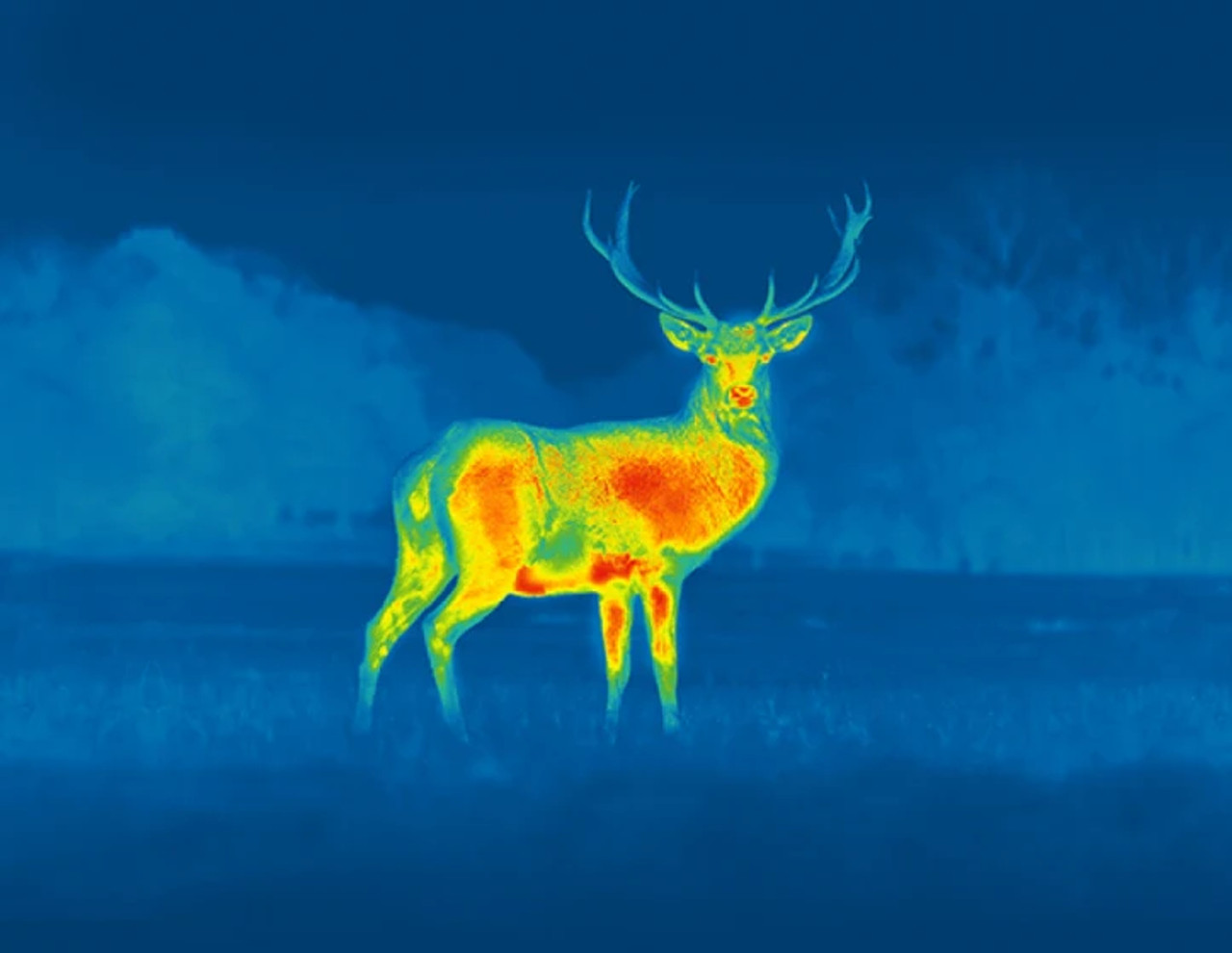

A selection of 8 color palettes
A choice of 8 color palettes allows the user to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification, while Red Monochrome, Sepia and Violet are most suitable for

Pocket-Sized And Light Weight
Axion monoculars have a space-saving, pocket-sized design. The device is easy to grip and operate for both right-handed and left-handed people due to the symmetrical arrangement of buttons on the upper panel.

Stream Vision 2 App Support for iOS and Android
The built-in Wi-Fi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application.

High-contrast AMOLED Display
A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

IPX7 submersion waterproof rated
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

Specifications

Sensor

• Type: Uncooled
• Resolution, pixels: 640x480
• Pixel pitch, µm: 12
• NETD, mK: <40
• Frame rate, Hz: 50
• sNETD, mK: <25

Optics

• Objective lens: F35/1.0
• Magnification, x: 2-16x
• Field of view (HxV), degrees: 14.6
• Eye relief, mm: N/A

Display

• Type: AMOLED
• Resolution, pixels: 640x400
• Range Performance
• Detection range, yds: 1400

Video Recorder

• Video / photo resolution, pixel: 960x600
• Video / photo format: .mp4 / .jpg
• Built-in memory, GB: 64

Wi-Fi

• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency, GHz: 2.4 / 5

Environmental Characteristics

• Degree of protection, IP code (IEC60529): IPX7 (waterproof)
• Operating temperature range, °F: -13...+104

Connections and Compatibilities

• Mount, type: 1/4"
• Supported Application: Stream Vision 2

Power Supply

• Output voltage, V: 3.0 – 4.2
• Battery type: APS3 External
• Capacity, mAh: 3200
• Operating time on battery pack (at t=22°C), h: 7
• External power supply, V: 5V/9V USB-C

Weight & Size

• Body material: Magnesium alloy
• Dimensions, in: 5.6x1.6x2.7
• Weight, oz: 8.5 (with battery)
