Pulsar Axion 2 XG35 Thermal Monocular 2.5-20x 640x480

✨  Pulsar Axion 2 XG35 Thermal Monocular ✨

2.5-20x magnification

High-quality reinforced magnesium alloy housing
The magnesium alloy housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, a metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

Dual Wi-Fi waveband support 2.4 / 5 GHz
The standard smartphone connection frequency range via a 2.4 GHz WiFi channel is complemented with an effective 5 GHz range.

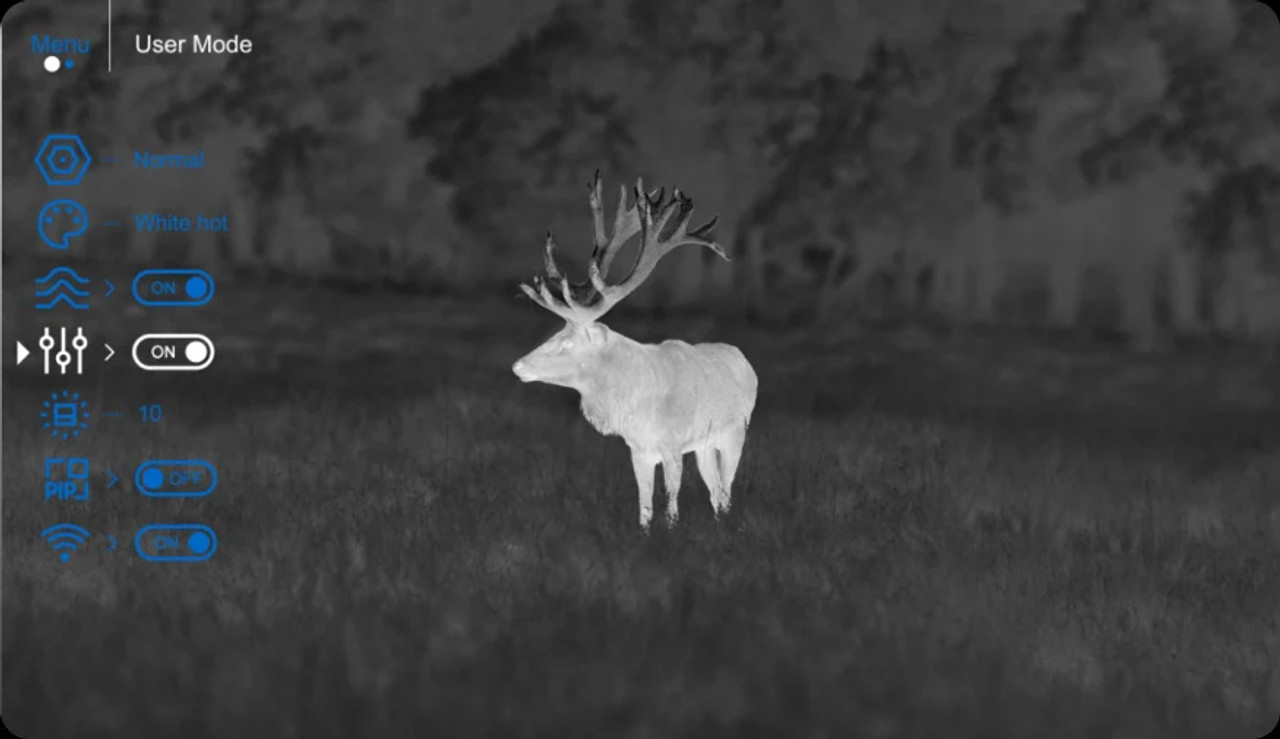

User mode
Brightness and contrast adjustments maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use.

Fast aperture F35/1.0 lens
Germanium F35/1.0 lens features high infrared transmission in the LWIR range.

Extended battery life. Up to 11 hours on a single charge
A high-capacity APS5 rechargeable battery provides hours of continuous operation of the thermal imaging device on a single charge.

European-made Lynred sensors
The Axion 2 thermal monoculars are equipped with a European Lynred sensors with a resolution of 384x288 pixels (pixel size 17 µm) / 640x480 pixels (pixel size 12 µm).

3 levels of sensitivity amplification
Three levels of signal amplification in combination with a connected smoothing filter and fine brightness and contrast adjustments give the hunter great opportunities for long-range detection of the animal under different weather and temperature conditions.

Pocket-sized dimensions and light weight

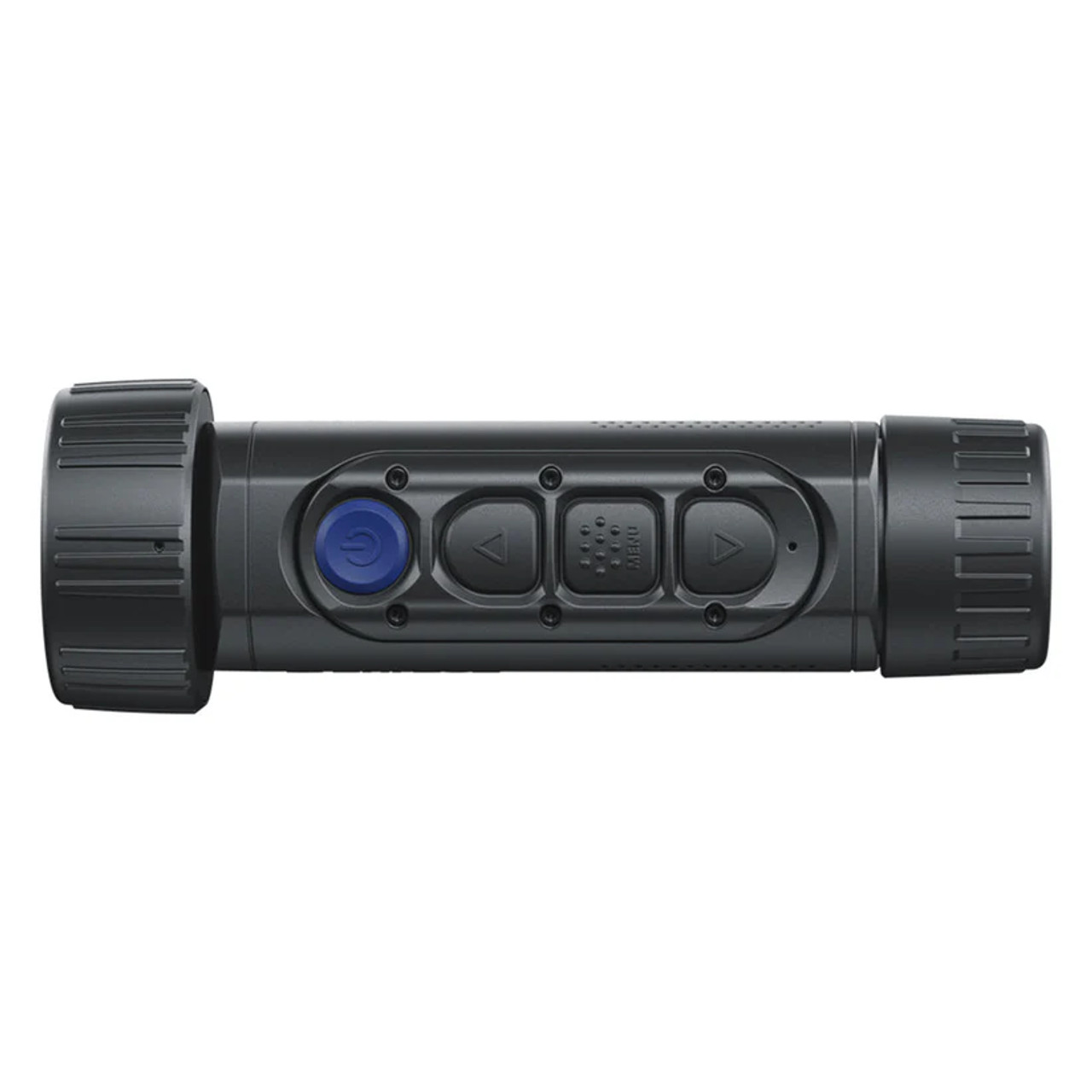

The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical design and in-line buttons arrangement on the upper panel.

Built-in photo and video recorder.
The internal memory of the Axion 2 can store hours of video and tens of thousands of photos. One touch of a button is enough to take a photo of an interesting scene or start recording video.

Distant operation and firmware update from smartphone via Stream Vision 2 App
Built-in WiFi connects the Axion 2 to Android and iOS smartphones via the Stream Vision 2 mobile application

Fast start-up
The Axion 2 features a short turn-on time: the device is fully functional within 5 seconds after pressing the ON button. Quick start-up helps save battery power

IPX7 submersion waterproof rated
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation

High-contrast AMOLED Display
A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

A selection of 8 color palettes
White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification, while Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Specifications

Sensor

• Type: Uncooled
• Resolution, pixels: 640x480
• Pixel pitch, µm: 12
• NETD, mK: <40
• Frame rate, Hz: 50

Optics

• Objective lens: F35 / 1.0
• Magnification, x: 2.5 - 20 (x8 zoom)
• Field of view (HxV), degrees / m @ 100 m: 12.5x9.4 / 21.9x16.4
• Eye relief, mm: 14

Display

• Type: AMOLED
• Resolution, pixels: 1024x768

Range Performance

• Detection range, m: 1750

Video Recorder

• Video / photo resolution, pixel: 1024x768
• Video / photo format: .mp4 / .jpg
• Built-in memory, GB: 16

Wi-Fi

• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency, GHz: 2.4 / 5

Environmental Characteristics

• Degree of protection, IP code (IEC60529): IPX7
• Operating temperature range, °C: -25 – +40

Connections and Compatibilities

• Mount, type: 1/4"
• Supported Application: Stream Vision 2

Power Supply

• Output voltage, V: 3.0 – 4.2
• Battery type: APS 5 Li-ion Battery Pack
• Capacity, mAh: 4900
• Operating time on battery pack (at t=22°C), h: 7
• External power supply, V: 5V, 9V (USB Type-C Power Delivery)

Weight & Size

• Body material: Magnesium alloy
• Dimensions, mm: 152x50x74
• Weight, kg: 0.38 (with the APS5 battery)
