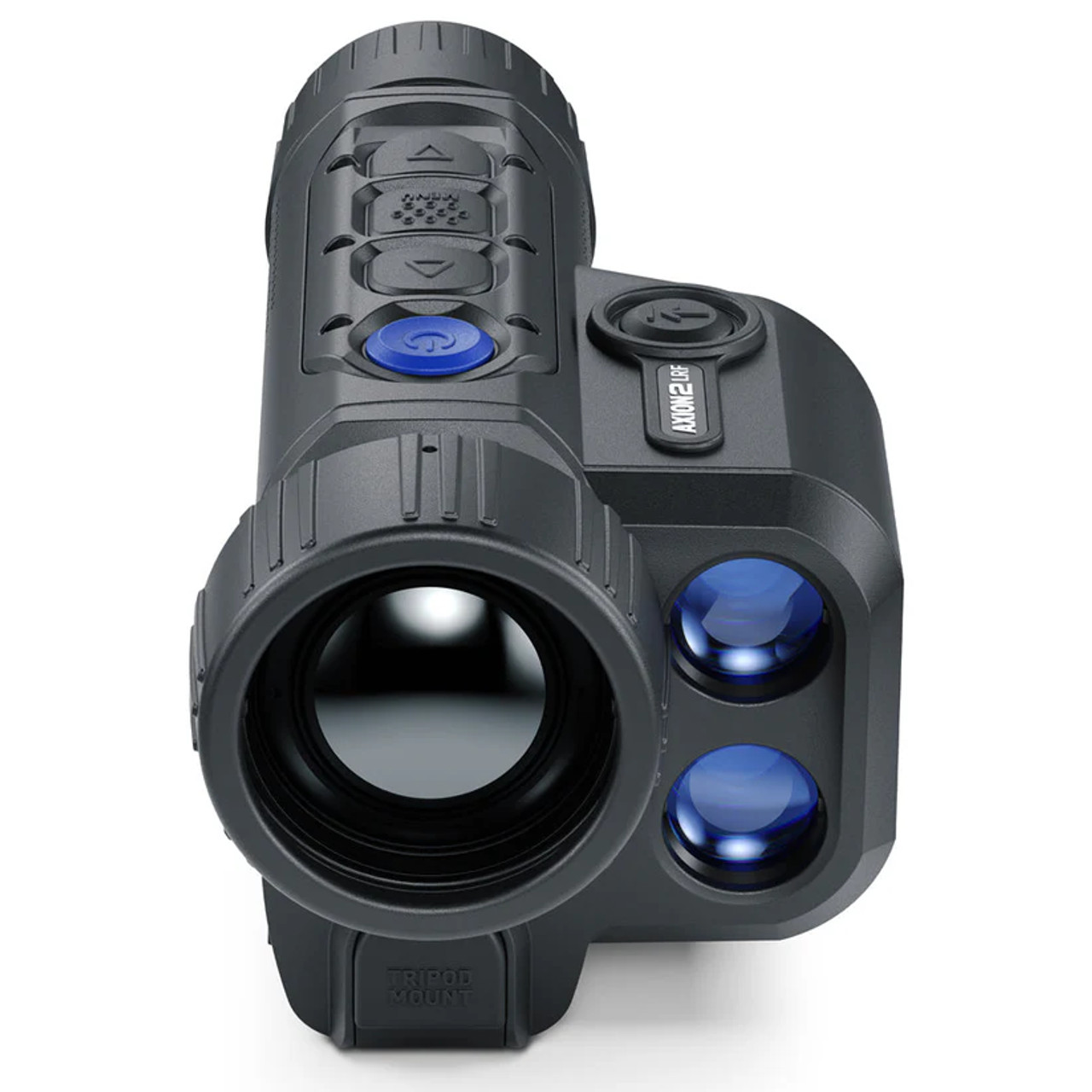

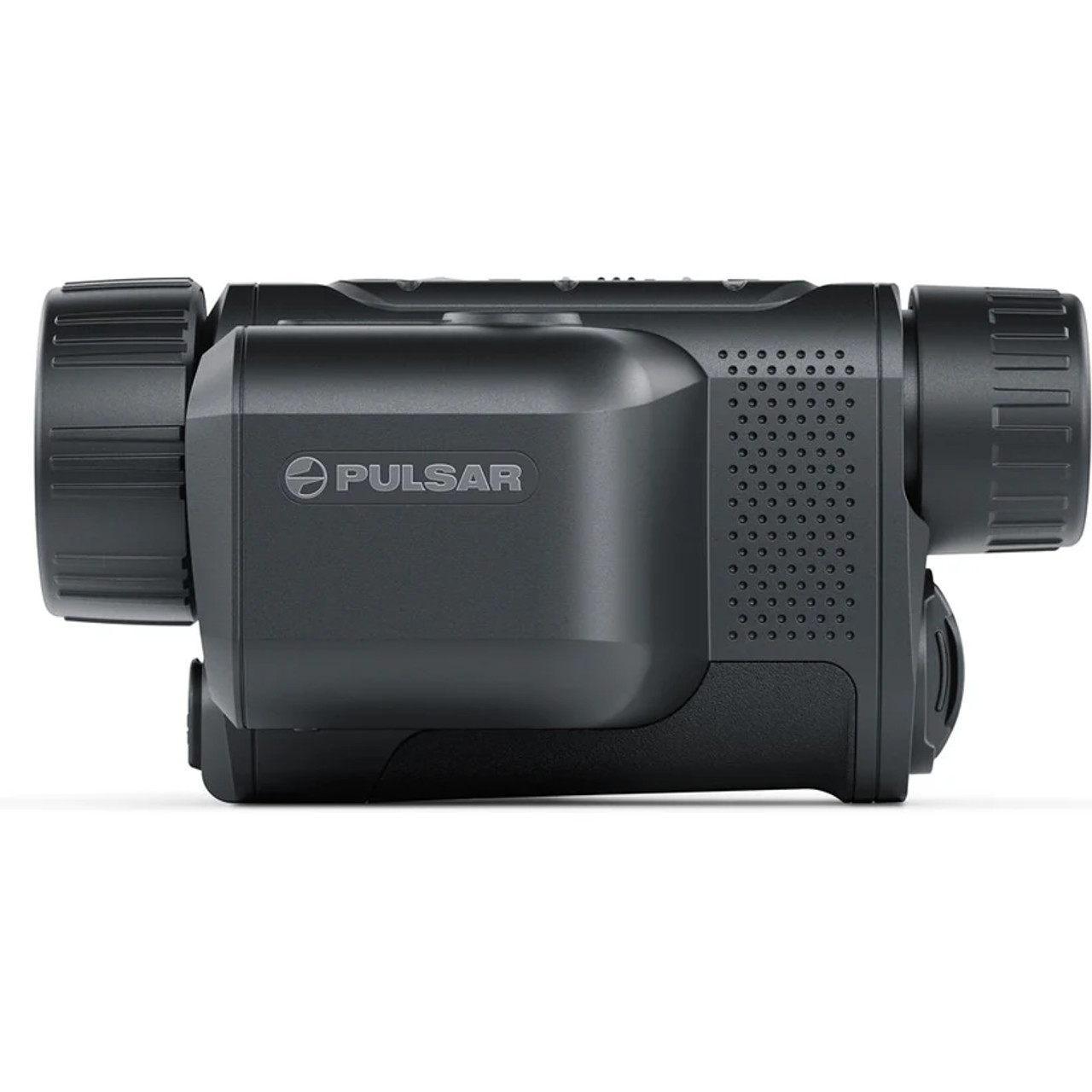

Pulsar Axion 2 LRF XG35 Thermal Monocular 2.5-20x 640x480

✨  Pulsar Axion 2 LRF XG35 Thermal Monocular ✨

2.5-20x magnification  |  640x480 microbolometer

High-quality reinforced magnesium alloy housing
The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, a metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

Dual Wi-Fi waveband support 2.4 / 5 GHz
In Axion 2 thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz WiFi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.

Long-distance laser rangefinder
A built-in laser rangefinder with a range of up to 1 kilometre allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 meters for quick and error-free assessment of the situation.

Extended battery life. Up to 11 hours on a single charge
A high-capacity APS5 rechargeable battery provides up to 11 hours of continuous operation of the thermal imaging device on a single charge. The battery is removed from a battery housing and replaced with a new one in seconds.

Built-in photo and video recorder. Free 16 GB cloud space
The Axion 2 has a built-in video recorder. The internal memory of the Axion 2 can store hours of video and tens of thousands of photos. One touch of a button is enough to take a photo of an interesting scene or start recording video. The footage is copied to a computer hard drive via a USB-C port. The Axion 2 owner has a free 16 GB disk space for storing photos and videos captured with the device in the Pulsar cloud storage. Simply install the Stream Vision 2 mobile application, log in and connect the device with a smartphone via WiFi.

3 levels of sensitivity amplification
Three levels of signal amplification in combination with a connected smoothing filter and fine brightness and contrast adjustments give the hunter great opportunities for long-range detection of the animal under different weather and temperature conditions and determining its trophy qualities.

Variable magnification
Digital zoom provides improved focus and better overall object recognition at significant distances. The zoom changes either gradually in 2x step or continuously for a truly optimum, customized field of view for specific situation.

Pocket-sized dimensions and light weight

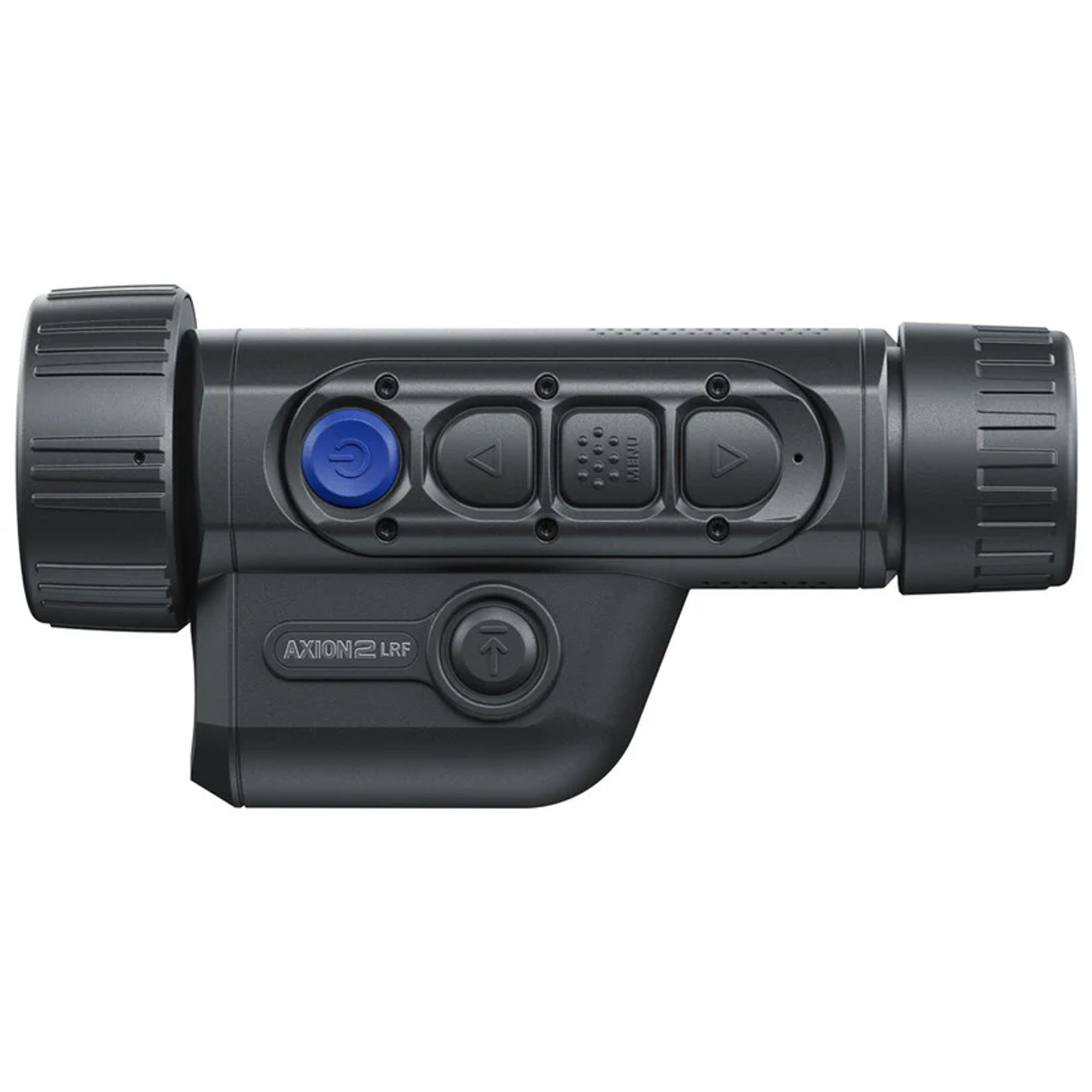

Axion 2 LRF has a space-saving and pocket-sized design and weighing 350 grams. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical design and in-line buttons arrangement on the upper panel.

High-contrast AMOLED Display
A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

Fast start-up
The Axion 2 features a short turn-on time: the device is fully functional within 5 seconds after pressing the ON button.

A selection of 8 color palettes
A choice of 8 color palettes allows the user to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification, while Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

IPX7 submersion waterproof rated
IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

Specifications:

Sensor

• Type: Uncooled

• Resolution: 640×480 pixels

• Pixel Pitch: 12 µm

• NETD: <40 mK

• Frame Rate: 50 Hz

Optics

• Objective Lens: F35 / 1.0

• Magnification: 2.5–20x (8x zoom)

• Field of View (HxV): 12.5° × 9.4° / 21.9m × 16.4m at 100m

• Eye Relief: 14 mm

Display

• Type: AMOLED HD

• Resolution: 1024×768

Range Performance

• Detection Range: 1750m

Laser Rangefinder

• Safety Class: 1 (IEC 60825-1:2014)

• Wavelength: 905 nm

• Max Measuring Range: 1000m

• Measurement Accuracy: ±1m

Video Recorder

• Resolution: 1024×768 pixels

• Format: .mp4 / .jpg

• Built-in Memory: 16 GB

Wi-Fi

• Wireless Protocol: Wi-Fi

• Wireless Standard: IEEE 802.11 b/g/n/ac

• Frequency: 2.4 / 5 GHz

Environmental Characteristics

• Degree of Protection: IPX7 (waterproof)

• Operating Temperature: -25°C to +40°C

Connections and Compatibilities

• Mount Type: 1/4"

• Supported Application: Stream Vision 2

Power Supply

• Output Voltage: 3.0–4.2V

• Battery Type: APS 5 Li-ion Battery Pack

• Capacity: 4900 mAh

• Operating Time: Up to 7 hours (at 22°C)

• External Power Supply: 5V, 9V (USB Type-C Power Delivery)

Weight & Size

• Body Material: Magnesium alloy

• Dimensions: 152×74×75 mm

• Weight: 0.47 kg (with APS5 battery)
