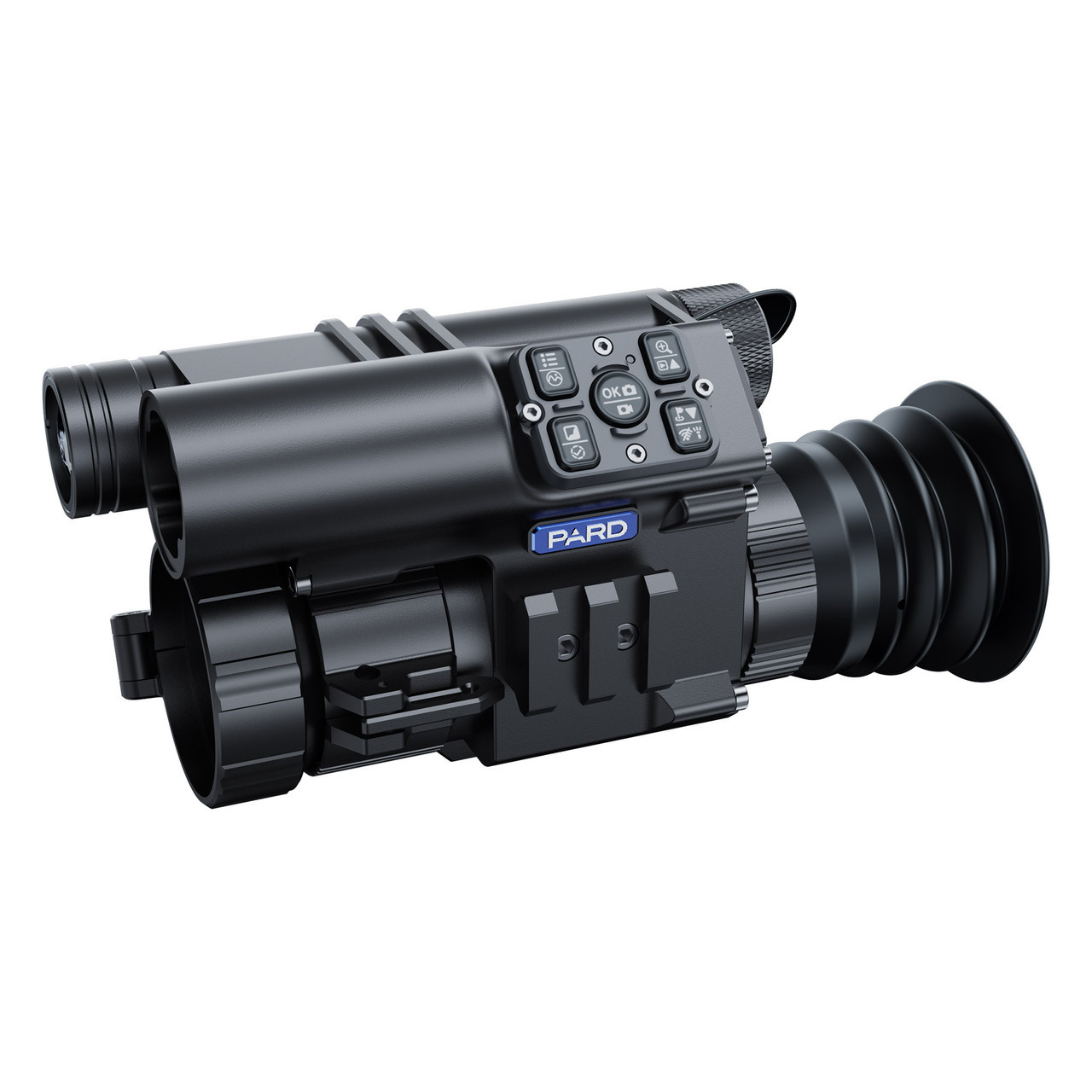

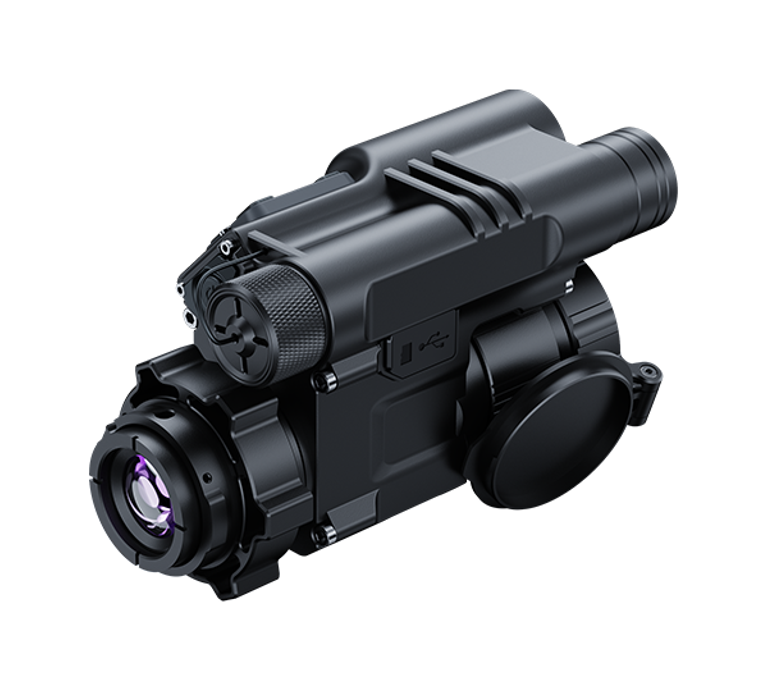

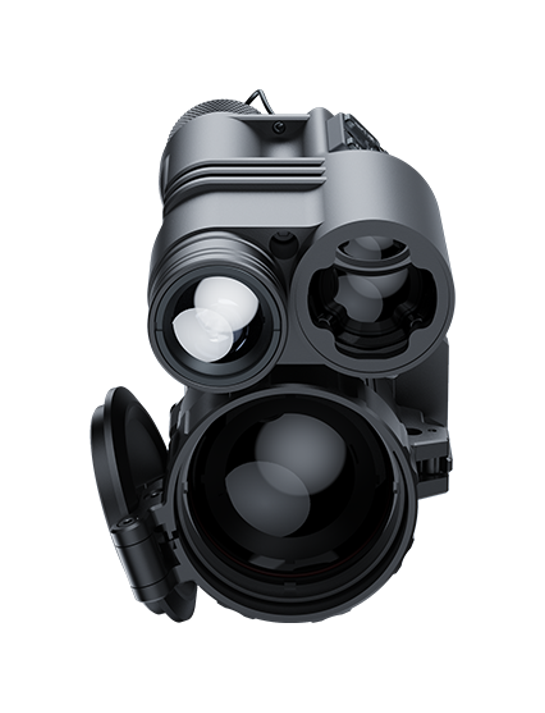

Pard FT34 Thermal Clip-On Scope with LRF

Pard FT34 Thermal Clip-On Scope with LRF

The PARD FT34 is a versatile thermal scope designed as a 3-in-1 unit. It can be used as a dedicated riflescope equipped with a laser rangefinder and ballistic calculator, as a clip-on in front of standard optics with an adaptor, or as a handheld spotter.

Features of the Pard FT34 Thermal Clip-On Scope with LRF

Pard FT34 Thermal Clip-On Scope with LRF Specifications

General

• Model: FT34 / FT34-LRF

Sensor

• Type: Uncooled VOx (Vanadium Oxide)
• Resolution (px): 384 × 288
• Pixel Size (µm): 12 × 12
• NETD: ≤25mK (0.025℃)
• Frame Rate: 50 Hz
• Human Detection Distance: 1400 m
• Vehicle Detection Distance: 2600 m

Optics

• FT34 Optics Purpose: RifleScope / Monocular
• FT34-LRF Optics Purpose: Clip-on
• Objective Lens: 35 mm
• FT34 Optical Magnification: 3.5×
• FT34-LRF Optical Magnification: 1×
• FT34 Digital Zoom: 2× / 4× / 6× / 8×
• FT34-LRF Digital Zoom: N/A
• Field of View (HxV):
  • Horizontal: 7.5°
  • Vertical: 5.6°
  • Diagonal: 9.4°
• Eye Relief:
  • FT34: 30 mm
  • FT34-LRF: N/A
• Diopter Adjustment:
  • FT34: -5D ~ +5D
  • FT34-LRF: N/A

Display

• FT34 Display Purpose: RifleScope / Monocular
• FT34-LRF Display Purpose: Clip-on
• Type: OLED
• Resolution (px): 1440 × 1080
• Reticle Style:
  • FT34: 6 options
  • FT34-LRF: N/A
• Reticle Color:
  • FT34: Red / White / Yellow / Green
  • FT34-LRF: N/A
• Scene Modes:
  • FT34: City / Rain / Forest
  • FT34-LRF: N/A
• Image Modes: WT-HOT / BK-HOT / EDGE / RD-HOT / IN-HOT / SKY

Photo & Video

• Photo Resolution: 2592 × 1944
• Photo Format: .JPG
• Video Resolution: 1024 × 768
• Video Format: .MP4
• Storage: TF card (up to 128 GB max)
• Image Engine: PARD IREA

Main Functions

• FT34 Purpose: RifleScope / Monocular
• FT34-LRF Purpose: Clip-on
• LRF Detection Range: 1097 m / 1200 yds
• Ballistic Calculator:
  • FT34: Yes
  • FT34-LRF: N/A
• Picture-in-Picture (PIP):
  • FT34: Yes
  • FT34-LRF: N/A
• Recording: Self-motivated & Loop Recording
• Shutter: Mechanical
• Microphone: Yes
• Illuminator (LM): 100
• Firmware Upgrade: Yes

Connections

• USB Type-C: Yes
• Wi-Fi: Yes
• Supported Apps: PardVision

Power Supply

• Battery Type: Lithium Ion 18650
• Output Voltage: 3.7 V
• Operating Time: ≤5 hours
• External Power Supply: Type-C

Environmental Characteristics

• Protective Class: IP67
• Operating Temperature: -4℉ ~ 122℉
• Recoil Resistance: 6000 J

Material

• Housing: Aluminum Alloy

Measurements

• Product Dimensions (L × W × H, mm):
  • FT3-Lens: 142 × 60 × 77
  • FT3-Adapter: 154 × 79 × 82
  • FT3-LRF-Lens: 150 × 60 × 80
  • FT3-LRF-Adapter: 165 × 79 × 84
• Net Weight (with / without battery, g):
  • FT3-Lens: 370 g (without), 415 g (with)
  • FT3-Adapter: 480 g (without), 525 g (with)
  • FT3-LRF-Lens: 417 g (without), 464 g (with)
  • FT3-LRF-Adapter: 435 g (without), 482 g (with)
