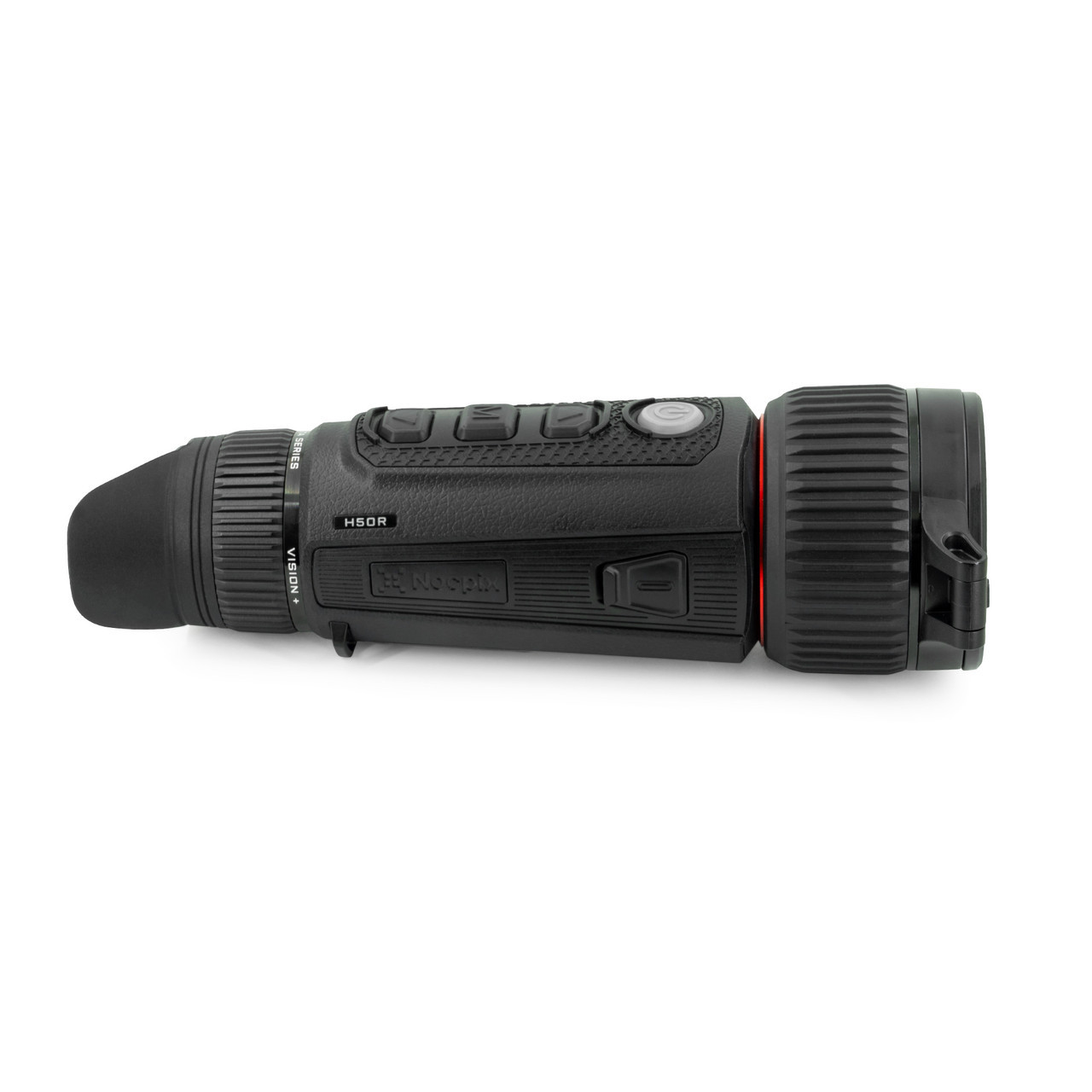

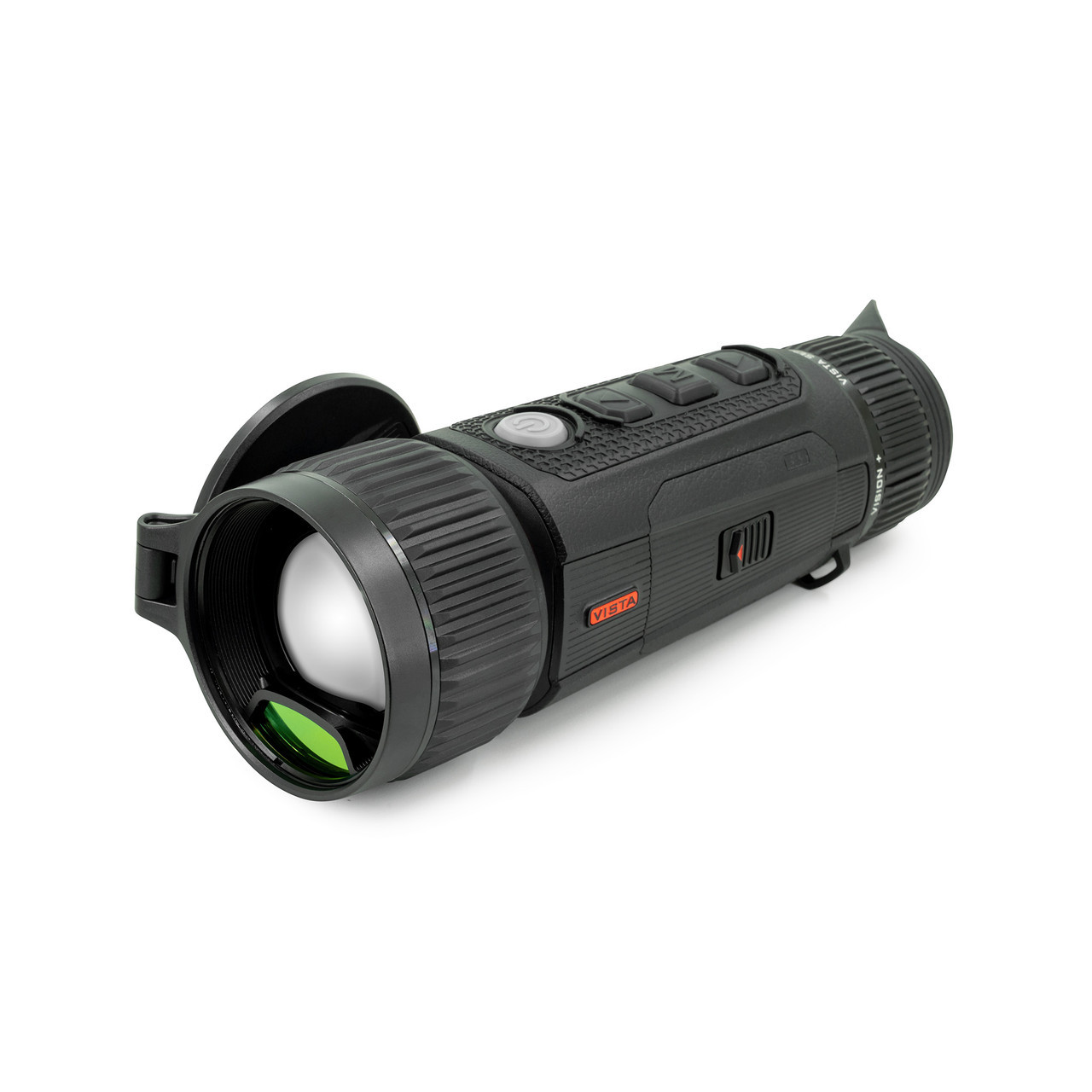

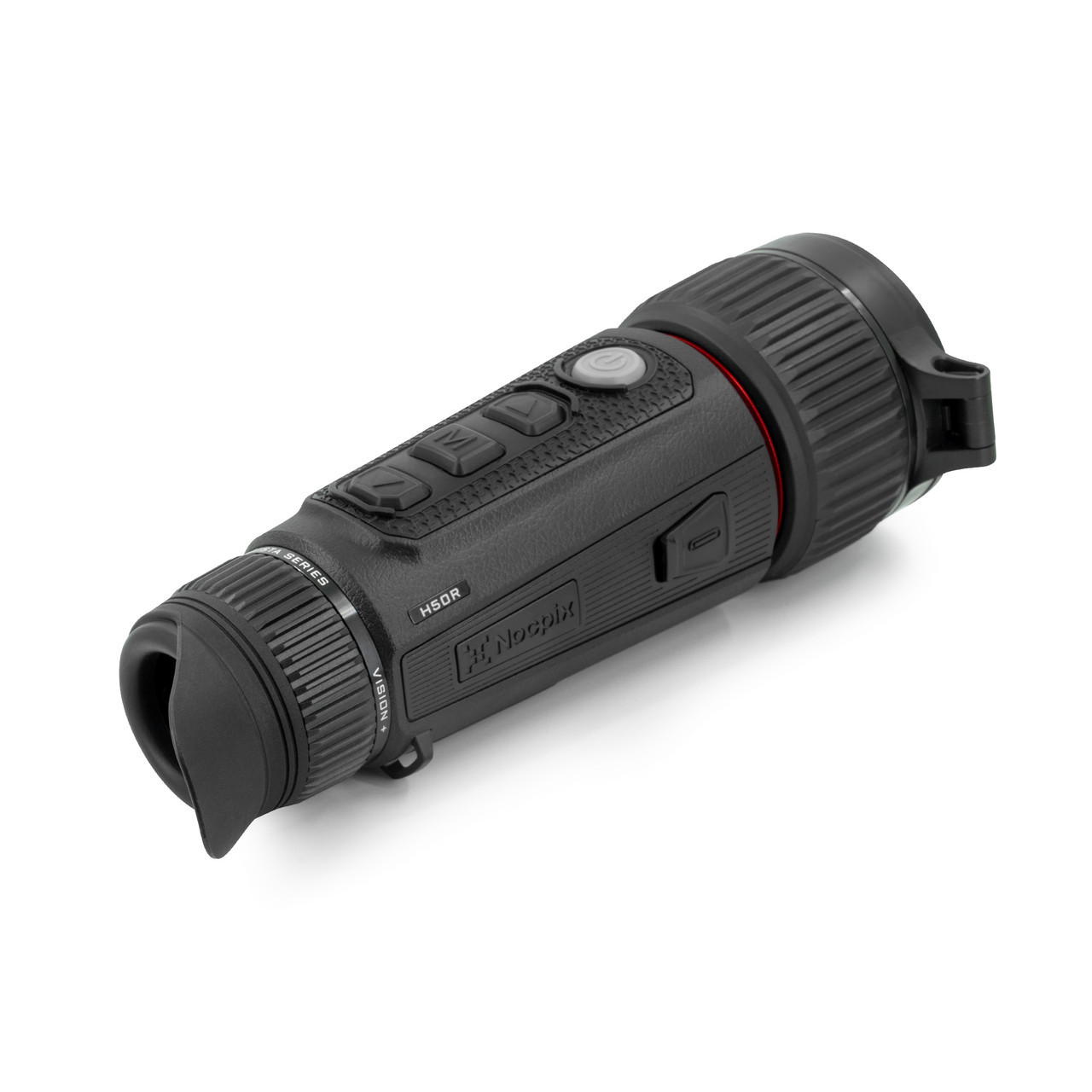

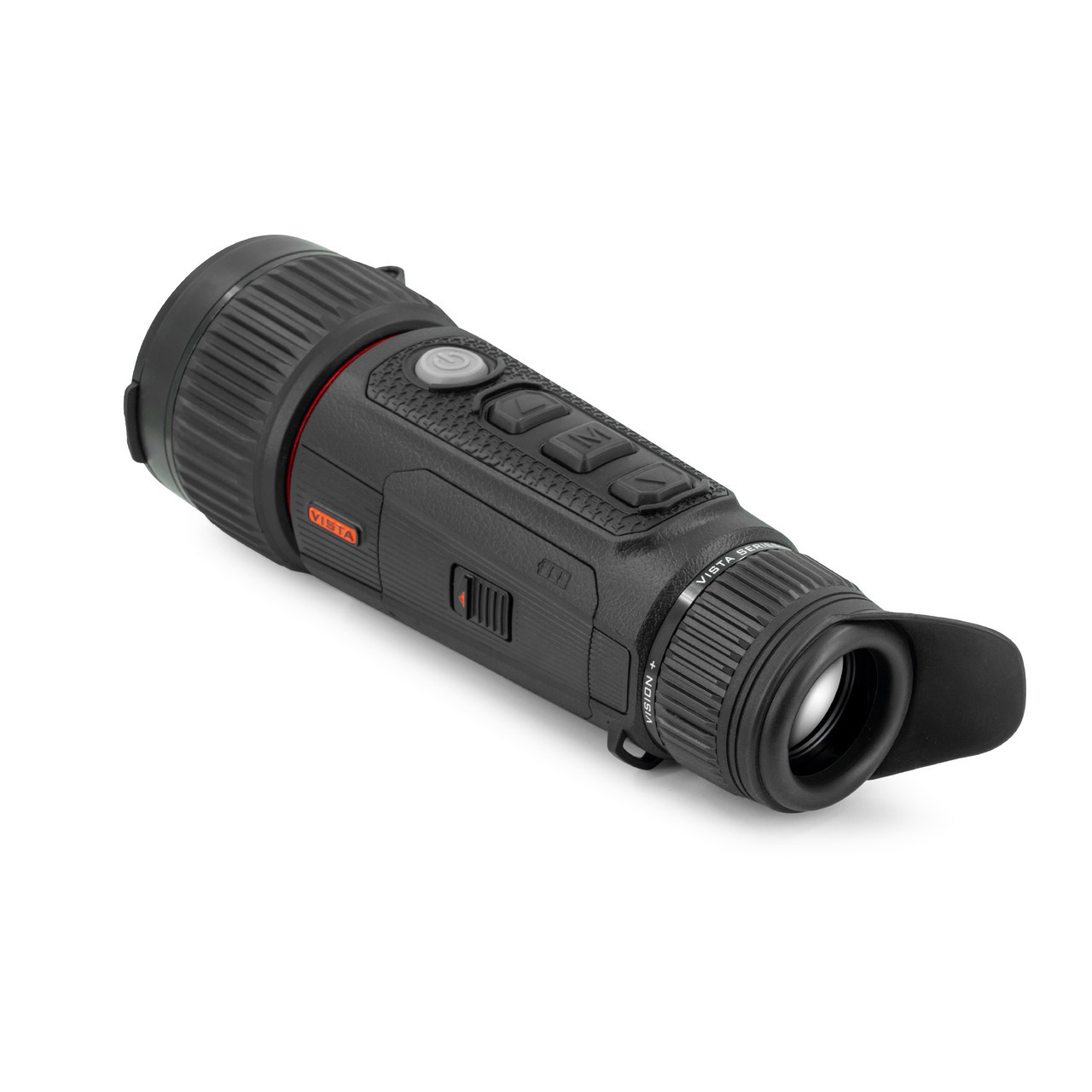

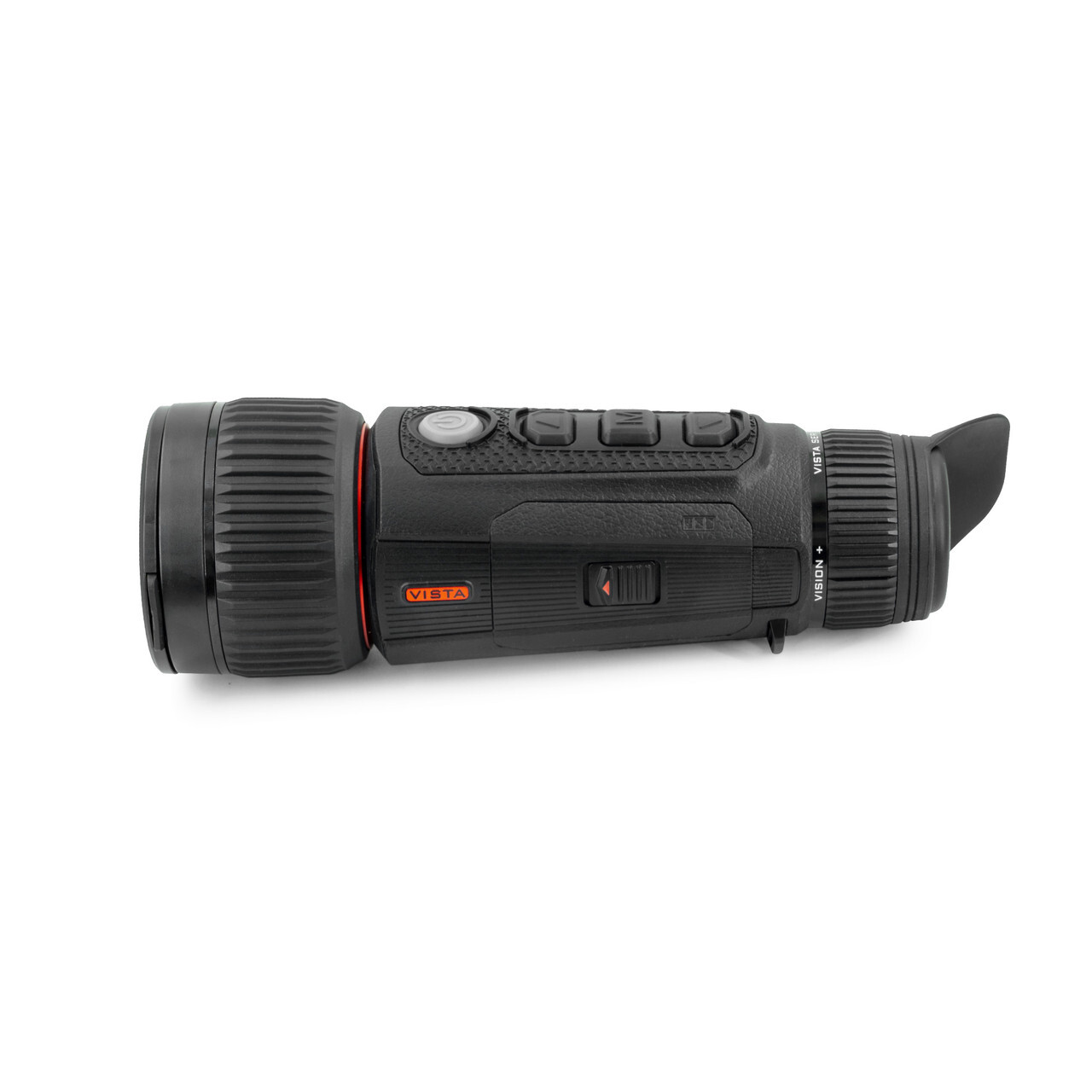

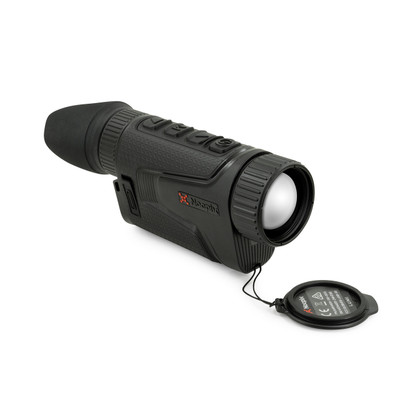

Nocpix Vista H50R Thermal Monocular with Rangefinder 640x512 50mm

✨ Nocpix Vista H50R Rangefinding Thermal Monocular  ✨

640x512 |  50mm

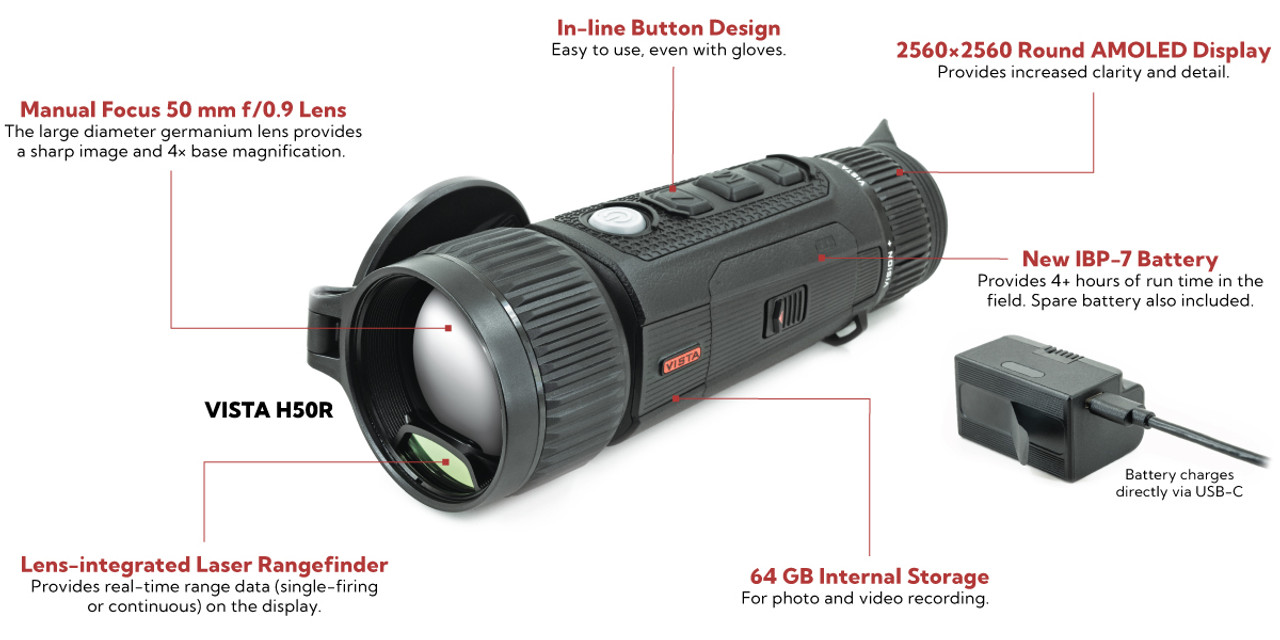

The VISTA handheld thermal monocular features an advanced 50 mm f/0.9 germanium objective lens, high-resolution 640x512 thermal sensor and an impressive ≤15 mK NETD sensitivity rating. The lens-integrated laser rangefinder boasts a maximum detection range of 1,200 yards with a sensitivity of ±1 yard. The VISTA also includes electronic image stabilization for a smooth, sharp image on the 2560×2560 round AMOLED display.

• Lightweight and compact design easily fits in a pocket or the include MOLLE-compatible pouch.
• Weatherproof rubberized texture increases durability and is not cold to the touch.

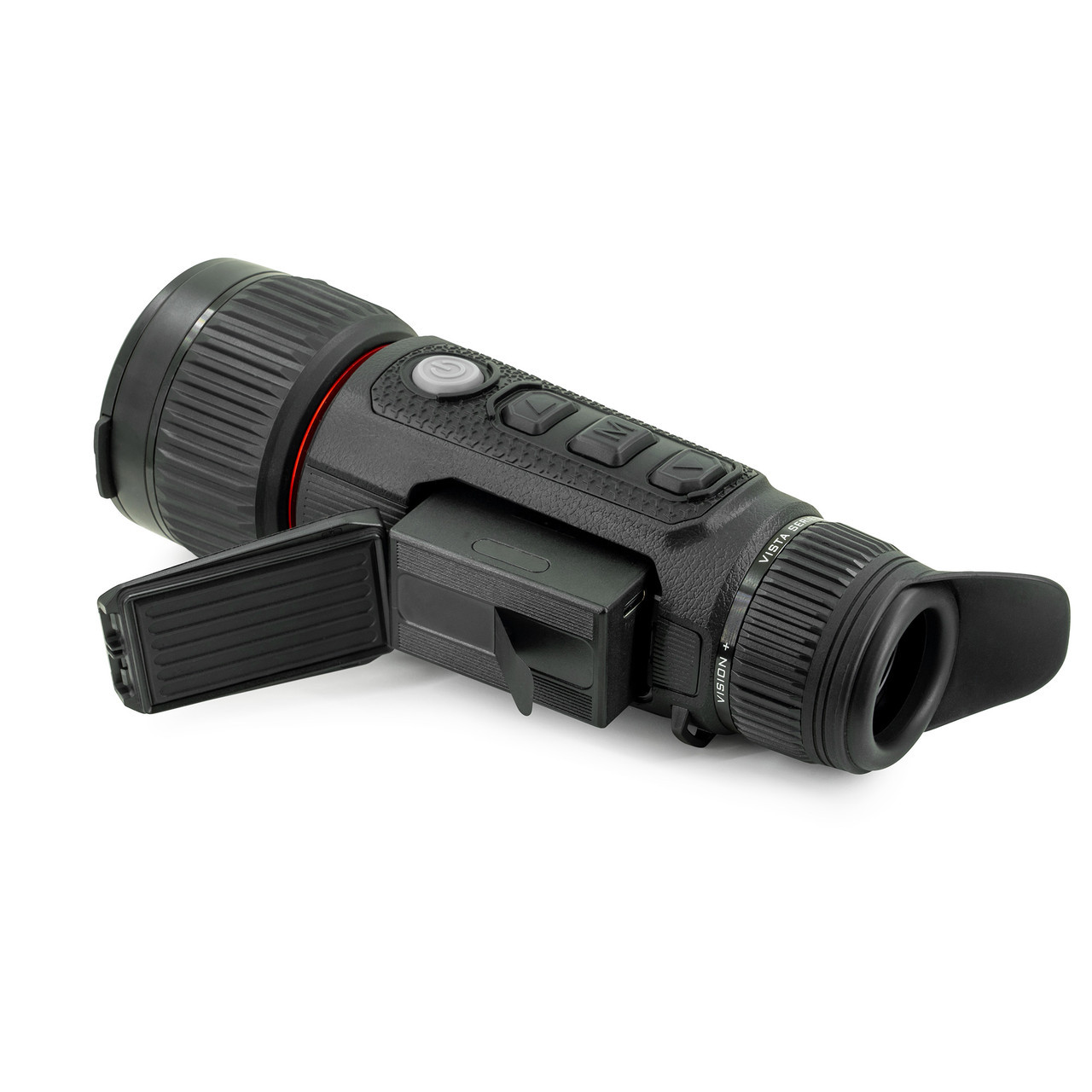

• Powered by a common 18650 style rechargeable battery with a spare battery included.
• Advanced R+ image processing provides enhances image quality during digital zoom.
• Onboard photo, video, and audio recording.
• Comfortable ambidextrous vertical design.

Resources

• Manual

Specifications

Optics

• Objective Focal Length: 50mm
• Detection Range: 2400 Yards
• Optical Magnification: 4X
• Digital Magnification: 8X
• Objective Lens Material: Germanium
• Horizontal Angular Field of View: 8.8°
• Vertical Angular Field of View: 6.6°
• Objective Diameter: 50mm
• Objective F#: 0.9
• Focusing Mechanism: Manual Focus
• Eye Relief: 25mm
• Diopter Range: -5 to +5
• Display Type: AMOLED
• Display Resolution: 2560×2560

Features & Performance

• Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
• Rangefinder: Integrated 1200 yd LRF
• Picture-in-Picture: Yes
• Connector Output: Power/Data
• User-Updatable Firmware: Yes
• Mobile App: Yes
• One-Shot Zero: Yes
• Stand-by Mode: Yes
• Connector Type: USB-C
• WiFi: Yes
• Onboard Recording: Yes
• Image Capture: Yes
• Video Output: Yes
• Storage Capacity: 64GB
• Power Source: USB-C External, IBP-7 Li-ion Battery Pack
• Run Time: 5+
• Warranty: 5 Years
• Startup Time: <10 Seconds, Instant from Standby
• External Power Source: USB-C
• Country of Manufacture: China

Environmental Specifications

• Operating Temperature Range: -4°F~122°F
• Ingress Protection: IP67

Physical

• Length: 7.83 in
• Width: 2.72 in
• Height: 3.23 in
• Weight: 22.93 oz
• Housing Material: Polymer

Sensor Specifications

• Device Technology: Thermal Imaging
• Sensor Type: Nocpix 640
• Sensor Resolution: 640×512
• Sensor Pixel Size: 12μm
• Sensor Frame Rate: 60Hz
• Thermal Sensitivity: <15mK
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
