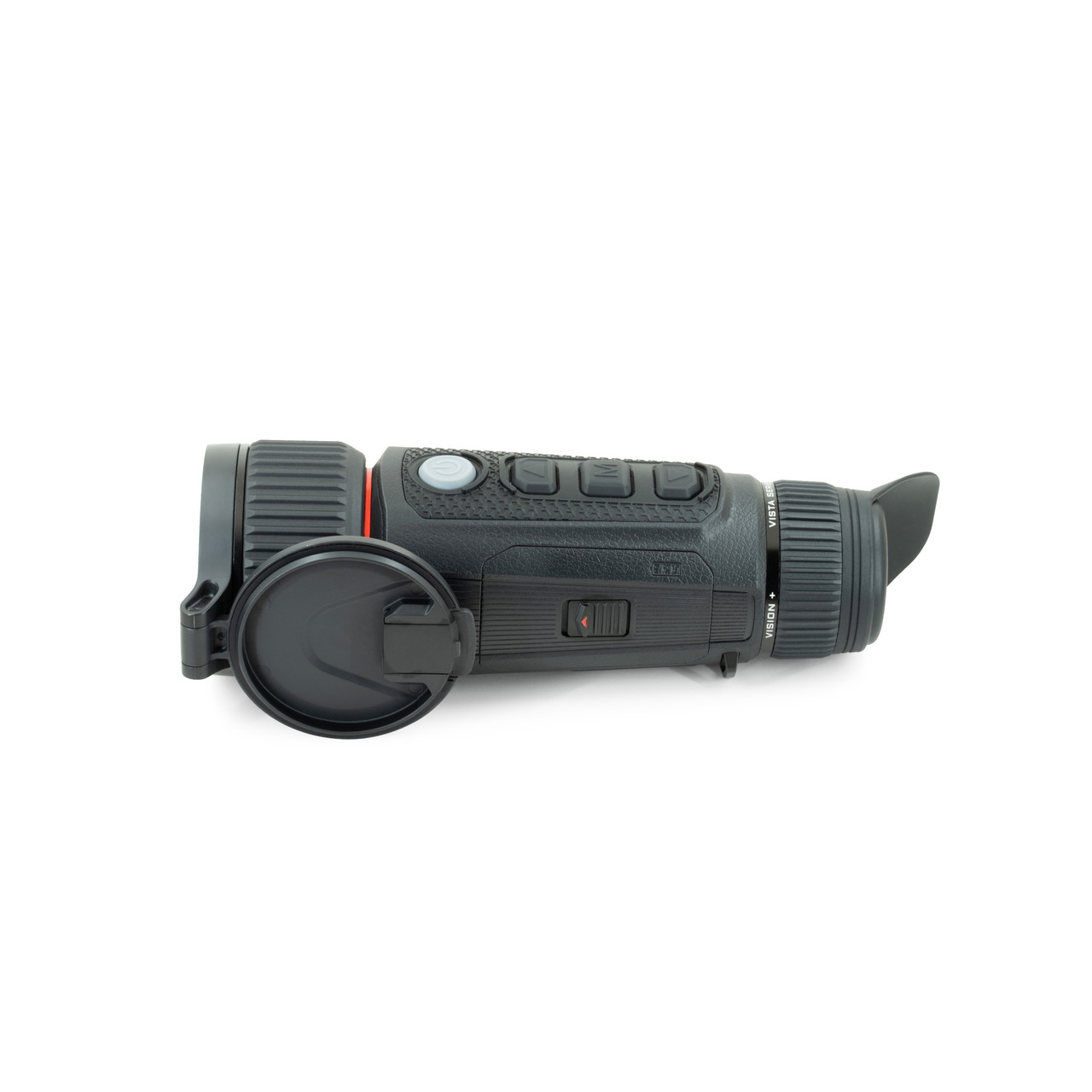

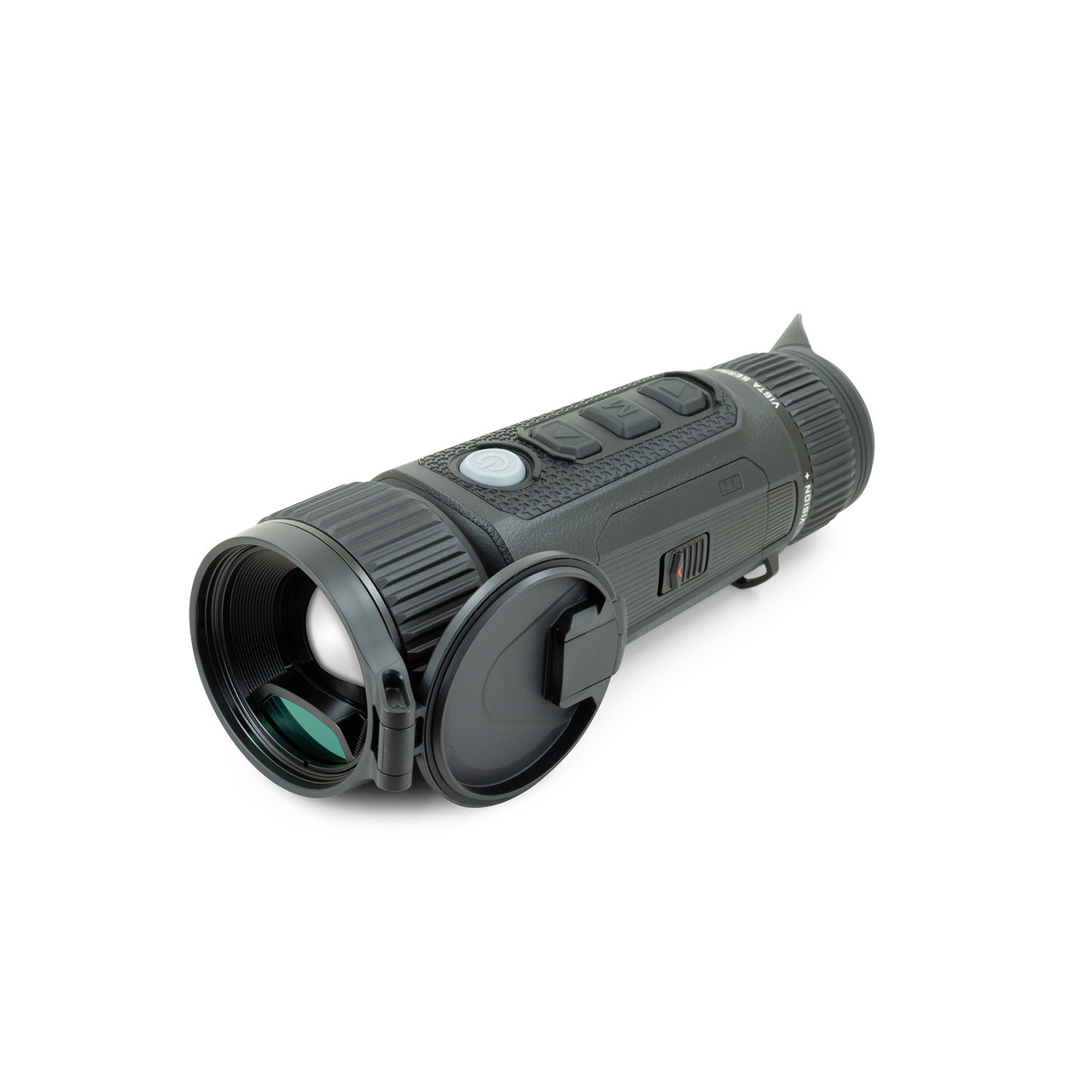

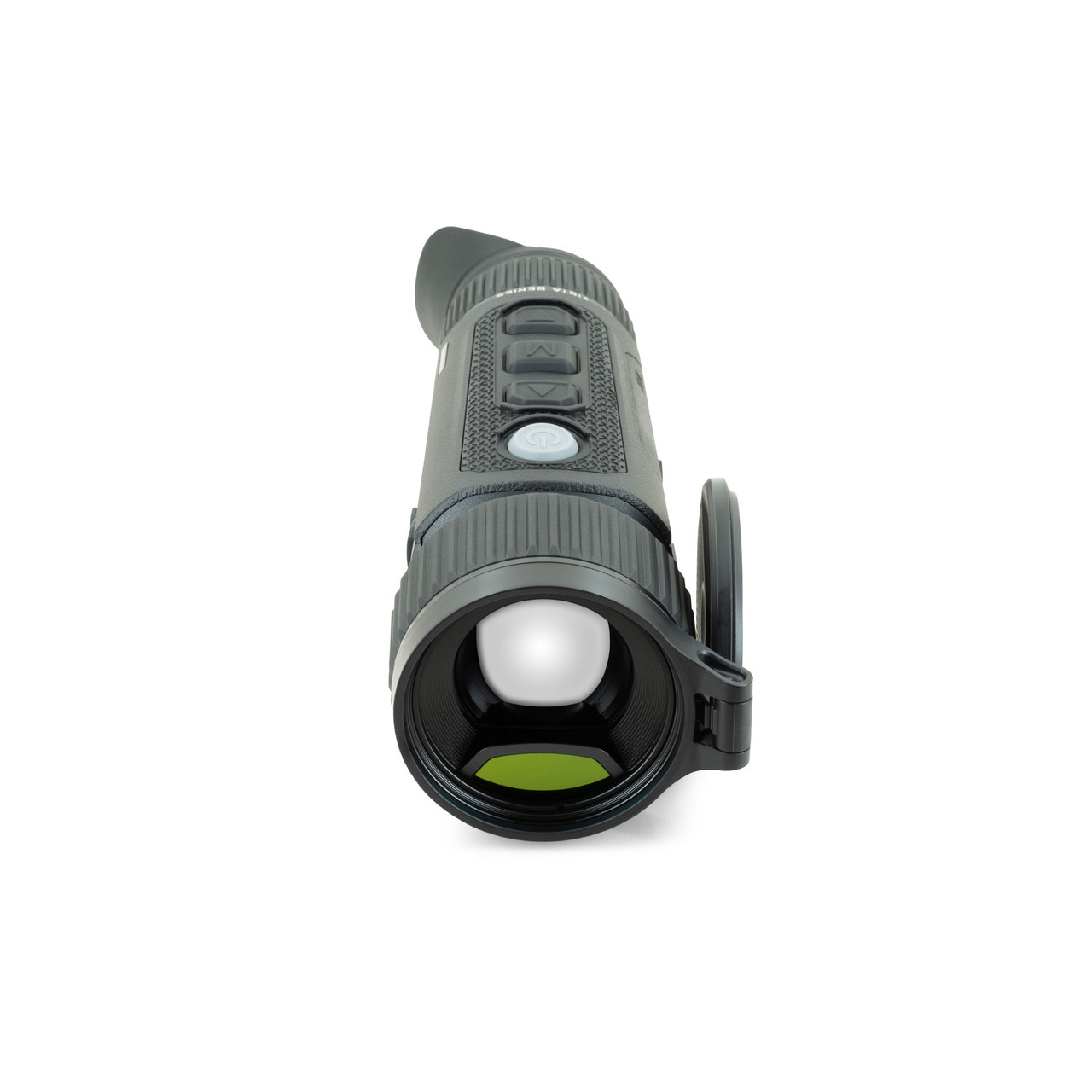

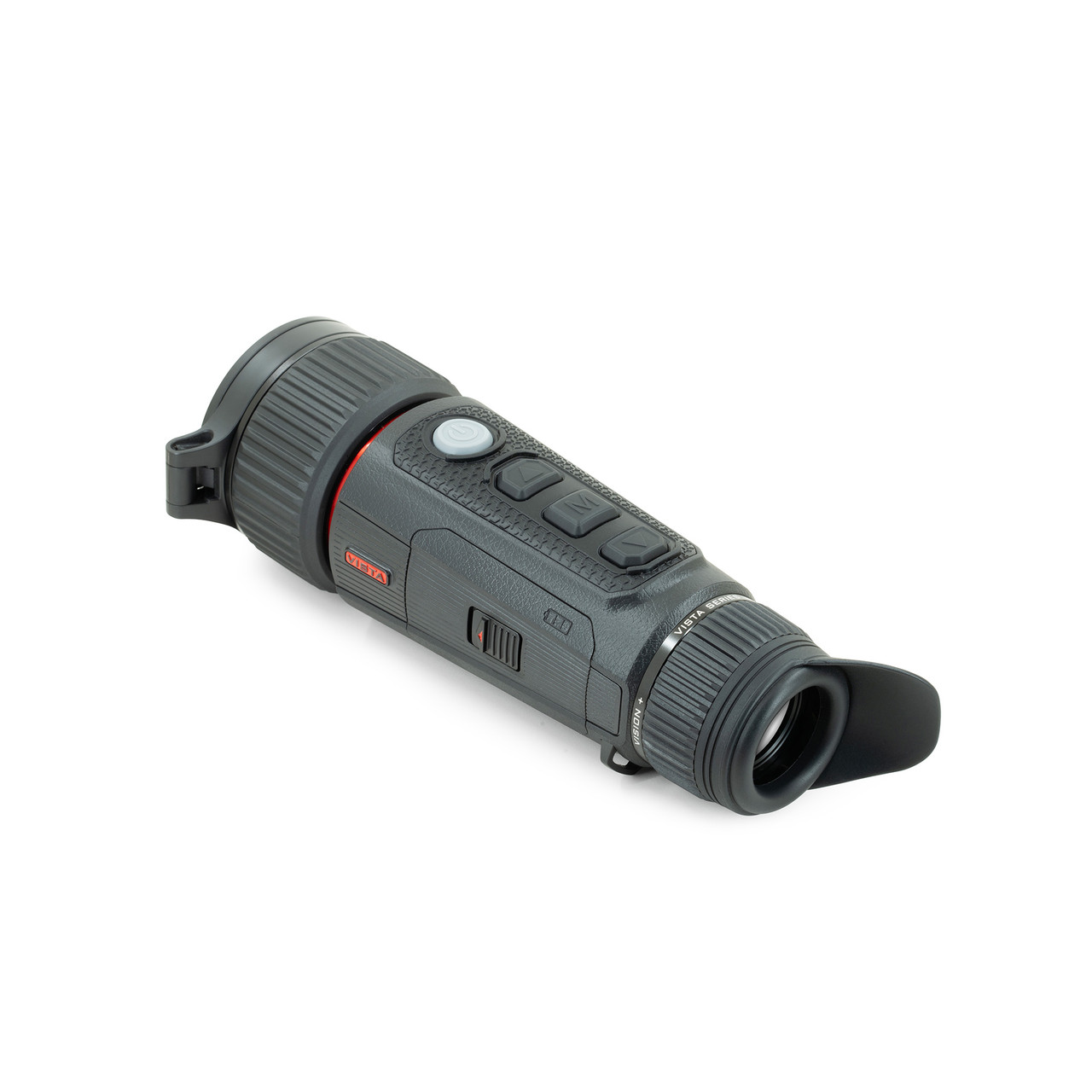

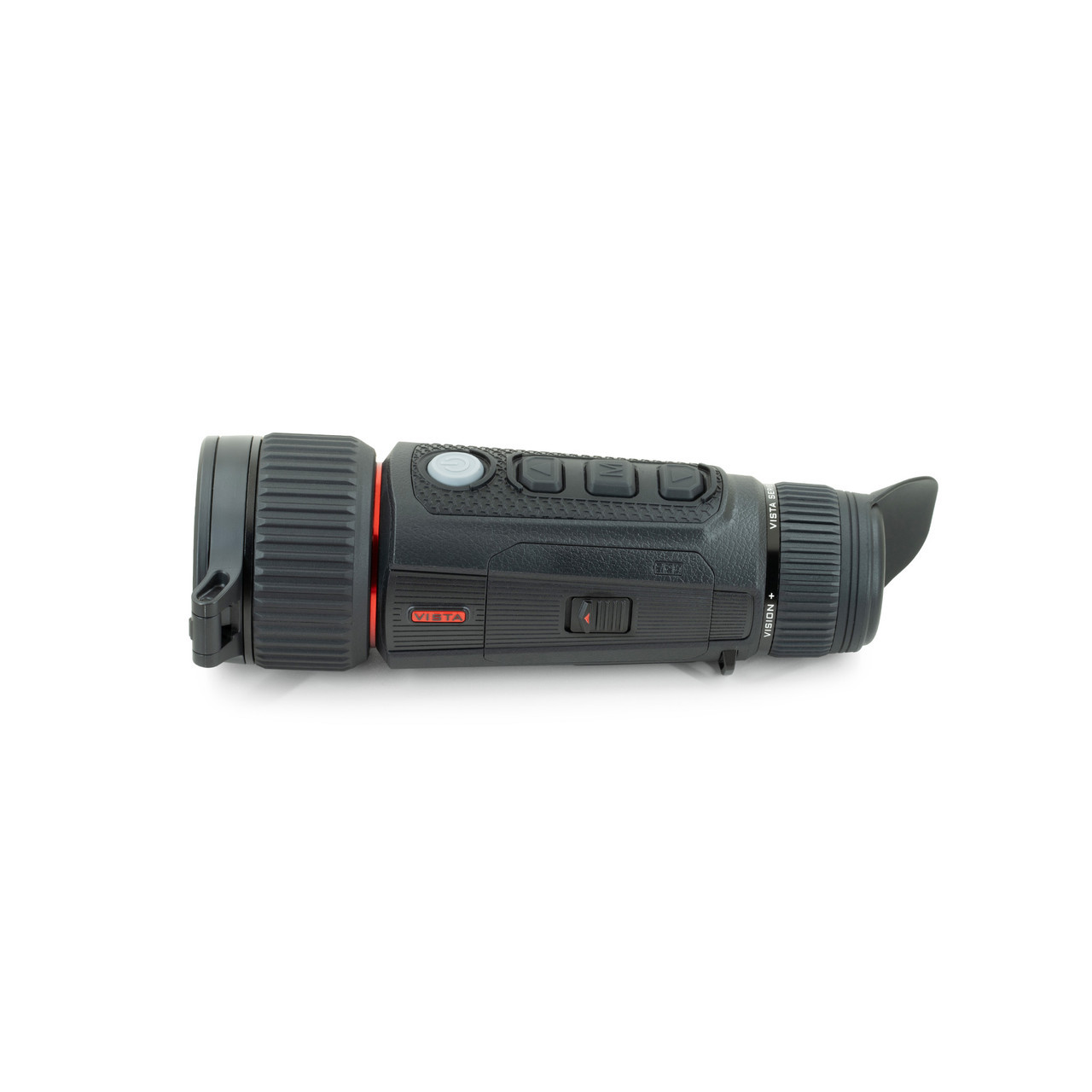

Nocpix Vista H35R Thermal Monocular

Nocpix Vista H35R Rangefinding Thermal Monocular

640x512  |  35mm

The Nocpix Vista H35R handheld thermal monocular features an advanced f/0.9 germanium objective lens, high-resolution 640×512 thermal sensor and an impressive ≤15 mK NETD sensitivity rating. The lens-integrated laser rangefinder boasts a maximum detection range of 1,200 yards with a sensitivity of ±1 yard. Its ergonomic design ensures comfortable handling, while the intuitive interface allows for seamless operation. VISTA models also include electronic image stabilization for a smooth, sharp picture on the 2560×2560 round AMOLED display.

• Lens-integrated laser rangefinder can fire on command or continuously when scanning.
• One-of-a-kind circular ultra-high resolution
• 1.03-inch 2560×2560 AMOLED display.
• Onboard photo, video, and audio recording.
• Large, ergonomic objective focus dial for precise control.
• Nocpix IBP-7 removable battery pack with direct USB-C charging.
• 1/4-20 thread socket for quick-plate or tripod mounting.
• Included soft case with cross-body strap for comfortable carry.

Nocpix Vista H35R Thermal Monocular Resources

Vista H35R Thermal Monocular Manual

Specifications of the Nocpix Vista H35R Thermal Monocular

Optics

• Display Type: AMOLED
• Eye Relief: 25mm
• Objective Focal Length: 35mm
• Digital Magnification: 8X
• Diopter Range: -4 to +6
• Vertical Angular Field of View: 9.4°
• Horizontal Angular Field of View: 12.5°
• Focusing Mechanism: Manual Focus
• Objective F#: 0.9
• Objective Diameter: 35mm
• Objective Lens Material: Germanium
• Display Resolution: 2560×2560
• Detection Range: 1750 Yards
• Optical Magnification: 3X

Features & Performance

• Warranty: 5 Years
• Startup Time: <10 Seconds, Instant from Standby
• Rangefinder: Integrated 1200 yd LRF
• Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
• Picture-in-Picture: Yes
• Storage Capacity: 64GB
• Connector Output: Power/Data
• User-Updatable Firmware: Yes
• Mobile App: Yes
• Run Time: 5+
• Power Source: USB-C External, IBP-7 Li-ion Battery Pack
• Stand-by Mode: Yes
• Connector Type: USB-C
• External Power Source: USB-C
• Country of Manufacture: China
• Wifi: Yes
• Onboard Recording: Yes
• Image Capture: Yes
• Video Output: Yes

Environmental Specifications

• Operating Temperature Range: -4°F ~ 122°F
• Ingress Protection: IP67

Physical

• Housing Material: Polymer
• Weight: 22.58 oz.
• Height: 3.11
• Width: 2.64
• Length: 7.48

Sensor Specifications

• Sensor Type: Nocpix 640
• Sensor Pixel Size: 12μm
• Thermal Sensitivity: <15mk
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
• Sensor Frame Rate: 60Hz
• Device Technology: Thermal Imaging
• Sensor Resolution: 640×512
