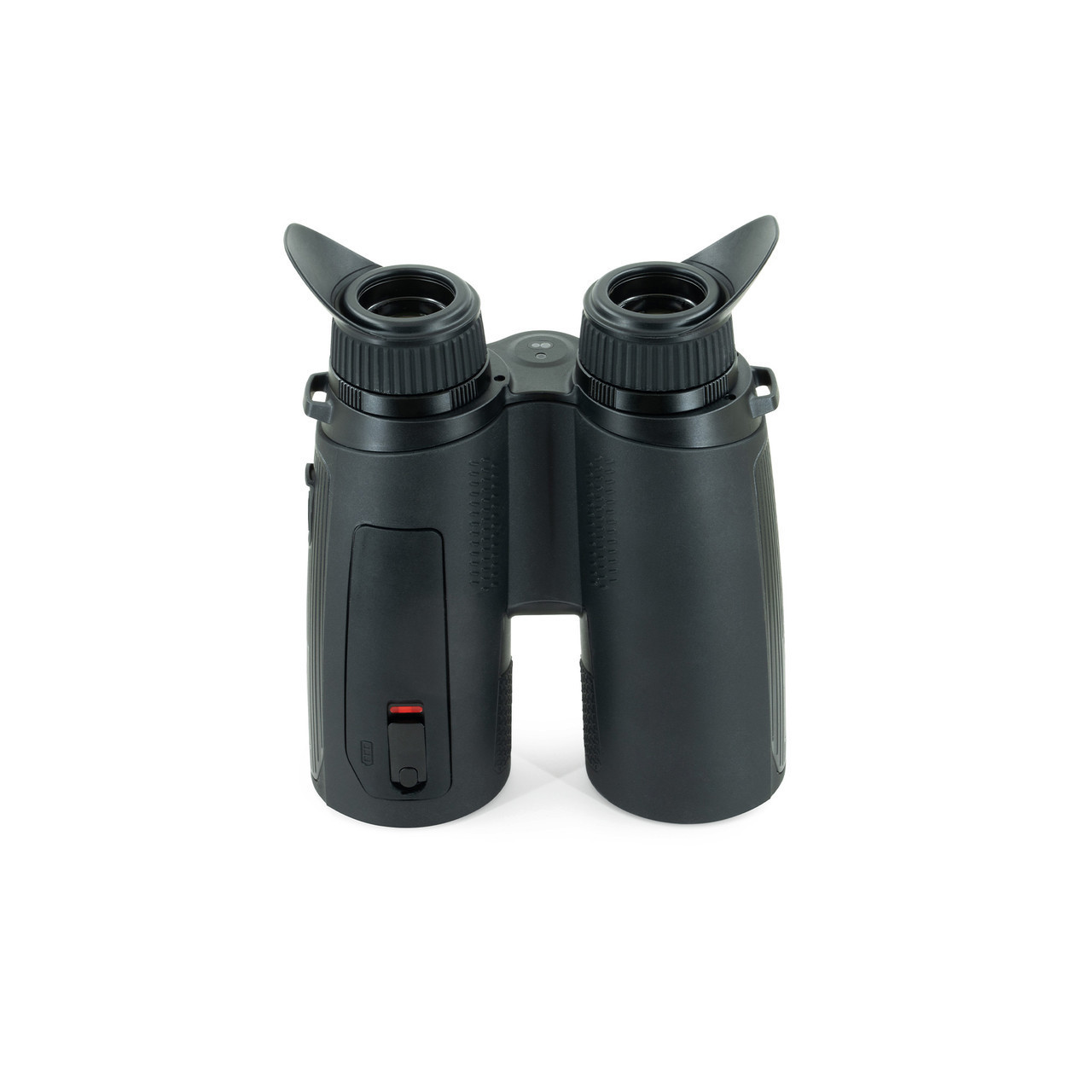

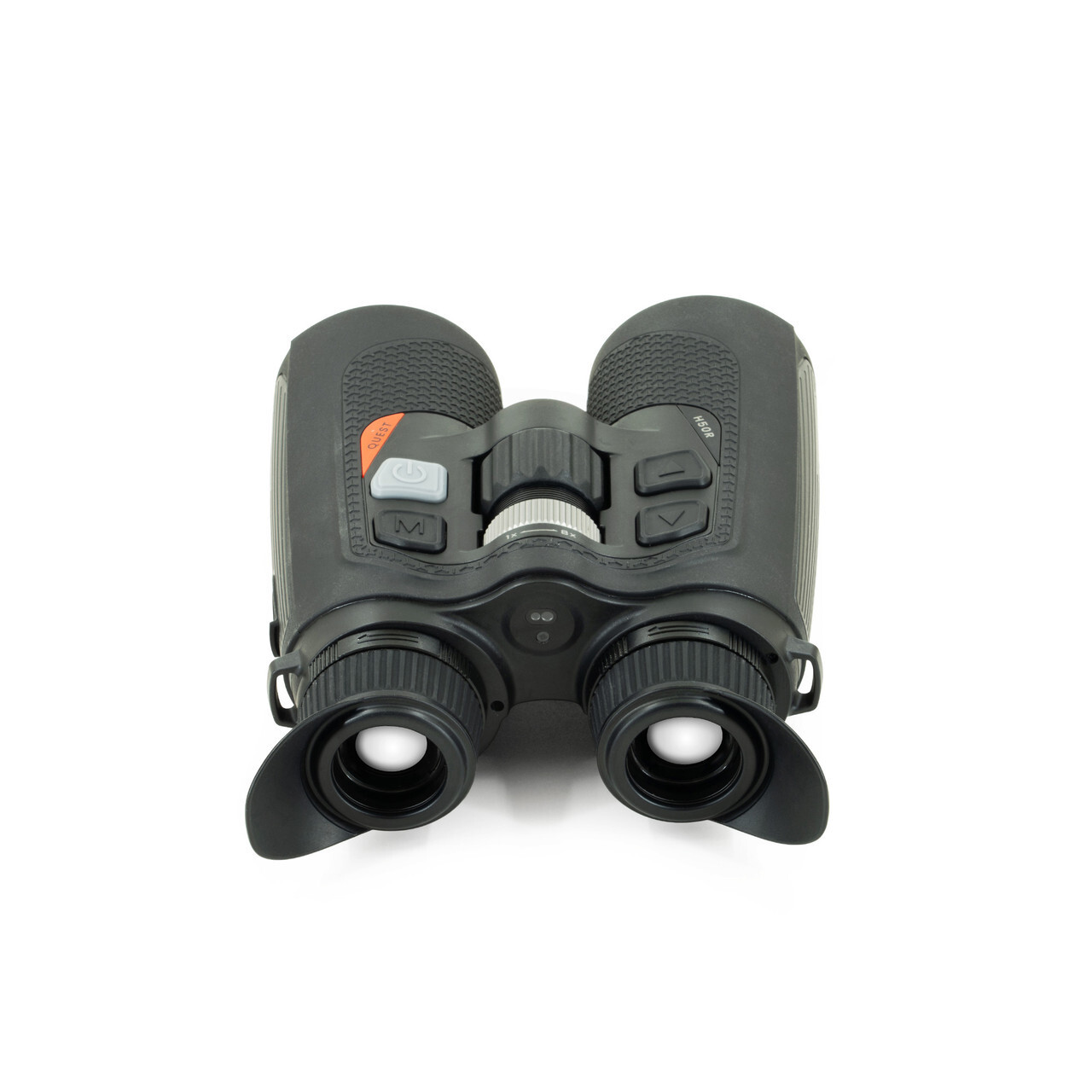

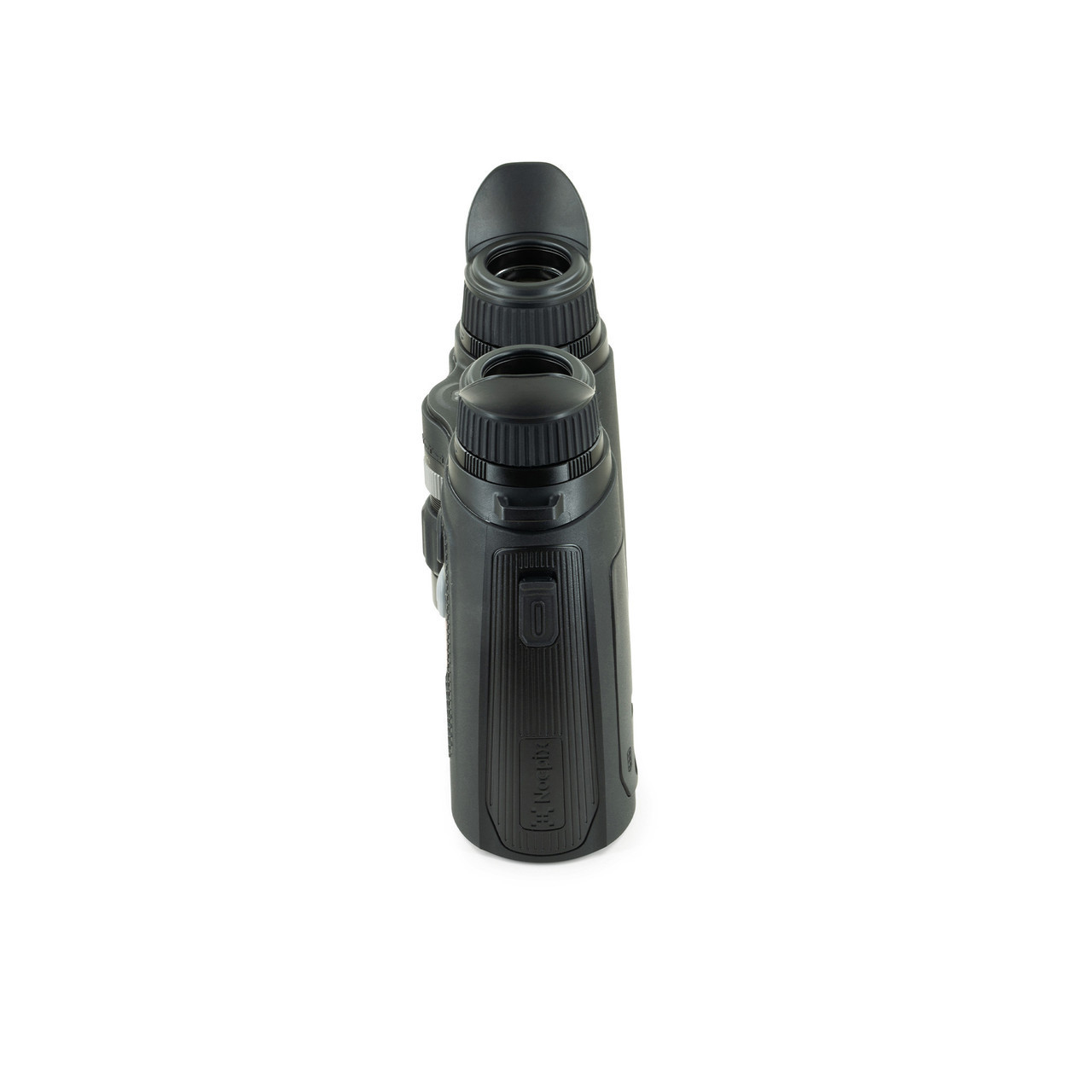

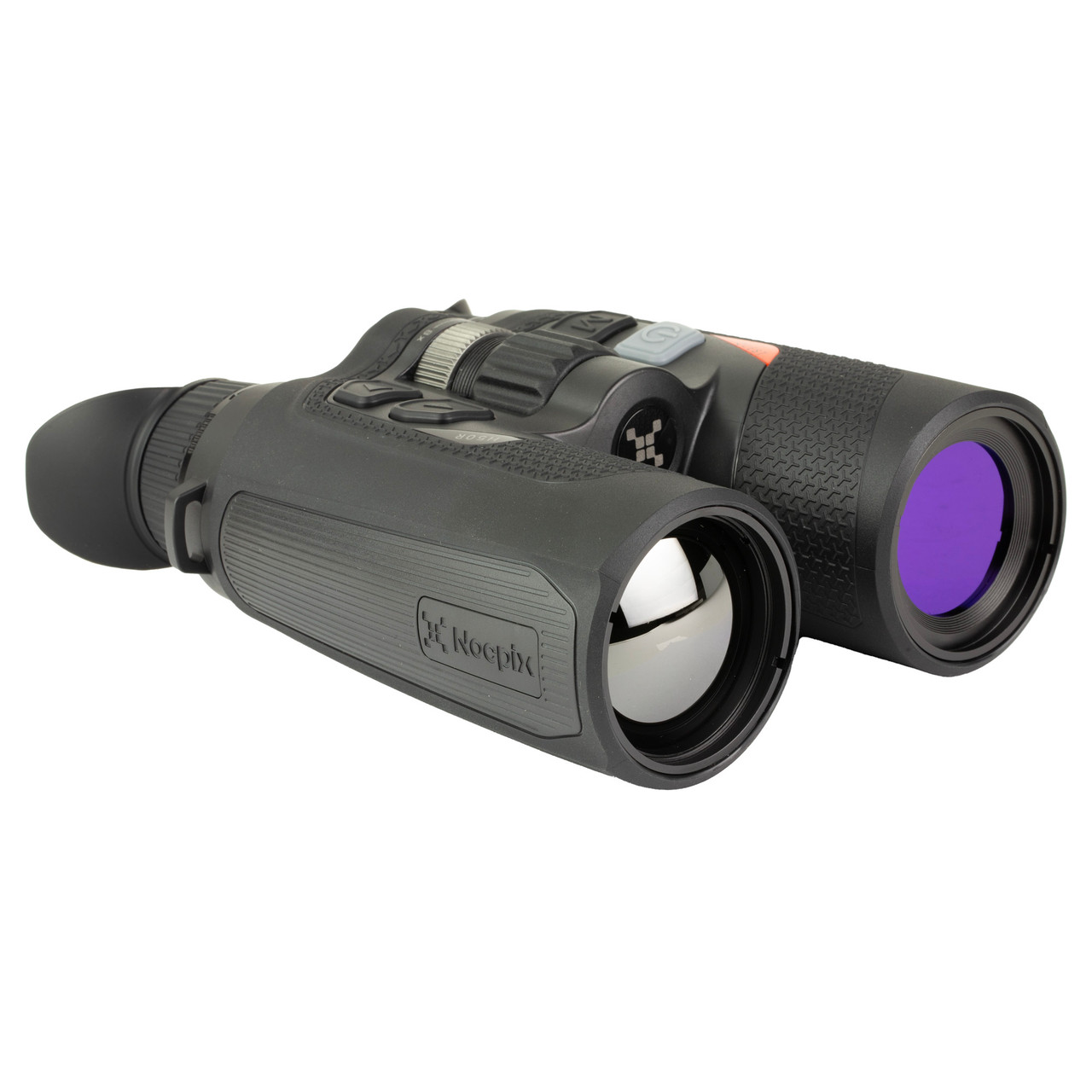

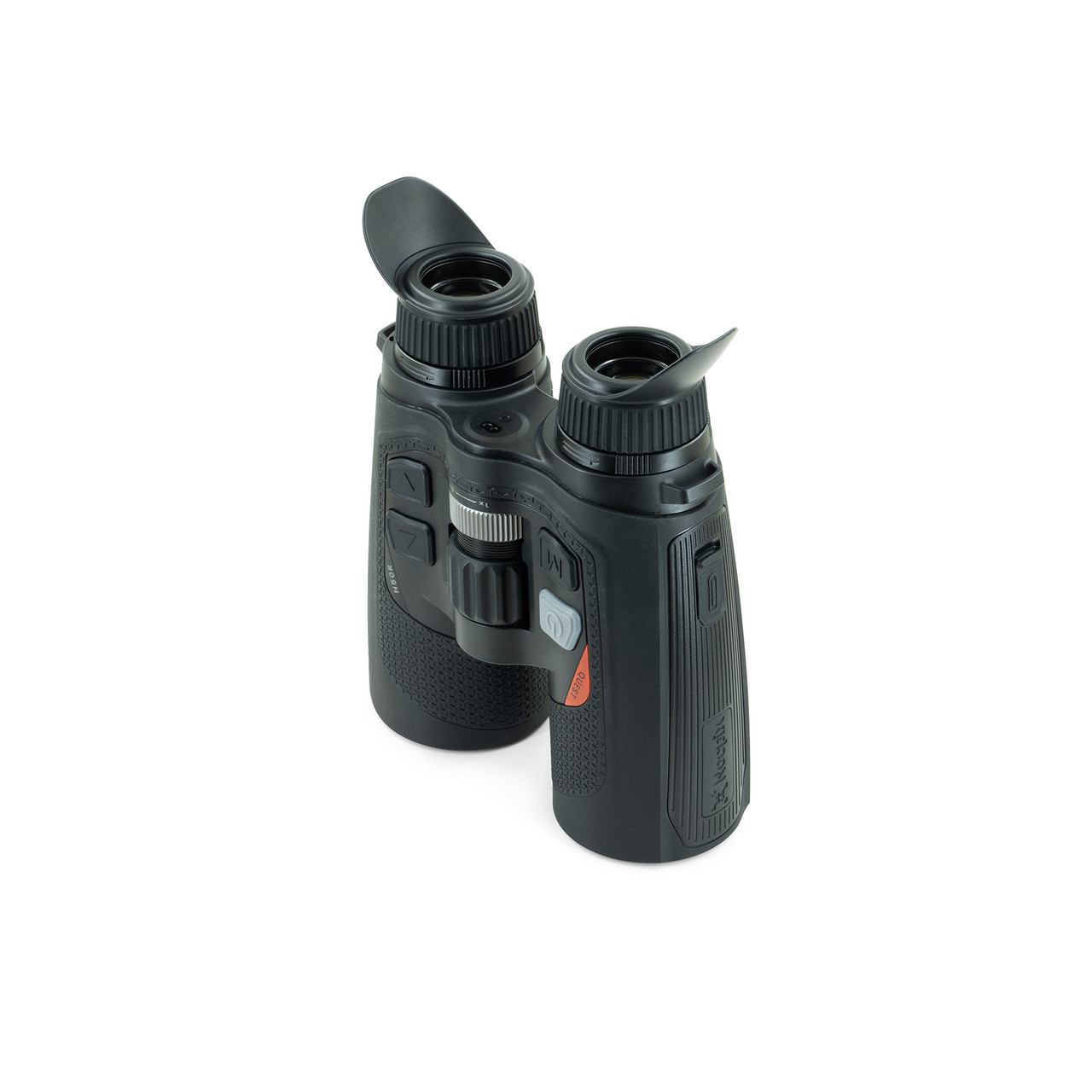

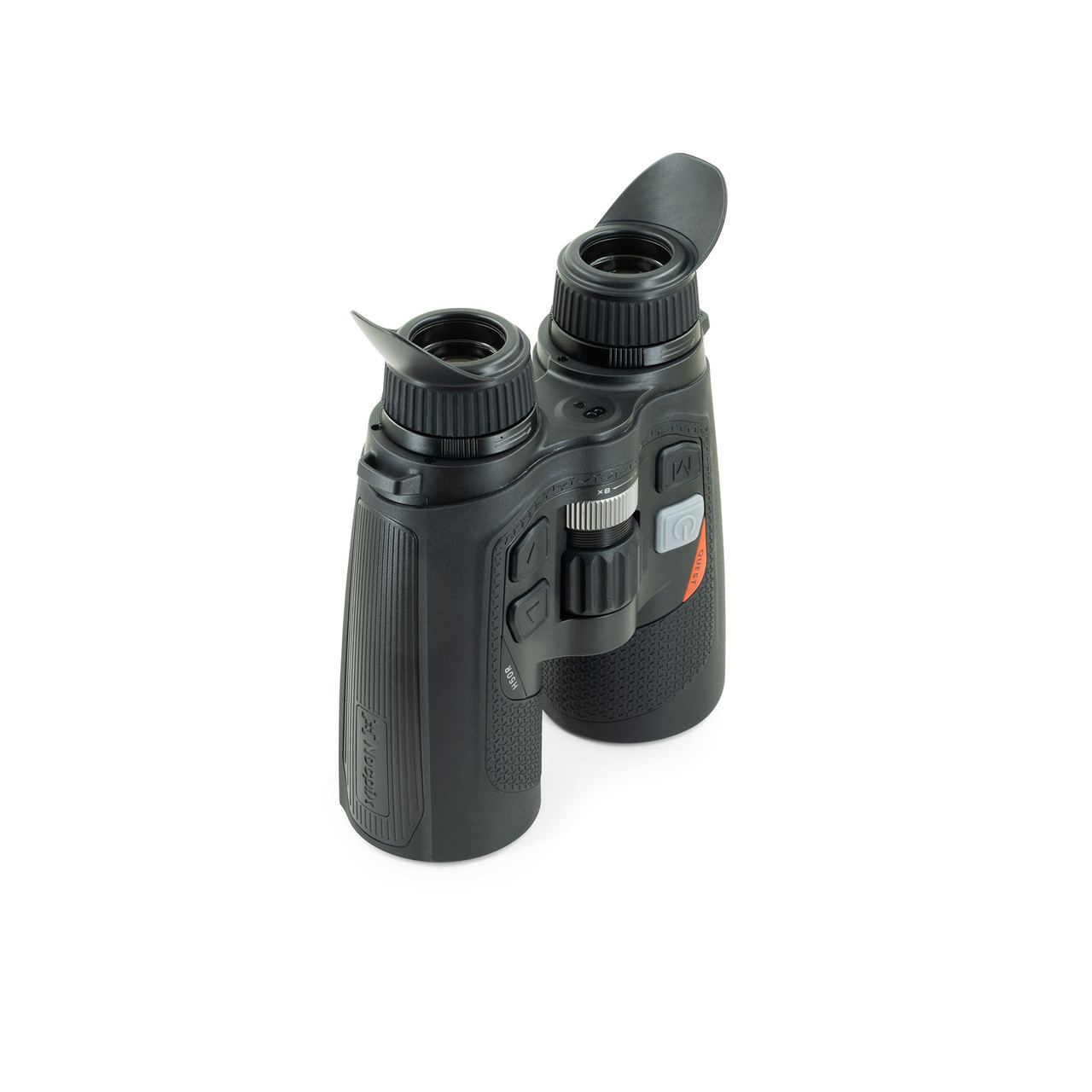

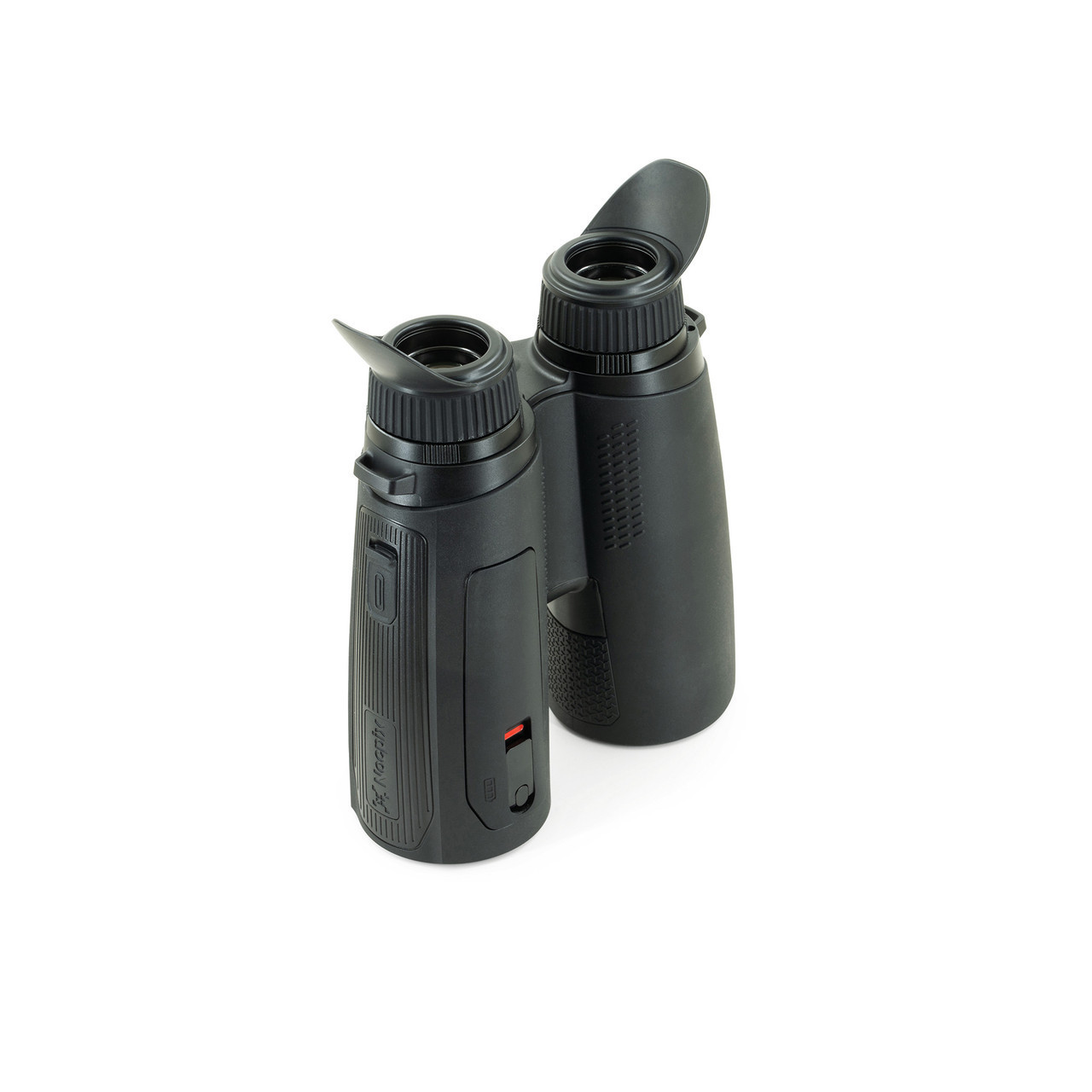

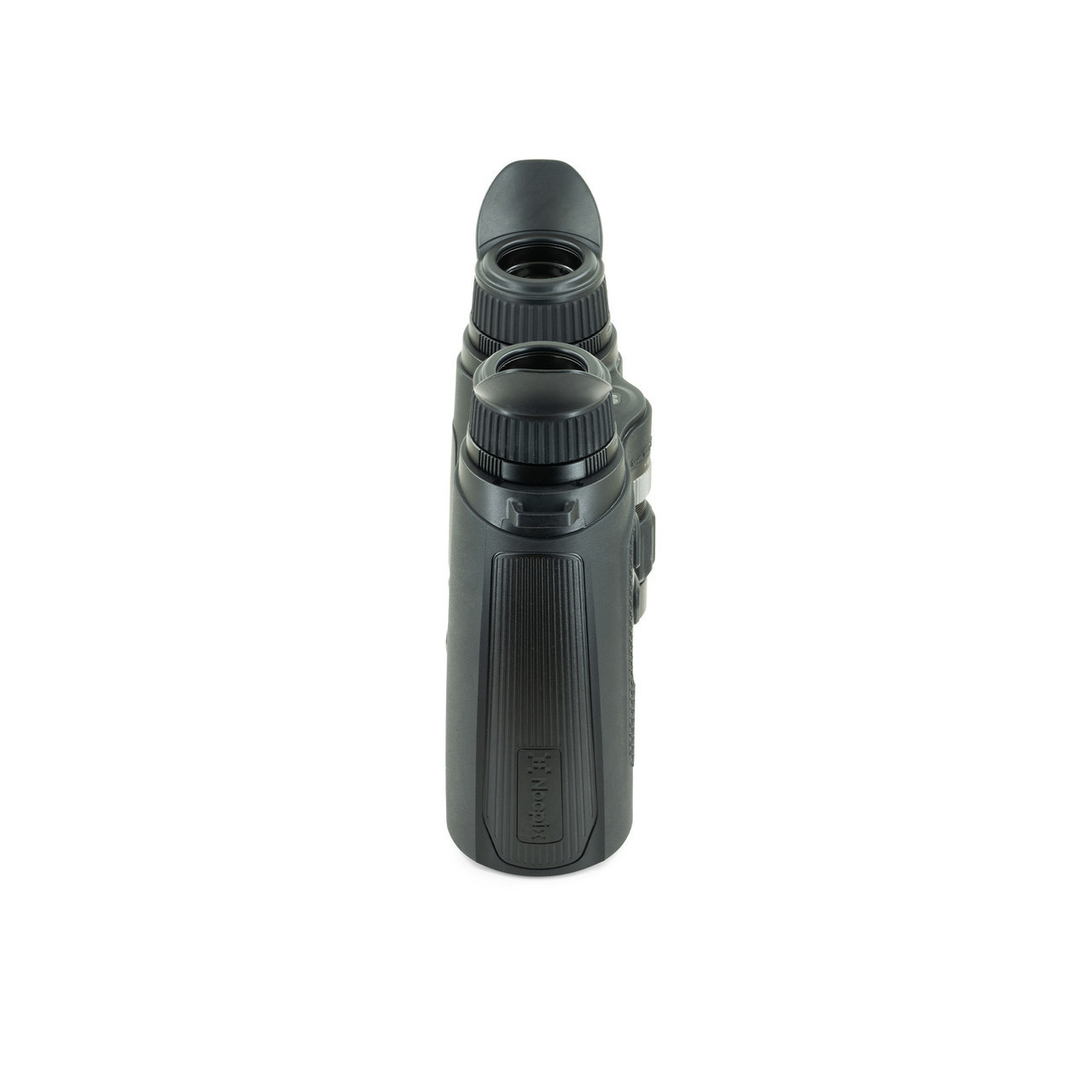

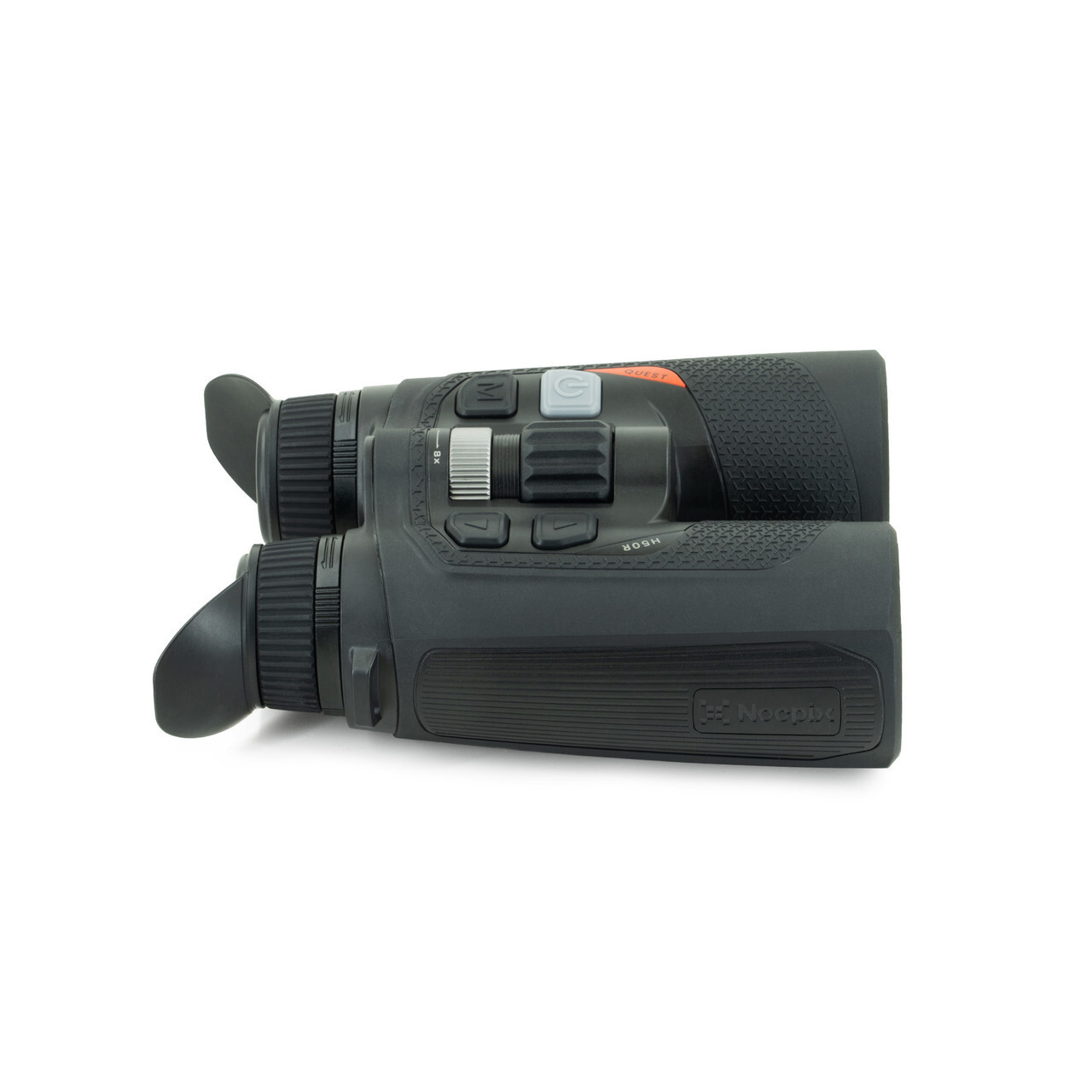

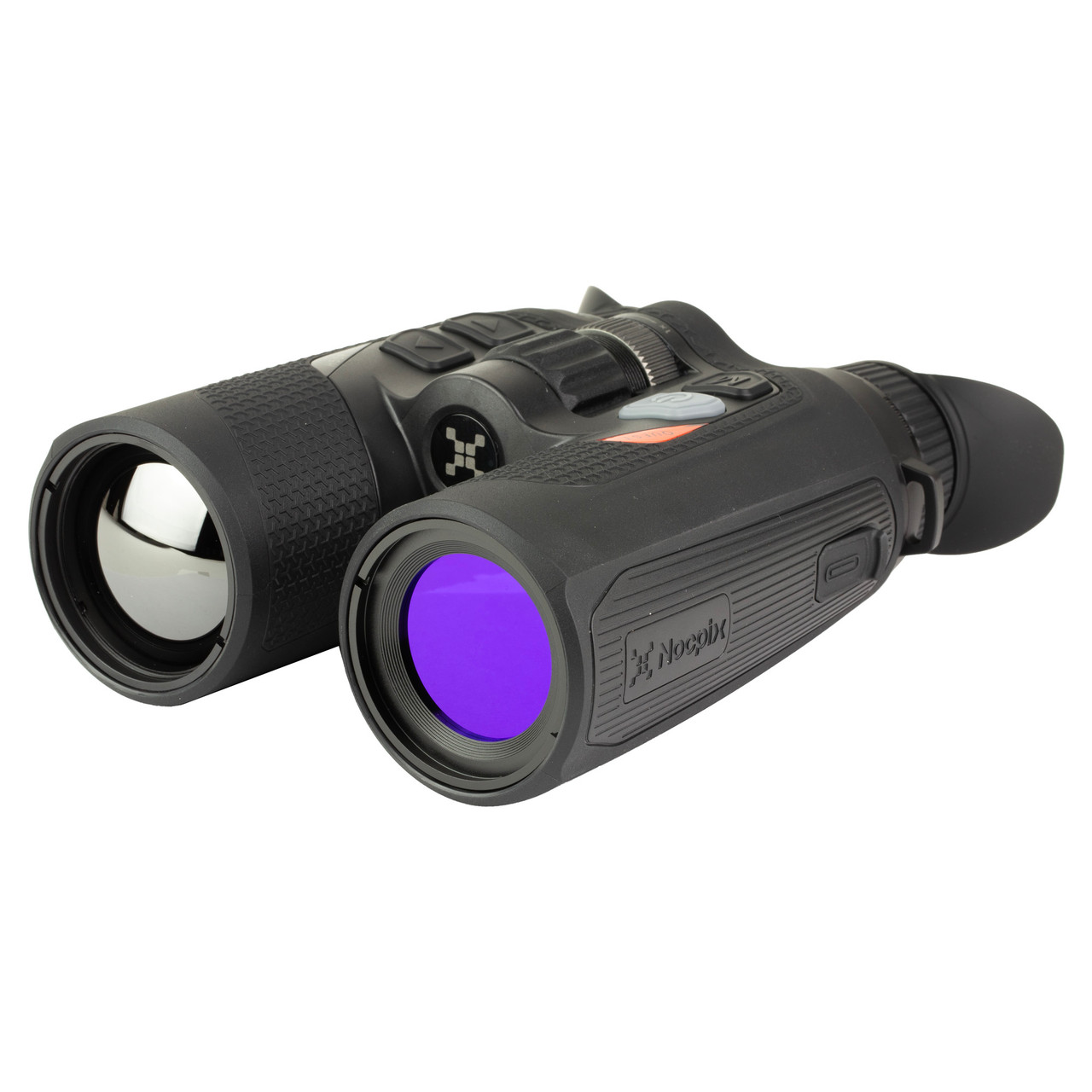

Nocpix QUEST H50R Rangefinding Thermal Binocular

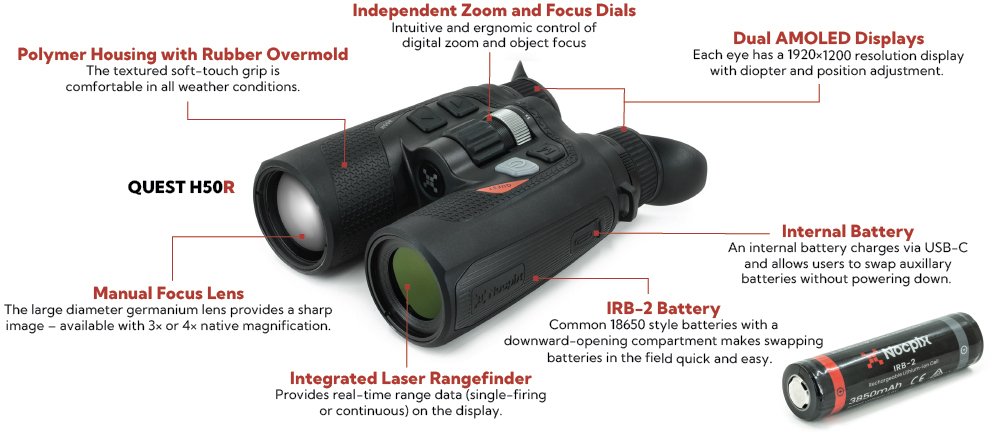

Nocpix QUEST H50R Thermal Binoculars feature a 12 μm ≤15mK 640×512 thermal sensor and Reality+ image processing algorithm that delivers a vivid picture to the 1920x1200 displays (full resolution per each eyepiece). Each display has a dedicated diopter and position adjustment.

QUEST binoculars also include an easy-to-use 1,000 yard laser rangefinder that can run in either single-firing or continuous modes to show target distance on the display. The combination of an internal USB-C rechargeable battery and an auxiliary IRB-2 (18650 style) rechargeable battery allows users to hot-swap the power source.

Nocpix QUEST H50R Thermal Binocular Resources

Nocpix QUEST H50R pdf icon Nocpix QUEST H50R Manual

Nocpix QUEST H50R pdf icon Nocpix QUEST H50R Datasheet



Nocpix QUEST H50R Specifications

Optics

  • Objective Focal Length: 50mm
  • Detection Range: 2850 Yards
  • Optical Magnification: 4X
  • Digital Magnification: 8X
  • Objective Lens Material: Germanium
  • Horizontal Angular Field of View: 8.8°
  • Vertical Angular Field of View: 7°
  • Objective Diameter: 50mm
  • Objective F#: 1.1
  • Focusing Mechanism: Manual Focus
  • Eye Relief: 25mm
  • Diopter Range: -5 to +5
  • Display Type: AMOLED
  • Display Resolution: 1920x1200

Features & Performance

  • Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
  • Rangefinder: Integrated 1000 yd LRF
  • Stand-by Mode: Yes
  • Picture-in-Picture: Yes
  • Storage Capacity: 64GB
  • Connector Output: Power/Data
  • User-Updatable Firmware: Yes
  • Mobile App: Yes
  • Power Source: USB-C External, 18650 Battery, Built-In Battery Pack
  • Connector Type: USB-C
  • WiFi: Yes
  • Onboard Recording: Yes
  • Image Capture: Yes
  • Video Output: Yes
  • Run Time: 5+
  • Warranty: 5 Years
  • Startup Time: <10 Seconds, Instant from Standby
  • External Power Source: USB-C
  • Country of Manufacture: China

Environmental Specifications

  • Operating Temperature Range: -4°F ~ 122°F
  • Ingress Protection: IP67

Physical

  • Length: 6.91 in
  • Width: 5.43 in
  • Height: 2.60 in
  • Weight: 24.69 oz
  • Housing Material: Polymer

Sensor Specifications

  • Sensor Type: Nocpix 640
  • Device Technology: Thermal Imaging
  • Sensor Resolution: 640×512
  • Sensor Pixel Size: 12μm
  • Sensor Frame Rate: 60Hz
  • Thermal Sensitivity: <15mk
  • Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
