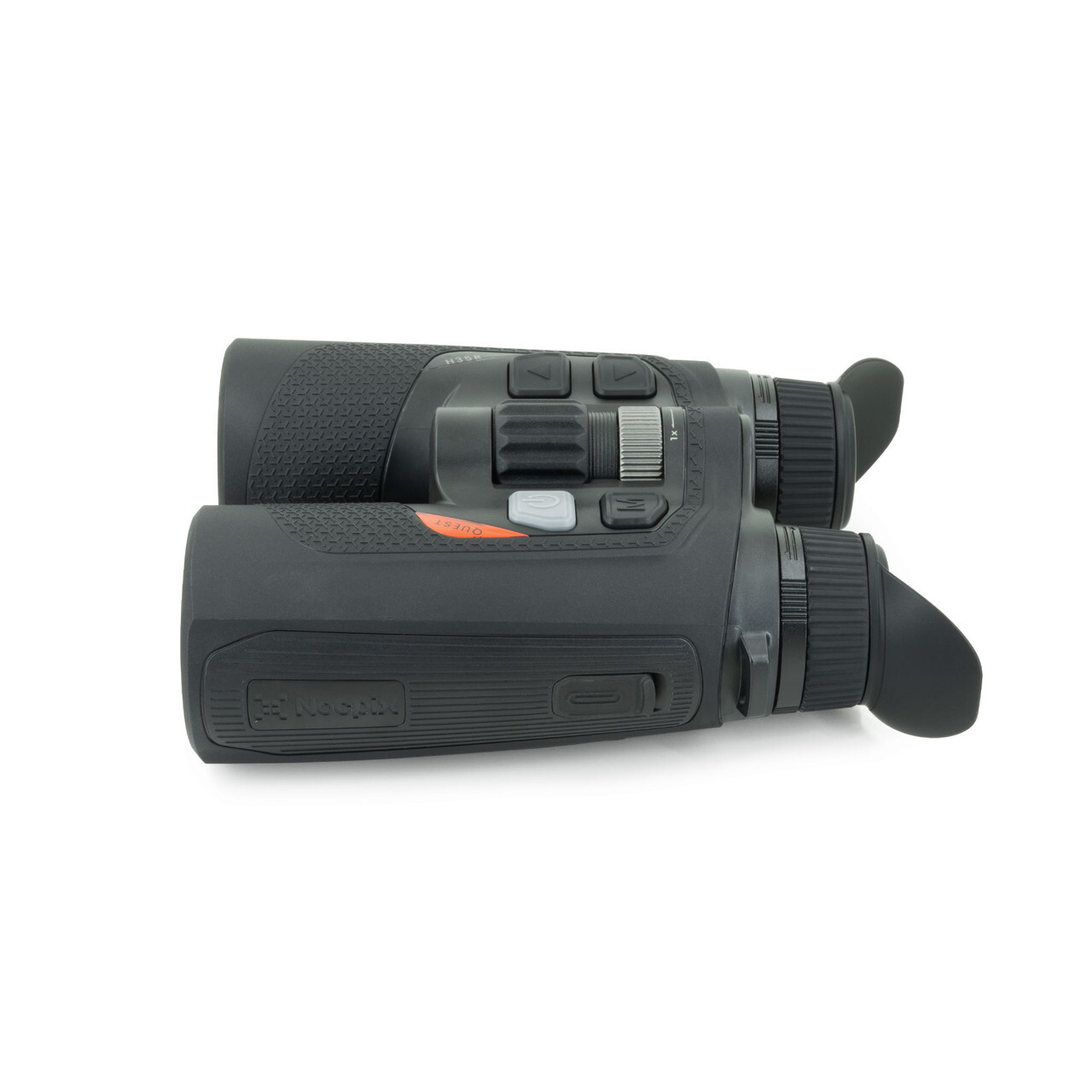

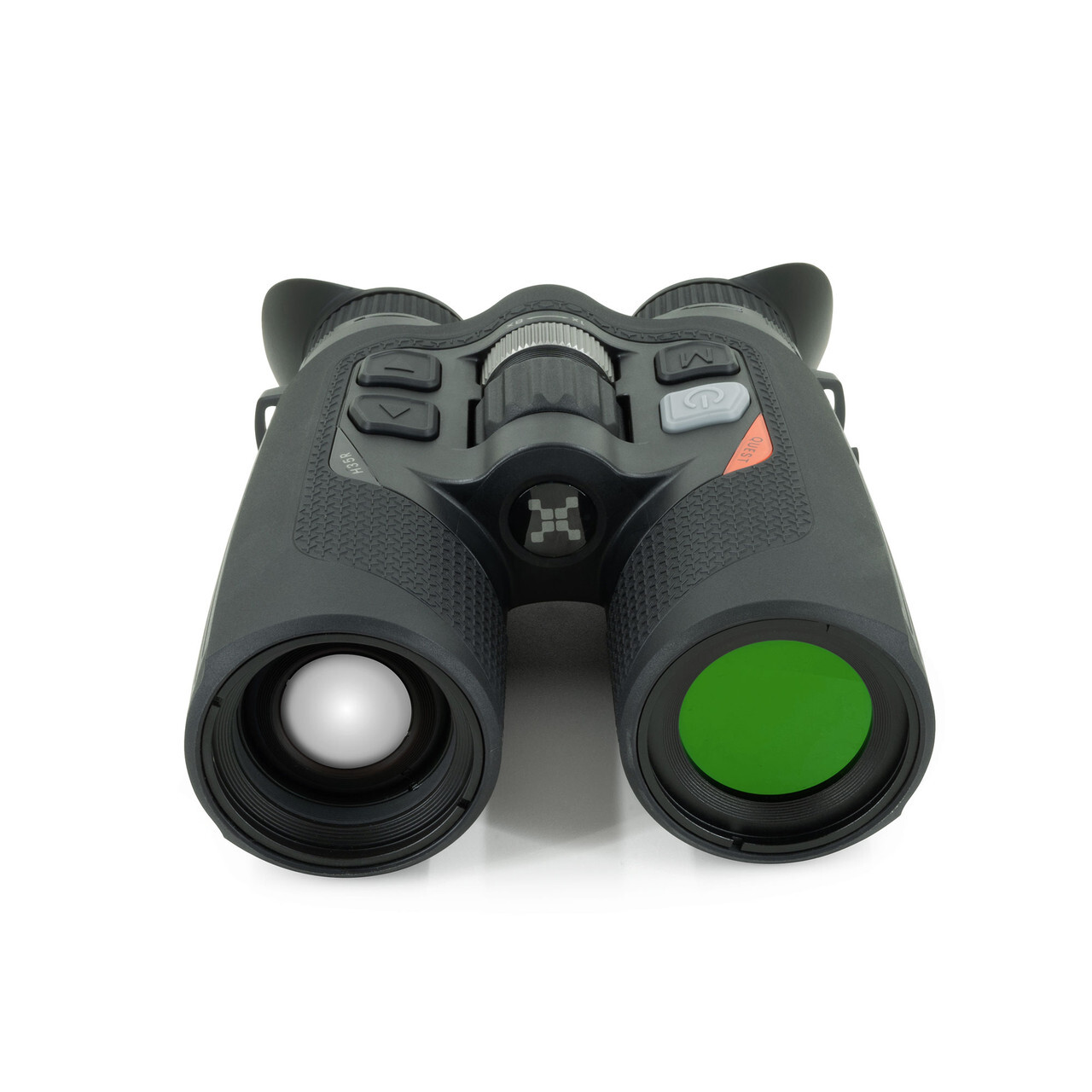

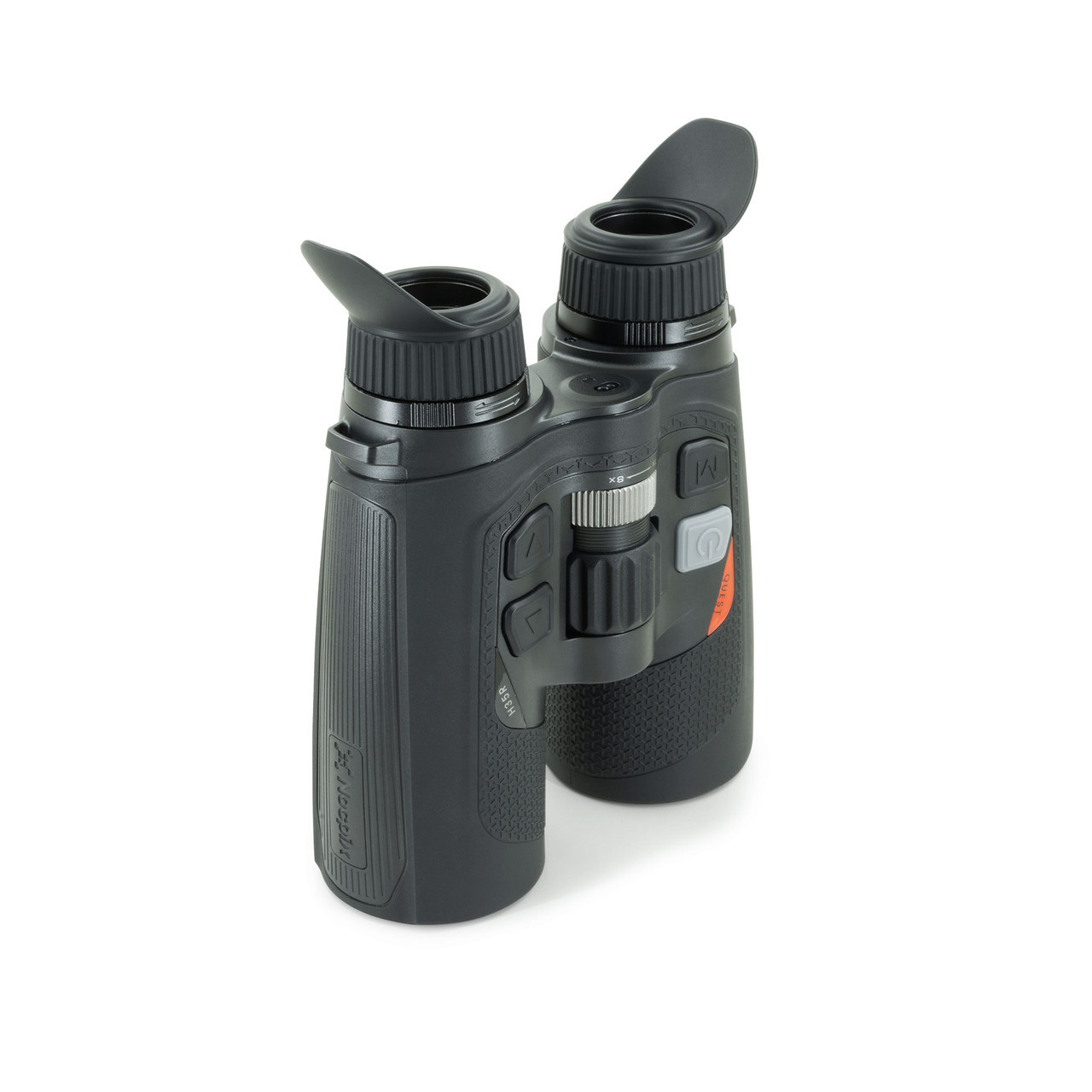

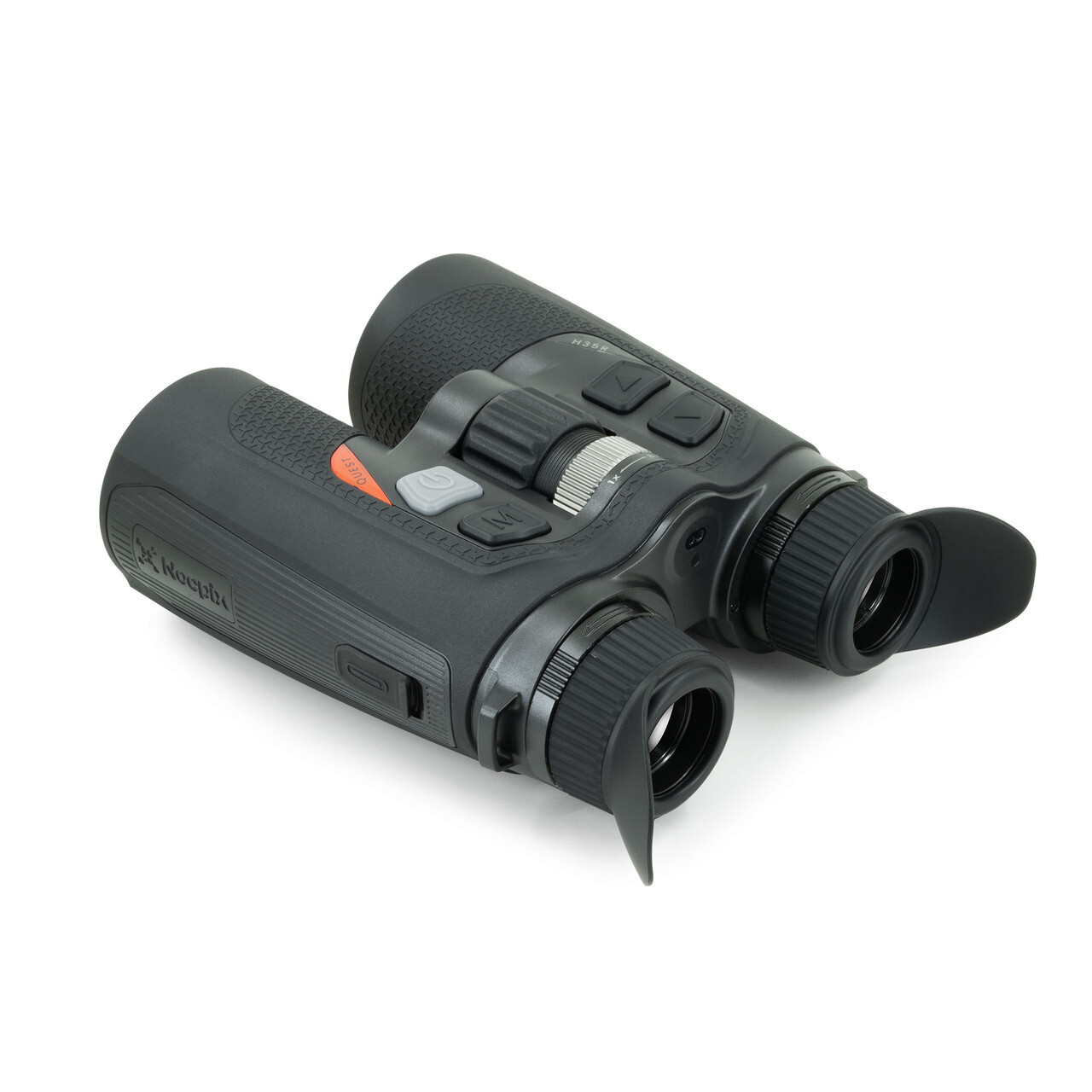

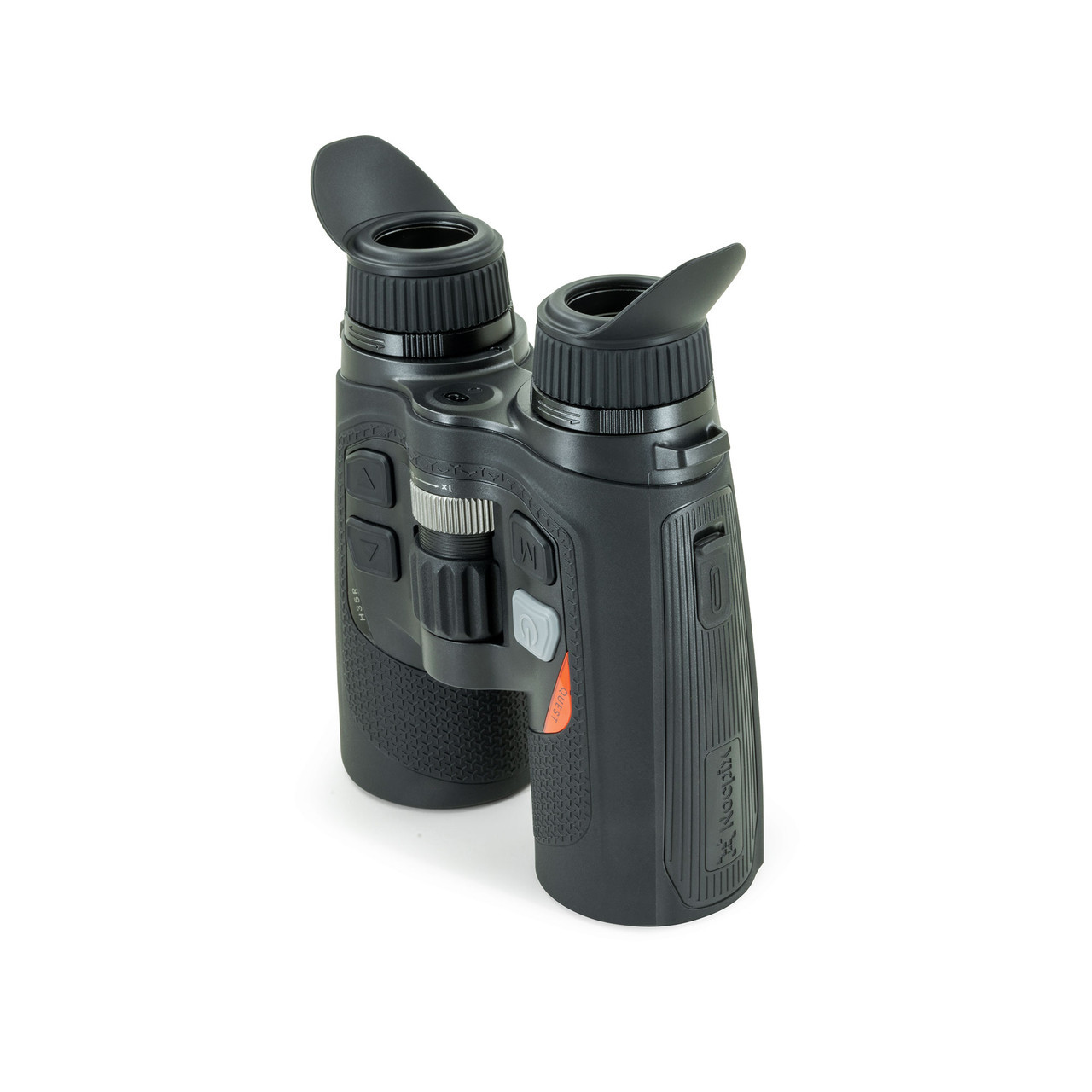

Nocpix QUEST H35R Rangefinding Thermal Binocular

The Nocpix QUEST H35R Thermal Binocular features a 12 μm ≤15mK 640×512 thermal sensor and Reality+ image processing algorithm that delivers a vivid picture to the 1920x1200 displays (full resolution per each eyepiece). Each display has a dedicated diopter and position adjustment.

The QUEST H35R also include an easy-to-use 1,000 yard laser rangefinder that can run in either single-firing or continuous modes to show target distance on the display. The combination of an internal USB-C rechargeable battery and an auxiliary IRB-2 (18650 style) rechargeable battery allows users to hot-swap the power source.

Nocpix QUEST H35R Thermal Binocular Resources

Nocpix QUEST H35R Thermal Binocular pdf icon Nocpix QUEST H35R Manual

Nocpix QUEST H35R Thermal Binocular pdf icon Nocpix QUEST H35R Datasheet



Nocpix QUEST H35R Specifications

Optics

  • Objective Focal Length: 35mm
  • Detection Range: 1970 Yards
  • Digital Magnification: 8X
  • Vertical Angular Field of View: 10°
  • Horizontal Angular Field of View: 12.5°
  • Objective Lens Material: Germanium
  • Optical Magnification: 3X
  • Objective F#: 0.9
  • Objective Diameter: 35mm
  • Display Type: AMOLED
  • Eye Relief: 25mm
  • Diopter Range: -5 to +5
  • Focusing Mechanism: Manual Focus
  • Display Resolution: 1920x1200

Features & Performance

  • Warranty: 5 Years
  • Startup Time: <10 Seconds, Instant from Standby
  • Rangefinder: Integrated 1000 yd LRF
  • Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
  • Picture-in-Picture: Yes
  • Storage Capacity: 64GB
  • Connector Output: Power/Data
  • User-Updatable Firmware: Yes
  • Mobile App: Yes
  • Run Time: 5+
  • Power Source: USB-C External, 18650 Battery, Built-In Battery Pack
  • Stand-by Mode: Yes
  • Connector Type: USB-C
  • External Power Source: USB-C
  • Country of Manufacture: China
  • Wifi: Yes
  • Onboard Recording: Yes
  • Image Capture: Yes
  • Video Output: Yes

Environmental Specifications

  • Operating Temperature Range: -4°F~122°F
  • Ingress Protection: IP67

Physical

  • Housing Material: Polymer
  • Weight: 24.69
  • Height: 2.60
  • Width: 5.43
  • Length: 6.91

Sensor Specifications

  • Sensor Type: Nocpix 640
  • Device Technology: Thermal Imaging
  • Sensor Resolution: 640×512
  • Sensor Pixel Size: 12μm
  • Thermal Sensitivity: <15mk
  • Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
  • Sensor Frame Rate: 60hz
