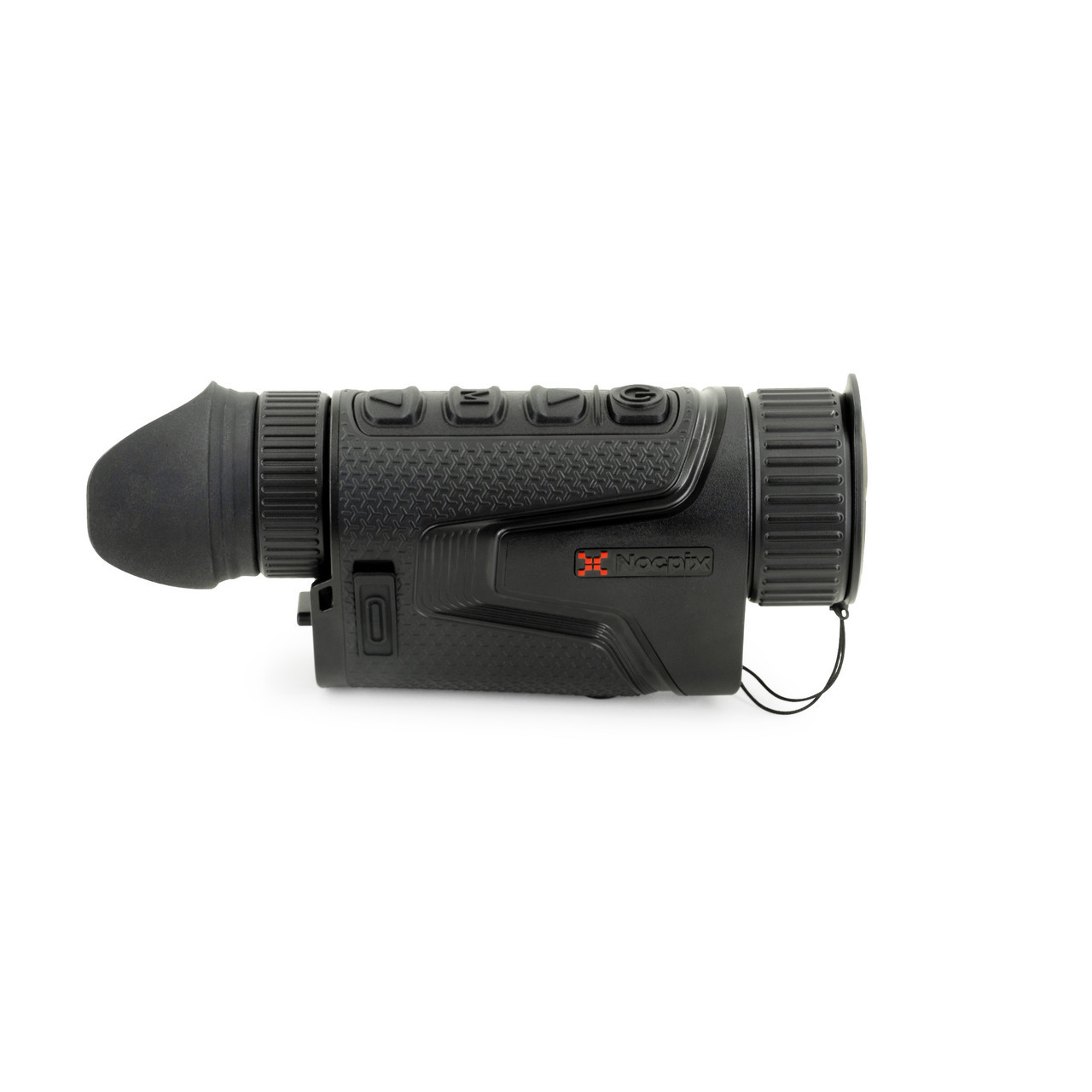

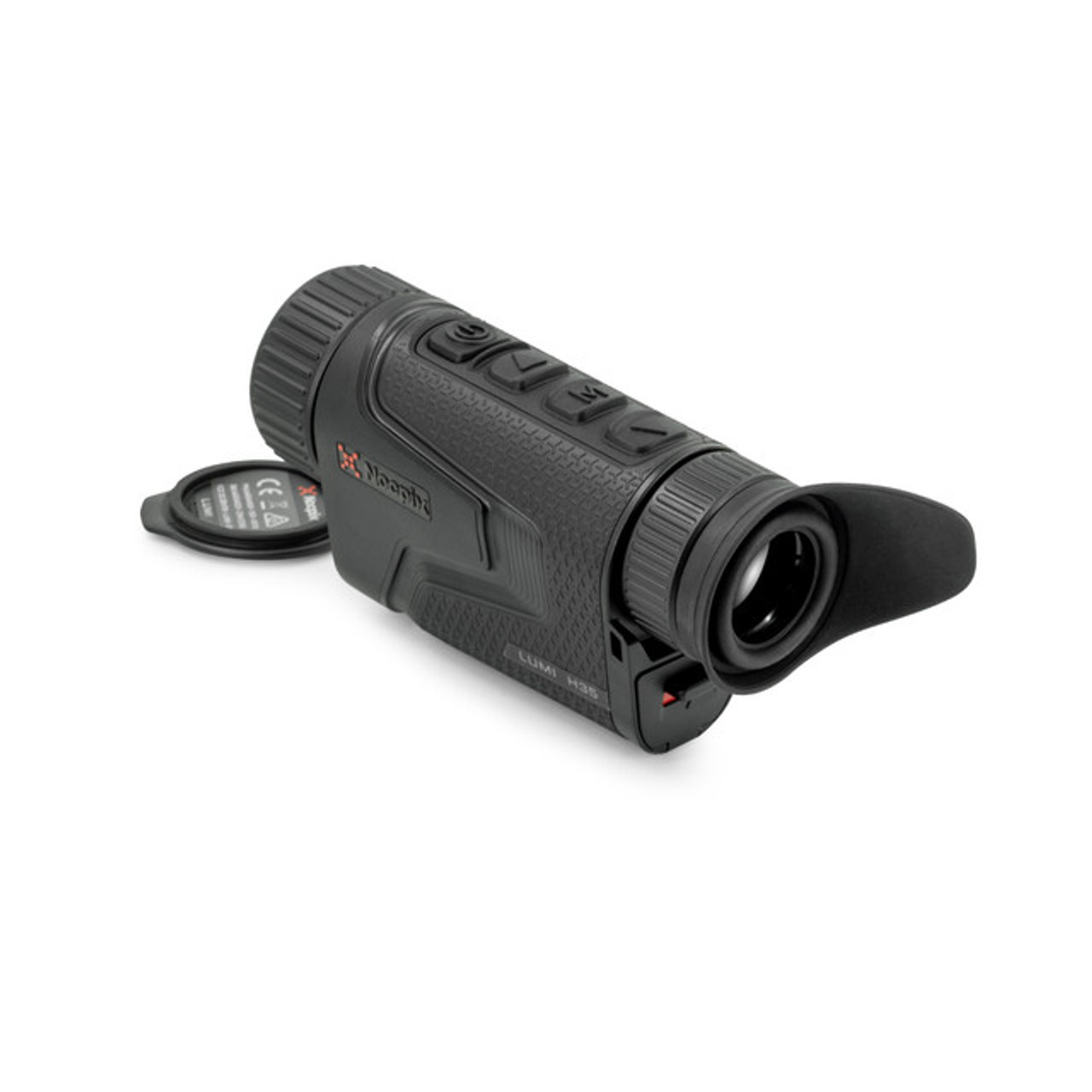

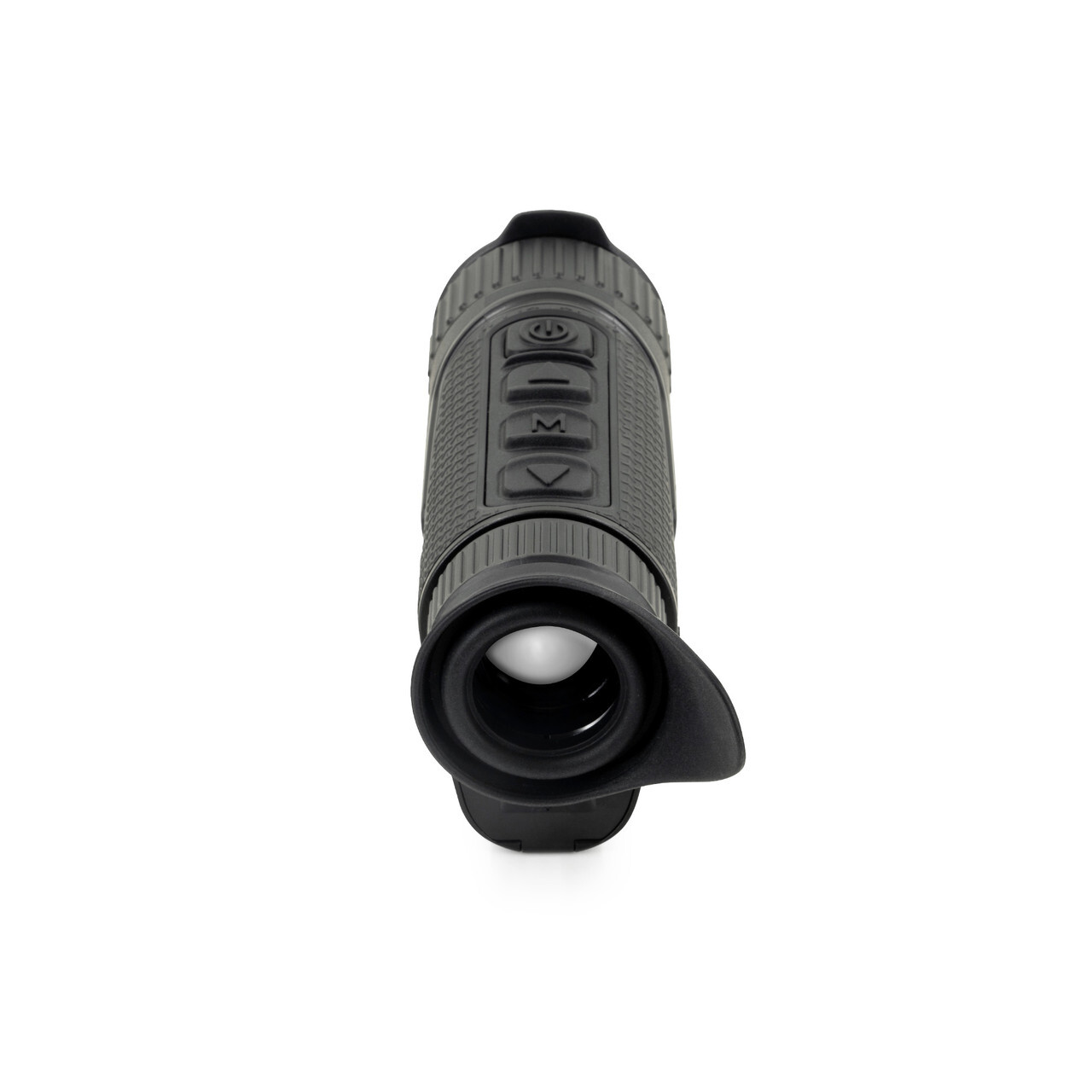

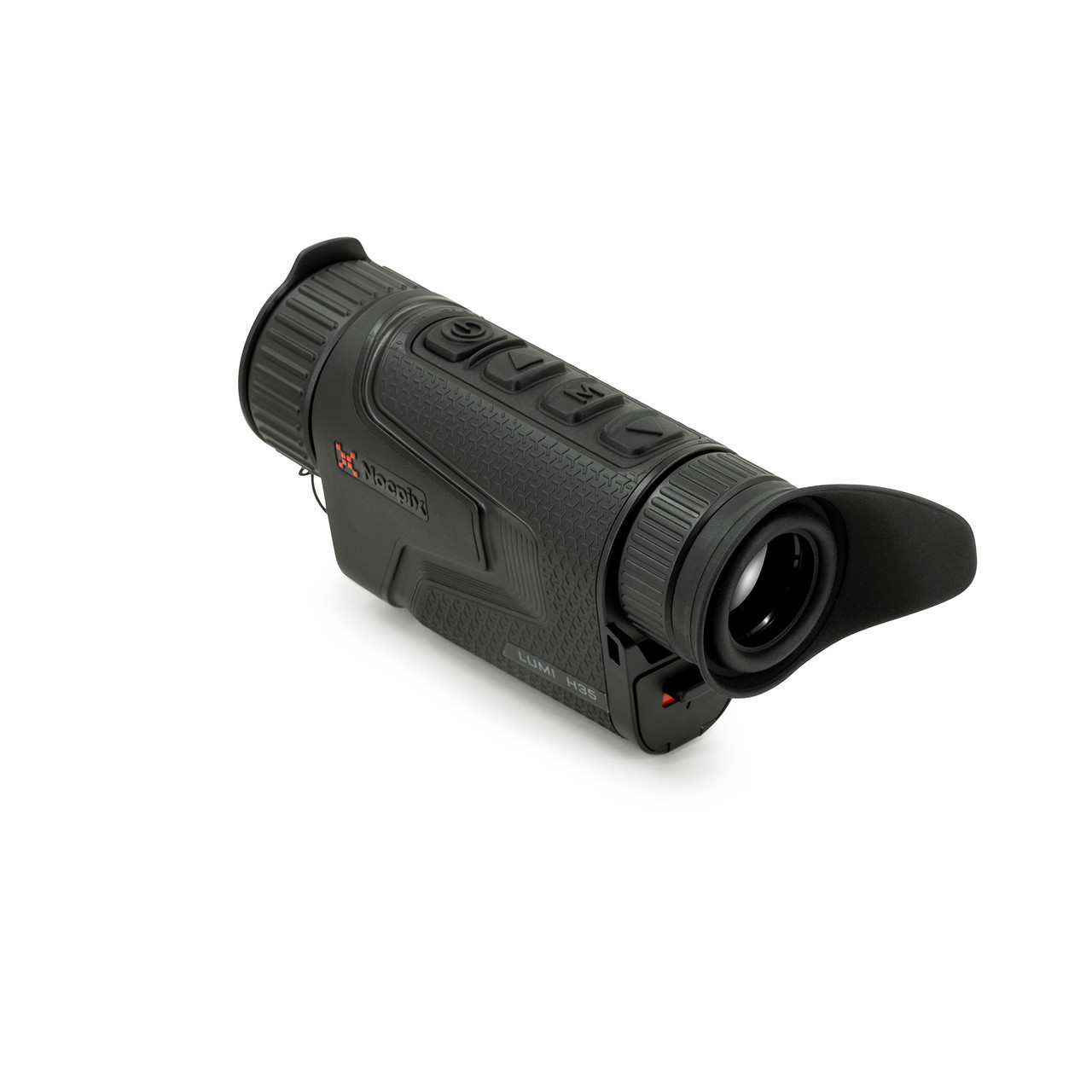

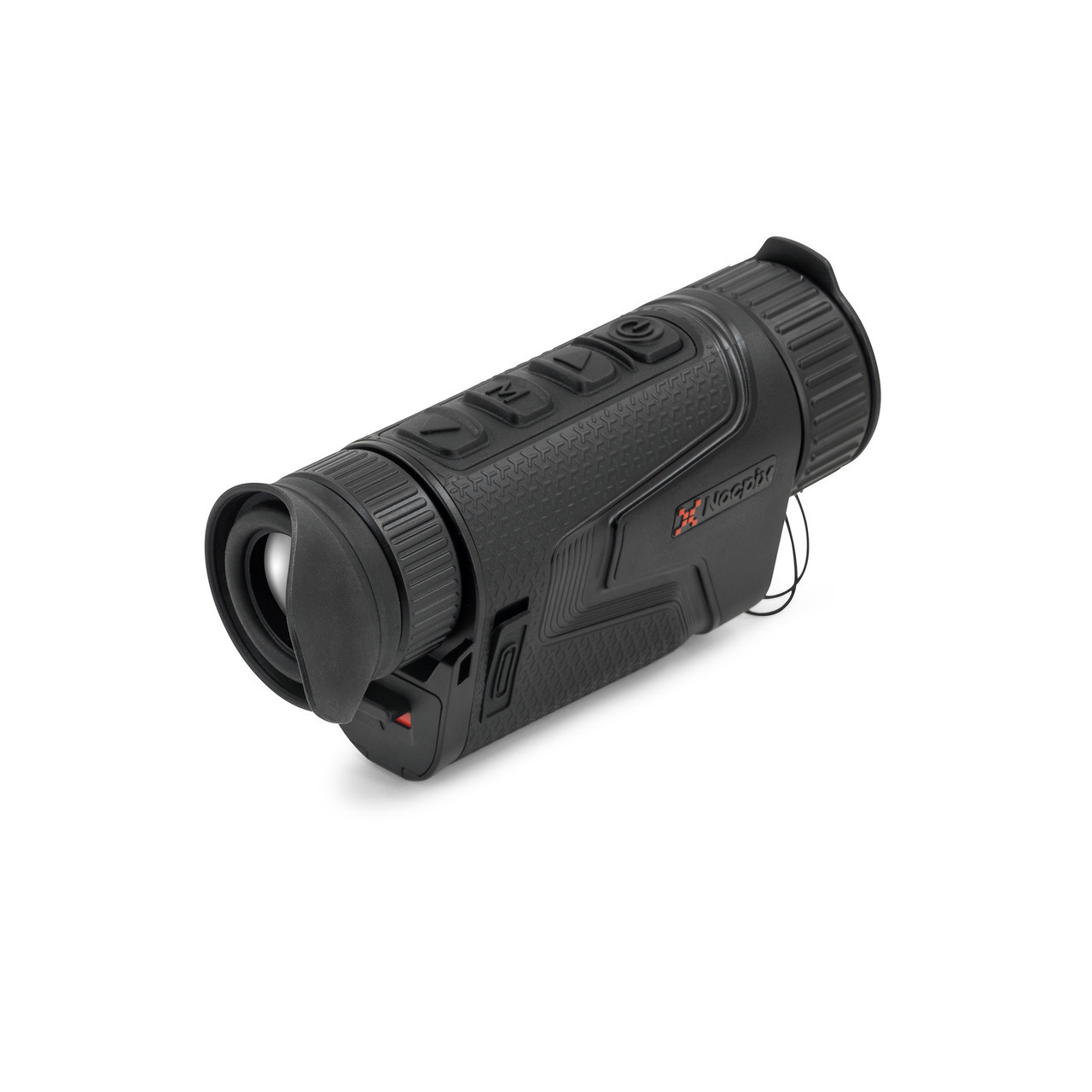

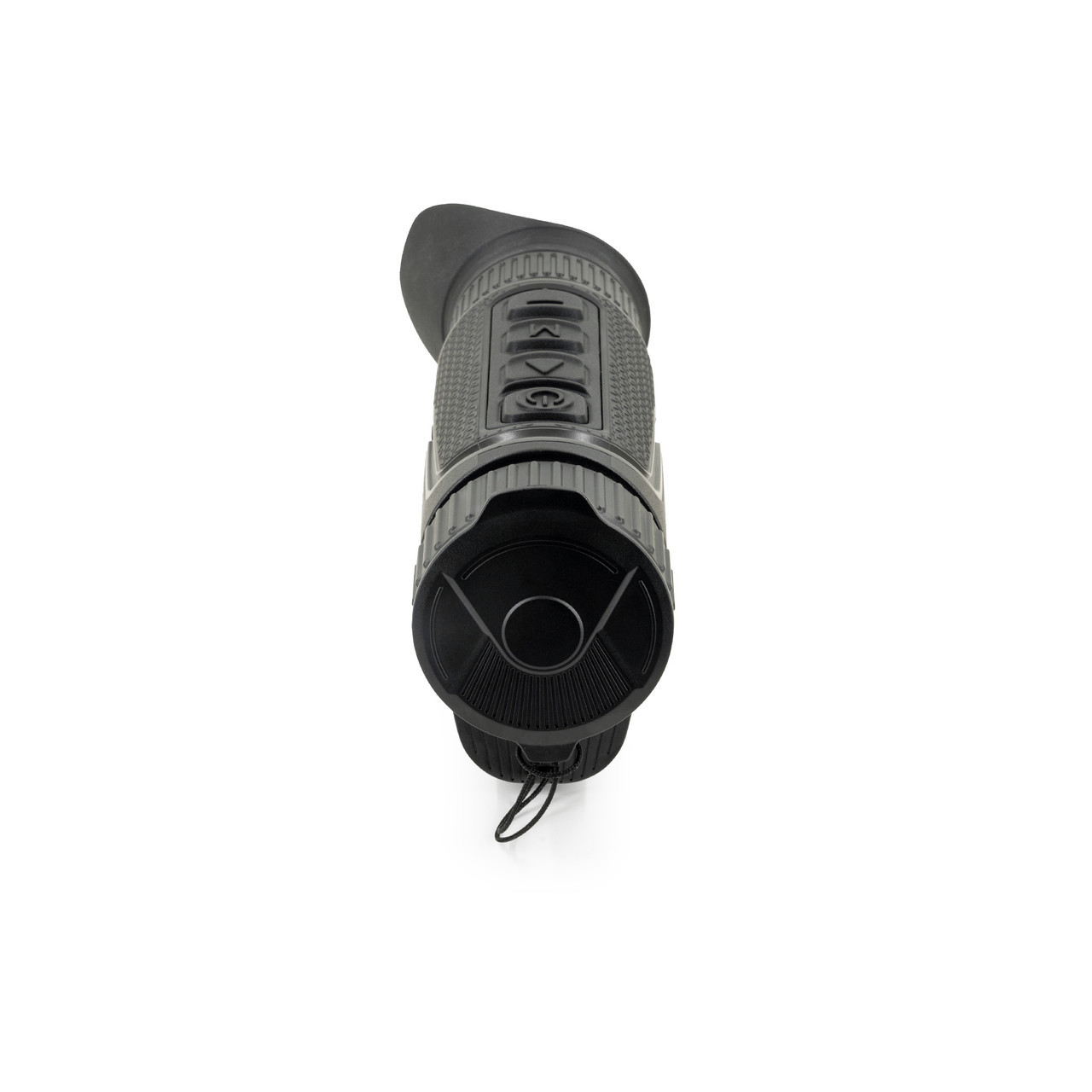

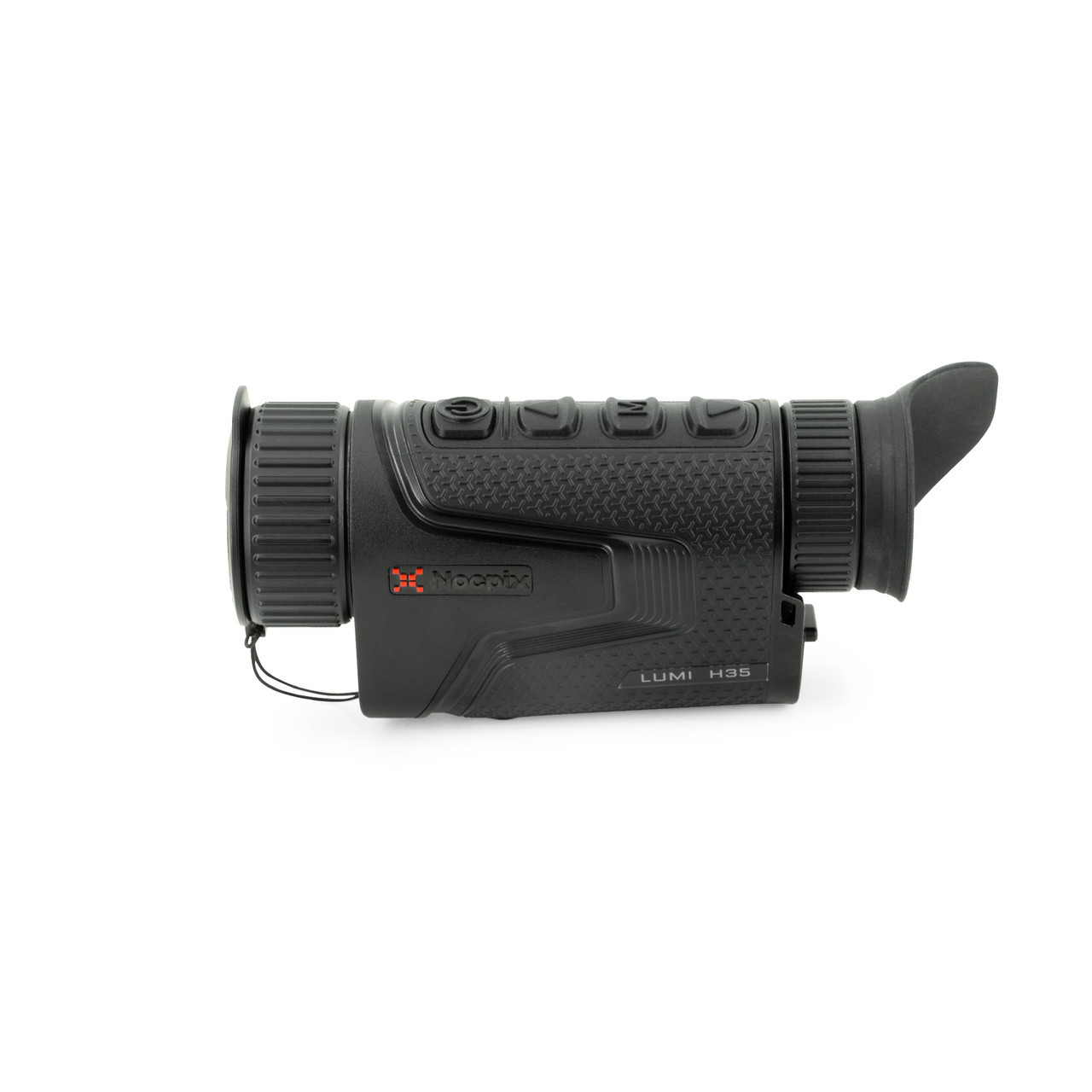

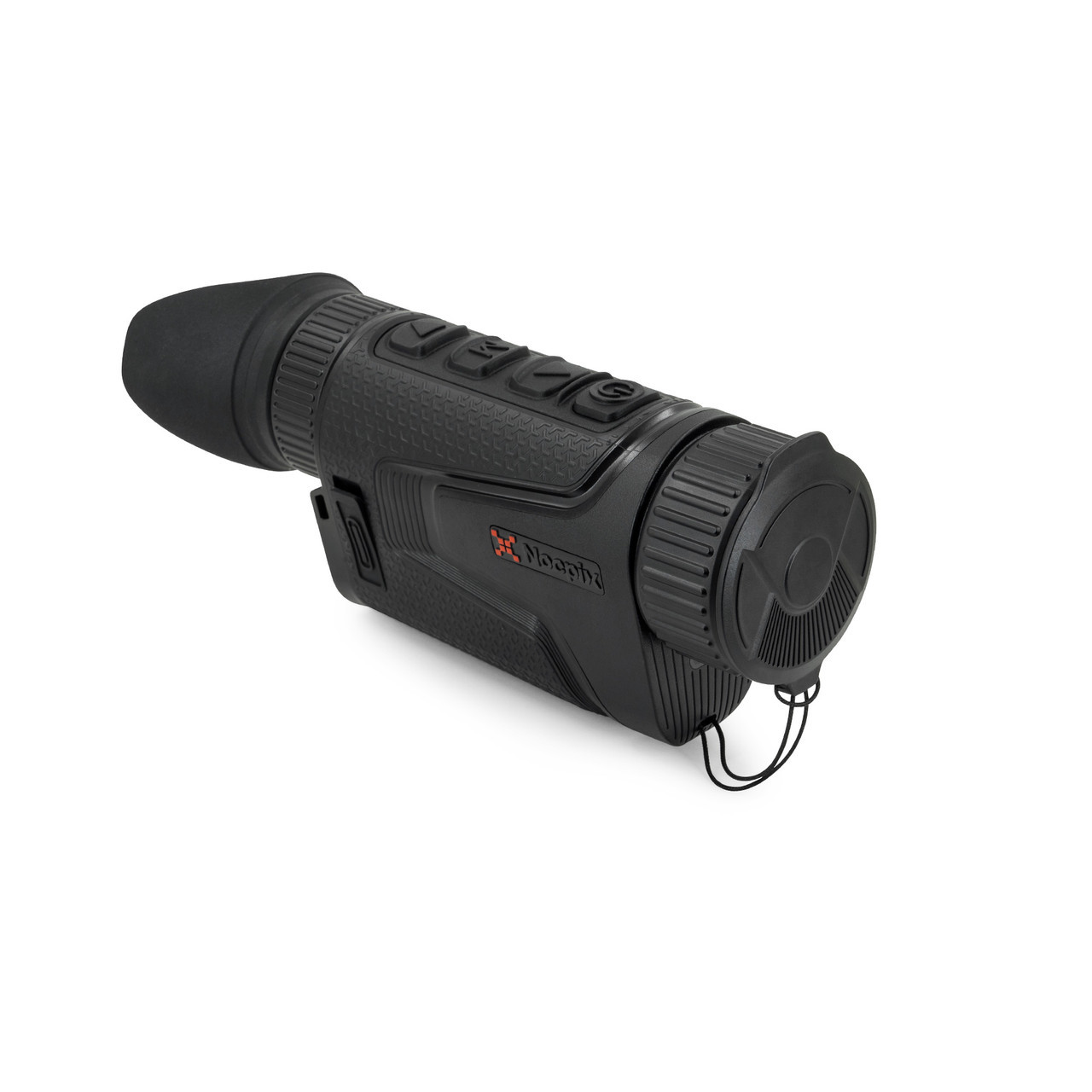

Nocpix LUMI H35 Compact Thermal Monocular 640x512 35mm

✨ Nocpix LUMI H35 Compact Thermal Monocular  ✨

640x512  | 35mm

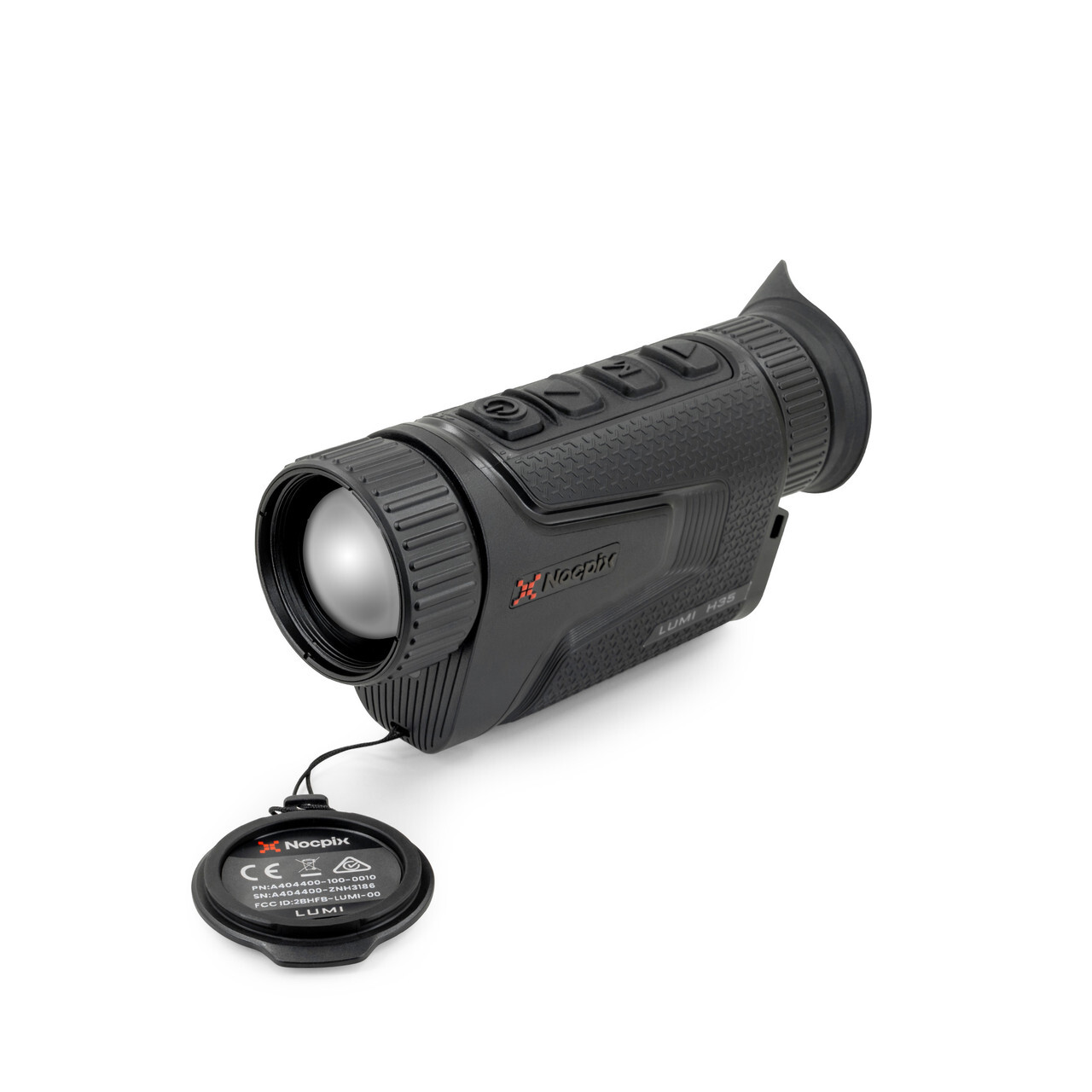

The Nocpix LUMI H35 handheld thermal monocular features a high quality thermal sensor paired with a 1024x768 AMOLED display and 2.5x base magnification for a wider field of view. The advanced Reality+ image processing algorithm and a ≤18 mK NETD (thermal sensitivity) rating provide sharp, high-contrast images. The LUMI was designed to be as compact and ergonomic as possible while still offering impressive image detail and clarity.

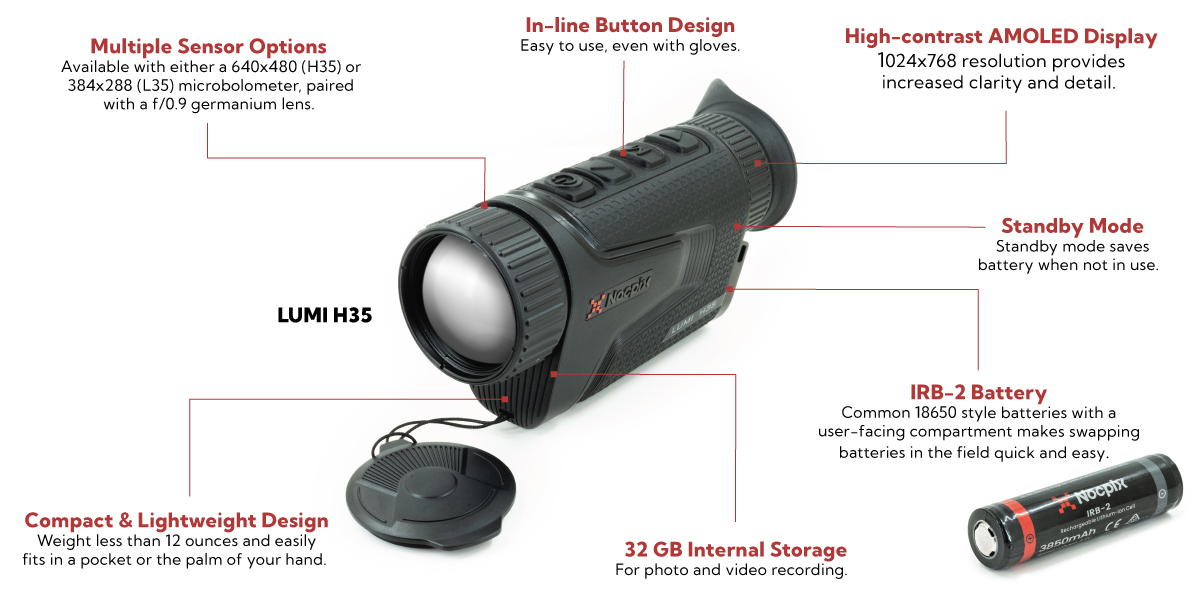

• Lightweight and compact design easily fits in a pocket or the include MOLLE-compatible pouch.
• Weatherproof rubberized texture increases durability and is not cold to the touch.
• Powered by a common 18650 style rechargeable battery with a spare battery included.
• Advanced R+ image processing provides enhances image quality during digital zoom.
• Onboard photo, video, and audio recording.
• Comfortable ambidextrous vertical design.

Resources

• Manual

Specifications

Optics

• Objective Focal Length: 35mm
• Display Type: AMOLED
• Eye Relief: 25mm
• Digital Magnification: 8X
• Diopter Range: -5 to +5
• Vertical Angular Field of View: 9.4°
• Horizontal Angular Field of View: 12.5°
• Focusing Mechanism: Manual Focus
• Objective F#: 0.9
• Objective Diameter: 35mm
• Objective Lens Material: Germanium
• Display Resolution: 1024×768
• Detection Range: 1750 Yards
• Optical Magnification: 2.5X

Features & Performance

• Warranty: 5 Years
• Startup Time: <10 Seconds, Instant from Standby
• Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
• Picture-in-Picture: Yes
• Storage Capacity: 32GB
• Connector Output: Power/Data
• User-Updatable Firmware: Yes
• Mobile App: Yes
• Run Time: 4+
• Power Source: USB-C External, 18650 Battery
• One-Shot Zero: Yes
• Stand-by Mode: Yes
• Connector Type: USB-C
• External Power Source: USB-C
• Country of Manufacture: China
• Wifi: Yes
• Onboard Recording: Yes
• Image Capture: Yes
• Video Output: Yes

Environmental Specifications

• Operating Temperature Range: -4°F~122°F
• Ingress Protection: IP67

Physical

• Housing Material: Polymer
• Weight: 11.82 oz
• Height: 2.91
• Width: 1.84
• Length: 5.63

Sensor Specifications

• Device Technology: Thermal Imaging
• Sensor Pixel Size: 12μm
• Thermal Sensitivity: <18mk
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
• Sensor Frame Rate: 50hz
• Sensor Type: Nocpix 640
• Sensor Resolution: 640×512
