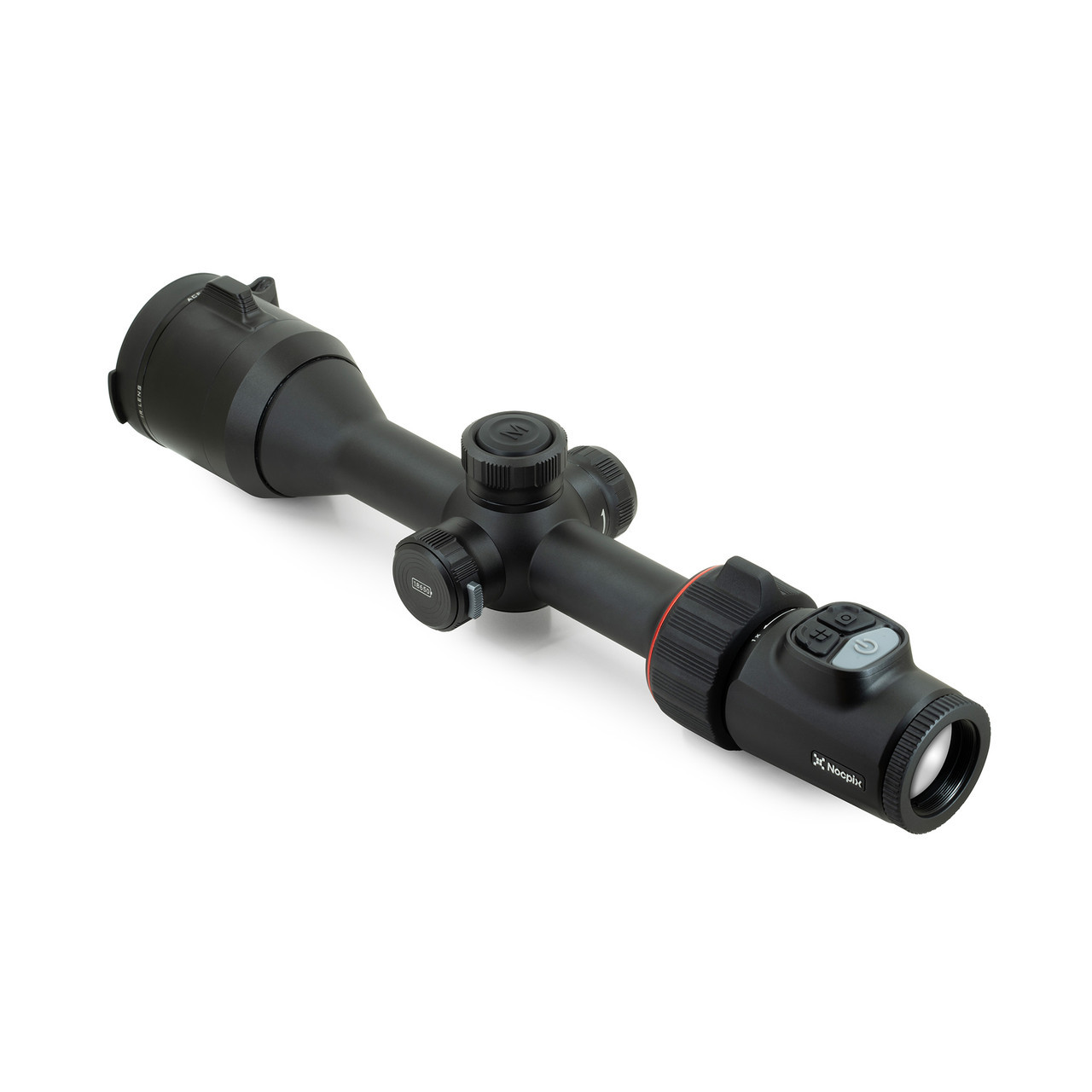

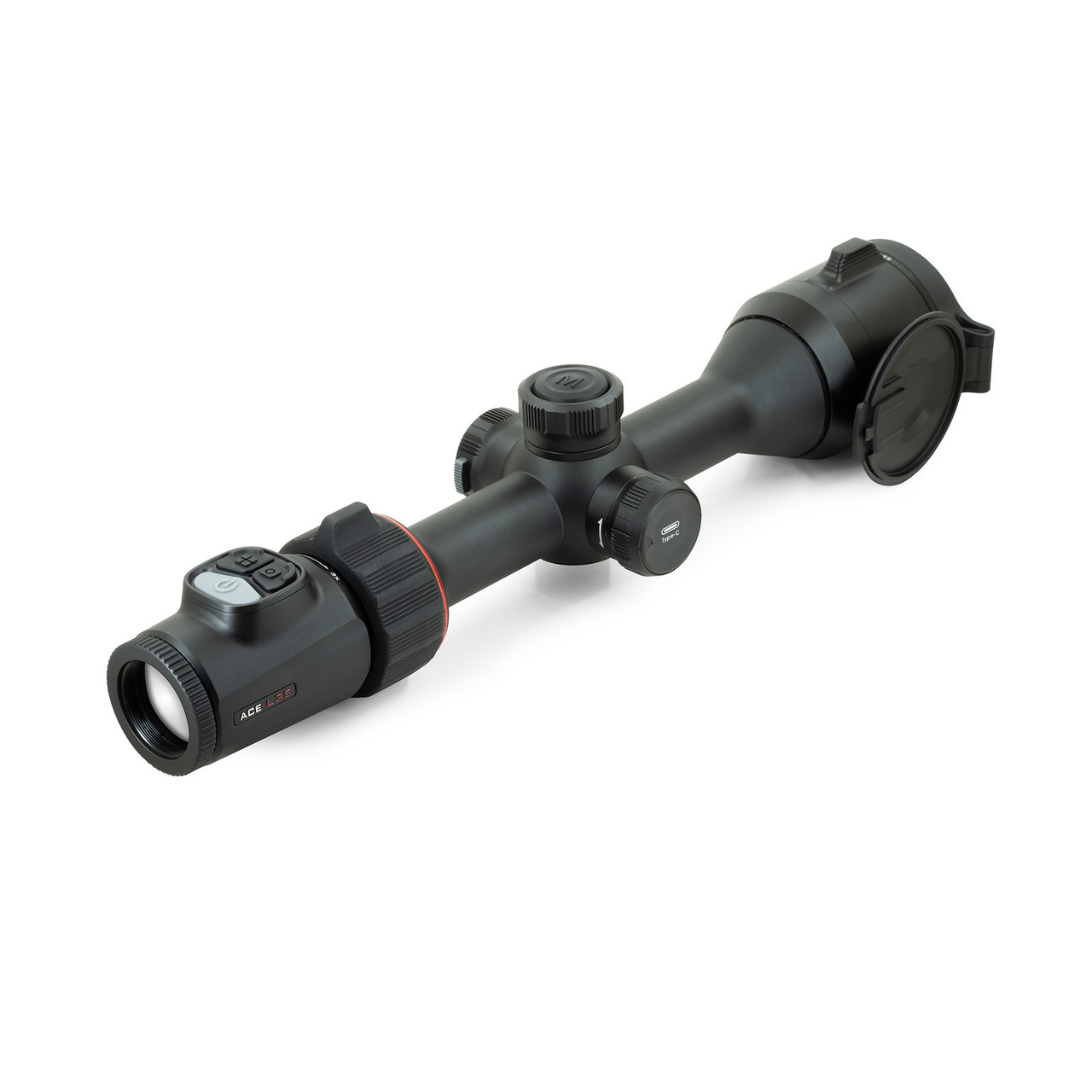

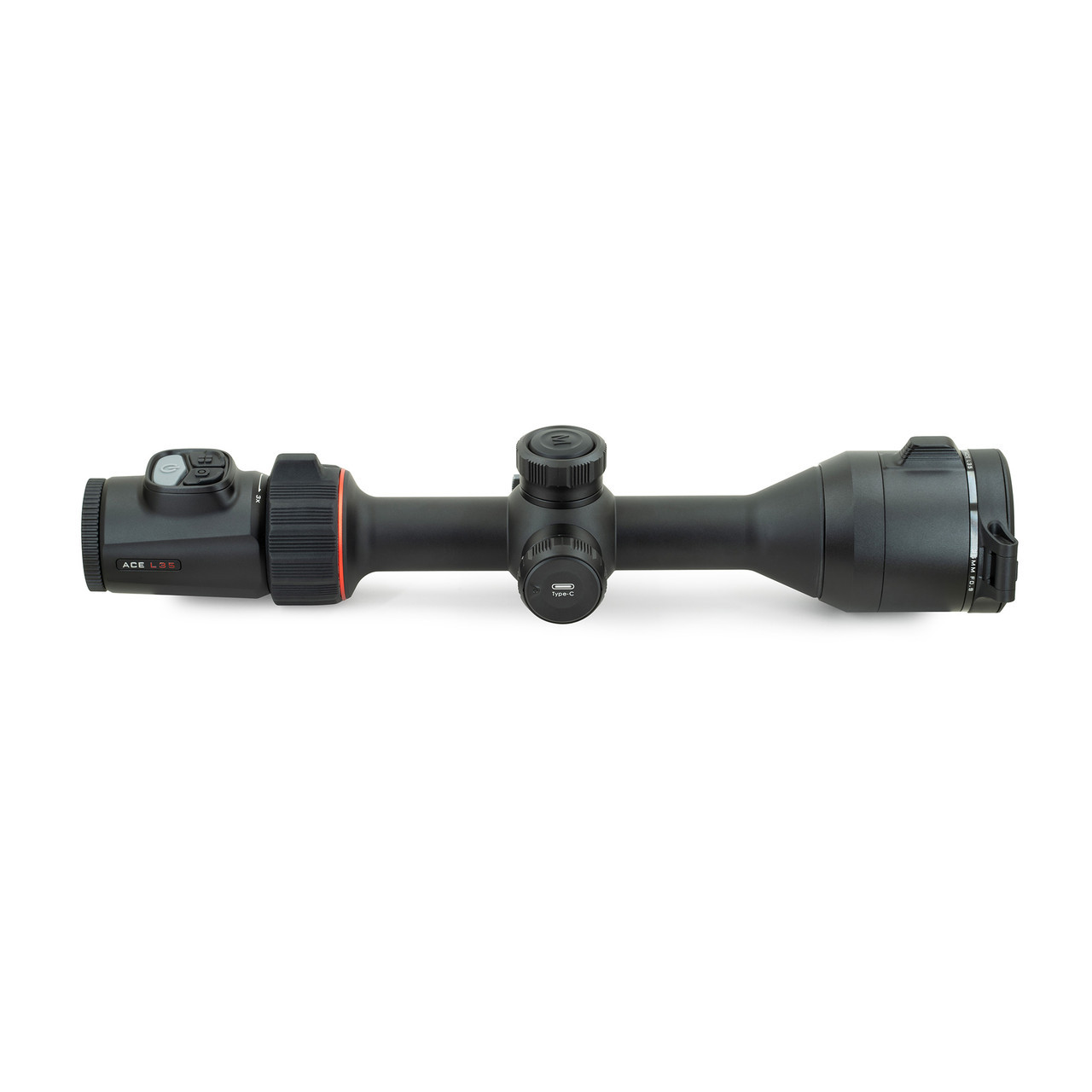

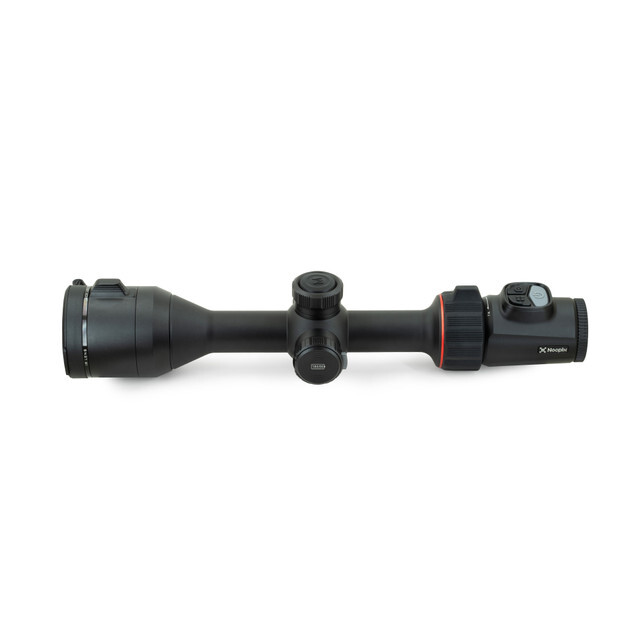

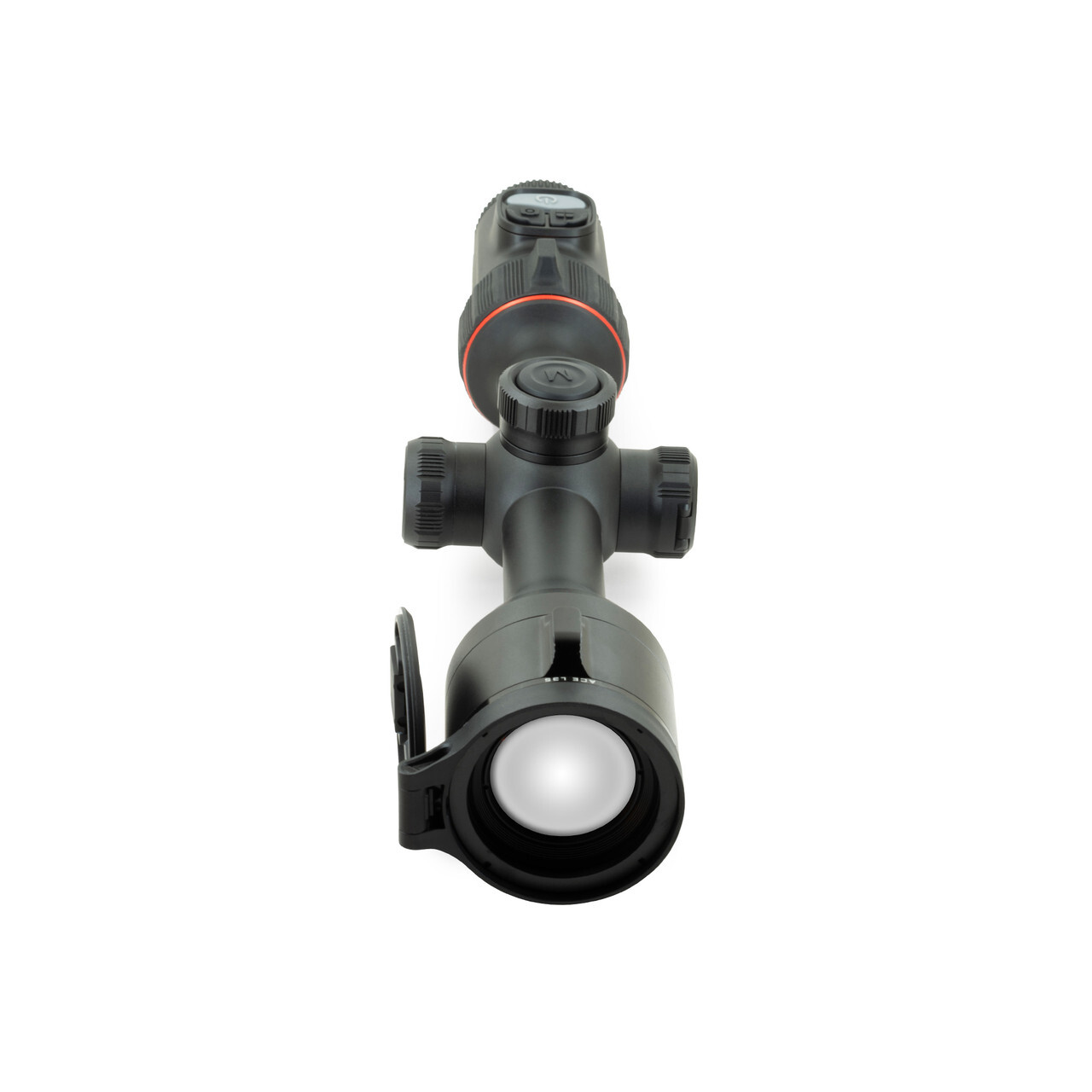

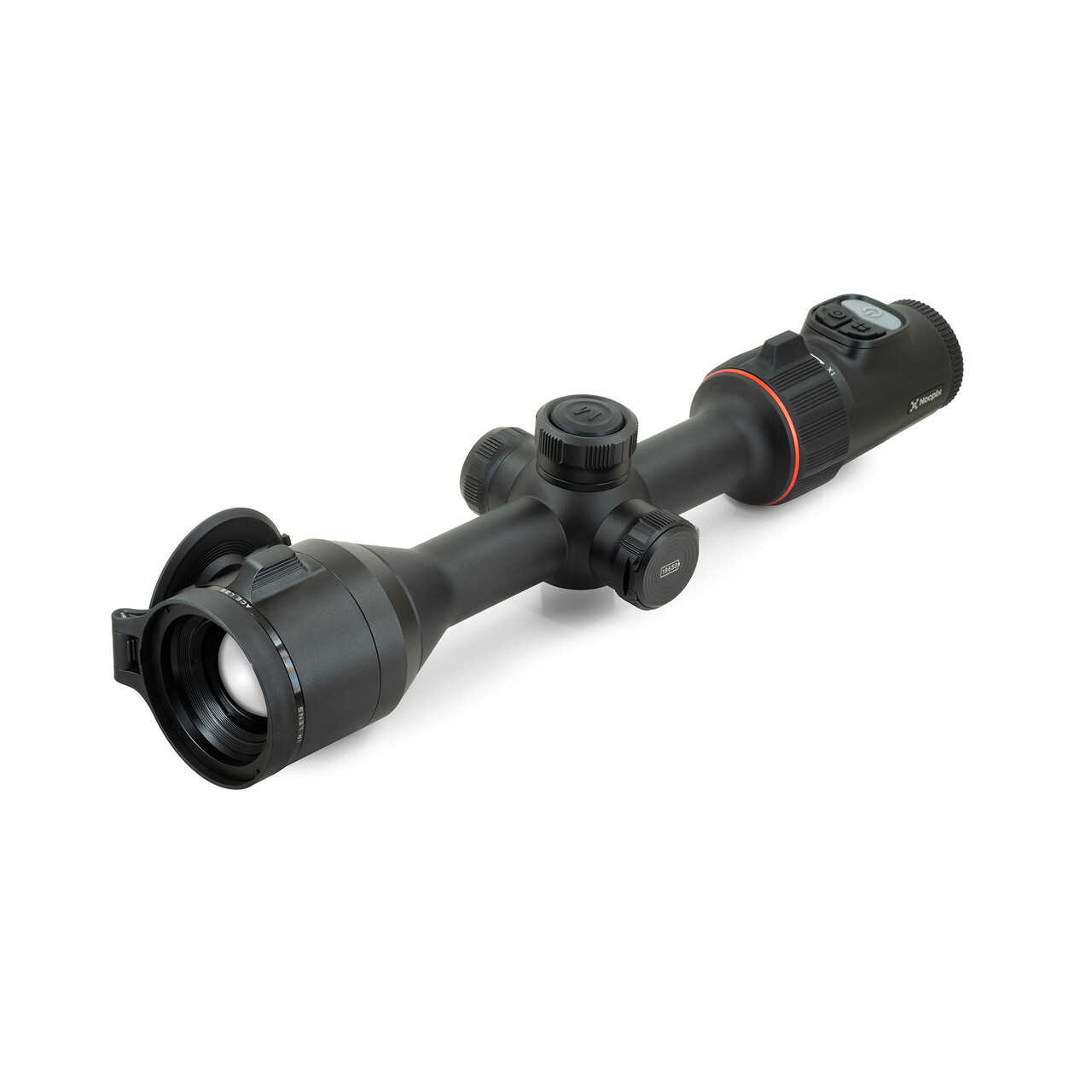

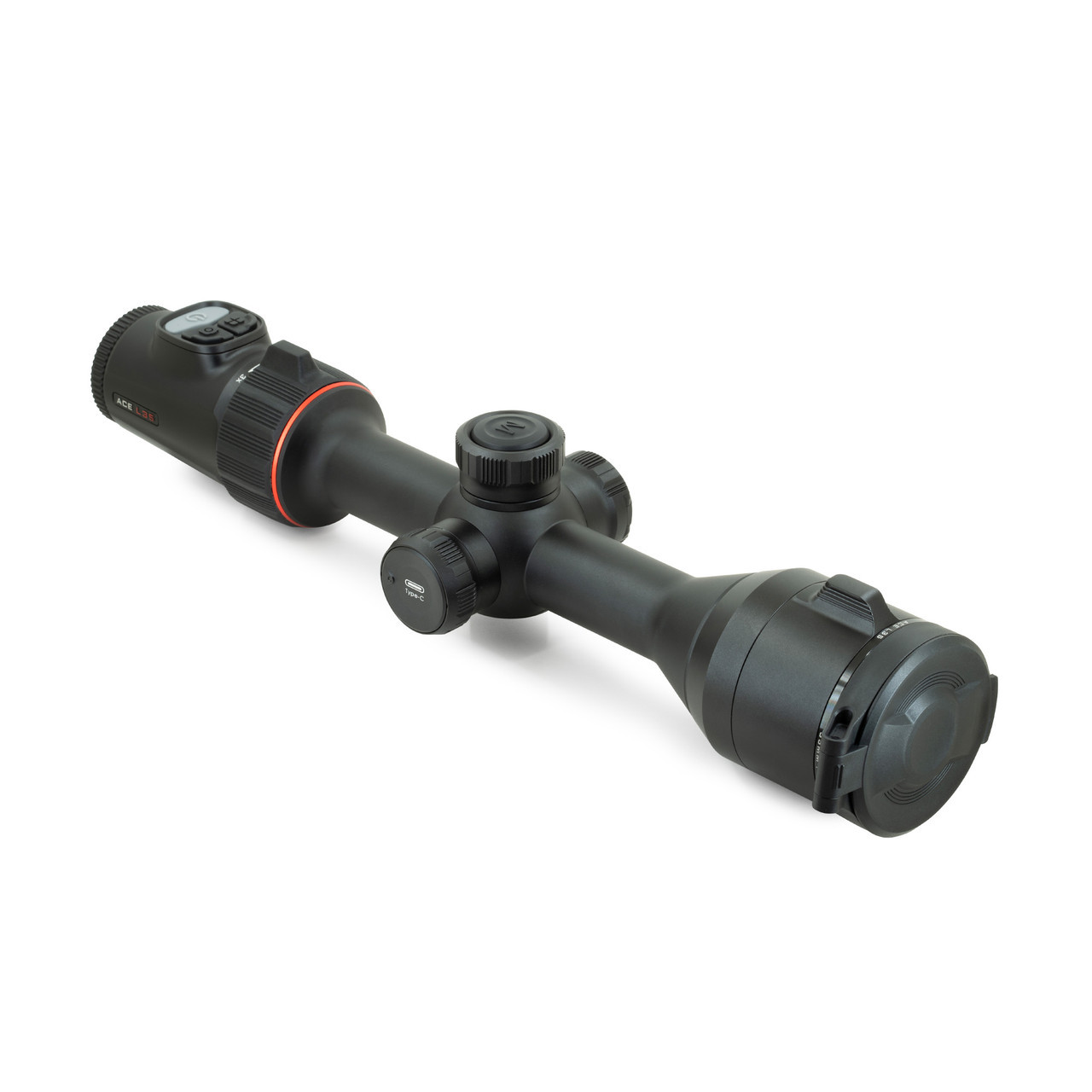

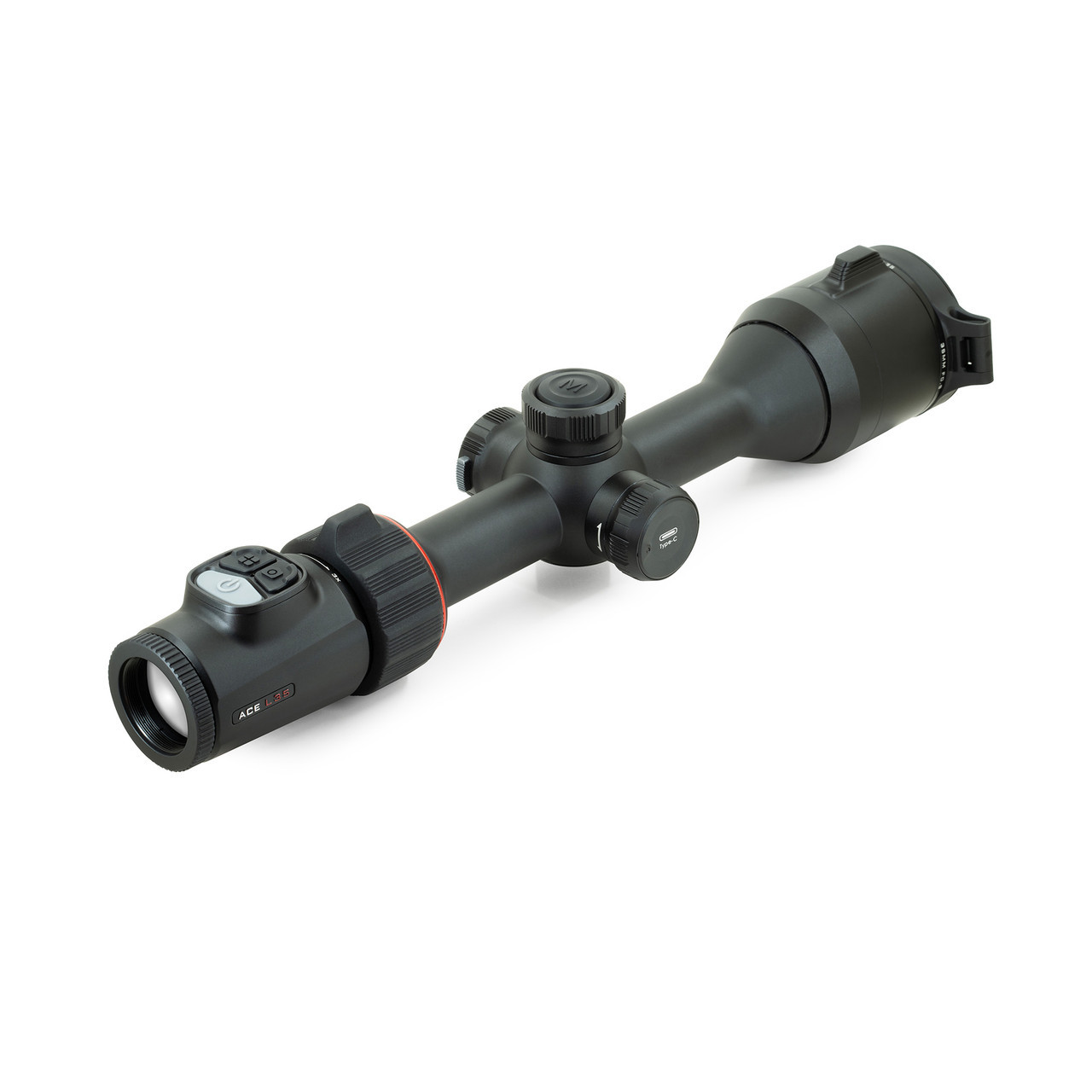

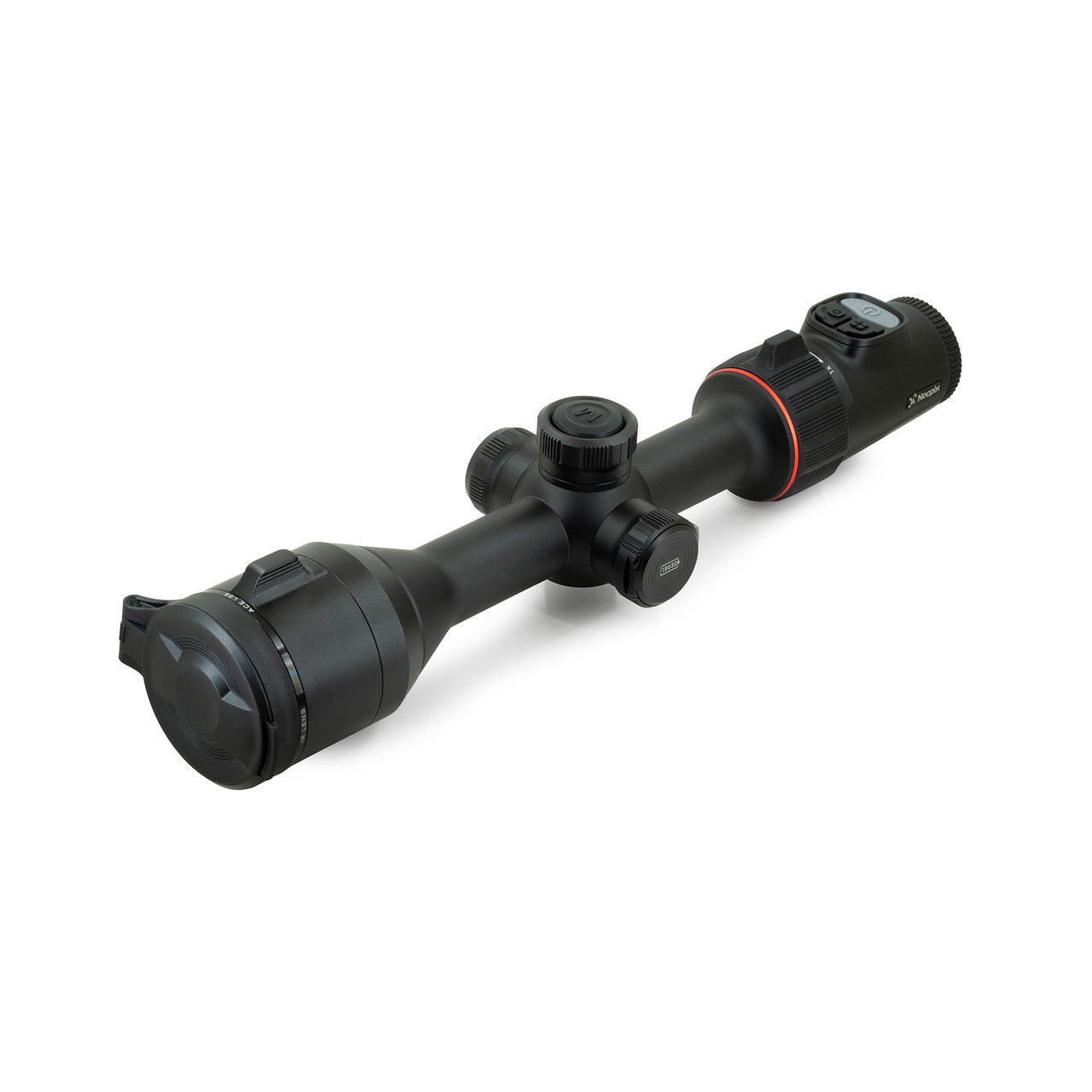

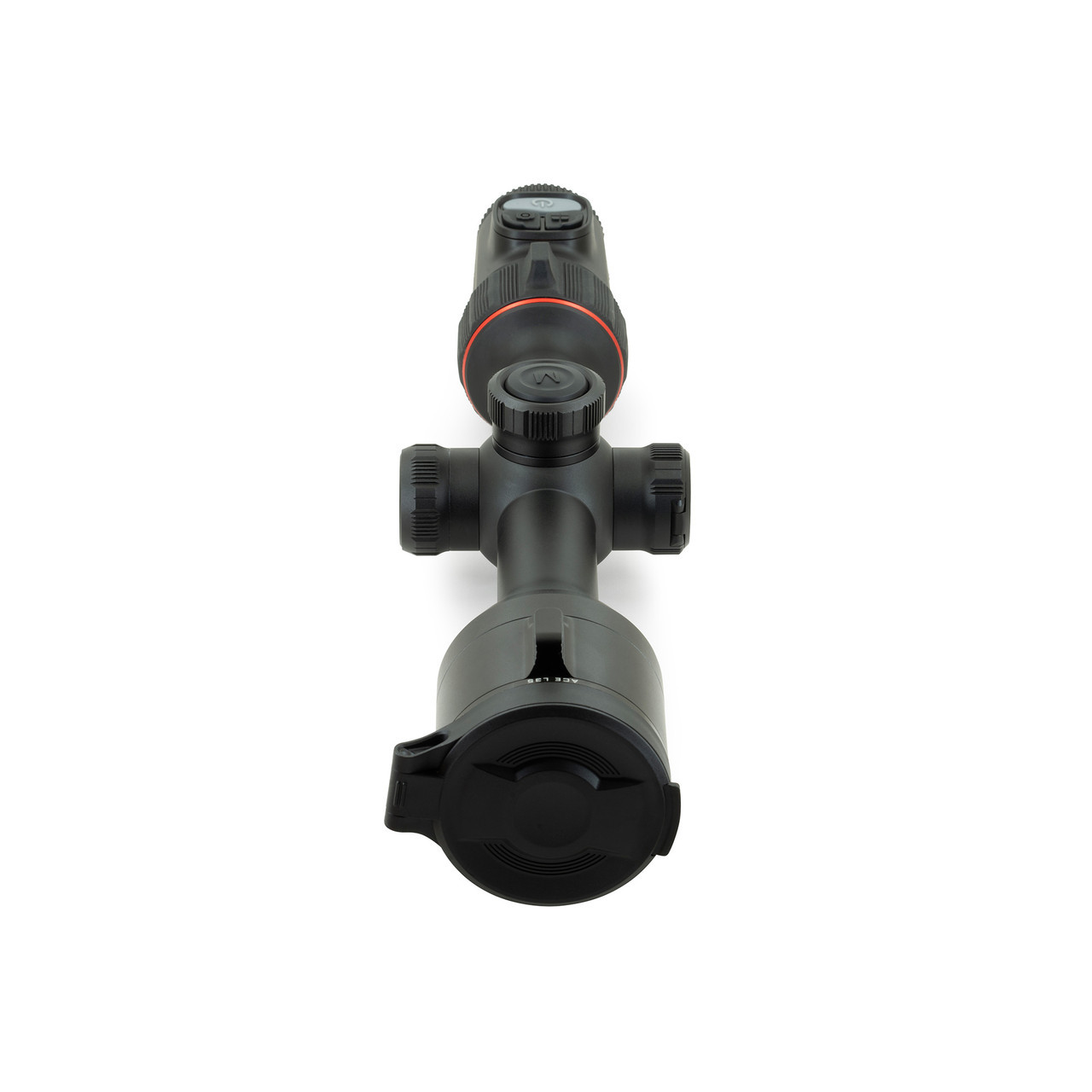

Nocpix ACE L35 Thermal Rifle Scope 384x288 35mm

Nocpix ACE L35 Thermal Rifle Scope 384x288 35mm

$2,499.00

Description
Product Reviews
Shipping & Returns

Description

✨ Nocpix ACE L35 Thermal Rifle Scope ✨

384x288 | 35mm

Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field.

A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 18 mK NETD sensor for an incredibly detailed and precise image.

Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
Uses common 18650 style rechargeable batteries.
A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
Charge through the unit with a unique lock-out USB-C port design.

Resources

Specifications

Optics

Display Type: AMOLED
Eye Relief: 50mm
Objective Focal Length: 35mm
Digital Magnification: 4X
Diopter Range: -5 to +5
Vertical Angular Field of View: 5.7°
Horizontal Angular Field of View: 7.5°
Focusing Mechanism: Manual Focus
Objective F#: 0.9
Objective Diameter: 35mm
Objective Lens Material: Germanium
Display Resolution: 2560×2560
Detection Range: 1970 Yards
Optical Magnification: 3X

Features & Performance

Warranty: 5 Years
Startup Time: <10 Seconds, Instant from Standby
Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Picture-in-Picture: Yes
Storage Capacity: 64GB
Connector Output: Power/Data
User-Updatable Firmware: Yes
Mobile App: Yes
Run Time: 7+
Power Source: USB-C External, 18650 Battery, Built-In Battery Pack
One-Shot Zero: Yes
Stand-by Mode: Yes
Connector Type: USB-C
External Power Source: USB-C
Country of Manufacture: China
Wifi: Yes
Onboard Recording: Yes
Image Capture: Yes
Video Output: Yes

Environmental Specifications

Operating Temperature Range: -4°F~122°F
Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
Ingress Protection: IP67

Physical

Mounting Interface: QD Picatinny
Housing Material: Aluminum Alloy
Weight: 37.0 oz.
Height: 2.44
Width: 3.54
Length: 13.78

Sensor Specifications

Sensor Type: Nocpix 384
Sensor Pixel Size: 12μm
Thermal Sensitivity: <18mk
Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
Sensor Frame Rate: 60hz
Device Technology: Thermal Imaging
Sensor Resolution: 384×288
