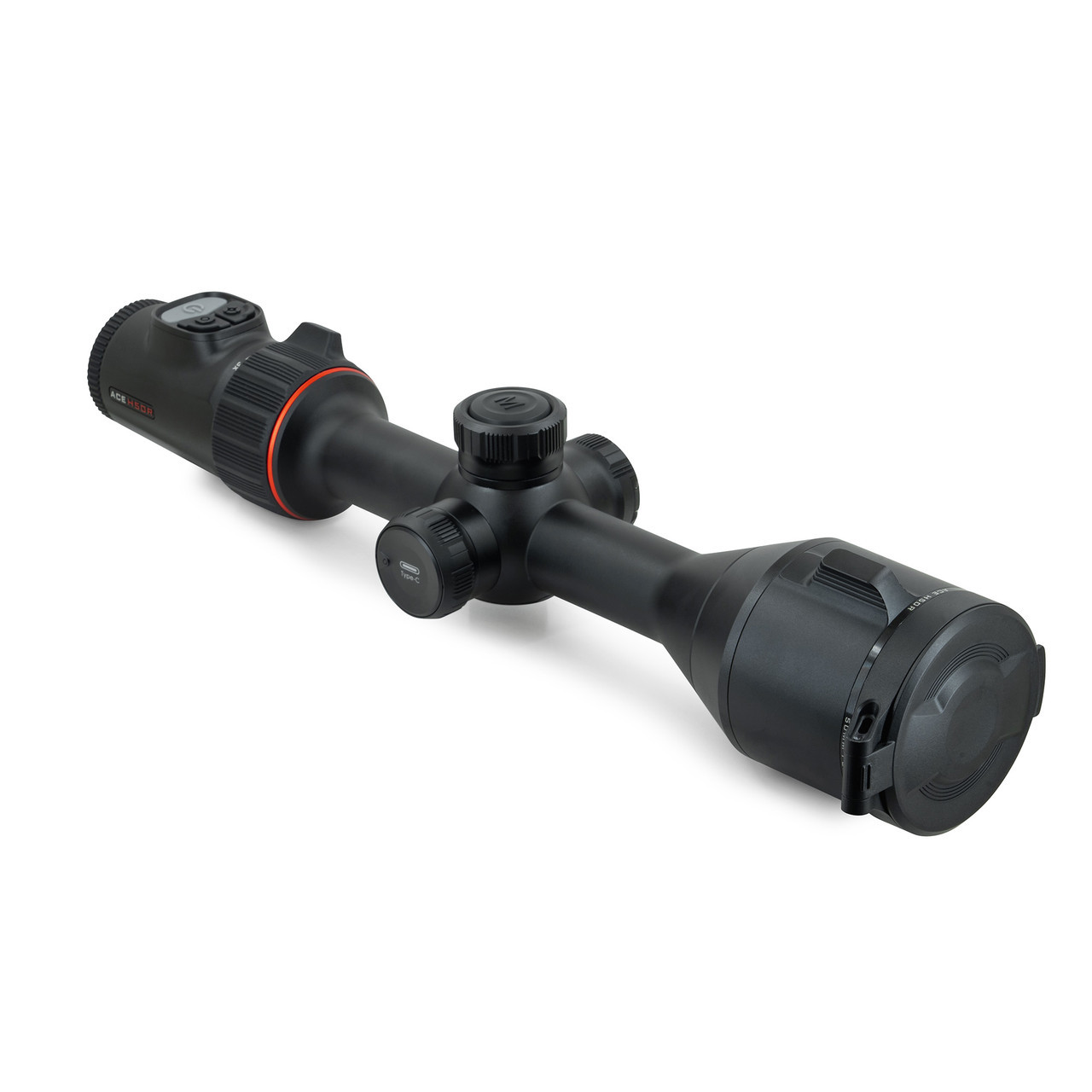

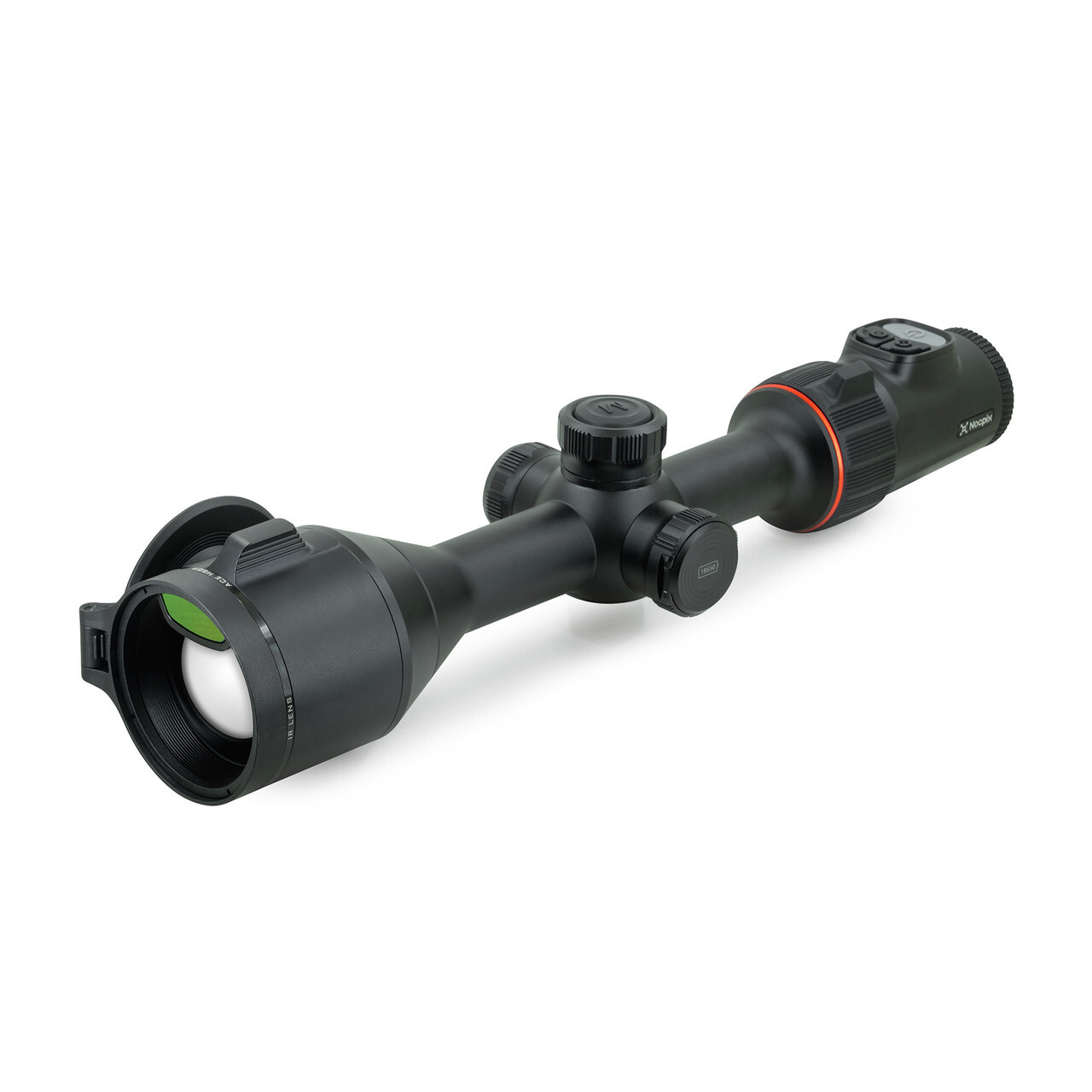

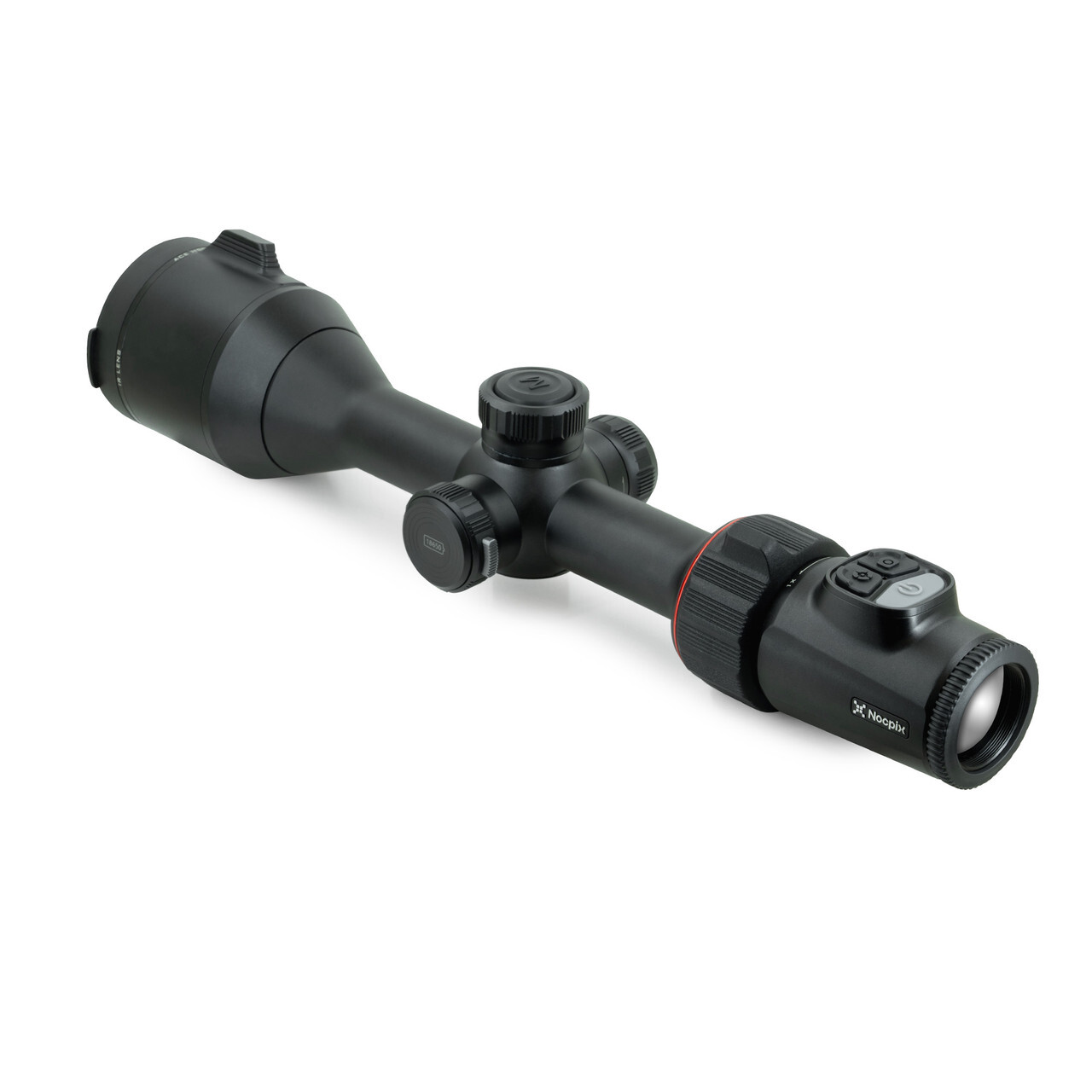

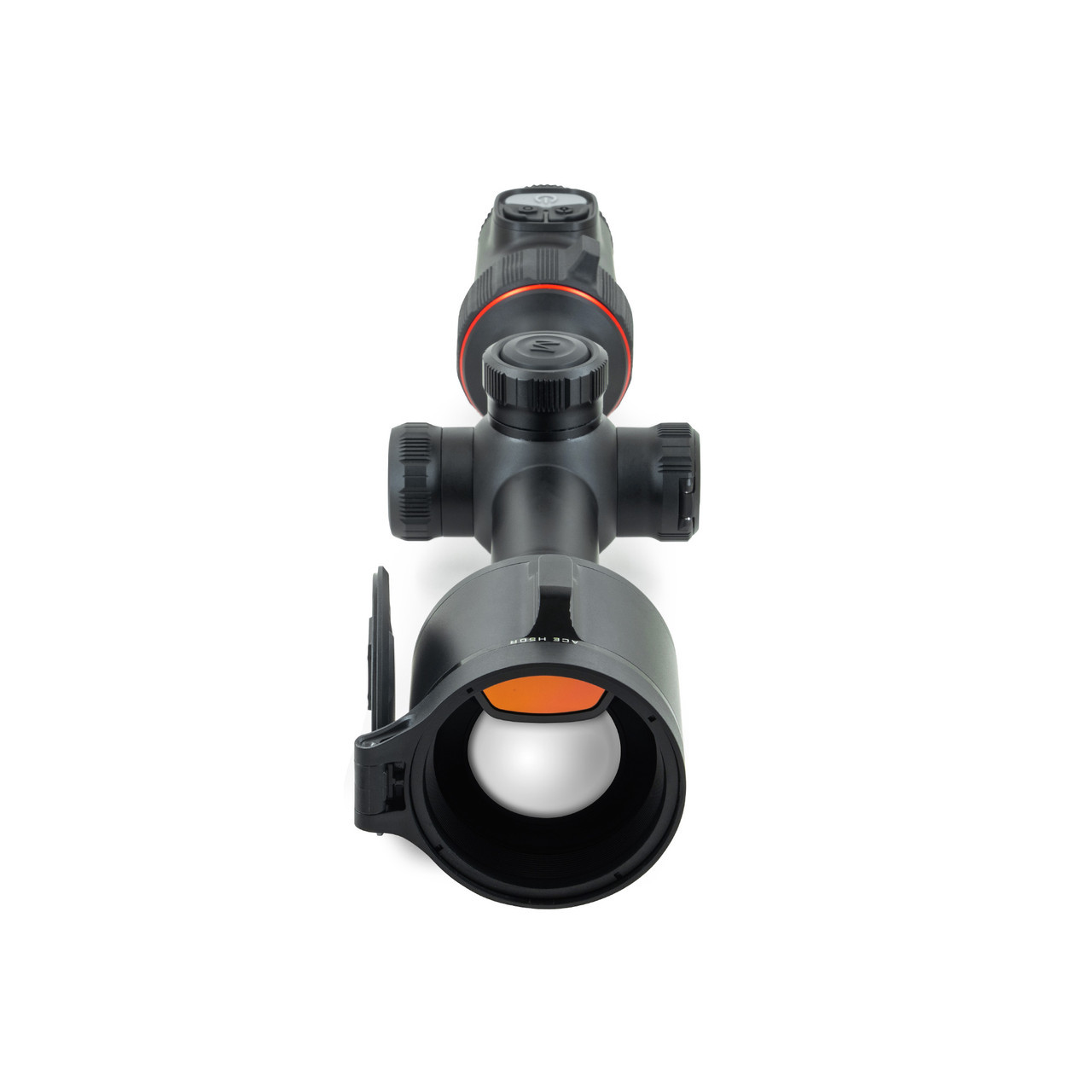

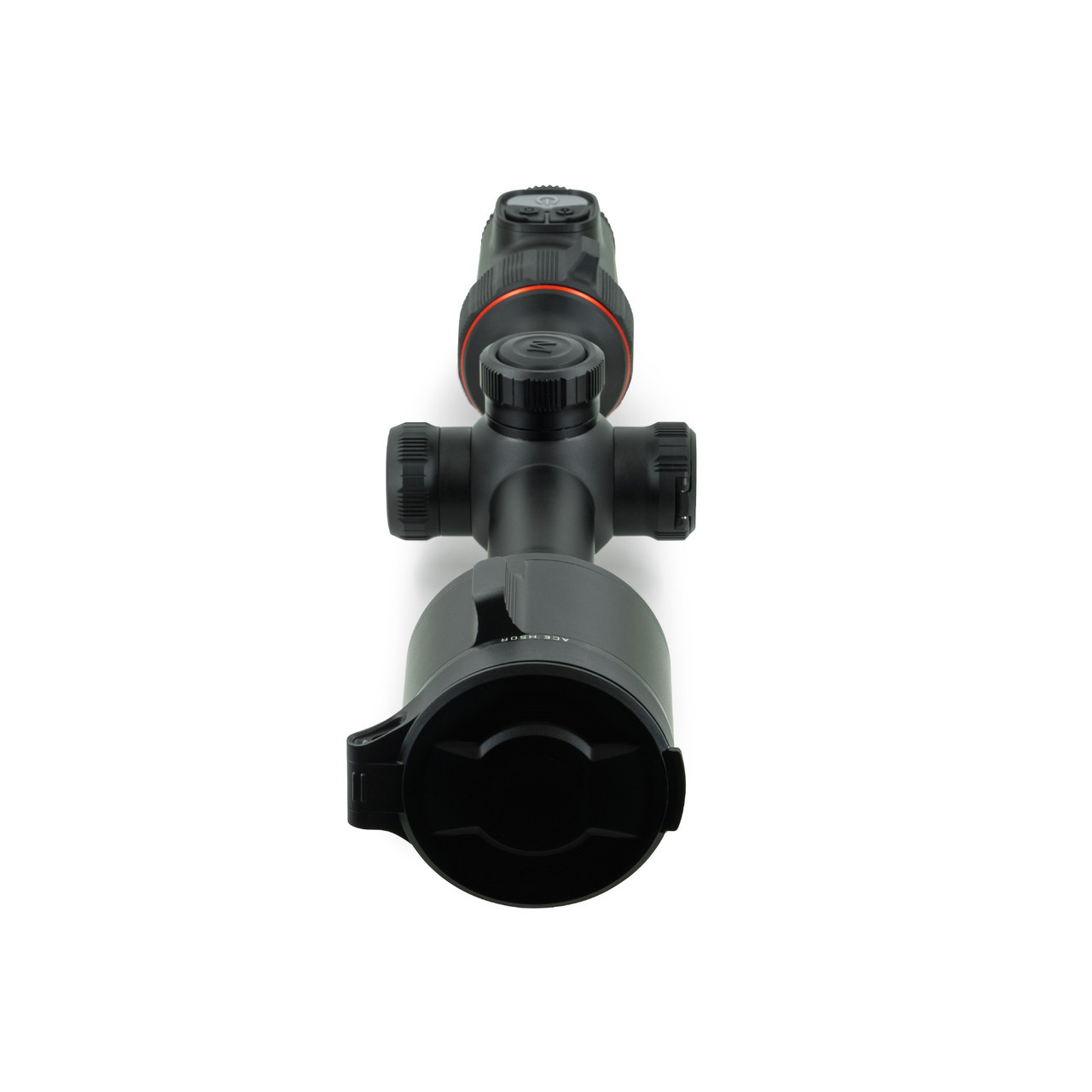

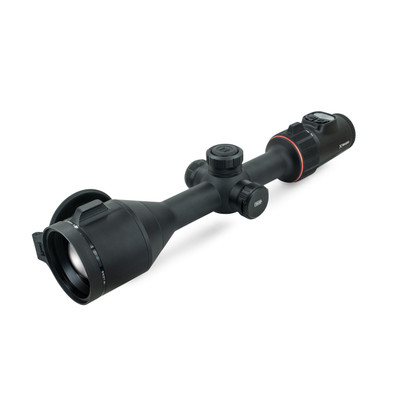

Nocpix ACE H50R LRF Thermal Rifle Scope 640x512 50mm

✨ Nocpix ACE H50R Thermal Rifle Scope  ✨

640x512  |   50mm

Designed to feel like a traditional day optic, the Nocpix ACE H50R is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field.

A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image. The 1,300-yard capable laser rangefinder on the ACE is integrated directly into the 50 mm germanium objective lens.

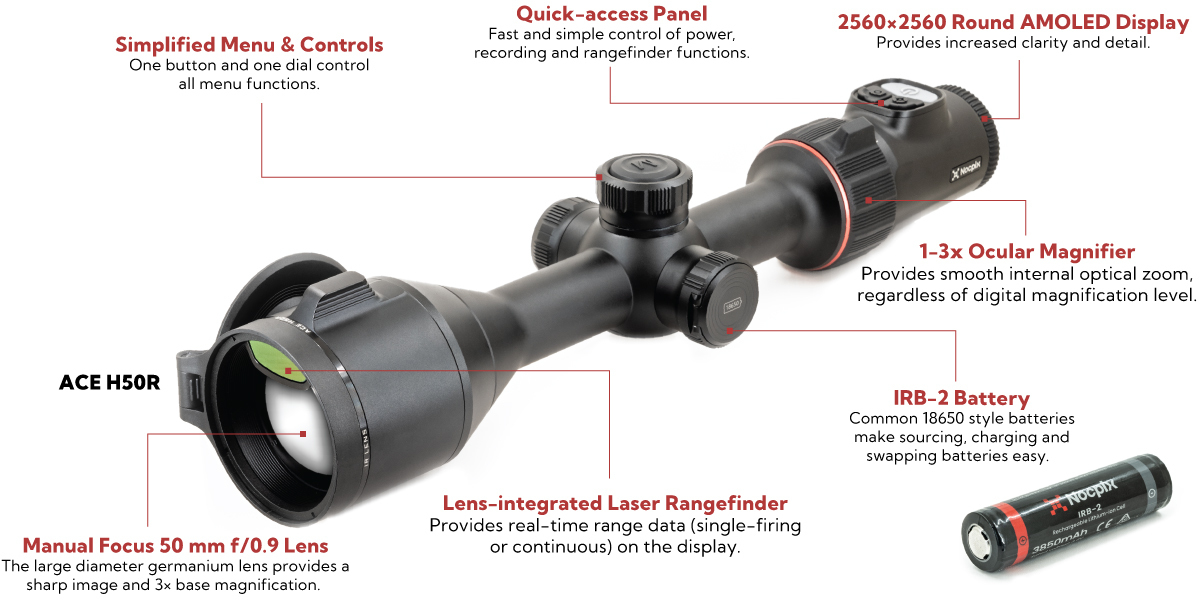

• Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.

• 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.

• High-contrast round 2560×2560 AMOLED display

• Simplified controls offer improved ergonomics and a better user experience in the field.

• Uses common 18650 style rechargeable batteries.

• A ballistic calculator function displays bullet drop values based on the laser rangefinder input data
• and a user-customized cartridge profile.

• Charge through the unit with a unique lock-out USB-C port design.

Specifications

Optics

• Objective Focal Length: 50mm
• Detection Range: 2850 Yards
• Digital Magnification: 8X
• Optical Magnification: 3X
• Objective Lens Material: Germanium
• Horizontal Angular Field of View: 8.8°
• Vertical Angular Field of View: 7.7°
• Objective Diameter: 50mm
• Objective F#: 0.9
• Focusing Mechanism: Manual Focus
• Eye Relief: 50mm
• Diopter Range: -5 to +5
• Display Type: AMOLED
• Display Resolution: 2560 × 2560

Features & Performance

• Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
• Rangefinder: Integrated 1300 yd LRF
• Picture-in-Picture: Yes
• Connector Output: Power/Data
• User-Updatable Firmware: Yes
• Mobile App: Yes
• One-Shot Zero: Yes
• Stand-by Mode: Yes
• Connector Type: USB-C
• Wi-Fi: Yes
• Onboard Recording: Yes
• Image Capture: Yes
• Video Output: Yes
• Storage Capacity: 64GB
• Power Source: USB-C External, 18650 Battery, Built-In Battery Pack
• Run Time: 7+
• Warranty: 5 Years
• Startup Time: <10 Seconds, Instant from Standby
• External Power Source: USB-C
• Country of Manufacture: China

Environmental Specifications

• Operating Temperature Range: -4°F ~ 122°F
• Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
• Ingress Protection: IP67

Physical

• Length: 14.37 in
• Width: 3.54 in
• Height: 2.68 in
• Weight: 39.5 oz
• Housing Material: T-6063 Aluminum

Sensor Specifications

• Device Technology: Thermal Imaging
• Sensor Type: Nocpix 640
• Sensor Resolution: 640 × 512
• Sensor Pixel Size: 12μm
• Sensor Frame Rate: 60Hz
• Thermal Sensitivity: <15mK
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
