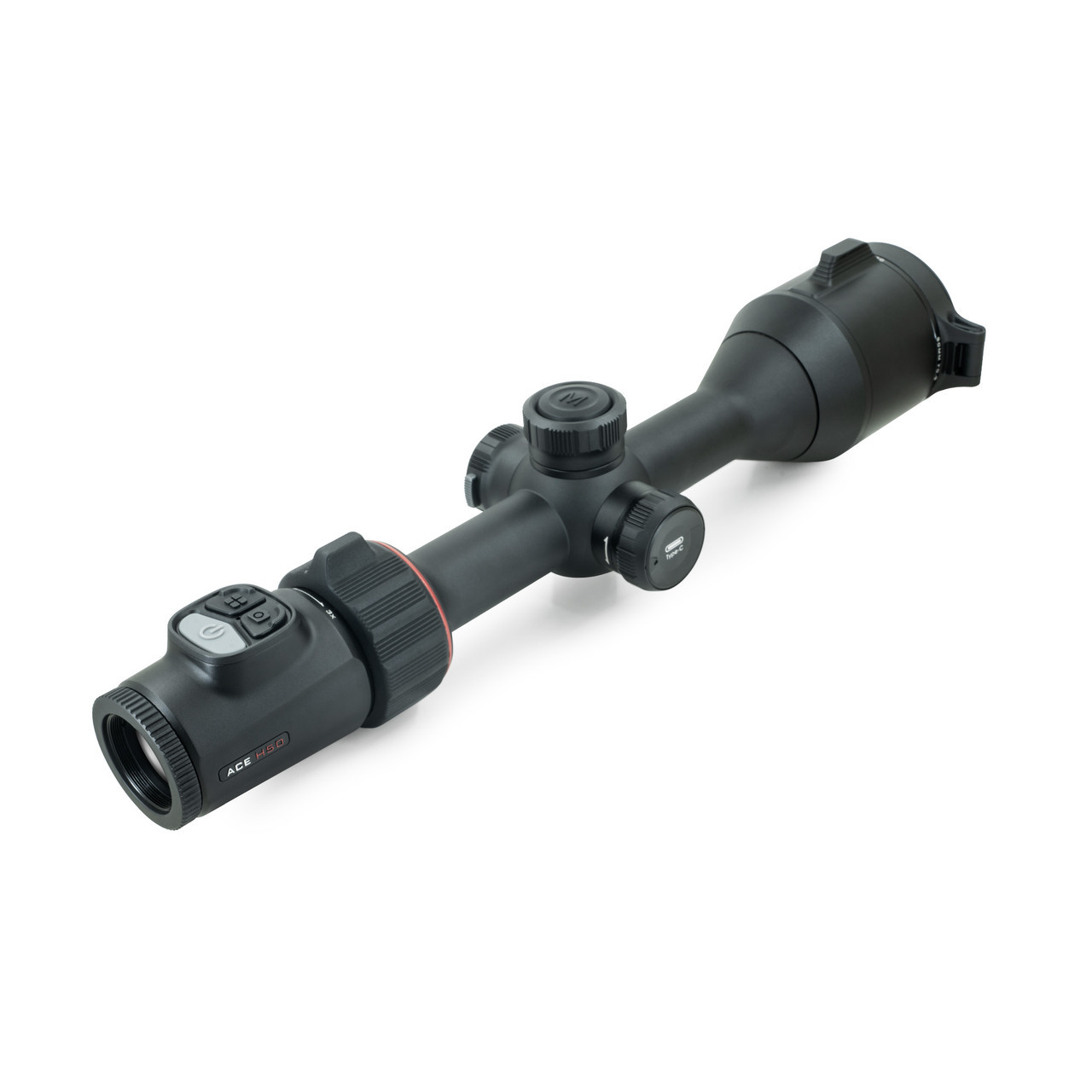

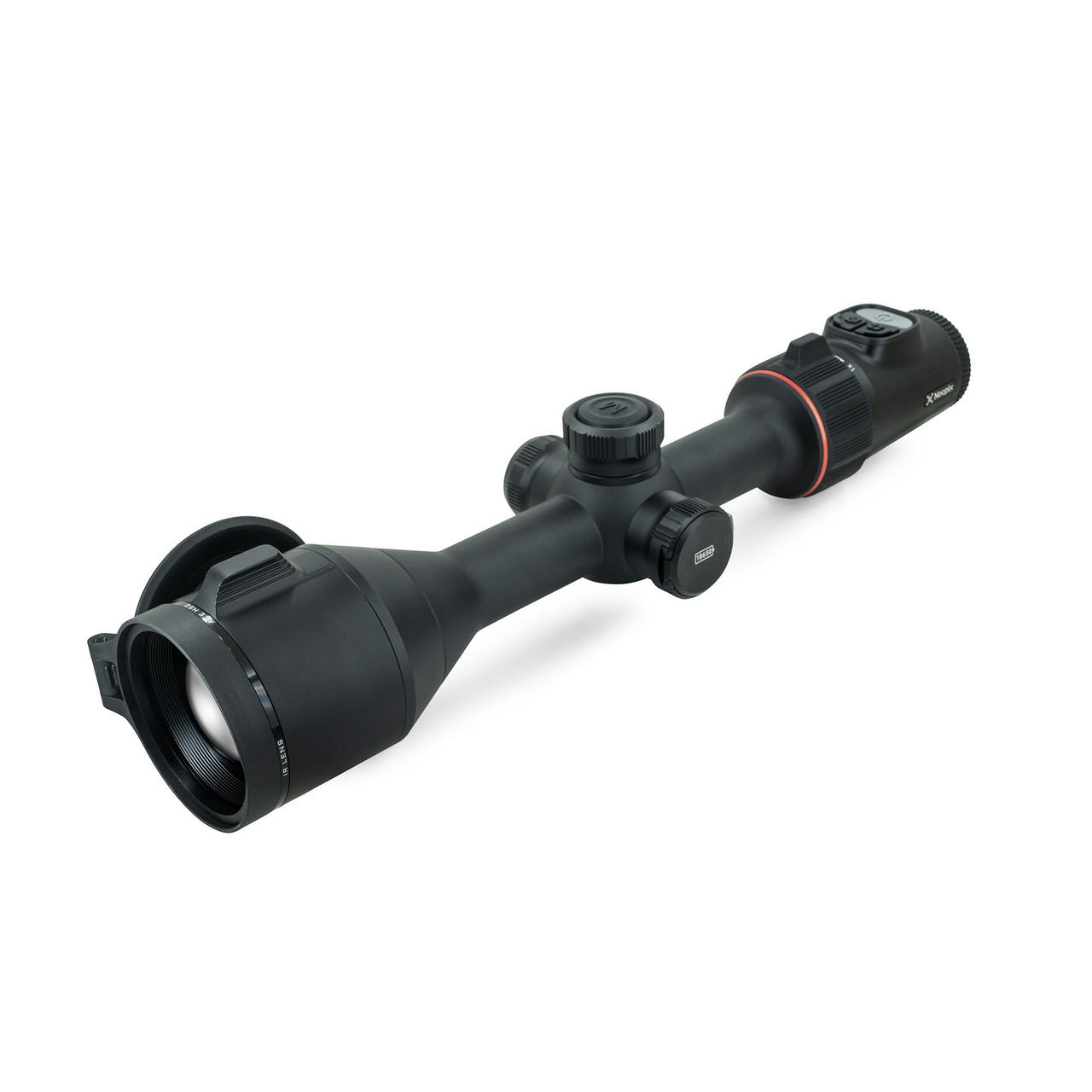

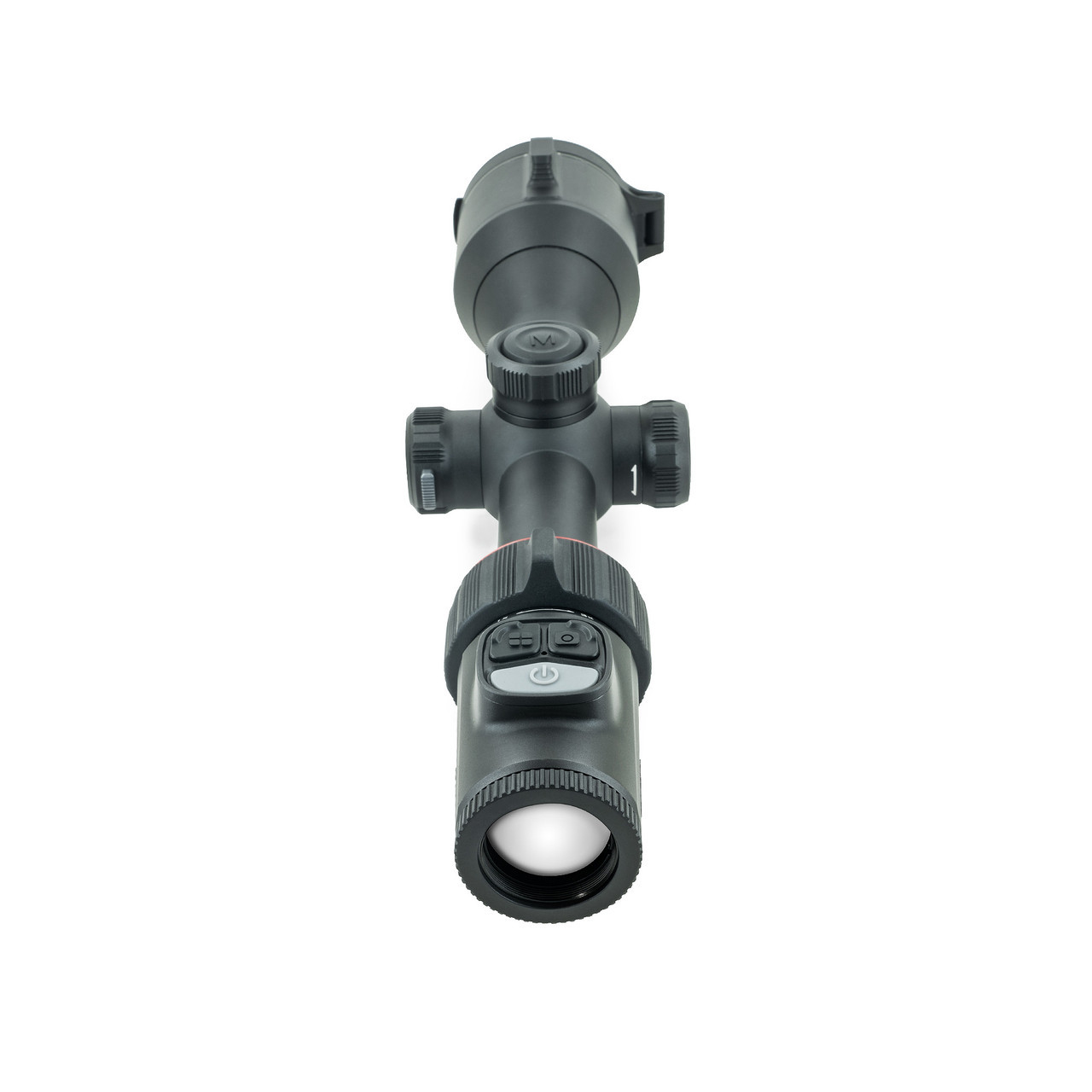

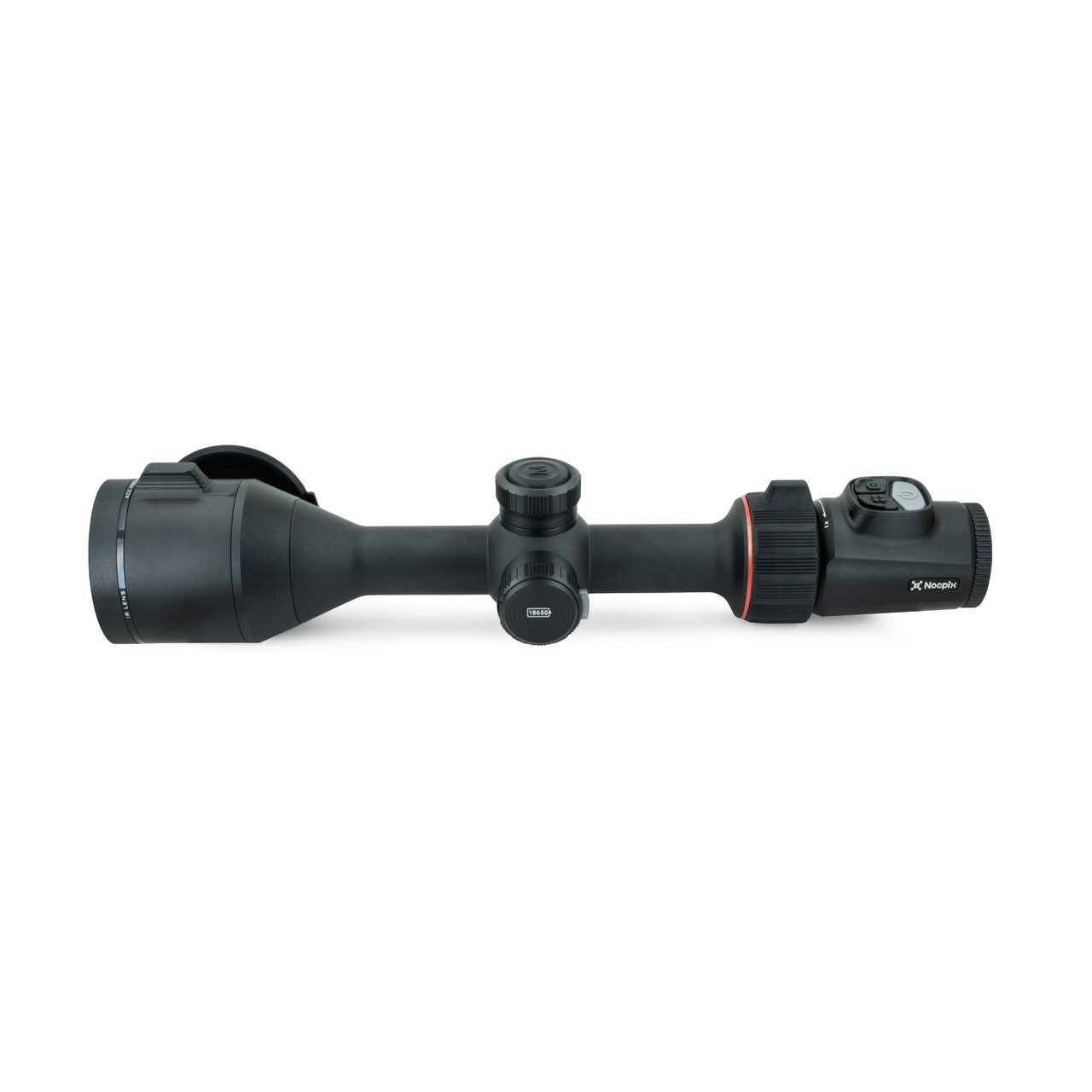

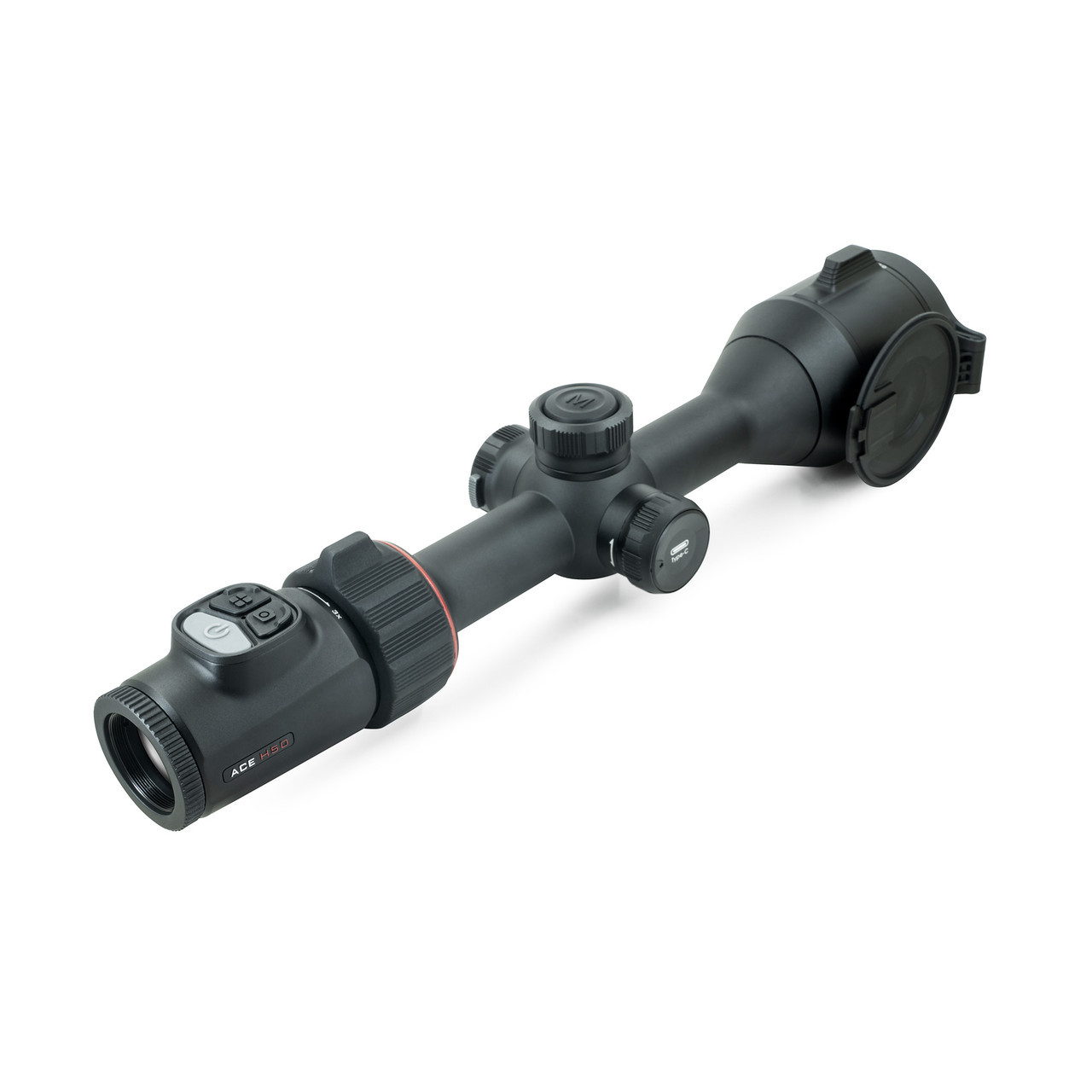

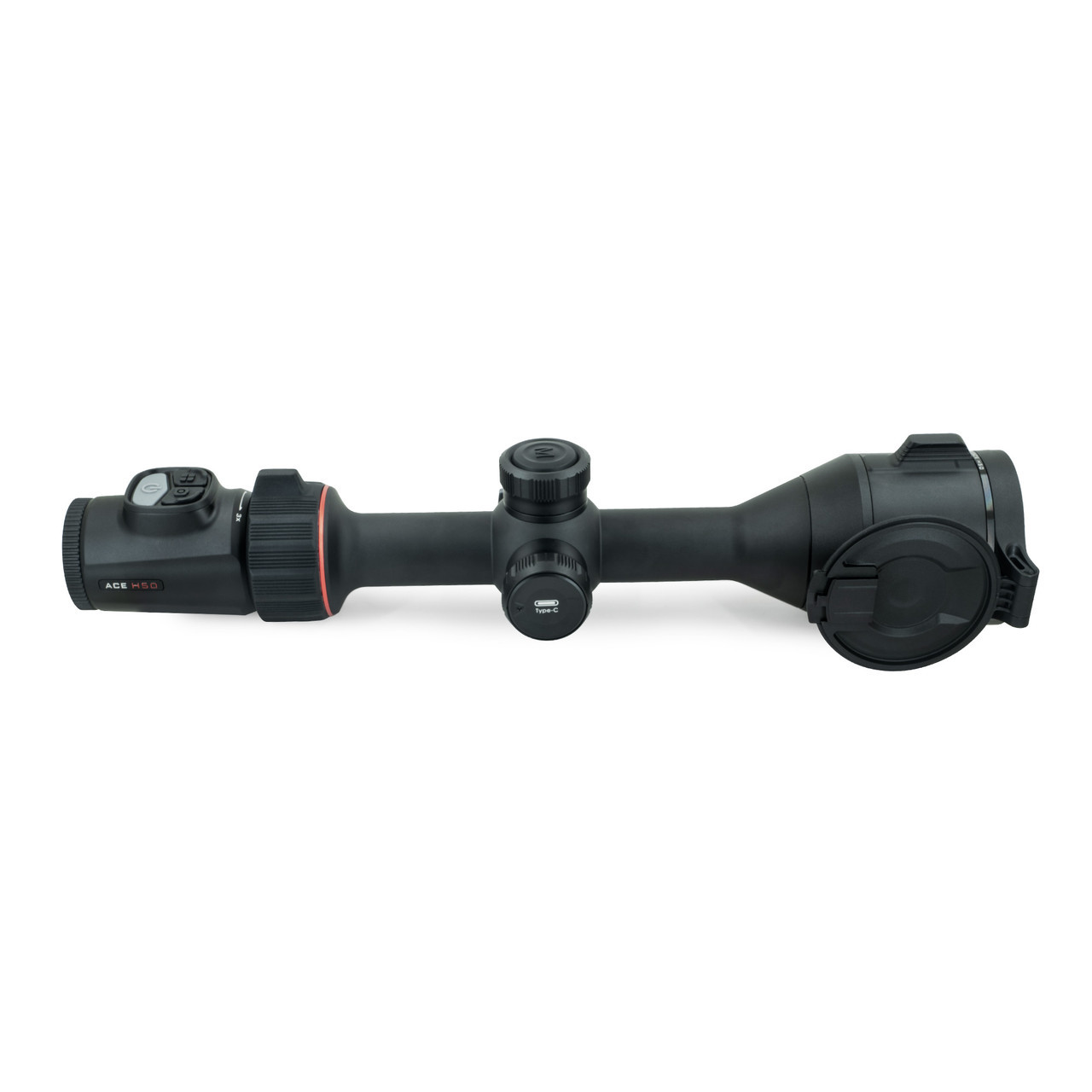

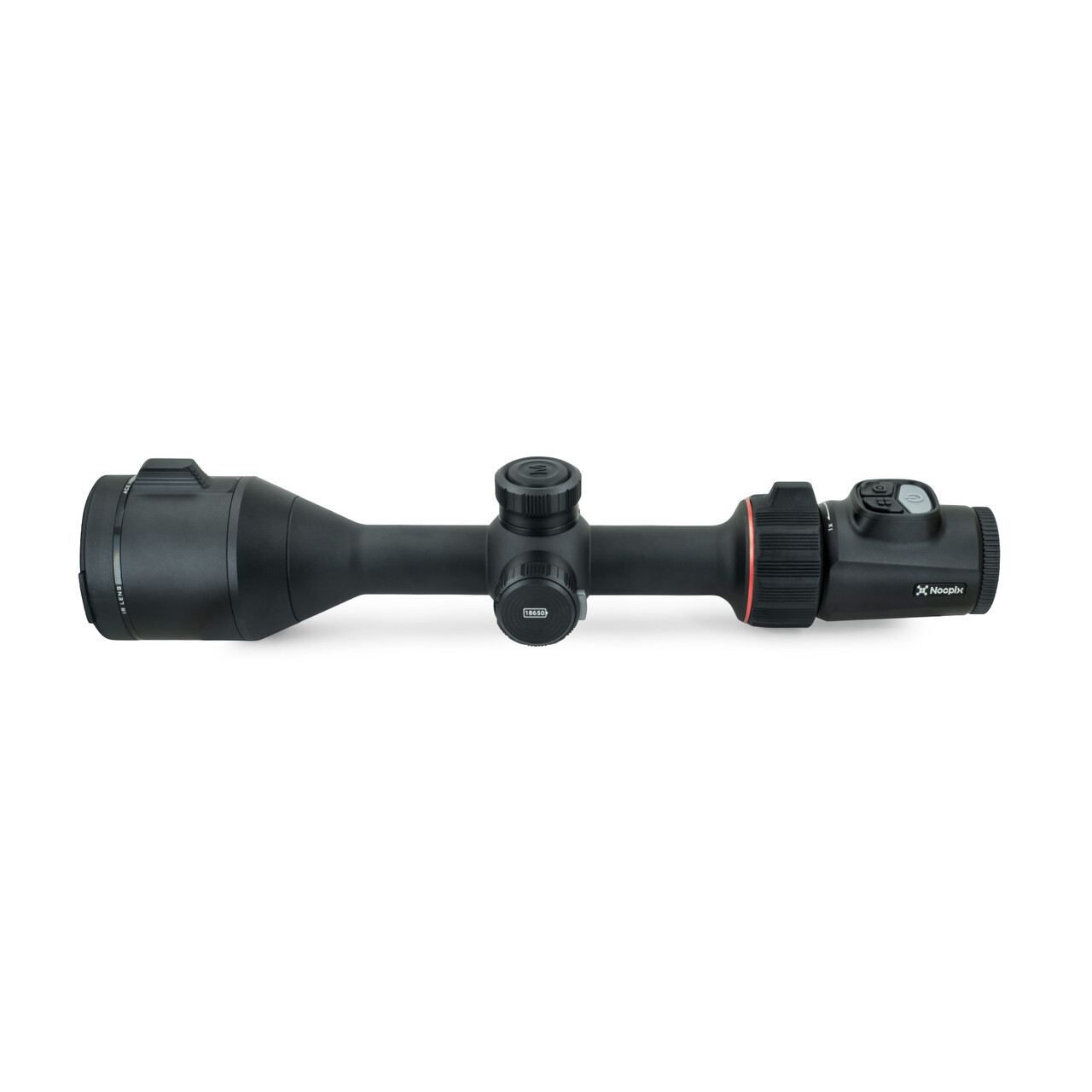

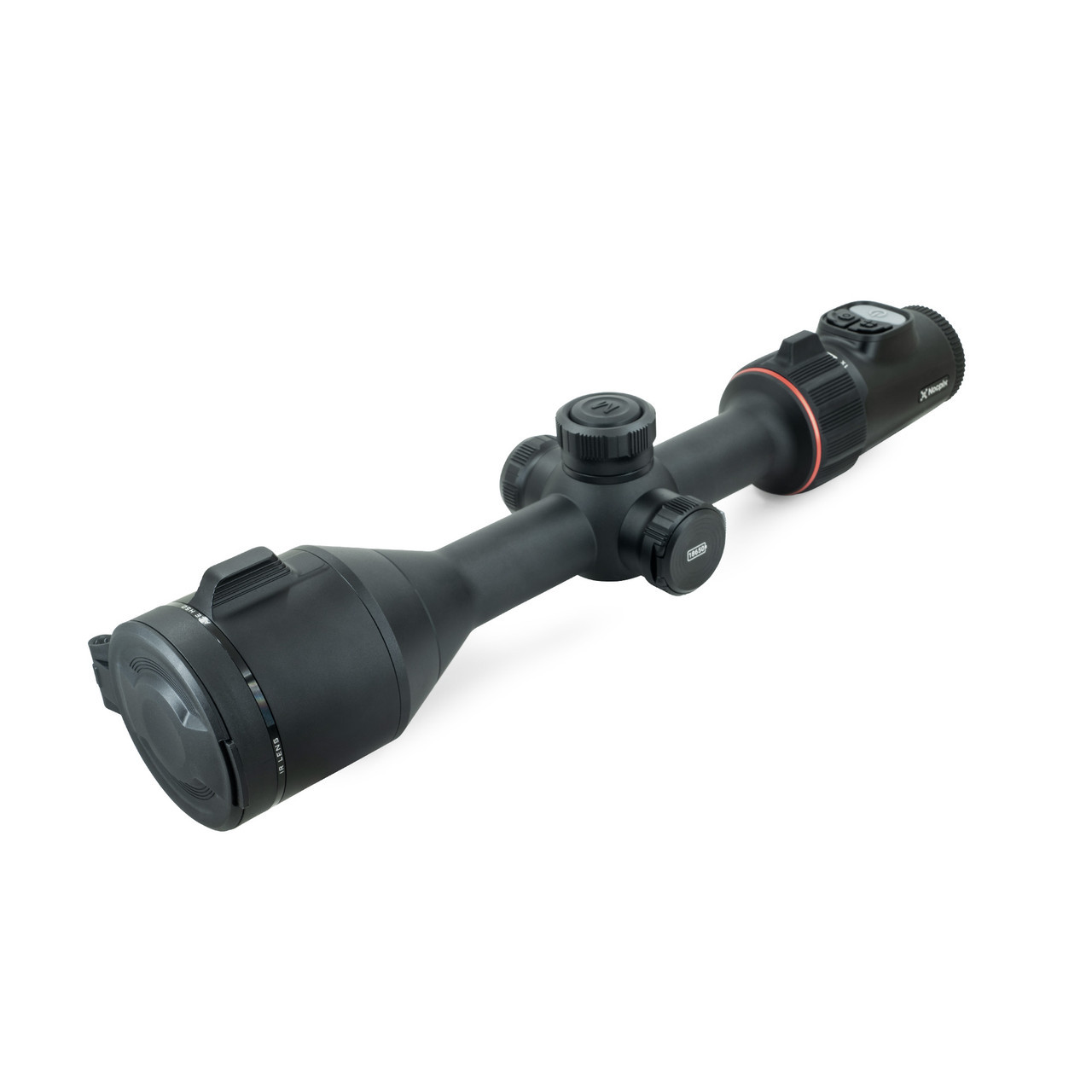

Nocpix ACE H50 Thermal Rifle Scope 640x512 50mm

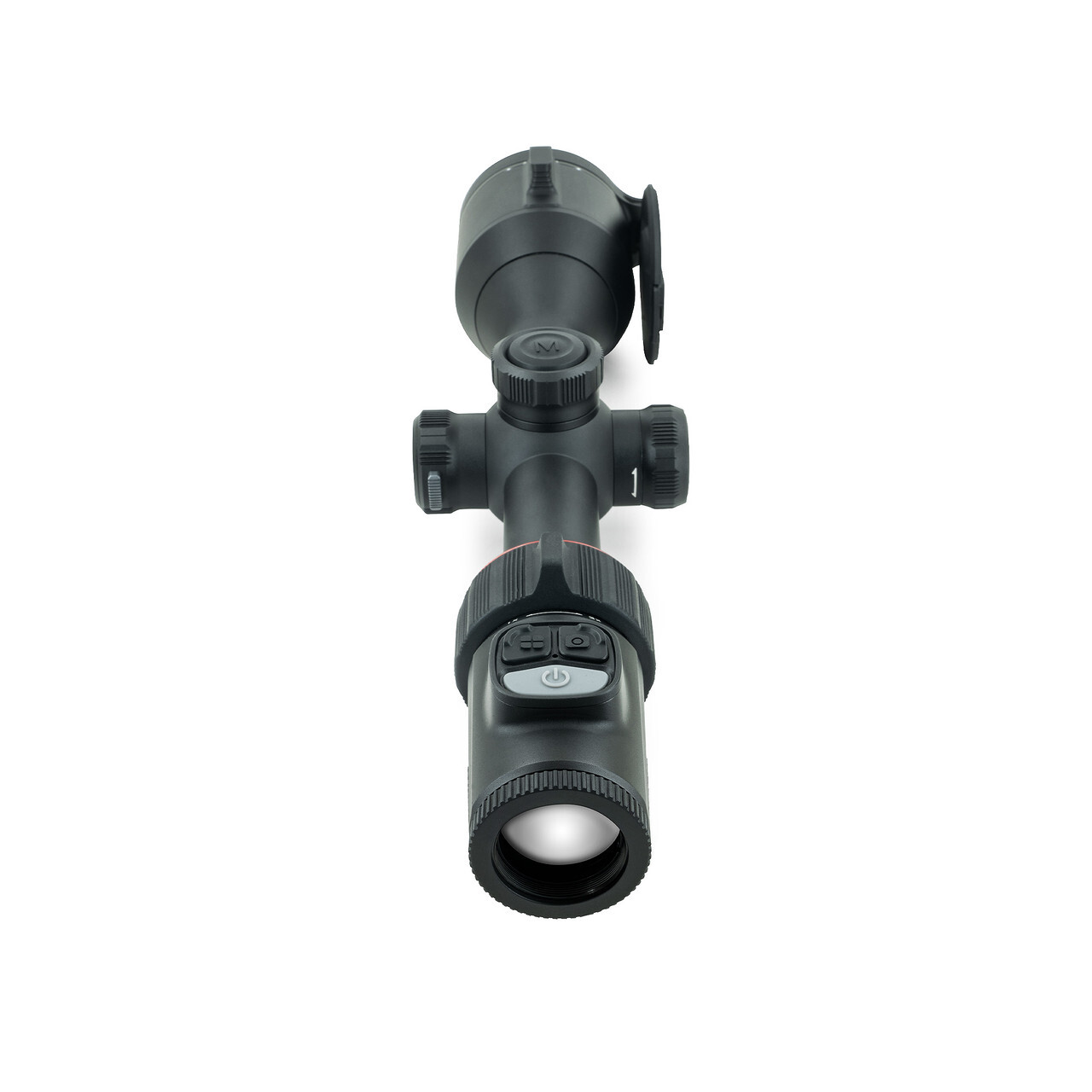

Nocpix ACE H50 Thermal Rifle Scope

640x512 | 50mm

Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings.

The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run.

A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image.

• A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
• High-contrast round 2560×2560 AMOLED display
• Simplified controls offer improved ergonomics and a better user experience in the field.
• Uses common 18650 style rechargeable batteries.
• Charge through the unit with a unique lock-out USB-C port design.

Resources

• Manual
• Data Sheet

Specifications

Optics

• Display Type: AMOLED
• Eye Relief: 50mm
• Objective Focal Length: 50mm
• Digital Magnification: 8X
• Diopter Range: -5 to +5
• Vertical Angular Field of View: 7°
• Horizontal Angular Field of View: 8.8°
• Focusing Mechanism: Manual Focus
• Objective F#: 0.9
• Objective Diameter: 50mm
• Objective Lens Material: Germanium
• Display Resolution: 2560×2560
• Detection Range: 2850 Yards
• Optical Magnification: 3X

Features & Performance

• Startup Time: <10 Seconds, Instant from Standby
• Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
• Picture-in-Picture: Yes
• Storage Capacity: 64GB
• Connector Output: Power/Data
• User-Updatable Firmware: Yes
• Mobile App: Yes
• Run Time: 7+
• Power Source: USB-C External, 18650 Battery, Built-In Battery Pack
• One-Shot Zero: Yes
• Stand-by Mode: Yes
• Connector Type: USB-C
• External Power Source: USB-C
• Country of Manufacture: China
• Wifi: Yes
• Onboard Recording: Yes
• Image Capture: Yes
• Video Output: Yes

Environmental Specifications

• Operating Temperature Range: -4°F~122°F
• Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
• Ingress Protection: IP67

Physical

• Mounting Interface: QD Picatinny
• Housing Material: Aluminum Alloy
• Weight: 38.5 oz.
• Height: 2.68
• Width: 3.54
• Length: 14.37

Sensor Specifications

• Sensor Type: Nocpix 640
• Sensor Pixel Size: 12μm
• Thermal Sensitivity: <15mk
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
• Sensor Frame Rate: 60hz
• Device Technology: Thermal Imaging
• Sensor Resolution: 640×512
