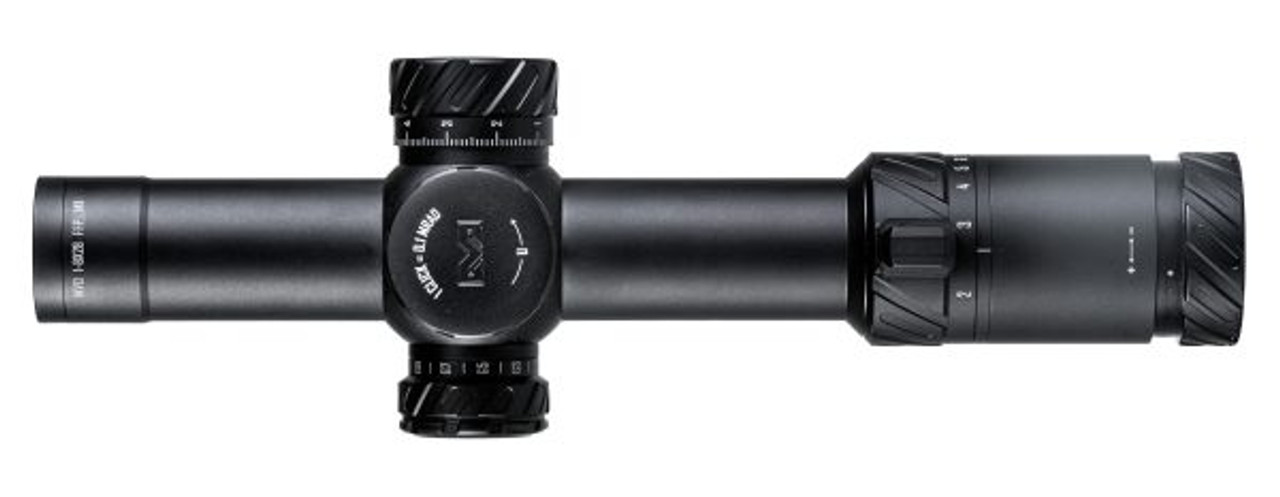

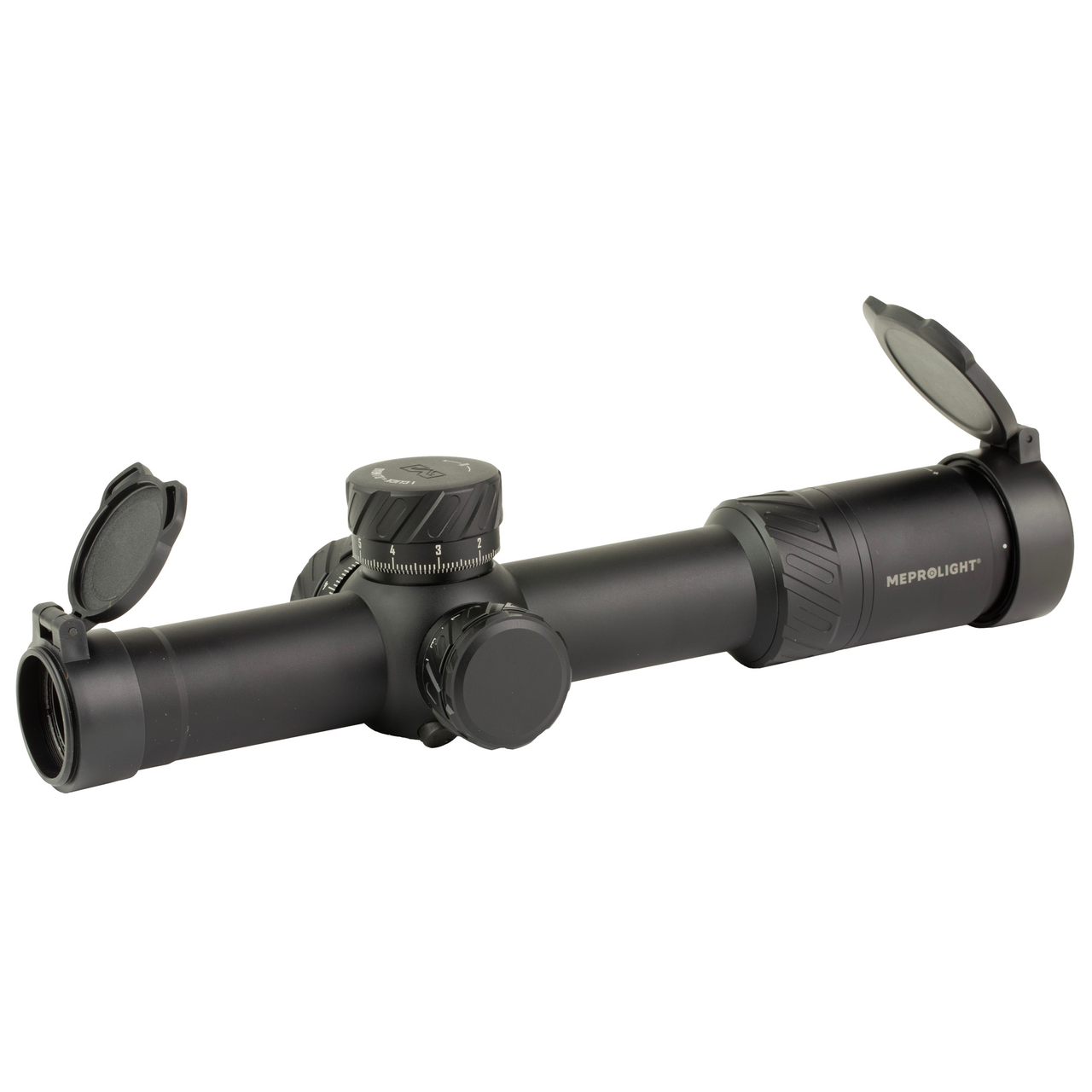

Meprolight MVO 1-8×28mm LPVO Riflescope

Meprolight MVO 1-8×28mm LPVO Riflescope

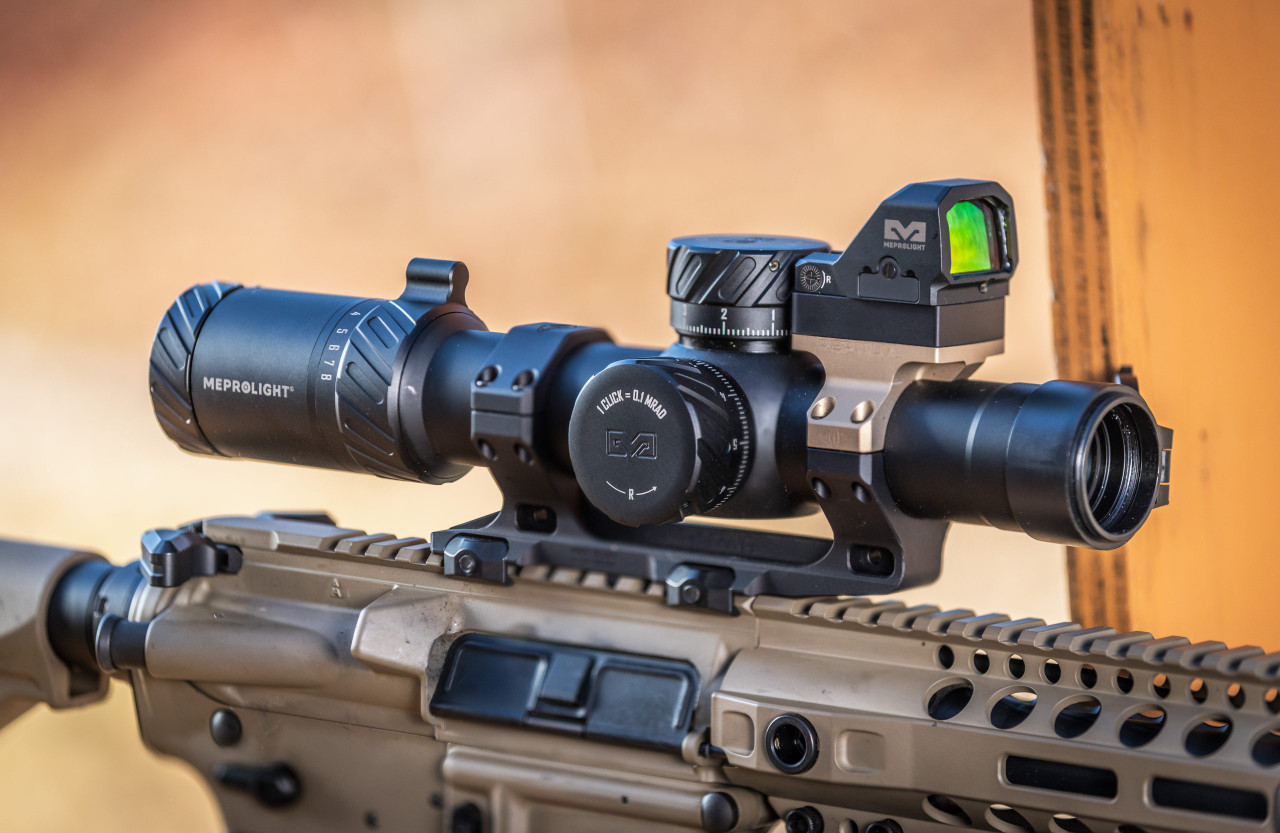

The Meprolight MVO™ 1-8x28 LPVO is a versatile optic for AR-15s and similar carbines, suited for close to mid-range engagements. It offers true 1x magnification for rapid target acquisition, with higher magnification for precision at distance.

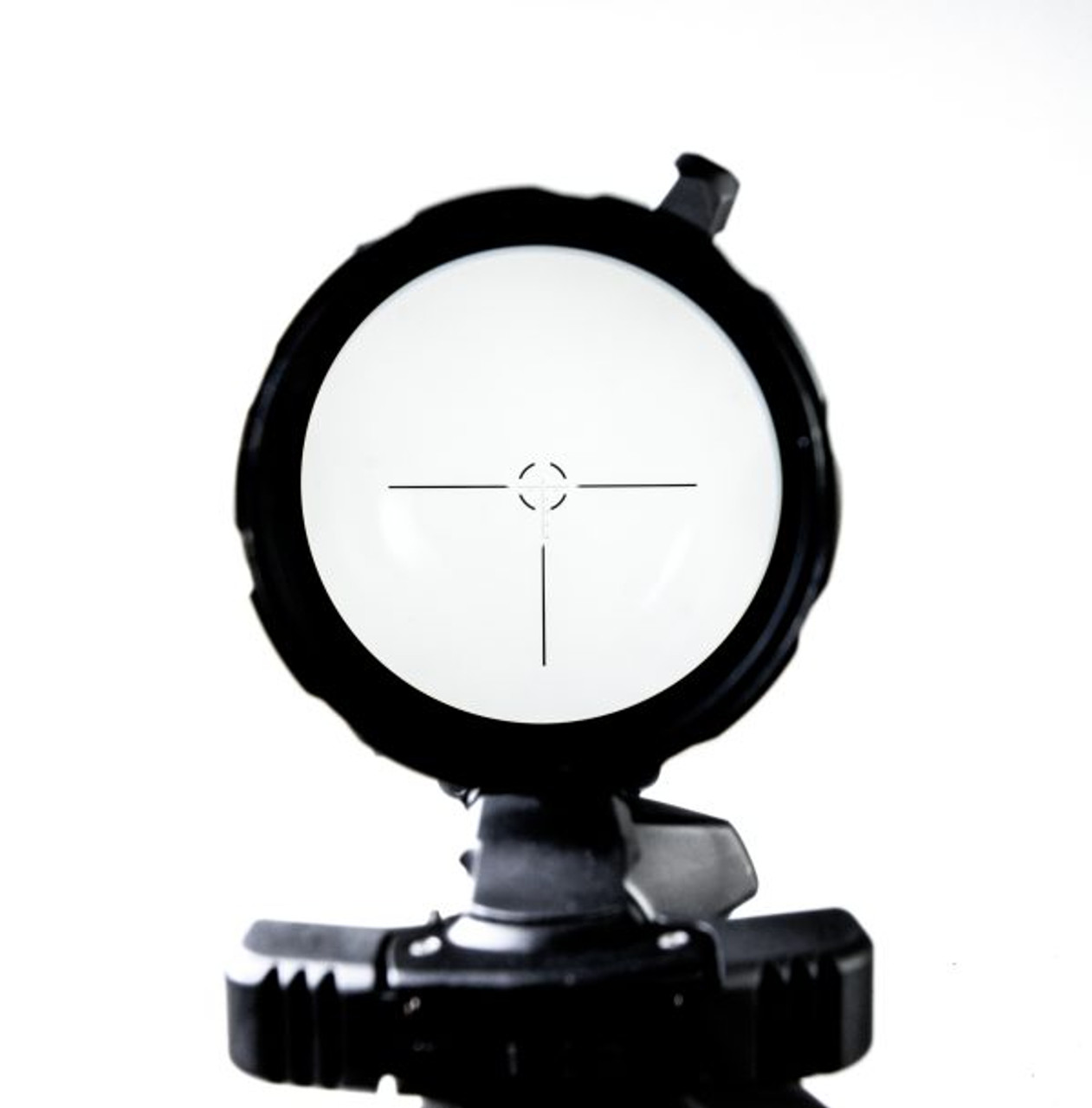

The M1 MIL reticle features an MRAD-based speed ring with an illuminated CQB circle for fast aiming at low magnification. At 1x, it functions like a red dot; at distance, shoulder-width references aid in range estimation. Holdover stadia lines support accurate shot placement across varying ranges.

Meprolight MVO 1-8×28mm Riflescope Features

• High-quality German SCHOTT glass
• Multi-Coated Lenses for minimal glare and reflection
• Low aberration-optimized image quality with 92% Light Transmittance
• Edge to edge sharpness, high contrast, and high-resolution
• Reliable adverse temperature and environmental performance with -40° to 160° Fahrenheit Operational Range and IPX-8 Waterproof Rating
• Rated for .338 LAPUA Magnum
• Red and Green Reticle Illumination
• 12-hour Auto Shut-OFF

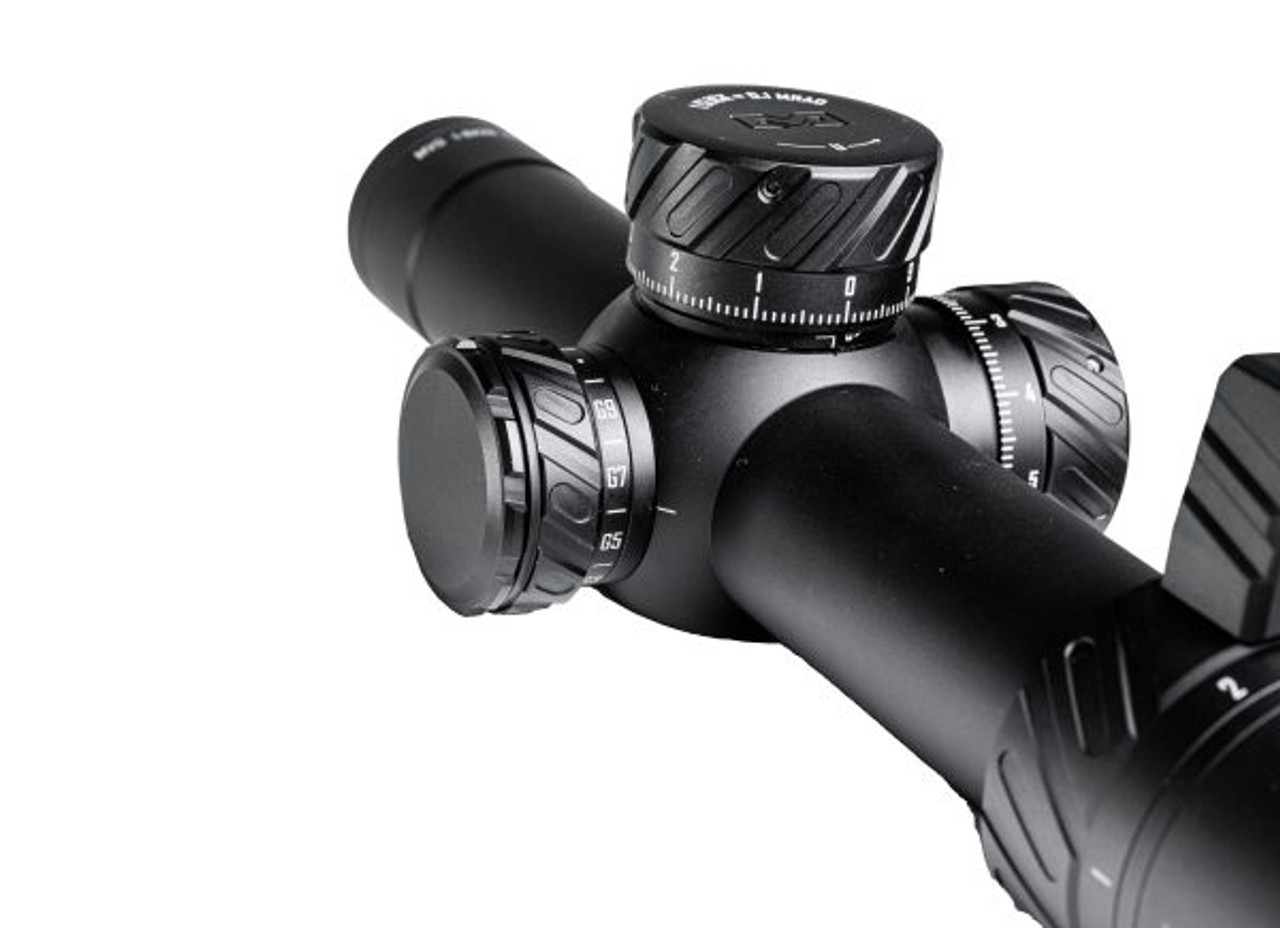

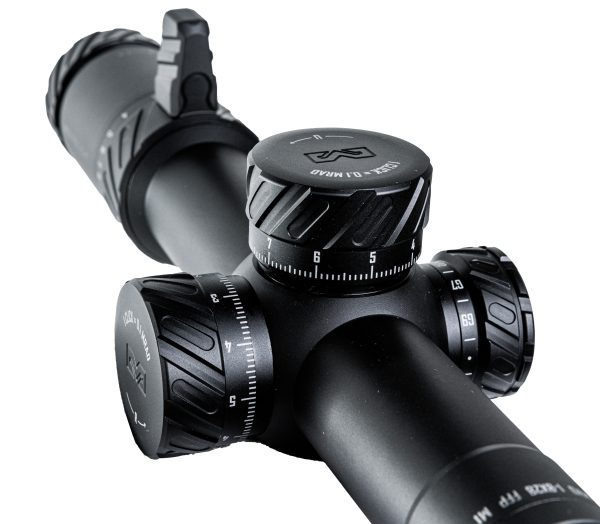

• Intuitive lockable and zero-resettable Windage and Elevation Turrets, serrated and oversized for use with gloves
• Detachable Throw Lever Extension for fast magnification zoom

Meprolight MVO 1-8×28mm Riflescope Resources

MVO 1-8×28mm Riflescope User Manual

Meprolight MVO 1-8×28mm Riflescope Specifications

• Overall Length: 10.9″ (276.9 mm)
• Weight (with Battery): 25.3 oz (717.1 g)
• Tube Diameter: 34 mm
• Eyepiece Length: 3.39″ (86.1 mm)
• Rear Mounting Space: 2.64″ (67.1 mm)
• Front Mounting Space: 2.17″ (55.1 mm)
• Objective Length: 1.06″ (26.9 mm)
• Outer Objective Bell Diameter: 1.38″ (35.1 mm)
• Outer Eyepiece Diameter: 1.81″
• Threaded Objective Bell: Yes
• Battery Cap: Twist Cap
• Housing Material: 6061-T6 Aluminum
• Actual Magnification: 1.0x – 8.0x
• Focal Plane: First Focal Plane
• Objective Lens Diameter: 28 mm
• Eye Relief: 3.7″ (94.0 mm)
• Linear Field of View (at 100 yds):
  • 1x: 115.5 ft
  • 8x: 14.1 ft
• Parallax Control: Fixed @ 100 yds
• Diopter Type: Adjustable, Friction Secured
• Reticle: M1 MRAD
• Reticle Type: Etched Glass
• Reticle Illumination: Yes
• Reticle Colors: Red and Green, Daylight Bright
• Range Estimation: Yes (Yards)
• Caliber Rating: .338 Lapua Magnum
• Exposed Optical Surface Treatment: Broadband anti-reflection coating on all glass-to-air interfaces
• Glass Components: Extra Low Dispersion (ED) & High Definition (HD) Schott Glass
• Turret Style: Tactical, Locking
  • Elevation: Exposed, adjustable
  • Windage: Exposed, adjustable
• Zero Reset: Yes
• Zero Stop: No
• Turret Unit of Measurement: MRAD
• Throw Tab with Lever Extension: Yes
• Click Adjustment: 0.1 MRAD per click
• Total Elevation Adjustment:
  • Up: 19 MRAD
  • Down: 13.5 MRAD
• Elevation Adjustment per Revolution: 10 MRAD (Total 32 MRAD)
• Total Windage Adjustment: 15 MRAD (7.5 MRAD per side)
• Windage Adjustment per Revolution: 10 MRAD
• Battery Type: CR2032 3V
• Battery Loading: Left Turret
• Brightness Levels (excluding OFF): 10 Red, 10 Green
• Night Vision Brightness Levels: 2
• Brightness Mode: Manual
• Battery Life: 600 hours @ brightness setting 5 of 10 (with approved battery at Ta1)
• Power ON/OFF: Rotary Turret
