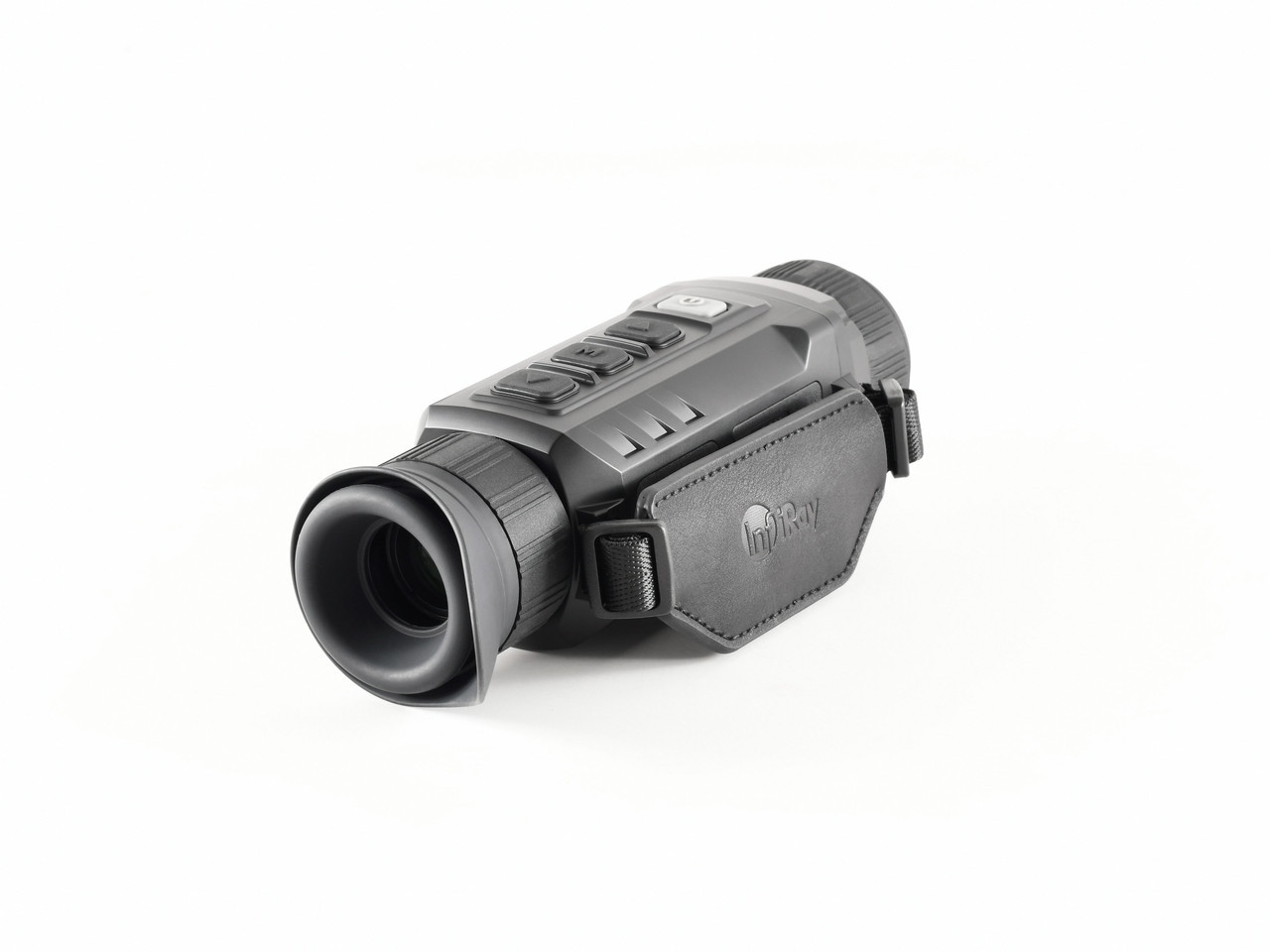

InfiRay Outdoor ZOOM ZH38 Thermal Monocular 1X/2X 19-38mm

✨  InfiRay Outdoor ZOOM ZH38 Thermal Monocular 1X/2X 19-38mm   ✨

The InfiRay Outdoor ZOOM Dual Field of View Monocular features adjustable optical zoom, Shutterless Calibration Technology (SCT), and a full color 1440x1080 OLED display. With the ZOOM’s patented dual-field-of-view design, users can seamlessly switch between a wide field-of-view (FOV) for detection, and a narrow FOV for target identification. This 2X increase in optical magnification occurs with an intuitive twist of the objective focus ring and maintains 100 percent of the sensor’s native resolution.

Optics

• Optical Magnification: 1.5X / 3X

• Digital Magnification: 4X, stepped

• Objective Lens Material: Germanium

• Horizontal Angular Field of View: 22.9° / 11.5°

• Vertical Angular Field of View: 17.2° / 8.7°

• Detection Range: 2150 Yards

• Objective Focal Length: 19mm / 38mm

• Objective Diameter: 32mm

• Objective F#: 1.2

• Eye Relief: 20mm

• Exit Pupil: 5.5mm

• Display Type: FHD OLED

• Display Resolution: 1440×1080

• Focusing Mechanism: Manual Focus

• Diopter Range: -5 to +5

Features & Performance

• Warranty: 5 Years

• Power Source: IBP-1 Li-Ion Battery Pack

• Run Time: 10 hours

• Video Output: Analog RS-170/NTSC

• Image Capture: Yes

• Onboard Recording: Video and Image

• Country of Manufacture: China

• Connector Type: USB-C

• Startup Time: <10 Seconds, Instant from Standby

• Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight

• Rangefinder: Stadiametric

• Picture-in-Picture: Yes

• Storage Capacity: 32GB

• Mobile App: Yes

• User-Updatable Firmware: Yes

• External Power Source: Yes USB-C 5V

Environmental Specifications

• Operating Temperature Range: -4°F to 122°F

• Ingress Protection: IP67

Physical

• Housing Material: Aluminum

• Length: 7.48 in

• Width: 2.36 in

• Height: 2.55 in

• Weight: 19.04 Oz

Sensor Specifications

• Device Technology: Thermal Imaging

• Sensor Type: InfiRay MICRO II

• Sensor Resolution: 640×512

• Non-Uniformity Correction (NUC): Shutterless, Manual, Automatic, Semi-Automatic

• Spectral Response: 8-12 Microns

• Sensor Frame Rate: 50hz

• Sensor Pixel Size: 12μm

• Thermal Sensitivity: <50mk

Resources

• Manual
