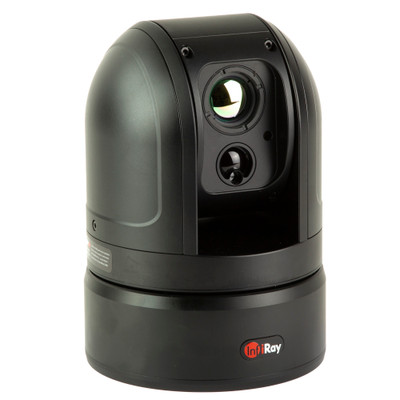

InfiRay Outdoor M6T 25mm Thermal Vehicle Mounted Camera PTZ with LRF 640x512

✨  InfiRay Outdoor M6T 25mm Thermal Vehicle Mounted PTZ with LRF 640x512 12 Micron 25mm   ✨

The M6 thermal PTZ camera system is designed to enhance scanning capabilities while on-board a vehicle and is over-built to maintain performance through years of use and exposure to the elements.

The M6 is packed full of useful features including video recording, gyro stabilization, and mobile app connectivity with wireless streaming. It also includes an integrated laser pointer and laser rangefinder for increased situational awareness.

The M6 kit has everything you need to add thermal to any vehicle including power and signal wiring harnesses and an easy-to-use wired thumbstick controller. In just a few minutes you can upgrade any vehicle with powerful thermal imaging technology.

SENSOR

• Resolution: 640×512

• Pixel Size: 12 μm

• Frame Rate: 50hz

• Sensor Sensitivity: ≤50 mK

• Image Processing: MATRIX III

• Core: InfiRay Micro II 640

OPTICS

• Objective Lens: 25 mm f/1.0

• Magnification: 1×

• Digital Zoom: 4×

• Field of View: 17.5° × 14.0°

• Detection Range: 1375 Yards

• Color Palettes: White Hot, Black Hot, Red Hot, Color

• Mounting System: Suction Cup or Mounting Bracket

• Picture-in-Picture (P.I.P.): Yes

• Rangefinder: Integrated 1000 yd LRF

• Visible Laser Designator: Yes

ELECTRONICS

• Pan Range: 360° Continuous Rotation

• Tilt Range: -90° ~ +90°

• Motor: Ultra-quiet Brushless Motor

• Auto Cruise Program: Camera moves through a series of preset points

• Image Stabilization: 2-axis Gyro Stabilization (Azimuth and Pitch)

• Image Processing: Digital Noise Reduction and Detail Enhancement

• Controller: Wired Remote with Thumb-actuated Joystick and 2 Buttons

• Onboard Recording: Video and Image

• Onboard Storage: 64 GB

• Wireless Connectivity: Image and Video via App

• Data Connector: 10-pin and 4-pin LEMO

• Power Supply: 12V DC External

• Start Up Time: <5 Seconds, Instant from Standby

PHYSICAL

• Size: 5.24” × 5.24” × 7.40”

• Weight: 70.55 Oz

ENVIRONMENTAL/WARRANTY

• Warranty: 5 Years

• Housing Material: Aluminum

• Ingress Protection: IP56

• Operation Temperature: -4°F~140°F

An included wired remote with a thumb-actuated joystick provides smooth and precise pan and tilt control of the M6 unit. Position can also be controlled through the mobile app.

Resources

• Datasheet
• Manual
