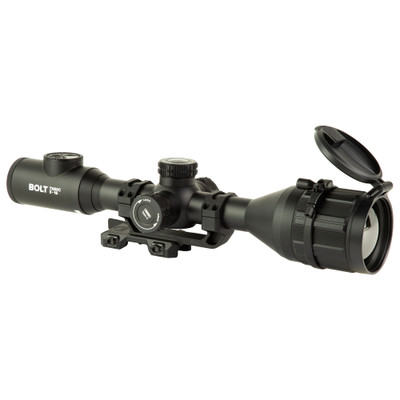

InfiRay Outdoor BOLT TX60C Thermal Weapon Sight 1024x1024 3-16x 60mm

✨  InfiRay Outdoor BOLT TX60C Thermal Weapon Sight   ✨

The InfiRay Outdoor BOLT TX60C provides hunters with a high-resolution 1024×1024 InfiRay Micro II thermal sensor at a native 3× magnification and digital zoom up to 16×. Increased resolution paired with a higher base magnification means less resolution is lost at higher zoom levels. A fast f/1.0 germanium objective lens, a sensitivity rating of ≤18mK, and a round 2560×2560 AMOLED display provide exceptional detail and precision.

The round 30mm body design allows for easy mounting with the included one-piece cantilever mount or standard scope rings. Wirelessly paired with the ILR-1200-1 Laser Rangefinding module, the TX60C is capable of displaying real-time ranges on-screen and even calculating a firing solution using customizable projectile data and the onboard ballistic calculator.

The TX60C comes with a 30 mm one-piece quick-detach scope mount with dual-locking levers (AC112) to mount the scope on any rifle with a Picatinny rail. The QD design makes it easy to swap out your thermal optic with a day scope, or share one thermal on multiple rifles.

As an evolution from previous BOLT series models, the TX60C can now directly accept common 18650 cell batteries (button-top version) without an extension/adapter.

Optics

• Objective Focal Length: 60mm

• Detection Range: 2700 Yards

• Optical Magnification: 3X

• Digital Magnification: 4X, stepped

• Horizontal Angular Field of View: 11.7°

• Vertical Angular Field of View: 11.7°

• Objective Lens Material: Germanium

• Objective Diameter: 60mm

• Objective F#: 1.0

• Focusing Mechanism: Manual Focus

• Eye Relief: 50mm

• Diopter Range: -5 to +3.5

• Display Type: AMOLED

• Display Resolution: 2560×2560

Features & Performance

• Reticle: 7 (1 Dynamic, 5 Static, 1 DIY)

• Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

• Rangefinder: Bluetooth ILR-1200-1 LRF (Optional)

• Stand-by Mode: Yes

• Picture-in-Picture: Yes

• Image Capture: Yes

• Wifi: Yes

• Mobile App: Yes

• User-Updatable Firmware: Yes

• Connector Type: USB-C

• Connector Output: Power/Data

• Storage Capacity: 128GB

• Onboard Recording: Yes

• Power Source: USB-C External, 18650 Battery

• Run Time: 8+ Hours

• External Power Source: USB-C

• Warranty: 5 Years

• Startup Time: <10 Seconds, Instant from Standby

• Country of Manufacture: China

Environmental Specifications

• Operating Temperature Range: -4°F to 122°F

• Ingress Protection: IP67

• Recoil Rating: 1000 g/s² (300 Win./7mm Mag)

Physical

• Length: 15.12 Inches

• Weight: 35.27 Oz

• Height: 3.03 Inches

• Width: 4.09 Inches

• Mounting Interface: Picatinny MIL-STD 1913 Rail

• Housing Material: Aluminum

Sensor Specifications

• Device Technology: Thermal Imaging

• Sensor Type: InfiRay MICRO II

• Sensor Resolution: 1024×1024

• Sensor Pixel Size: 12μm

• Sensor Frame Rate: 50hz

• Thermal Sensitivity: <18mk

• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic

Resources

• Manual
• Datasheet
