EOTech Vudu Rifle Scope 1-10x 28mm - SR5 MRAD Reticle

Ships Free!

$1,749.00

Free Shipping Over $80

All Genuine Brands & Products

Secure Online Ordering

  EOTech Vudu Rifle Scope   ✨

1-10x 28mm - SR5 (MRAD) Reticle

EOTECH’s Vudu 1-10x28 offers a robust 34mm, one-piece aircraft aluminum tube and single-piece eyepiece that includes a removable throw-lever for fast changes in magnification. The low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero. The illuminated, glass-etched reticle and first focal plane design allows for distance estimation at any magnification and lighting condition.

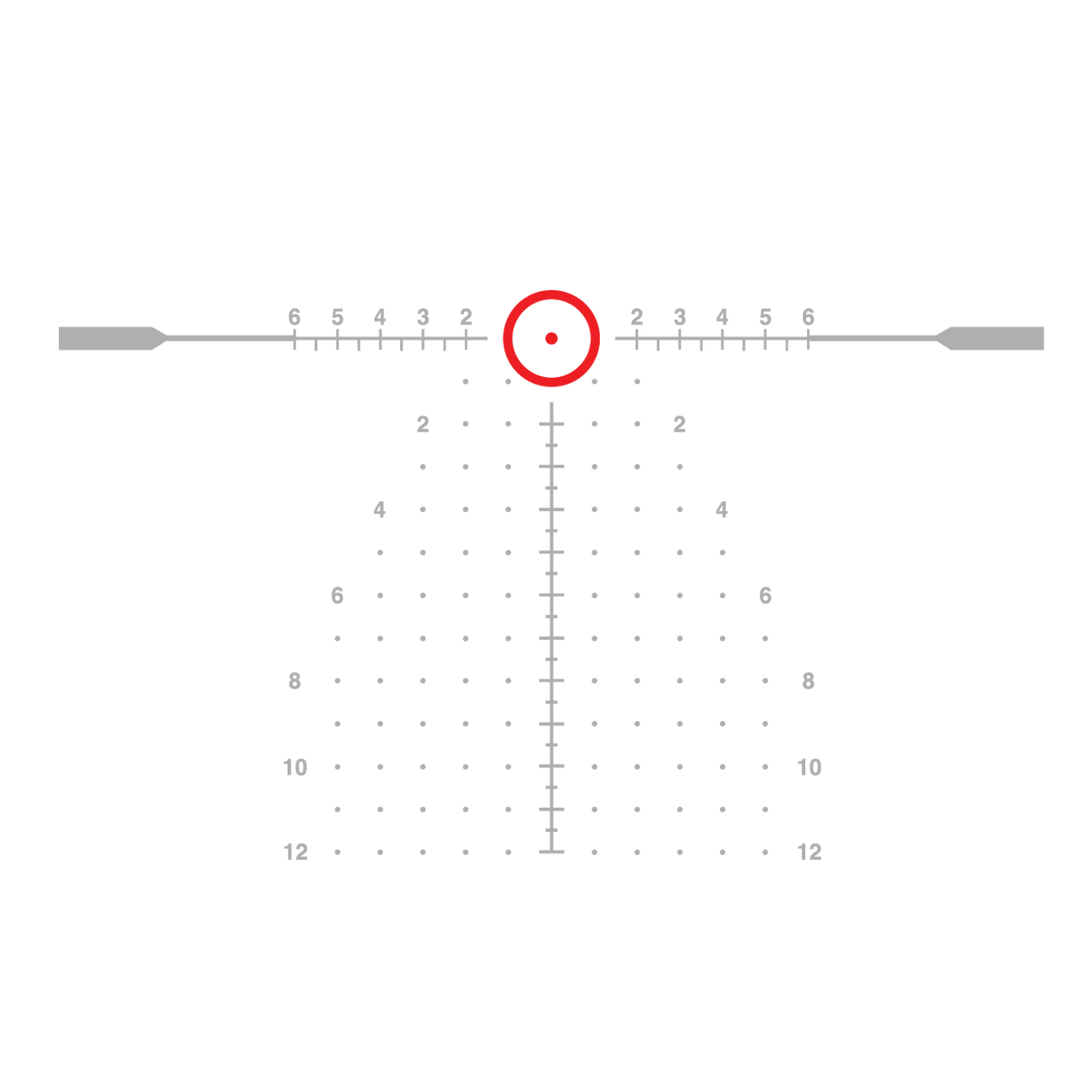

Vudu SR-5 MRAD Reticle
The SR-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision 0.25 MRAD center aiming dot and the secondary windage and elevation features allow for precise holds on those longer range shots.

  • Adjustment Graduation Per Click: 0.1 MRAD
  • Adjustment Graduation Per Rotation: 15 MRAD
  • Total Elevation Travel: 29 MRAD
  • Total Windage Travel: 23 MRAD

Included

  • Vudu® 1-10X28 Rifle Scope
  • Operator Manual
  • Reticle Manual
  • Throw Lever
  • Lens Cleaning Cloth

Specifications

  • First Focal Plane
  • Overall Length: 10.63" (270 mm)
  • Weight: 21.3 oz (603 g)
  • Magnification: 1-10X
  • Tube Diameter: 34 mm
  • Objective Diameter: 28 mm
  • Power Source: CR2032
  • Eye Relief:
    - 1X: 3.27-3.90" (83-99 mm)
    - 10X: 3.35-3.62" (85-92 mm)
  • Field-of-View @ 100 Yards:
    - 1X: 116.6 ft (35.5 m)
    - 10X: 11.7 ft (3.6 m)
  • Country of Origin: Made in Japan

Manuals

Export Restrictions:
Export of this product is strictly controlled and enforced by the U.S. Department of Commerce, Bureau of Industry and Security, as prescribed in the Export Administration Regulation (EAR), Title 15, Code of Federal Regulations, Parts 730-774.

Prop 65 Warnings:
This product can expose you to chemicals including (Epichlorohydrin, Phenyl, Hydrazine or Cumene) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
