EOTECH Vudu 1-10X28mm FFP Rifle Scope SR5 (MRAD) Reticle with Daylight Bright Dot

$1,949.00 - $1,969.00

Free Shipping Over $80

All Genuine Brands & Products

Secure Online Ordering

EOTECH Vudu 1-10X28mm FFP Daylight Bright Dot Rifle Scope

The popular Vudu 1-10x28 now has a daylight-bright version thanks to an embedded diffraction grating. This grating, combined with a lensed LED, focuses the light on the center of the reticle, making it easy to see even in very bright conditions.

EOTECH’s Vudu 1-10x28 has a strong 34mm one-piece aircraft aluminum tube and a single-piece eyepiece with a removable throw lever for quick changes in magnification. The low-profile elevation turret has a push/pull lock, and the windage turret is capped to keep your settings secure. The illuminated, glass-etched reticle is in the first focal plane, which lets you estimate distances at any magnification and in any lighting.

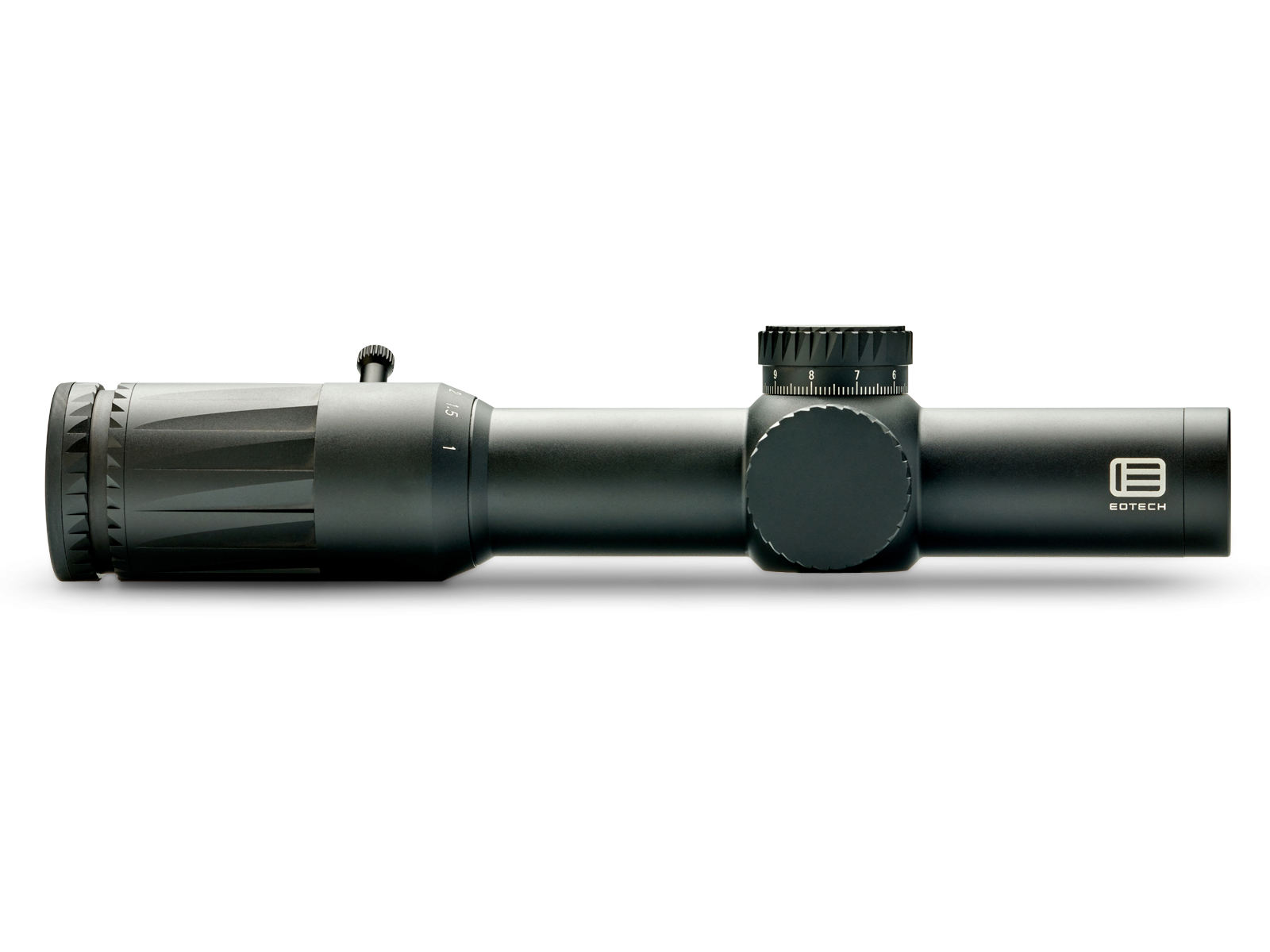

EOTECH Vudu 1 10X28mm FFP Rifle Scope SR5 MRAD Reticle Daylight Bright Dot Model side view



Included with the Vudu 1-10X28mm FFP Daylight Bright Dot Rifle Scope

  • Vudu® 1-10X28 Rifle Scope
  • Operator Manual
  • Reticle Manual
  • Throw Lever
  • Lens Cleaning Cloth



Eotech Vudu 1-10X28mm FFP Daylight Bright Dot Resources

EOTECH Vudu 1-10X28mm FFP Rifle Scope SR5 (MRAD) Reticle with Daylight Bright Dot pdf icon Vudu 1-10X28mm FFP Manual

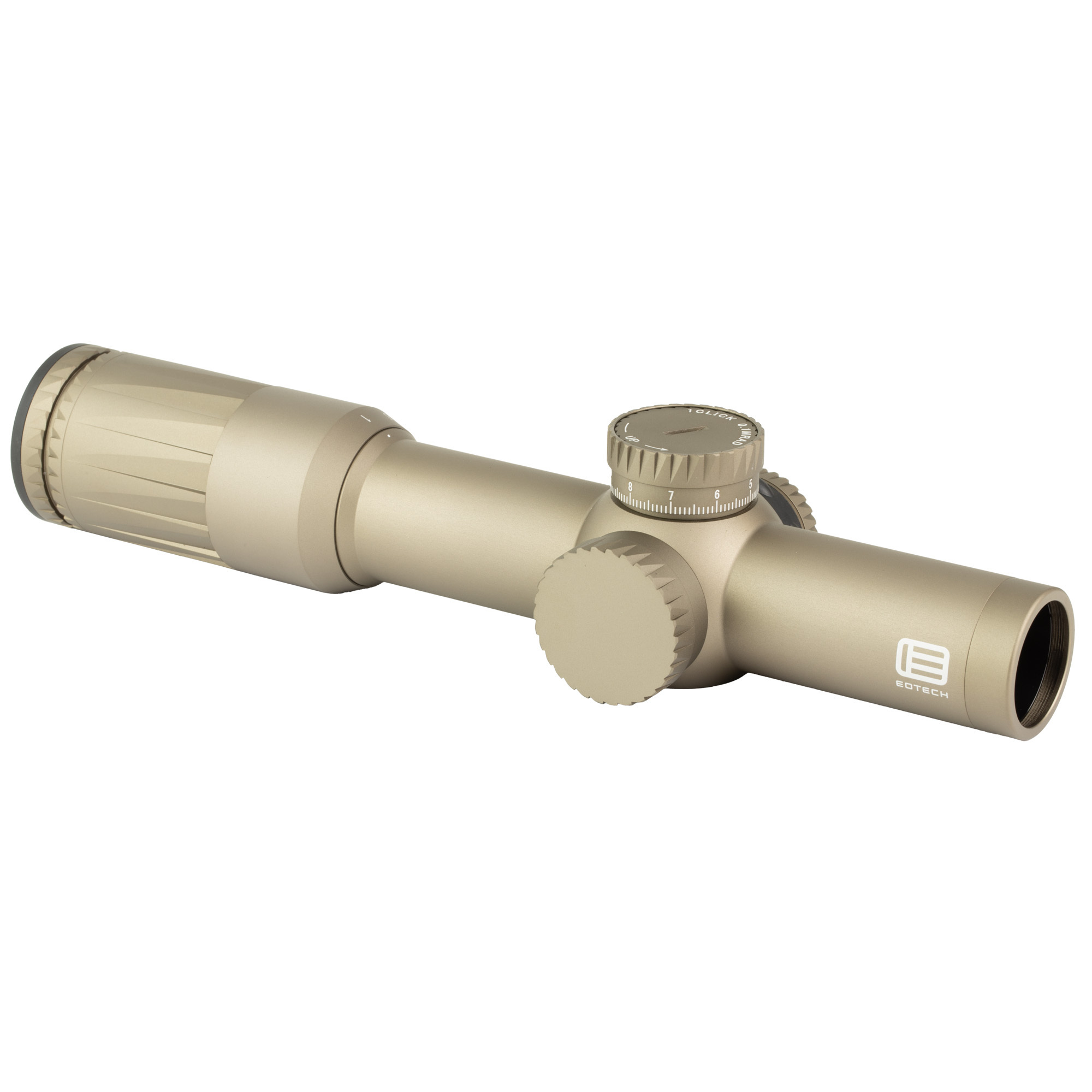

EOTECH Vudu 1-10X28mm FFP Rifle Scope SR5 (MRAD) Reticle with Daylight Bright Dot pdf icon SR4, SR5 & LE5 Reticle ManualEOTECH Vudu 1 10X28mm FFP Rifle Scope SR5 MRAD Reticle Daylight Bright Dot Model tan Front right side view



Eotech Vudu 1-10X28mm FFP Daylight Bright Dot Specifications

  • Overall Length: 10.63" (270 mm)
  • Weight: 21.3 oz (603 g)
  • Magnification: 1-10X
  • Tube Diameter: 34 mm
  • Objective Diameter: 28 mm
  • Power Source: CR2032
  • Eye Relief: 1X: 3.27-3.90" (83-99 mm)
  • Eye Relief: 10X: 3.35-3.62" (85-92 mm)
  • Field of View @ 100 Yards: 1X: 116.6 ft (35.5 m)
  • Field of View @ 100 Yards: 10X: 11.7 ft (3.6 m)
  • Country of Origin: Made in Japan



Eotech Vudu 1-10X28mm FFP Daylight Bright Dot Reticle Specification

Vudu SR-5 MRAD ReticleEOTECH Vudu 1 10X28mm FFP Rifle Scope SR5 MRAD Reticle Daylight Bright Dot Model Reticle

The SR-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision 0.25 MRAD center aiming dot and the secondary windage and elevation features allow for precise holds on those longer range shots.

  • Adjustment Graduation Per Click: 0.1 MRAD
  • Adjustment Graduation Per Rotation: 15 MRAD
  • Total Elevation Travel: 29 MRAD
  • Total Windage Travel: 23 MRAD



Export Restrictions:
Export of this product is strictly controlled and enforced by the U.S. Department of Commerce, Bureau of Industry and Security, as prescribed in the Export Administration Regulation (EAR), Title 15, Code of Federal Regulations, Parts 730-774.

Prop 65 Warnings:
This product can expose you to chemicals including (Epichlorohydrin, Phenyl, Hydrazine or Cumene) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
