AGM UNVG 3APW Night Vision Goggles

AGM UNVG 3APW Night Vision Goggles

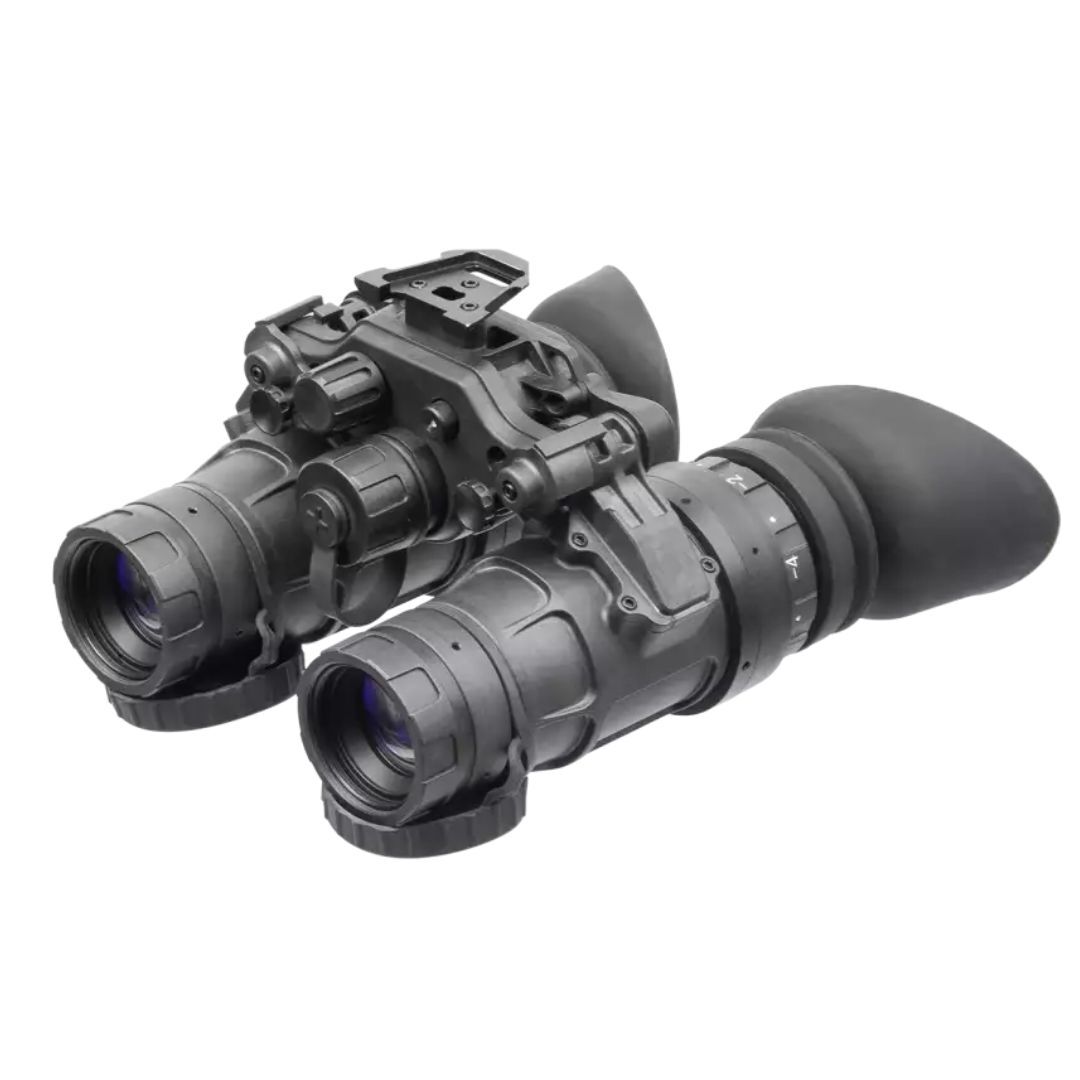

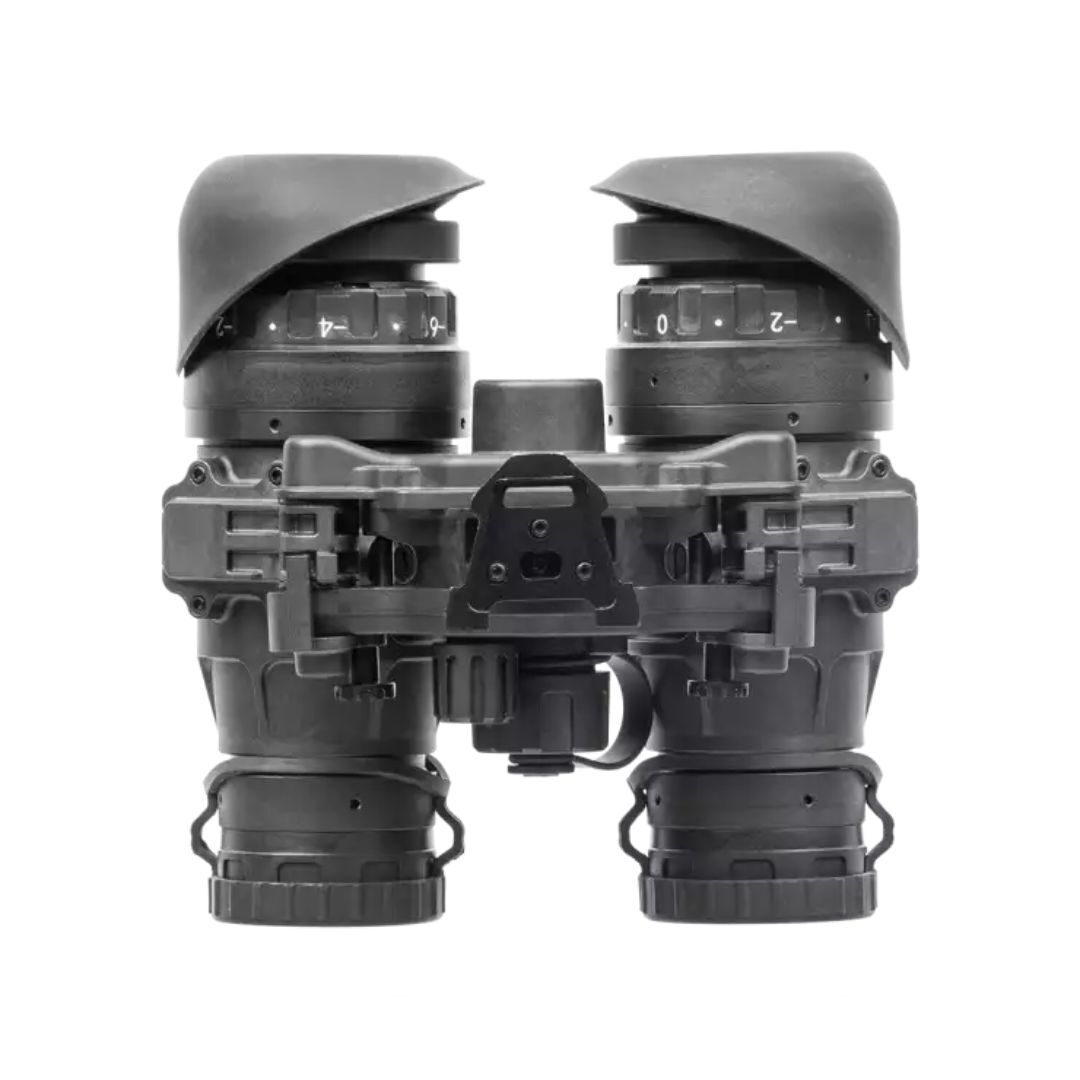

The AGM UNVG 3APW is a dual-channel night vision system that uses advanced multi-coated optics with a compact composite housing. The device can be outfitted with a Gen 3 high-performance image intensifier tube (IIT).

The UNVG is also equipped with manual gain control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. The independent movement of the tube pods allows for single or dual eye configurations. Each tube automatically turns off when its pod is turned sideways.

Operating from a single AA alkaline battery, the UNVG can run up to 15 hours. With an external battery pack (included), the operating time increases. The UNVG is also equipped with an integral infrared illuminator for reading in the dark. The device can be installing to a either standard dovetail type headset and helmet mount.

Features of the UNVG 3APW Night Vision Goggles

• Low Power Consumption Design: Utilizes single AA battery or external battery pack.
• Auto Off Feature: Each tube automatically turns off when its pod is turned sideways.
• Corrosion and Impact-Resistant Housing: Matte black finish with PEEK+Glass fiber material
• Quick Attachment Design: Dovetail base support for strong compatibility and durability.
• PVS-14-style Compatible: Objective lens and eyepiece lens are compatible with PVS-14 style components and attachments.
• Independent Pod Movement: Pods can roll up and down for quick configuration changes.
• Ultralight Housing: 17.6 oz / 500 g weight
• Single/Double Eye Configuration: Pods independently adjustable for improved operational flexibility.
• IR Complement Function: Infrared illuminator for enhanced visibility in total darkness
• Manual Gain Control: Adjust image intensifier gain for optimal vision preferences.
• Simplified IP Stop Design: Allows you to set your tube positions to what is most comfortable for the user.

AGM UNVG 3APW Characteristics

• Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor 3APW"
• Magnification: 1x
• Lens System: 25 mm; F/ 1.23
• FOV: 40°

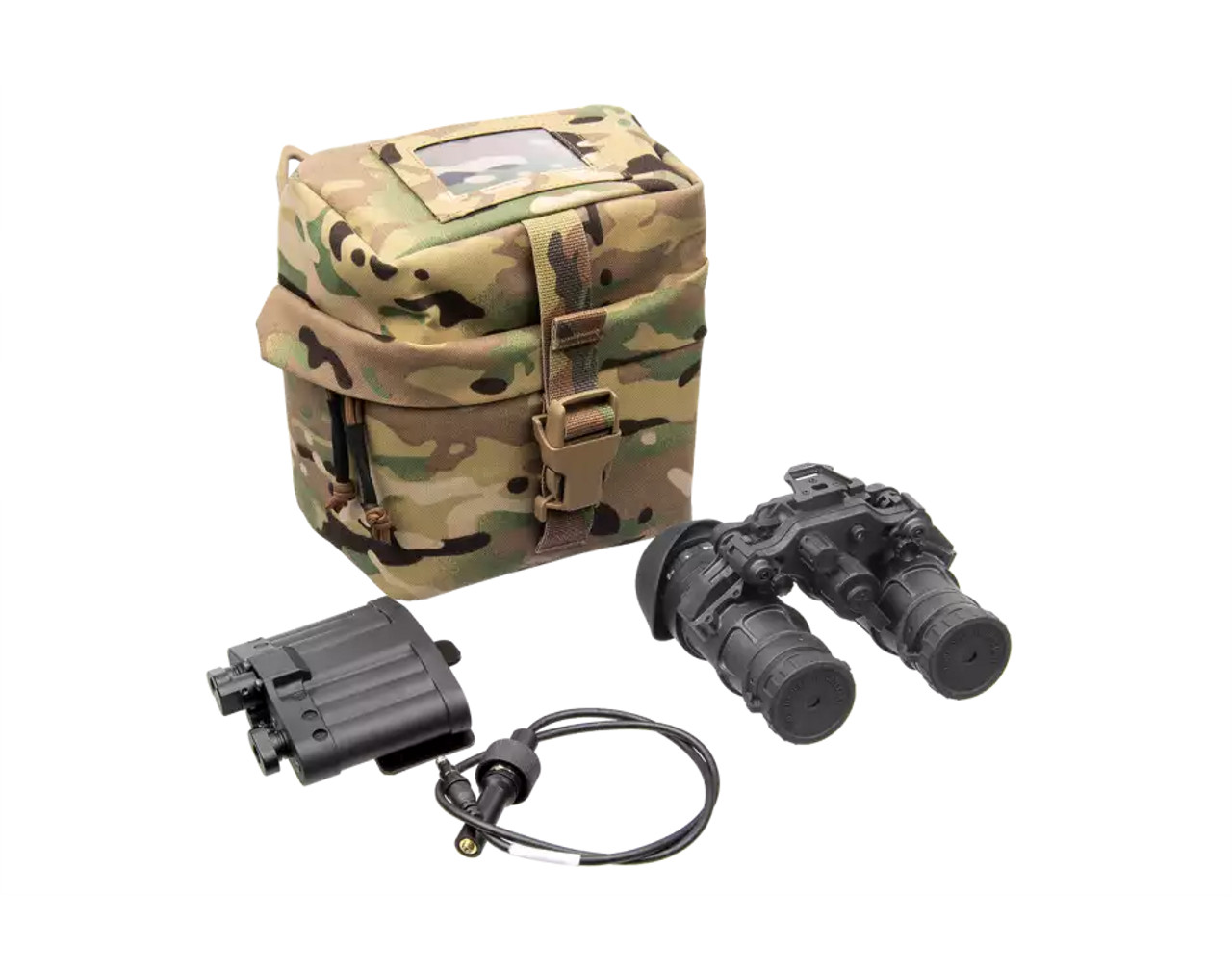

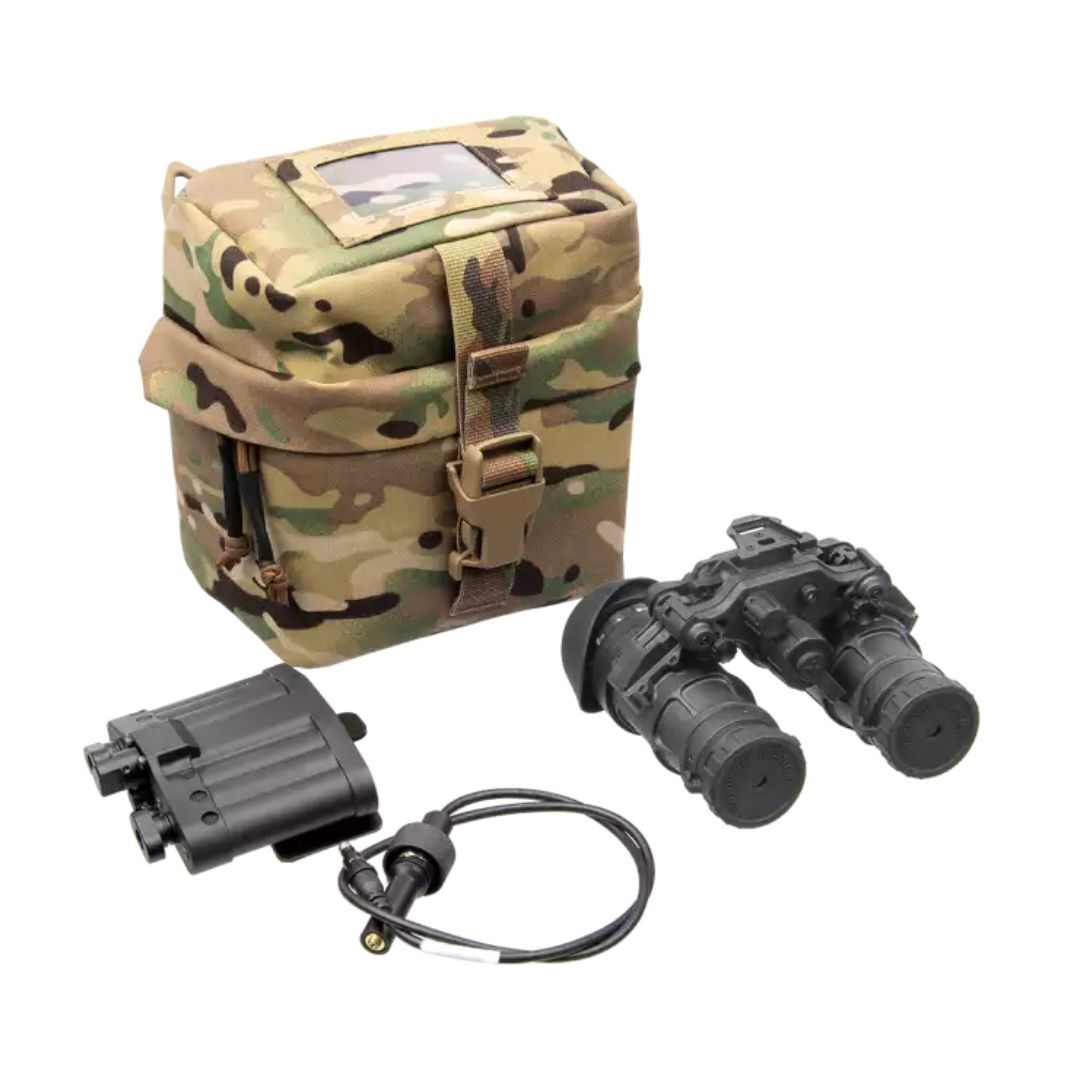

UNVG 3APW Includes

• Night Vision Goggles
• External Battery Pack
• Connecting Cable with Battery Adapter
• Demist Shield (2)
• Sacrificial Window (2)
• Neck Strap
• Carrying Case
• Lens Cloth
• User Manual
• AA Battery

AGM UNVG 3APW Resources

UNVG 3APW User Manual

UNVG 3APW Datasheet

UNVG 3APW Night Vision Goggle Specifications

• Interpupillary Distance: 56 to 72 mm
• Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor 3APW"
• Resolution: 64-72 lp/mm
• Field of View Cleanness by Zone: Gen 3 IIT 3APW is offered with high quality and practically no visible spots in Zone 1.
• Magnification: 1x
• Lens System: 25mm, F/1.23
• FOV: 40°
• Focus Range: 0.25 m to Infinity
• Eye Relief: 25 mm
• Diopter Adjustment: -6 to +2 diopters
• Infrared Illuminator: Yes
• Manual Gain Control: Yes
• Battery Type: One AA (1.5 V) or External Battery Pack (four AA or two CR123A)
• Battery Life (Operating):
• One AA - up to 15 hours
• External Battery Pack (four AA) - up to 50 hours
• External Battery Pack (two CR123A) - up to 30 hours
• Exit Pupil Diameter: 14 mm
• Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
• Storage Temperature Range: -50°C to +70°C (-58°F to +158°F)
• Weight (w/o battery):
• Goggles: 500 g (1.1 lb)
• External Battery Pack: 250 g (0.55 lb)
• Overall Dimensions:
• Goggles: 101 × 116 × 85 mm (4.0 × 4.6 × 3.3 in)
• External Battery Pack: 102 × 86 × 34 mm (4.0 × 3.4 × 1.3 in)
• Protection Level: IP67

Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
