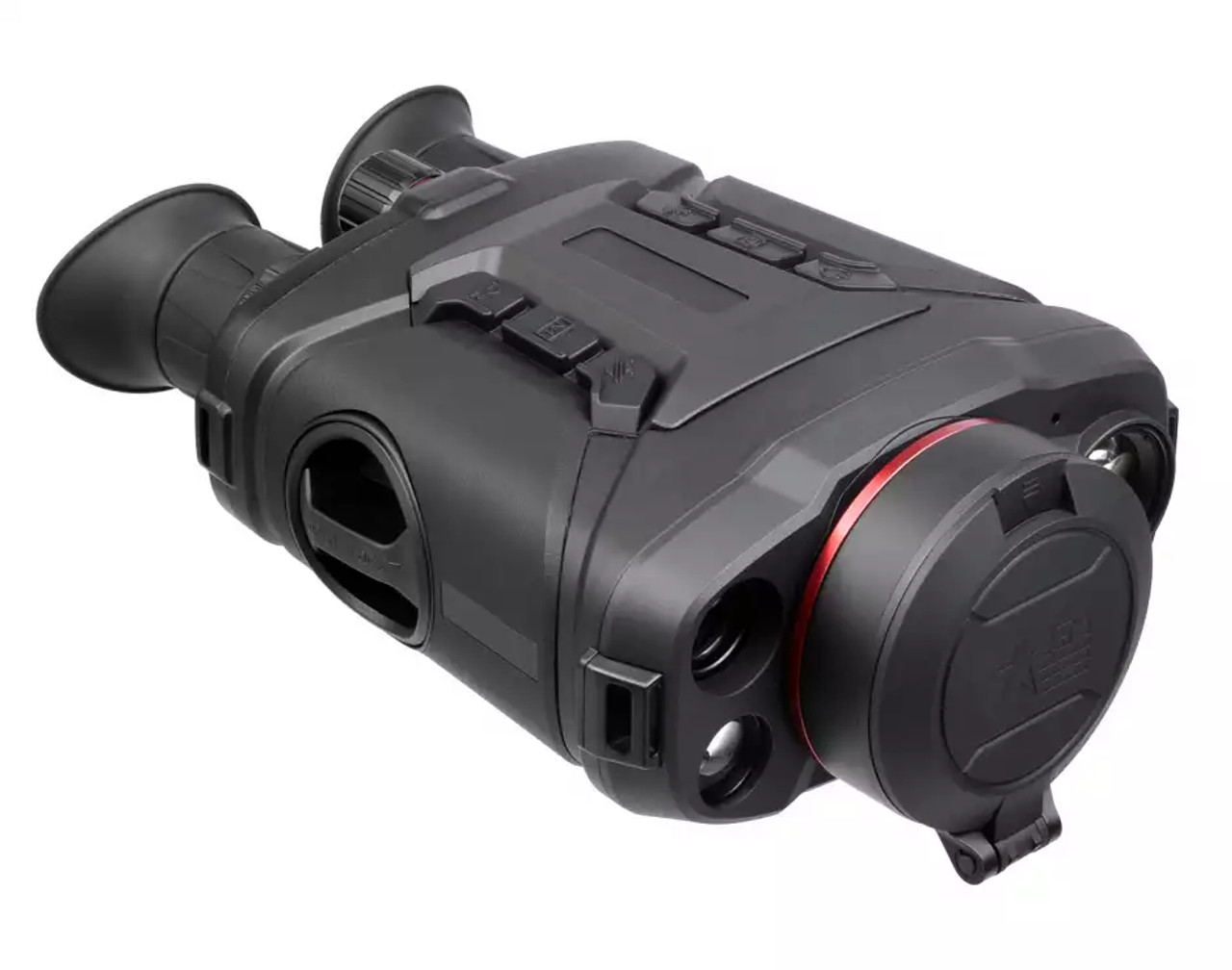

AGM Global Vision Voyage LRF TB75-640 Thermal & Digital Day / Night Vision Binocular with Rangefinder

✨ AGM Global Vision Voyage LRF TB75-640 Thermal & Digital Day / Night Vision Binocular with Rangefinder  ✨

The AGM Voyage TB75-640 Fusion Thermal & Digital Day/Night Vision binocular features a main thermal viewing channel with an incredible 12 micron 640x512 thermal detector. This AGM thermal sensor possesses an industry leading sensitivity rating of sub-20mK (millikelvin), ensuring that not only are human-sized heat signatures detectable at up to 2.2 miles (3600m), but also foliage and other background imagery will be crisp and detailed in closer distances/ranges.

The Voyage also come outfitted with a digital night vision channel, great for aiding in recognition of targets after the thermal channel has detected a potential target. The built-in 1000m Laser Rangefinder simply takes the Voyage to another level.

Features

• Dual-spectrum image fusion and object highlight (detail enhancement and target recognition)
• Selection of thermal view channel, visible light channel, or both them combined
• Thermal resolution: 640×512
• Optical resolution: 2560×1440
• NETD less than 20 mK (25°C, F#=1.0)
• Digital Detail Enhancement (DDE)
• Dynamic Noise Reduction (3D DNR)
• Adaptive Automatic Gain Control (AGC)
• Ultra-low illumination (optical channel), B/W: 0.001 lux @ (F1.0 , AGC On)
• Video recording, replay, picture snapshot and search (capable to review the event on device)
• Wi-Fi hotspot
• Eye-safe laser rangefinder (up to 1,000 m distance detection with measuring accuracy 1 m)
• GPS module
• Digital magnetic compass
• Inclination sensor
• Proximity sensor to save power
• Up to 8 hours continuous operation
• Waterproof, IP67

Includes

• Battery Charger
• Power Cable
• Lens
• Cloth
• Two Wrist Straps
• Neck Strap
• Six 18650 Batteries
• Power Adapter
• User Manual
• Carrying Case

Specifications

• Magnification: 5× - 80×
• Interpupillary Distance: 60 mm to 70 mm
• Digital Zoom: 1×, 2×, 4×, 8×, 16×
• Detection Range: 3,600 m/yd (6’ object)
• Flat Field Correction (FFC): 905 nm (Class 1)
• Palettes: Optical, White Hot Thermal, Black Hot Thermal, Red Hot Thermal, Image Fusion
• Diopter Adjustment: 0.39-inch, OLED, 1024×768
• Battery Type: Three 18650 batteries
• Image Sensor: Vanadium Oxide Uncooled Focal Plane Array
• Resolution: 640×512
• Pixel Pitch: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 20 mK (25°C, F#=1.0)
• Field of View: 5.9° × 4.7°
• Aperture: F1.2
• Lens (Focal Length): 75 mm, Manual focus
• Monitor: 0.39-inch, OLED, 1024×768
• Storage: Built-in memory module (64 GB)
• Snapshot: JPEG, 1600 × 1200
• Battery Operating Time: Up to 8 hours
• Battery Capacity Display: Yes
• Protection Level: IP67
• Mounting: 1/4”-20 UNC
• Cable Output: USB Type-C port
• Dimension (L × W × H): 217 × 155 × 88 mm (8.5 × 6.1 × 3.5 in)
• Weight: 1.12 kg (2.5 lb)
• Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
• Picture In Picture Mode (PIP): Yes
• Video Recording: MP4, 1600 × 1200
• Measuring Distance of Laser Rangefinder: Max. 1,000 m
• Laser Wavelength: 905 nm (Class 1)
• Eye Relief: 15 mm
• External Power Supply: DC 5V/2A, Max.10W, Type-C port

Resources

• User Manual
• Data Sheet
