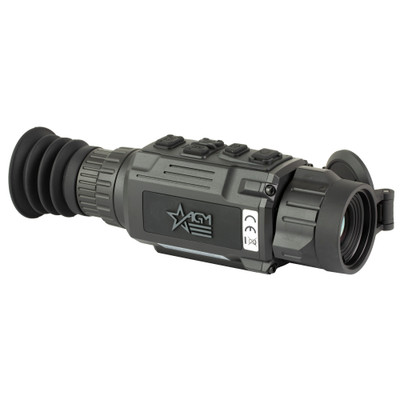

AGM Global Vision Taipan TM15-256 Thermal Monocular

✨ AGM Global Vision Taipan TM15-256 Thermal Monocular ✨

The Taipan TM15-256 is a great mid-level thermal monocular and comes equipped with a highly advanced 12 micron 256x192 resolution thermal sensor and a 720x540 LCOS display.

Functions

Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.

Mode Switch:
Device supports pallet switch and distance measurement.

Storage:
Built-in memory module supports video recording/snapshot capturing.

Digital Zoom:
Device supports 1×, 2×, 4×, and 8× digital zoom.

Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

Features

• 256×192 resolution, 12 μm, high sensitivity detector
• Adaptive AGC, DDE, 3D DNR
• 720 × 540 LCOS display
• Built-in rechargeable Lithium battery
• Up to 8 hours continuous running (with Wi-Fi hotspot function off)
• “Auto Power Off” and “Sleep” modes
• Wi-Fi hotspot
• Type-C interface

Characteristics

• Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
• Refresh rate: Sensor 25 Hz / LCOS display 50 Hz
• Resolution: 256x192
• FOV: 11.69° × 8.78°

Includes

• USB Cable
• 3 Lanyard
• EU Plug
• Lens Cloth
• Operation Manual

Specifications

• Palettes: Black Hot, White Hot, Red Hot, Fusion
• Working Temperature: -20°C to 55°C (-4°F to 131°F)
• Interface: USB Type-C
• Pixel Interval: 12 μm
• Multi-Language Menu: Yes
• Drop Test Height: 1.5 m (4.9 feet)
• Magnification: 1.5x - 12x
• Detector Type: Vanadium Oxide Uncooled Focal Plane Arrays
• Response Waveband: 8μm to 14μm
• FFC (Flat Field Correction): Auto, Manual, External Correction
• Highest Temperature Spot Tracking: Yes
• Standby Mode: Yes
• Refresh Rate: Sensor 25 Hz / OLED 50 Hz
• Aperture: F1.0
• Resolution: 256×192
• Detection Range (6' object): 710m/yd
• NETD: Less than 35 mk (@25°C), F#=1.0
• Lens (Focal Length): 15 mm
• Power: 5 VDC/2 A, 1.5 W
• Field of View (H × X): 11.69° × 8.78° (H × V)
• Digital Zoom: 1×, 2×, 4×, 8×
• Diopter Adjustment Range: -3 to +1 dpt
• Monitor: 720×540, 0.2 inch, LCOS
• Storage: Built-in memory module (8 GB)
• Record Video: On-board video recording
• Capture Snapshot: Yes
• Battery Type: Built-in rechargeable Lithium battery
• Wi-Fi: Yes
• CVBS Output: Yes (via USB)
• Battery Operating Time: Up to 8 hours continuous running (with Wi-Fi hotspot function off)
• Battery Capacity Display: Yes
• Weight: 280 g (0.62 lb)
• Overall Dimensions: 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)
• Protection Level: IP67

Resources

• User Manual
• Data Sheet

Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
