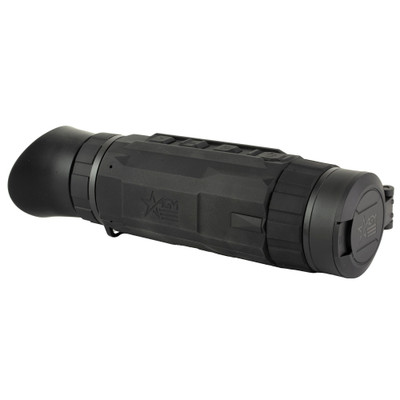

AGM Global Vision Sidewinder TM35-384 Thermal Monocular 3-24x 35mm

✨ AGM Global Vision Sidewinder TM35-384 Thermal Monocular   ✨

The AGM Sidewinder TM35-384 Thermal Monocular boasts a 35mm Germanium lens and a 384x288, 12 micron, sub-20mK thermal detector. The Sidewinder also utilizes a removable, non-proprietary 18650 rechargeable battery which powers the unit by offering up to 7 hours of operating time, built-in to a new robust rubber armored housing for added durability and protection.

Features

• 12μm, 384×288 resolution detector

• Highest thermal sensitivity (NETD <20mK)

• Advanced image processing (Digital Detail Enhancement, digital Noise Reduction and NLM algorithm)

• 50 Hz image frame rate

• 1024×768 resolution OLED display

• Built-in memory supports video/audio recording and snapshot capturing

• 64 GB memory module

• Wi-Fi hotspot

• 1×, 2×, 4× and 8× digital zoom

• Replaceable and rechargeable Li-Ion battery

• Up to 7 hours continuous running

• External power supply capability

• Waterproof

Characteristics

• Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
• Refresh rate: 50 Hz
• Resolution: 384 × 288
• FOV: 7.5° × 5.6°

Includes

• Battery Charger
• USB Cable
• Power Adapter (US and EU plugs included)
• 18650 Rechargeable Battery
• Lens Cloth
• Wrist Strap
• Carrying Case
• User Manual
• Protective Bag

Specifications

• Palettes: Black Hot, White Hot, Red Hot, Fusion

• Dimensions: 188 × 58 × 65 mm (7.4 × 2.3 × 2.6 in)

• Interface: USB Type-C

• Pixel Interval: 12 μm

• Magnification: 3× - 24×

• Detector Type: Vanadium Oxide Uncooled Focal Plane Array

• Response Waveband: 8μm to 14μm

• FFC (Flat Field Correction): Auto, Manual, External Correction

• Highest Temperature Spot Tracking: Yes

• Standby Mode: Yes

• Refresh Rate: 50 Hz

• Resolution: 384×288

• Detection Range (6' object): 1800 m

• Lens (Focal Length): 35 mm

• Power: 5 VDC/2 A, 1.75 W

• Field of View (H × X): 7.5° × 5.6°

• Digital Zoom: 1×, 2×, 4×, 8×

• Diopter Adjustment Range: -5 to +3 dpt

• Monitor: 1024×768, OLED

• Storage: Built-in memory (64 GB)

• Record Video: Yes / Yes (on-board)

• Capture Snapshot: Yes

• Battery Type: One 18650 Replaceable Rechargeable Lithium Battery

• Wi-Fi: Yes

• Battery Operating Time: Up to 7 hours

• Weight: 505 g (1.11 lb)

• Working Temperature/Humidity: -30°C to 55°C (-22°F to 131°F)

• Protection Level: IP67

Resources

• User Manual
• Data Sheet

Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
