AGM Global Vision Secutor LRF-C 50-640 Thermal Imaging Clip-On

✨  AGM Global Vision Secutor LRF-C 50-640 Thermal Riflescope   ✨

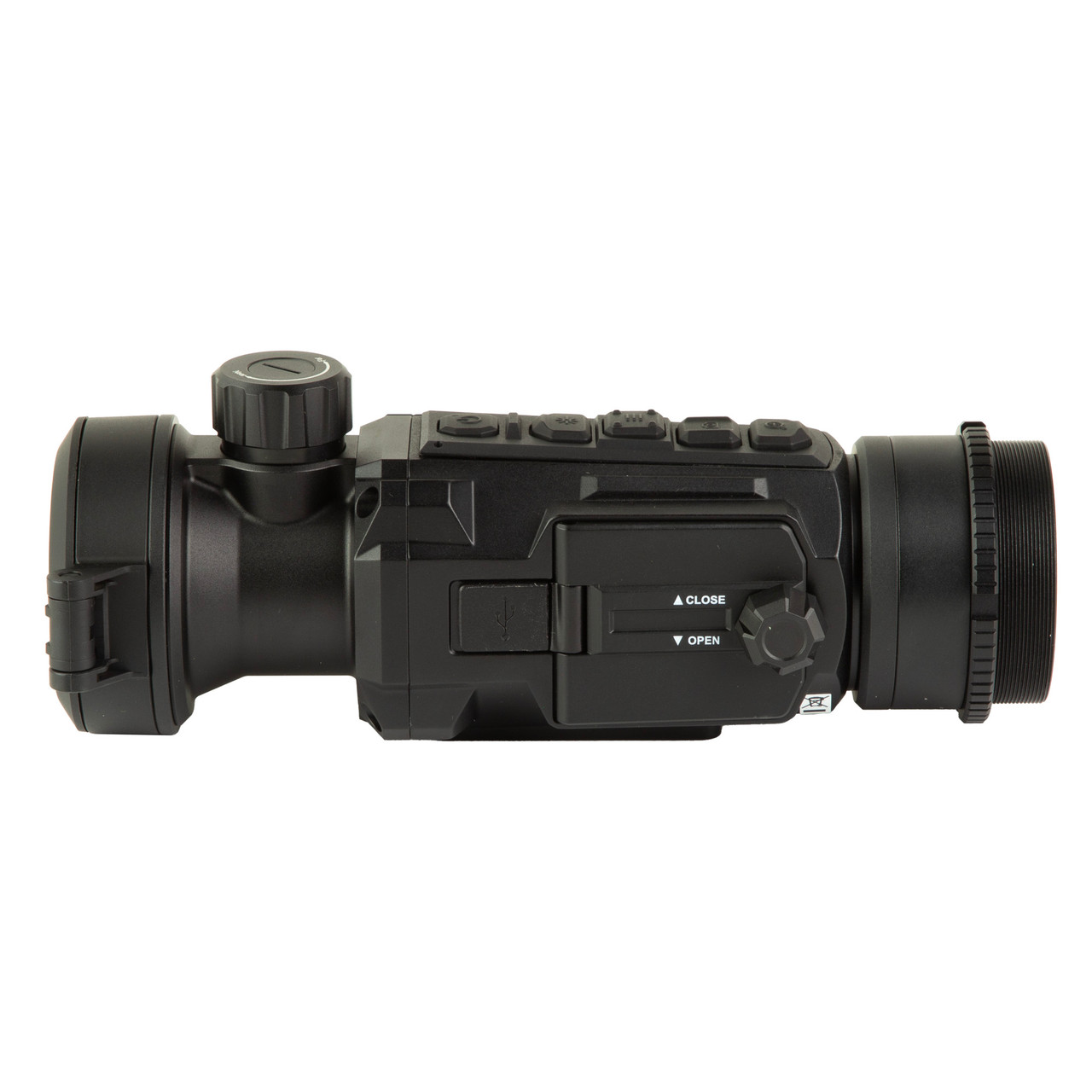

The Secutor LRF-C is a compact thermal imaging clip-on system with built-in precision laser rangefinder that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment.

Equipped with a highly sensitive, 12μm thermal detector and 1024×768 OLED monitor, the AGM Secutor LRF-C provides a clear image under harsh environmental conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc.

The Secutor LRF-C can easily be attached in front of rifle scopes with magnification up to 10x for medium range use.

Features

• Quick conversion of daytime optics into thermal imaging scope
• 12μm thermal detector
• High sensitivity (NETD less than 20 mK)
• Fast 50Hz imaging
• Built-in laser rangefinder
• Adjustable color palettes
• High resolution OLED display
• On-board video/audio recording and image capture
• Built-in EMMC storage (16 GB)
• Wi-Fi data transmission
• Standby mode
• More than 6 hours battery life
• External power supply compatibility
• Waterproof & shockproof

Includes

• Mount
• Four CR123A Battery
• USB Cable
• Lens Cloth
• Manual
• Carrying Case

Specifications

• Palettes: Black Hot, White Hot, Red Hot, Fusion

• Dimensions: 193 × 104 × 74 mm (7.6 × 4.1 × 2.9 in) (w/o mount)

• Exit Pupil Diameter: 22 mm

• Video Recording: Yes

• Audio Recording: Yes

• Magnification: 1x

• Detector Type: 12μm VOx Uncooled Focal Plane Array

• Response Waveband: 8 μm to 14 μm

• FFC (Flat Field Correction): Auto, Manual, External Correction

• Highest Temperature Spot Tracking: Yes

• Standby Mode: Yes

• Refresh Rate: 50 Hz

• Resolution: 640 × 512

• Laser Rangefinder: Up to 1000 m, ±4 m accuracy

• Laser Wavelength: 905 nm

• Detection Range (6' object): 2,600 m/yd

• Lens System: 50 mm; F1.0

• NETD: Less than 20 mK (@25°C), F#=1.0

• Field of View (H × X): 8.8° × 7.0°

• Monitor: 1024 × 768, 0.39 inch, OLED

• Storage: 16 GB EMMC

• Capture Snapshot: Yes

• Battery Type: Four CR123A Lithium Battery

• Wi-Fi: Yes

• Battery Operating Time: More than 6 hours

• External Power Supply: 5 VDC/2 A, USB Type-C

• Operating Temperature Range: -30°C to 55°C (-22°F to 131°F)

• Weight: 0.63 kg (1.38 lb)

• Protection Level: IP67

Resources

• User Manual
• Data Sheet
