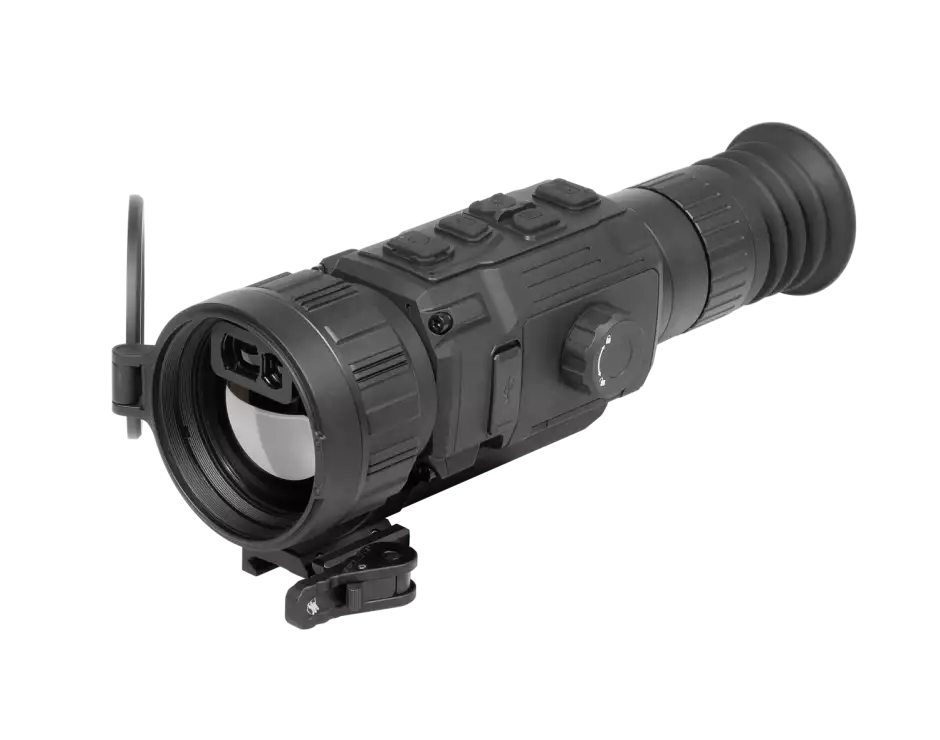

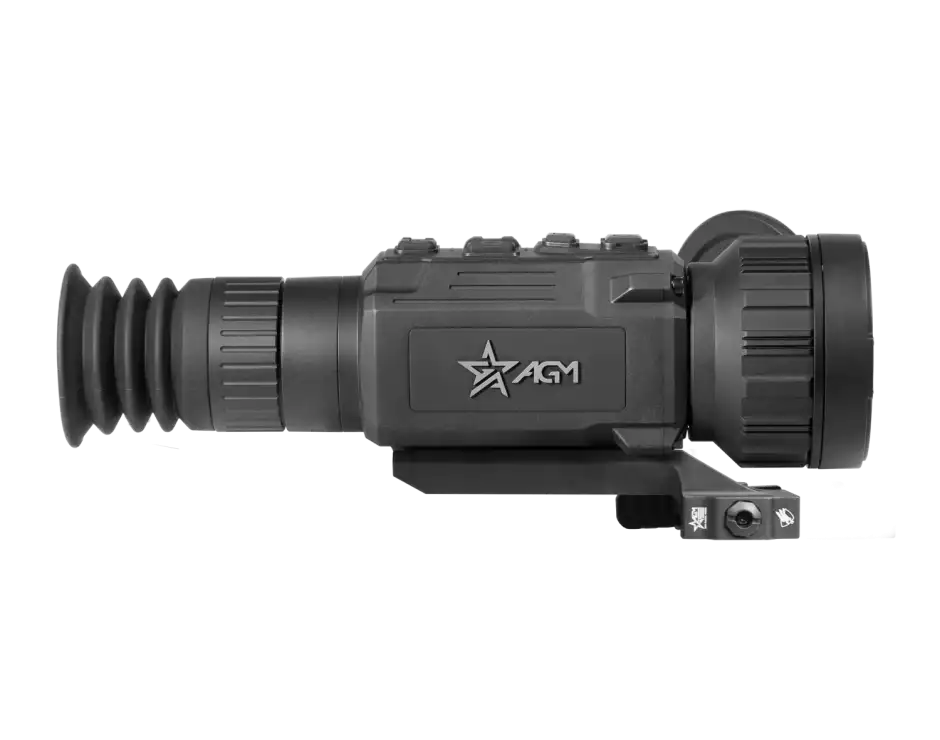

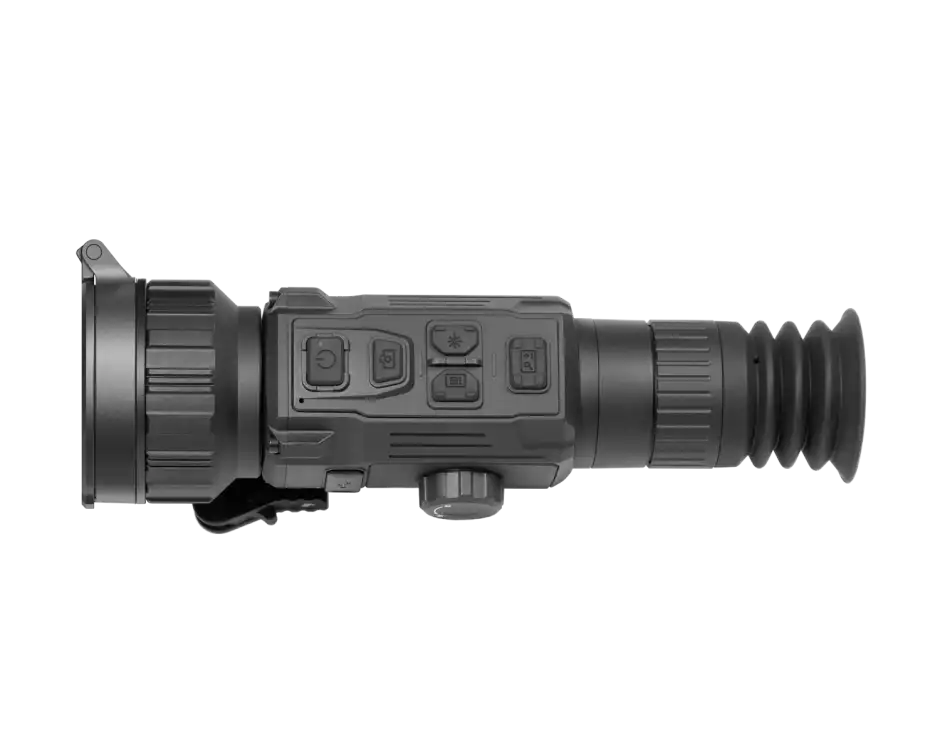

AGM Global Vision Rattler V3 LRF Thermal Riflescope

AGM Global Vision Rattler V3 LRF Thermal Riflescope

The AGM RattlerV3 LRF 50-640 introduces in-lens laser rangefinding (LRF) technology to the Rattler series.

It features a 2560x2560 high-resolution display paired with a sub-15mK thermal sensor, delivering AGM’s clearest 640-resolution thermal image to date with a 2.2-mile detection range. Two new red and green monochrome palettes are now supported.

The V3 is the first Rattler with a shutterless NUC system for real-time, non-freezing image calibration. Base magnification is increased to 3.5x, making it well-suited for longer-range engagements. Users can now view photos and video directly on the device without external apps or manual transfers.

An upgraded imaging algorithm further enhances image clarity, positioning the RattlerV3 among the top-tier 640-class thermal scopes.

AGM Global Vision Rattler V3 LRF Thermal Riflescope Features

• Superior sub-15 milikelvin thermal sensitivity
• 640×512 resolution with 12-micron sensor
• Built-in 1,000m laser rangefinder in the lens
• Integrated ballistic calculator
• Large OLED display with 2560x2560 resolution
• Shutterless technology
• Various reticle types and colors
• 3.5x to 28x magnification
• On-board video/audio recording and image capture
• Built-in EMMC storage (64 GB)
• Shot Activated Recording (SAR)
• Wi-Fi data transmission
• Standby mode
• Over 5.5 hours battery life
• External power supply compatibility
• Waterproof & shockproof

AGM Global Vision Rattler V3 LRF Thermal Riflescope Resources

AGM Rattler V3 LRF Thermal Riflescope User Manual

AGM Rattler V3 LRF Thermal Riflescope Datasheet

AGM Rattler V3 LRF Thermal Riflescope Specifications

• Safety Class for Laser: Class 1
• Shot-Activated Recording: Yes
• Max. Recoil: 1000g / 0.4 ms
• Ballistic Calculator: Yes
• Dimensions: 232 × 83 × 70 mm (9.1 × 3.3 × 2.8 in)
• Wavelength: 905 nm
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil Diameter: 6 mm
• Reticle: 10 types
• Distance Measurement: Built-in Laser Rangefinder
• Picture-in-Picture Mode (PIP): Yes
• Defective Pixels Correction (DPC): Yes
• Audio Recording: Yes
• Magnification: 3.5× – 28×
• Detector Type: 12μm Uncooled Focal Plane Arrays
• FFC (Flat Field Correction): Semi-Auto, Manual
• Standby Mode: Yes
• Refresh Rate: 50 fps
• Aperture: F/1.0
• Resolution: 640 × 512
• Measuring Distance of Laser Rangefinder: 10 m to 1000 m
• Detection Range (6' object): 3540 m
• NETD: ≤15 mK
• Field of View (H × V): 8.7° × 7.0° (15.2 m × 9.19 m @ 100 m)
• Digital Zoom: 1×, 2×, 4×, 8×
• Diopter Adjustment Range: –4 D to +3 D
• Focusing Range: 15 m minimum
• Hot Track: Yes
• Eye Relief: 45 mm
• Display: 2560 × 2560, 1.03″ OLED
• Storage: Built-in EMMC (64 GB)
• Record Video: Yes
• Capture Snapshot: Yes
• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Wi-Fi: Yes
• Battery Operating Time: ≥5.5 h (at 25°C, with hotspot off)
• Power Supply: 5V DC / 2A (supports external power supply)
• Operating Temperature Range: –30°C to 55°C (–22°F to 131°F)
• Weight: 585 g (1.3 lb)
• Protection Level: IP67

Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
