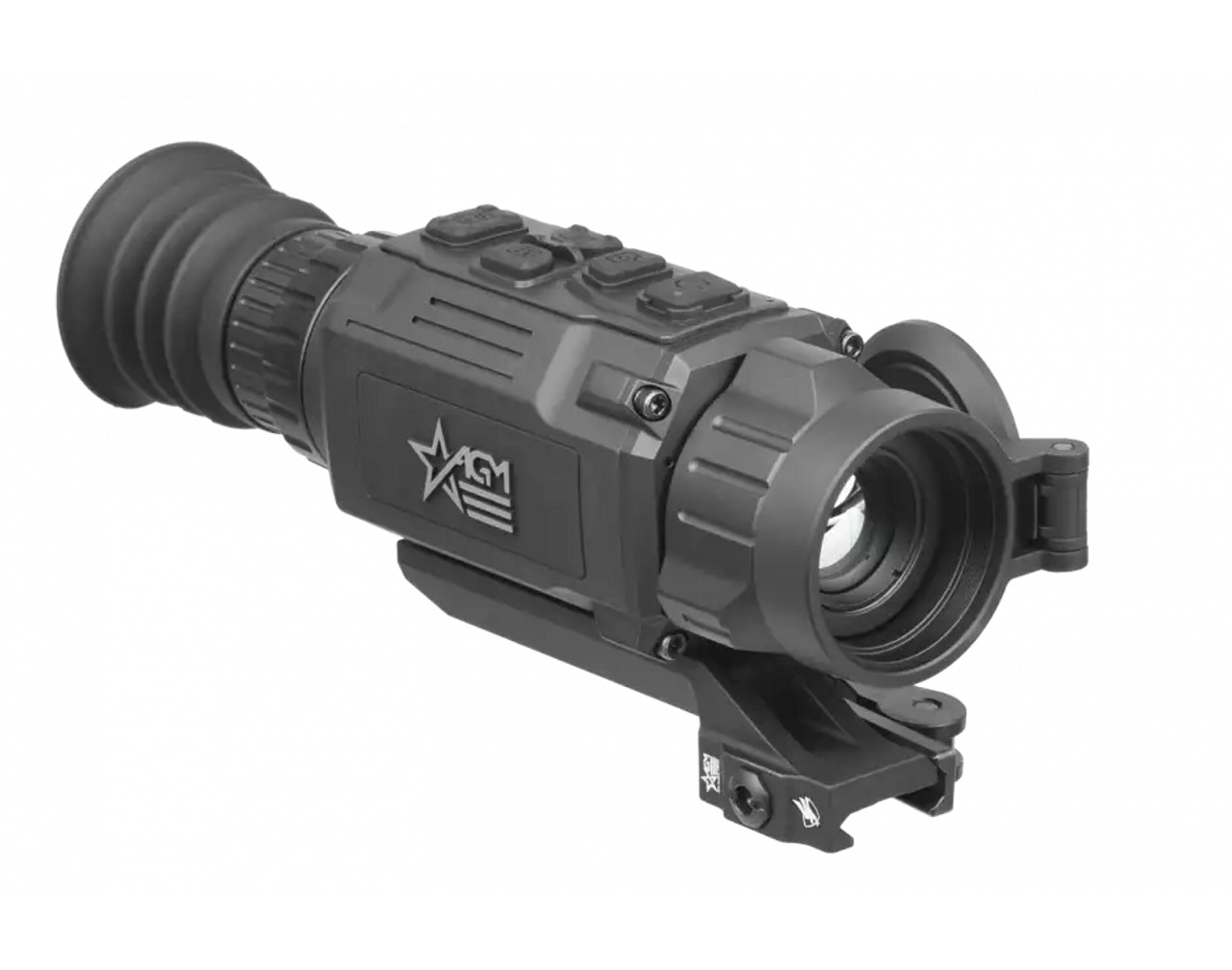

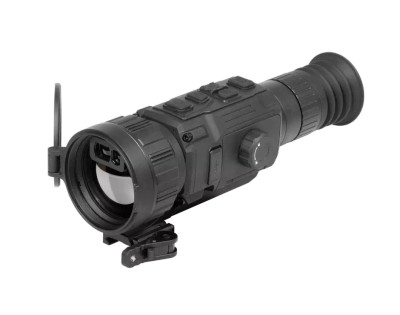

AGM Global Vision Rattler V2 25-320 Thermal Riflescope

✨  AGM Global Vision Rattler V2 25-320 Thermal Riflescope   ✨

The Rattler V2 features a 12-micron thermal sensor with a high sensitivity rating (sub-20 mK), 25mm Germanium lens, 320x256 resolution thermal sensor and 3.5X magnification.

Features

• Superior sub-20 milikelvin thermal sensitivity
• 320×256 resolution with 12-micron sensor
• Fast 50Hz imaging
• High resolution OLED display
• Adjustable color palettes
• Various reticle types and colors
• 1x, 2x, 4x, 8x digital zoom
• On-board video/audio recording and image capture
• Built-in EMMC storage (16 GB)
• Shot Activated Recording (SAR)
• Wi-Fi data transmission
• Stadiametric rangefinder
• Standby mode
• Over 6.5 hours battery life
• External power supply compatibility
• Waterproof & shockproof

Characteristics

• Detector type: 12μm VOx Uncooled Focal Plane Array
• Refresh rate: 50 Hz
• Resolution: 320 × 256
• Base Magnification: 3.5× - 28×
• FOV: 7.0° × 5.3°

Includes

• Thermal Imaging Rifle Scope
• Mount
• Two Rechargeable Battery
• Charger
• USB Cable
• Lens Cloth
• Manual
• Carrying Case

Specifications

• Shot-Activated Recording: Yes
• Max. Recoil: 1000 g/0.4 ms
• Flat Field Correction (FFC): Auto, Manual, Semi-Auto
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• Dimensions: 219 × 68 × 67 mm (8.5 × 2.7 × 2.6 in)
• Exit Pupil Diameter: 6 mm
• Reticle: 10 types, 4 colors, on/off
• Boresight Adjustment: Digital Controlled
• Distance Measurement: Yes (Stadiametric)
• Scene Mode: Cold, Warm
• Picture In Picture Mode (PIP): Yes
• Video Recording: Yes
• Defective Pixels Correction (DPC): Yes
• Audio Recording: Yes
• Magnification: 3.5× - 28×
• Detector Type: 12μm VOx Uncooled Focal Plane Array
• Standby Mode: Yes
• Refresh Rate: 50 Hz
• Resolution: 320 × 256
• Detection Range (6' object): 1200 m/yd
• Snapshot: Yes
• Lens System: 25 mm; F/1.0
• NETD: Less than 20 mK (@25°C, F# = 1.0)
• Field of View (H × X): 7.0° × 5.3°
• Digital Zoom: 1×, 2×, 4×, 8×
• Diopter Adjustment Range: -5 to +5 dpt
• Focusing Range: 7 m to infinity
• Hot Track: Yes
• Eye Relief: 45 mm
• Display: 0.39-inch, OLED, 1024×768
• Storage: Built-in EMMC (16 GB)
• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Wi-Fi: Yes
• External Power Supply: 5 VDC, 2 A, USB Type-C
• Operating Temperature Range: -30°C to +55°C (-22°F to 131°F)
• Weight: 0.49 kg (1.08 lb)
• Protection Level: IP67
• Battery Life (Operating): Over 6.5 hours (25°C, with WiFi off)

Resources

• User Manual
• Data Sheet

Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
