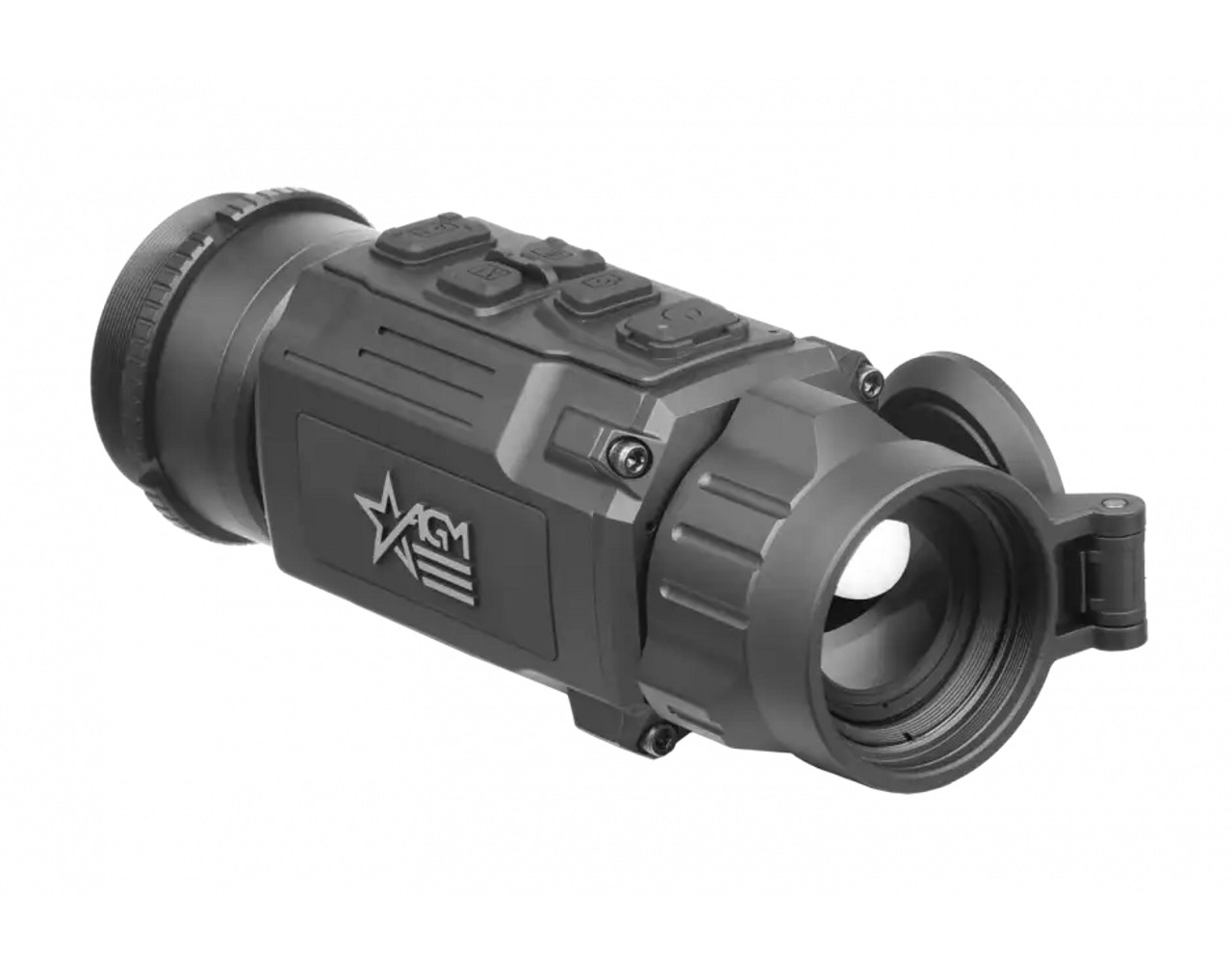

AGM Global Vision Rattler-C V2 35-384 Thermal Imaging Clip-On

✨  AGM Global Vision Rattler-C V2 50-640 Thermal Imaging Clip-On  ✨

The AGM Rattler-C V2 35-384 thermal clip-on boasts 12 micron, high-sensitivity sub-20mk thermal detectors and provide a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The Rattler-C V2 clip-on can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required.

Features

• Quick conversion of daytime optics into thermal imaging scope
• 12μm high-sensitivity thermal detector, NETD < 20mK
• Fast 50Hz imaging
• High resolution OLED display
• Adjustable color palettes
• On-board video/audio recording and image capture
• Built-in EMMC storage (16 GB)
• Shot Activated Recording (SAR)
• Wi-Fi data transmission
• Stadiametric rangefinder
• Standby mode
• 9 - 11 hours battery life (depending on model)
• External power supply compatibility
• Waterproof & shockproof

Characteristics

• Detector type: 12μm VOx Uncooled Focal Plane Array
• Refresh rate: 50 Hz
• Resolution: 384 x 288
• FOV: 7.5° × 5.6°

Includes

• Mount
• Two Rechargeable Battery
• Charger
• USB Cable
• Lens Cloth
• Manual
• Carrying Case

Specifications

• Dimensions: 184 × 68 × 67 mm (7.2 × 2.7 × 2.6 in)
• Flat Field Correction (FFC): Auto, Manual, External Correction
• Palettes: Black hot, White hot, Red hot, Fusion
• Exit Pupil Diameter: 22 mm
• Distance Measurement: Yes (Stadiametric)
• Scene Mode: Cold, Warm
• Video Recording: Yes
• Audio Recording: Yes
• Detector type: 12μm VOx Uncooled Focal Plane Array
• Standby Mode: Yes
• Refresh rate: 50 Hz
• Resolution: 384 × 288
• Detection Range (6' object): 1800 m/yd
• Lens system: 35 mm; F/1.0
• NETD: Less than 20 mK (25°C, F# = 1.0)
• Optical magnification: 1×
• Field of view (H × X): 7.5° × 5.6°
• Hot Track: Yes
• Eye relief: 10 mm
• Display: 0.39-inch, OLED, 1024×768
• Storage: Built-in EMMC (16 GB)
• Capture Snapshot: Yes
• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Wi-Fi: Yes
• Battery Life (Operating): 11 h (25°C, with hotspot off)
• External power supply: 5 VDC, 2 A, USB Type-C
• Operating Temperature Range: -30°C to +55°C (-22°F to 131°F)
• Weight: 0.54 kg (1.19 lb)
• Protection Level: IP67
• Package Includes: Thermal Imaging Clip-On, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
• Focus Range: 2 m to infinity

Resources

• User Manual
• Data Sheet
