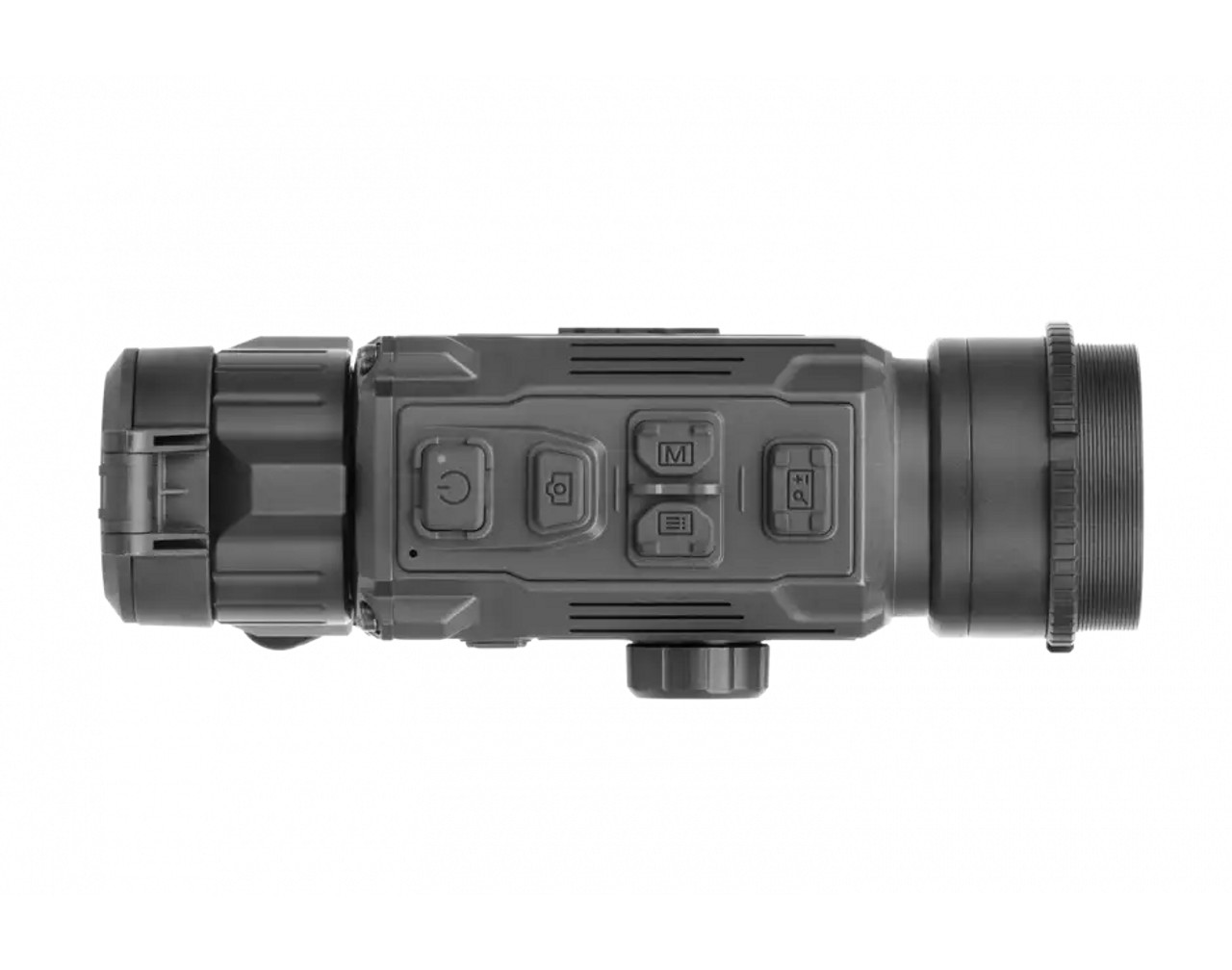

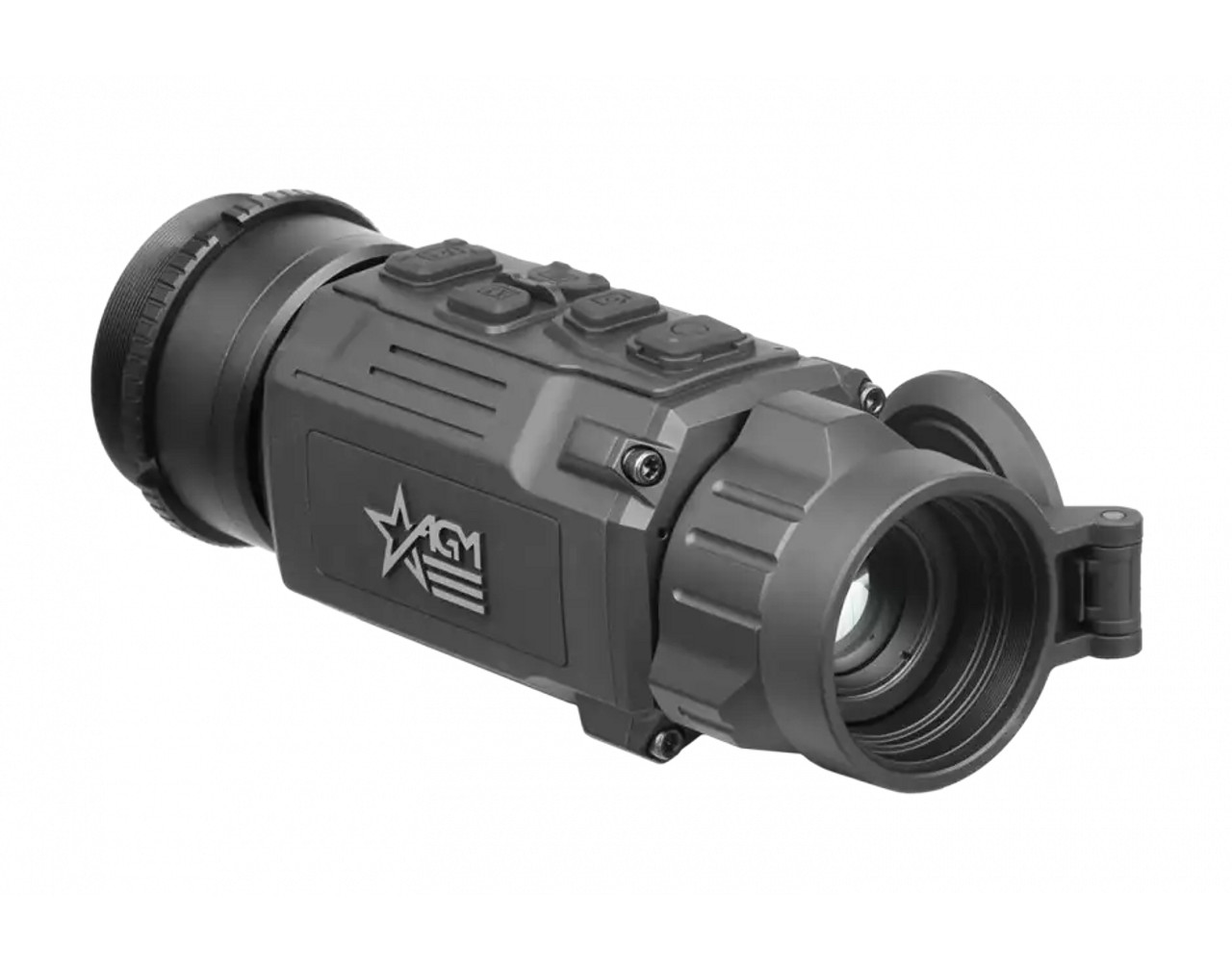

✨ AGM Global Vision Rattler-C V2 19-256 Thermal Imaging Clip-On ✨
Features
- Quick conversion of daytime optics into thermal imaging scope
- 12μm high-sensitivity thermal detector, NETD < 20mK
- Fast 50Hz imaging
- High resolution OLED display
- Adjustable color palettes
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Shot Activated Recording (SAR)
- Wi-Fi data transmission
- Stadiametric rangefinder
- Standby mode
- 9 - 11 hours battery life (depending on model)
- External power supply compatibility
- Waterproof & shockproof
Characteristics
- Detector type: 12μm VOx Uncooled Focal Plane Array
- Refresh rate: 50 Hz
- Resolution: 256 x 192
- FOV: 9.3° × 6.9°
Includes
- Mount
- Two Rechargeable Battery
- Charger
- USB Cable
- Lens Cloth
- Manual
- Carrying Case
Specifications
- Shot-Activated Recording: Yes
- Max. Recoil: 1000 g/0.4 ms
- Dimensions: 184 × 68 × 67 mm (7.2 × 2.7 × 2.6 in)
- Flat Field Correction (FFC): Auto, Manual, External Correction
- Palettes: Black hot, White hot, Red hot, Fusion
- Exit Pupil Diameter: 22 mm
- Distance Measurement: Yes (Stadiametric)
- Scene Mode: Cold, Warm
- Video Recording: Yes
- Defective Pixels Correction (DPC): Yes
- Audio Recording: Yes
- Detector type: 12μm VOx Uncooled Focal Plane Array
- Standby Mode: Yes
- Refresh rate: 50 Hz
- Resolution: 256 × 192
- Detection Range (6' object): 1000 m/yd
- Snapshot: Yes
- Lens system: 19 mm; F/1.0
- NETD: Less than 35 mK (25°C, F# = 1.0)
- Optical magnification: 1×
- Field of view (H × X): 9.3° × 6.9°
- Hot Track: Yes
- Eye relief: 10 mm
- Display: 0.39-inch, OLED, 1024×768
- Storage: Built-in EMMC (16 GB)
- Battery Type: 4400mAh Replaceable and Rechargeable Li-ion Battery
- Wi-Fi: Yes
- Battery Life (Operating): 11.5 h (25°C, with hotspot off)
- External power supply: 5 VDC, 2 A, USB Type-C
- Operating Temperature Range: -30°C to +55°C (-22°F to 131°F)
- Weight: 0.5 kg (1.10 lb)
- Protection Level: IP67
- Focus Range: 0.5 m to infinity
