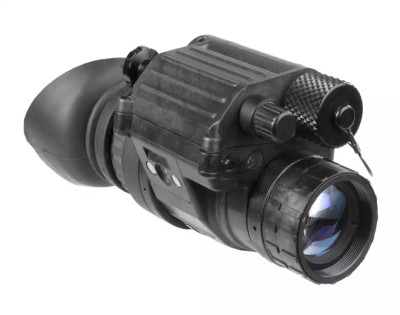

AGM Global Vision PVS-14 3AL2 Night Vision Monocular Gen 3 Auto-Gated "Level 2"

✨ AGM Global Vision PVS-14 3AL2 Night Vision Monocular  ✨

Gen 3 Auto-Gated "Level 2"

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets, providing night vision capabilities to daytime optical sights.

The PVS-14 monocular is a full-featured unit and includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM’s PVS14 includes an array of optional accessories to support virtually any operation.

Features

• Compact, rugged design
• Waterproof
• Head or helmet-mountable for hands-free usage
• Manual gain control
• Ergonomic, simple, easy-to-operate controls
• Built-in Infrared illuminator and flood lens

Characteristics

• Image Intensifier Tube: Gen 3 Auto-Gated "Level 2"
• Magnification: 1x (3x and 5x optional)
• Lens System: 27 mm; F/1.2
• FOV: 40°

Includes

• Packing Box
• System Soft Carrying Case
• Helmet/ Head Mount Adapter
• Head Mount Assembly
• Neck Lanyard
• Operators Manual
• Batteries
• Demist Shields
• Sacrificial Window
• Lens Tissue

Specifications

• Image Intensifier Tube: Gen 3 Auto-Gated "Level 2"
• Resolution: 64-72 lp/mm
• Field of View Cleanness by Zone: Gen 3 IIT 3AL2 is the second-best quality offered by AGM, with a very limited number of spots in Zone 1.
• Magnification: 1x (3x and 5x optional)
• Lens System: 27 mm; F/1.2
• FOV: 40°
• Focus Range: 0.25 m to infinity
• Diopter Adjustment: -6 to +2 dpt
• LED Indicators: Low battery; IR On; Excessive light conditions
• Infrared Illuminator: Yes
• Manual Gain Control: Yes
• Bright Light Cut-Off: Yes
• Automatic Shut-Off System: Yes
• Battery Type: One AA Alkaline
• Battery Life (Operating): Up to 40 hours at 20°C
• Operating Temperature Range: -51° C to +49° C (-60° F to 120° F)
• Storage Temperature Range: -51° C to +85° C (-60° F to 185° F)
• Weight: 0.35 kg (12.4 oz)
• Overall Dimensions: 114 x 63 x 69 mm (4.5 x 2.5 x 2.7 in)

Resources

• User Manual
• Data Sheet

Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
