AGM Global Vision ObservIR LRF 35-384 Thermal & Digital Day / Night Vision Binocular with Laser Rangefinder

AGM Global Vision ObservIR LRF 35-384 Thermal & Digital Day / Night Vision Binocular with Laser Rangefinder

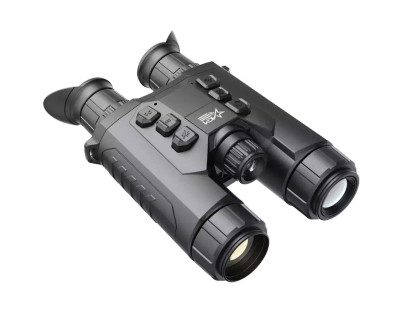

The AGM ObservIR LRF Thermal & Digital Day/Night Vision binocular features a high-sensitivity 12 micron detector and also come outfitted with a digital day/night channel and built-in 1,000m laser rangefinder

Features

• Dual-spectrum thermal and digital day/night system
• 12μm high-sensitivity thermal sensor
• 384x288 thermal resolution
• 4x – 20x thermal magnification
• Digital image processing technology
• Ultra-low illumination optical channel
• 3840×2160 optical resolution
• Built-in IR illuminator
• Eye-safe 1,000 m laser rangefinder
• 1920×1080 resolution, 0.49-inch OLED display
• Digital Magnetic Compass
• Built-in GPS module
• Video/audio recording and snapshot capture
• Built-in 64 GB EMMC storage
• Wi-Fi hotspot
• Standby mode
• 8-hour continuous operation on a single charge
• Auto screen-off function to save energy
• External power supply capability
• Rugged housing with rubber overmolding
• Waterproof and dustproof

Resources

• User Manual
• Data Sheet

Specifications

• Interpupillary Distance: 60 mm to 74 mm
• Safety Class for Laser: Class 1
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• Dimensions: 221×142×71 mm (8.7×5.6×2.8 in)
• Infrared Illuminator: Built-in 850nm Smart IR, Power and beam angle adjustment
• Distance Measurement: Laser Rangefinder: up to 1,000 m, ±1 m accuracy
• Scene Mode: Jungle, Recognition
• Video Recording: Yes
• Audio Recording: Yes
• Magnification: Thermal Channel - 4.0x – 20x / Optical Channel - 5.5x – 22x
• Detector Type: Thermal Detector - 12μm VOx Uncooled Focal Plane Array / Digital Sensor - 3840×2160, 1/88” Progressive Scan CMOS
• FFC (Flat Field Correction): Auto, Manual, External Correction
• Highest Temperature Spot Tracking: Yes
• Standby Mode: Yes
• Refresh Rate: 50 Hz
• Resolution: 384 × 288
• Laser Wavelength: 905 nm
• Detection Range (6' Object): 1,800 m
• Snapshot: Yes
• Lens System: Thermal Channel - 35 mm; F1.0 / Optical Channel - 60 mm, F2.2
• NETD: Less than 15 mK (25°C, F#=1.0)
• Field of View (H × X): Thermal Channel - 7.5° × 5.7° / Optical Channel - 6.9° × 4.1°
• Diopter Adjustment Range: -5 to +3
• Monitor: 1920×1080, 0.49 inch, OLED, 50 FPS
• Display: Day, Night, Auto
• Storage: 64 GB EMMC
• Battery Type: Two 18650 rechargeable batteries (removable)
• Wi-Fi: Yes
• Battery Life (Operating): Up to 8 hours continuous running (@25°C, WiFi, IR, and LRF off)
• Power Supply: 5 VDC/2 A, USB Type-C interface, Supports external power supply
• Operating Temperature Range: -20°C to 55°C (-4°F to 131°F)
• Weight: 0.91 kg (2.01 lb)
• Protection Level: IP67 (Waterproof)

Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
