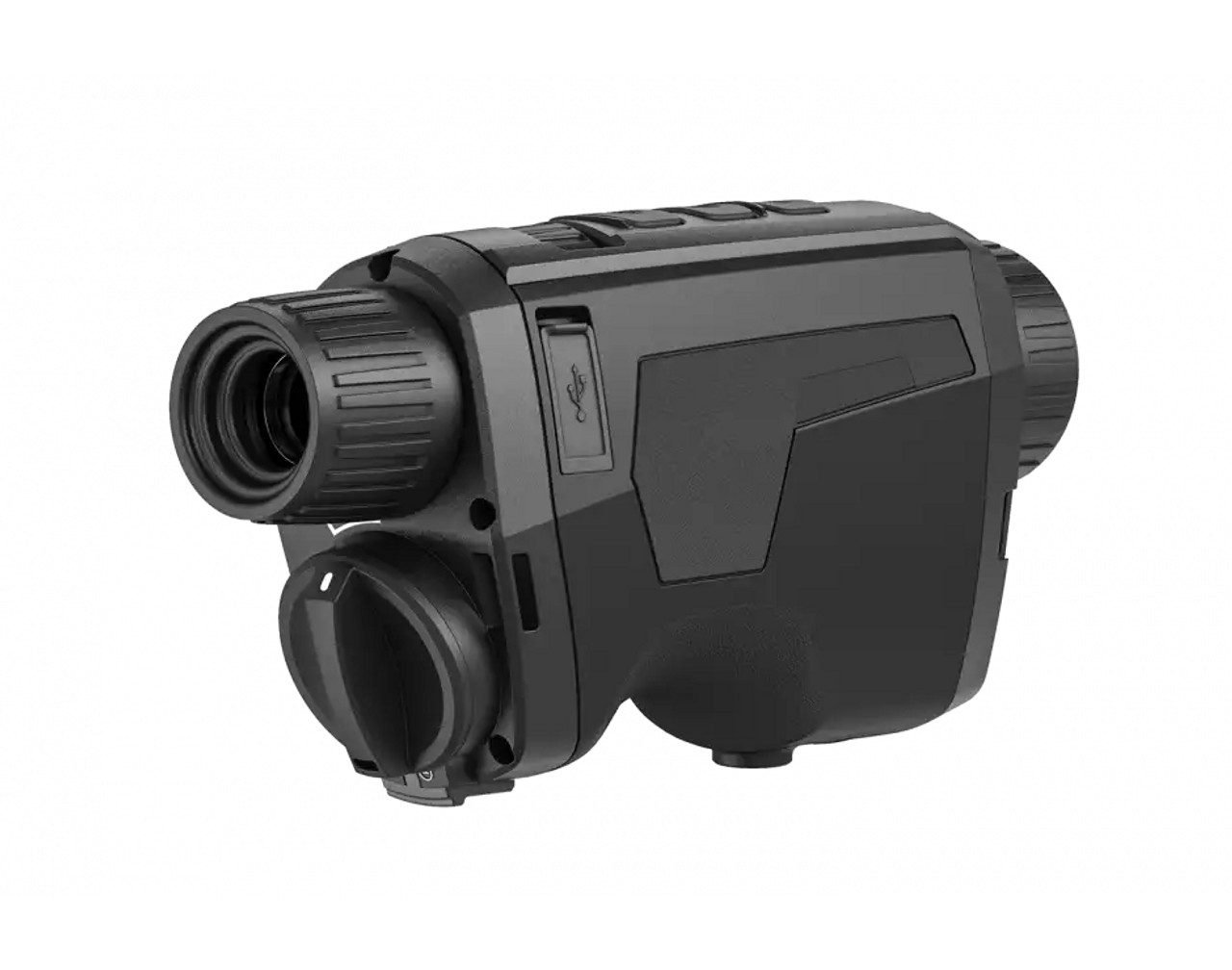

AGM Global Vision Fuzion LRF TM35-640 Thermal & CMOS Monocular

✨  AGM Global Vision Fuzion LRF TM35-640 Thermal & CMOS Monocular  ✨

The AGM Fuzion LRF TM35-640 Thermal & Digital Day/Night Vision monocular features a main thermal viewing channel with a high-sensitivity 12 micron 640x512 thermal detector. This sensor from AGM will ensure that not only are human-sized heat signatures detectable at up to 1 mile (1750m), but also that foliage and other background imagery will be crisp and detailed in closer distances/ranges.

The Fuzion LRF also come outfitted with a digital night vision channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 600m laser rangefinder takes the Fuzion LRF to another level.

Features

• Bi-spectrum image fusion and object highlight

• Detail enhancement and target recognition

• Selection of thermal view channel, visible light channel, or both them combined

• 12 μm, 35 mK NETD high sensitivity thermal detector

• Fast 50Hz imaging

• 1x, 2x, 4x, 8x digital zoom

• Digital image processing technology

• Ultra-low illumination optical channel

• 1920×1080 Optical resolution

• Eye-safe laser rangefinder

• 1024×768 resolution, 0.39-inch OLED display

• Video recording and snapshot, built-in EMMC (16 GB)

• Wi-Fi hotspot

• Standby mode

• Up to 5 hours continuous running

• Waterproof

Includes

• Rubber eyepiece

• 18650 Rechargeable Battery 2x

• USB Cable

• Battery Charger

• Power Adapter

• Lens Cloth

• User Manual

Specifications

• Palettes: Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion

• Working Temperature: -20°C to 55°C (-4°F to 131°F)

• Dimension (L × W × H): 168 × 87 × 74 mm (6.6 × 3.4 × 2.9 in)

• Distance Measurement: Yes (Laser Rangefinder: up to 600 m, ±1 m accuracy)

• Scene Mode: Jungle, Recognition

• Hotspot: Yes

• Observation Distance: 1750 m/yd

• Detector Type: 12 μm VOx Uncooled Focal Plane Arrays

• Response Waveband: 8 μm to 14 μm

• Optical Image Sensor: 1/2” Progressive Scan CMOS, 1920 × 1080 @ 25fps

• FFC (Flat Field Correction): Auto, Manual, External Correction

• Highest Temperature Spot Tracking: Yes

• Standby Mode: Yes

• Refresh Rate: 50 Hz

• Aperture: F1.0

• Resolution: 640 × 512

• Laser Wavelength: 905 nm

• Optical Magnification: 2x – 16x

• Lens (Focal Length): Thermal Lens - 25 mm; Optical Module Lens - 22 mm

• Power: 5 VDC/2 A, USB Type-C interface, supports external power supply

• Field of View (H × V): 12.5° × 10°

• Digital Zoom: 1x, 2x, 4x, 8x

• Monitor: 1024 × 768, 0.39 inch, OLED, 50 Hz

• Storage: Built-in 16 GB EMMC

• Record Video: On-board video recording

• Capture Snapshot: Yes

• Battery Type: One 18650 rechargeable battery (removable)

• CVBS Output: Yes (via USB)

• Battery Operating Time:
  - Up to 5 hours continuous running (@25°C, Wi-Fi and CVBS off)
  - Up to 3 hours continuous running (@25°C, Wi-Fi and CVBS on)

• Battery Capacity Display: Yes

• Weight: 520 g (1.15 lb)

• Protection Level: IP67 (Waterproof)

Resources

• User Manual
• Data Sheet
